    The paper faced gypsum board of "atlantis" brand is a new type building material which is made by using natrual high purity gypsum powder as main material,adding fibers and proper additives to make board core,and boned with specially treated protective paper by bonding agent.the material has advangtages of ligt weight.fireproof,sound isolation,heat isolation,energy consumption reduction,easy installation and use. Using the product can speed up construction speed,reduce labor strength and improve decoration effect.

    Atlantis gypsum board is in full compliance with ASTM C-1396.

Items:

1)Products:    Regular gypsum-board,Fire-resistant Paper-faced Gypsum Board,Water-resistance GB,

                       Moisture-resistance GB

2)Size:          1200*2400*,1220*2400,1200*3000,1220*1830,1220*3050,1220*3660mm

3)Thickness: 7.5mm,8mm,8.5mm,9mm,9.5mm,12mm,12.5mm,12.7mm,13mm

4)Feature:    white paper-faced(Regular), pink paper-faced(Fire-proof),

                      green paper-faced(Moisture-proof and Water-proof)

5)Packing:     two sheets glued together without pallets by hand in bulk 20 contianer



Production test:





Product Ingredients:



Production Variety:



productions:

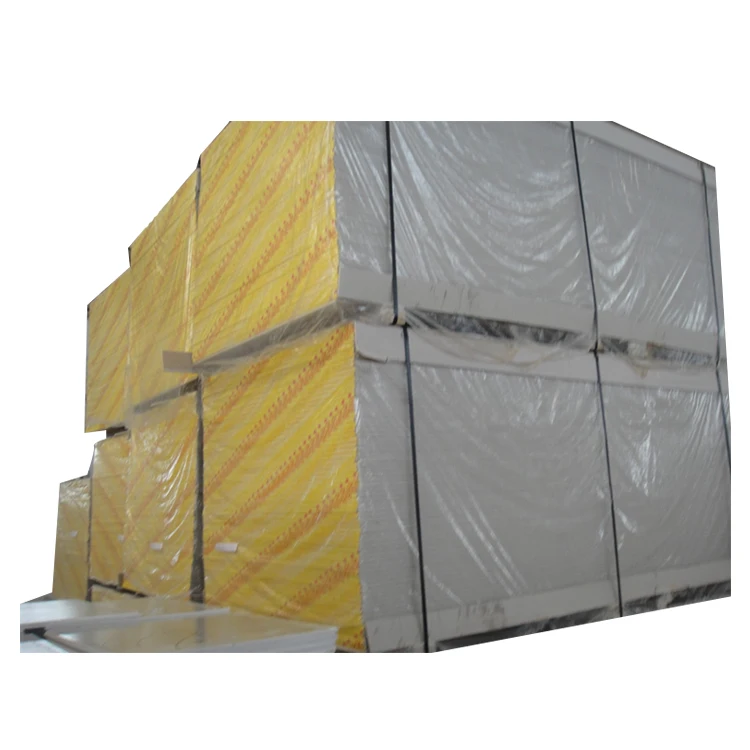

Loading details:



Thickness	Loading(+/-5%)	Kg/M2
7.0mm	4,000M2/20GP	5.7kg
7.5mm	3,900M2/20GP	5.9kg
8.0mm	3,800M2/20GP	6.2kg
8.5mm	3,700M2/20GP	6.5kg
9.0mm	3,600M2/20GP	6.8kg
9.5mm	3,500M2/20GP	7.1kg
12mm	2,500M2/20GP	9.2kg
12.5mm	2,200M2/20GP	9.5kg



Thickness	Loading into 20GP Loose	40GP(pallet)	Kg/M2
7.5mm	1150pcs/20GP	1340pcs/40GP	5.7kg/M2
8.0mm	1100pcs/20GP	1310pcs/40GP	5.9kg/M2
8.5mm	1080pcs/20GP	1280pcs/40GP	6.2kg/M2
9.0mm	980pcs/20GP	1190pcs/40GP	6.5kg/M2
9.5mm	950pcs/20GP	1160pcs/40GP	7.1kg/M2
12mm	750pcs/20GP	960pcs/40GP	9.2kg/M2
12.5mm	720pcs/20GP	920pcs/40GP	9.5kg/M2
12.7mm	710pcs/20GP	910pcs/40GP	9.7kg/M2
13mm	680pcs/20GP	880pcs/40GP	9.9kg/M2
