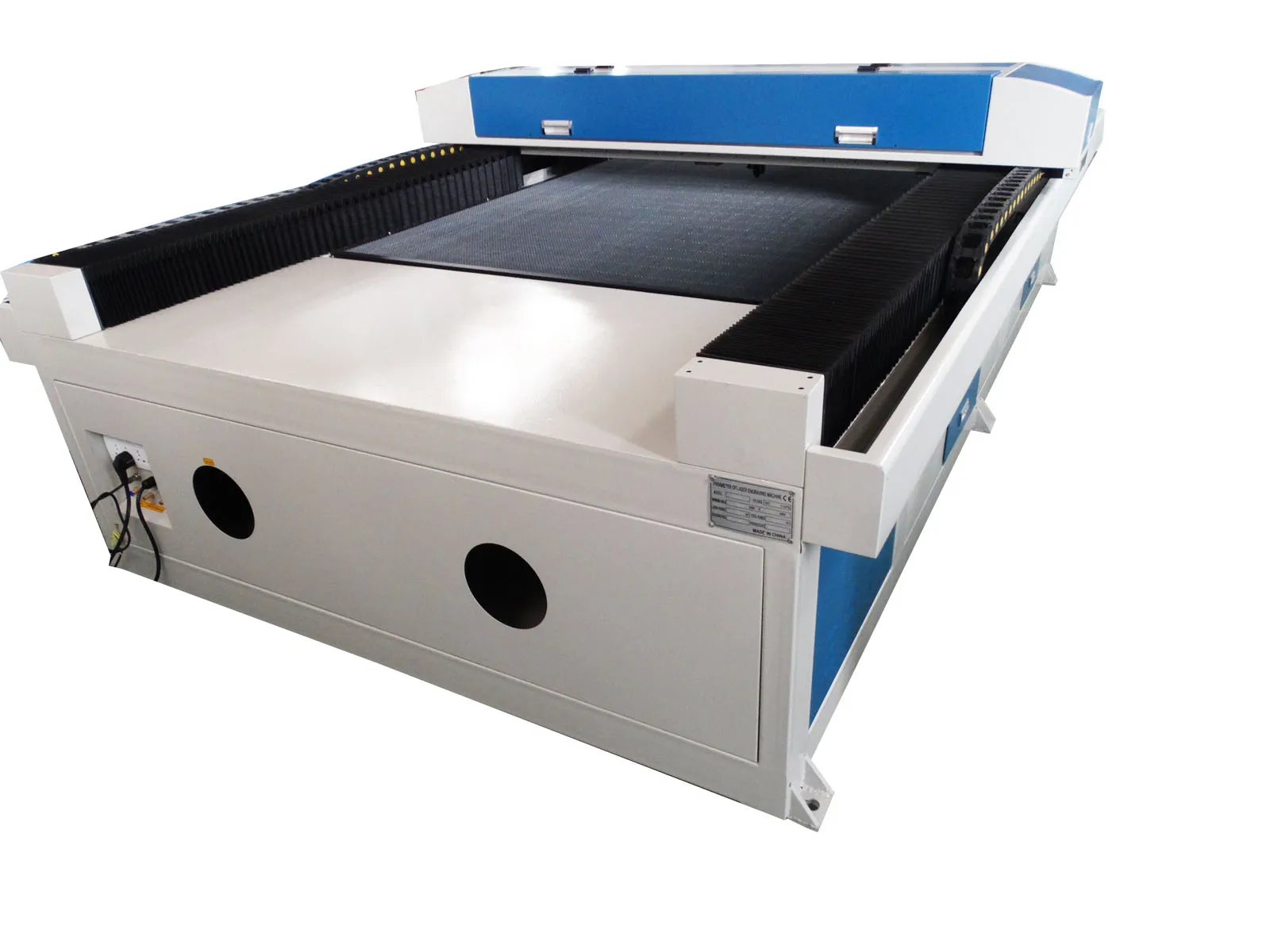

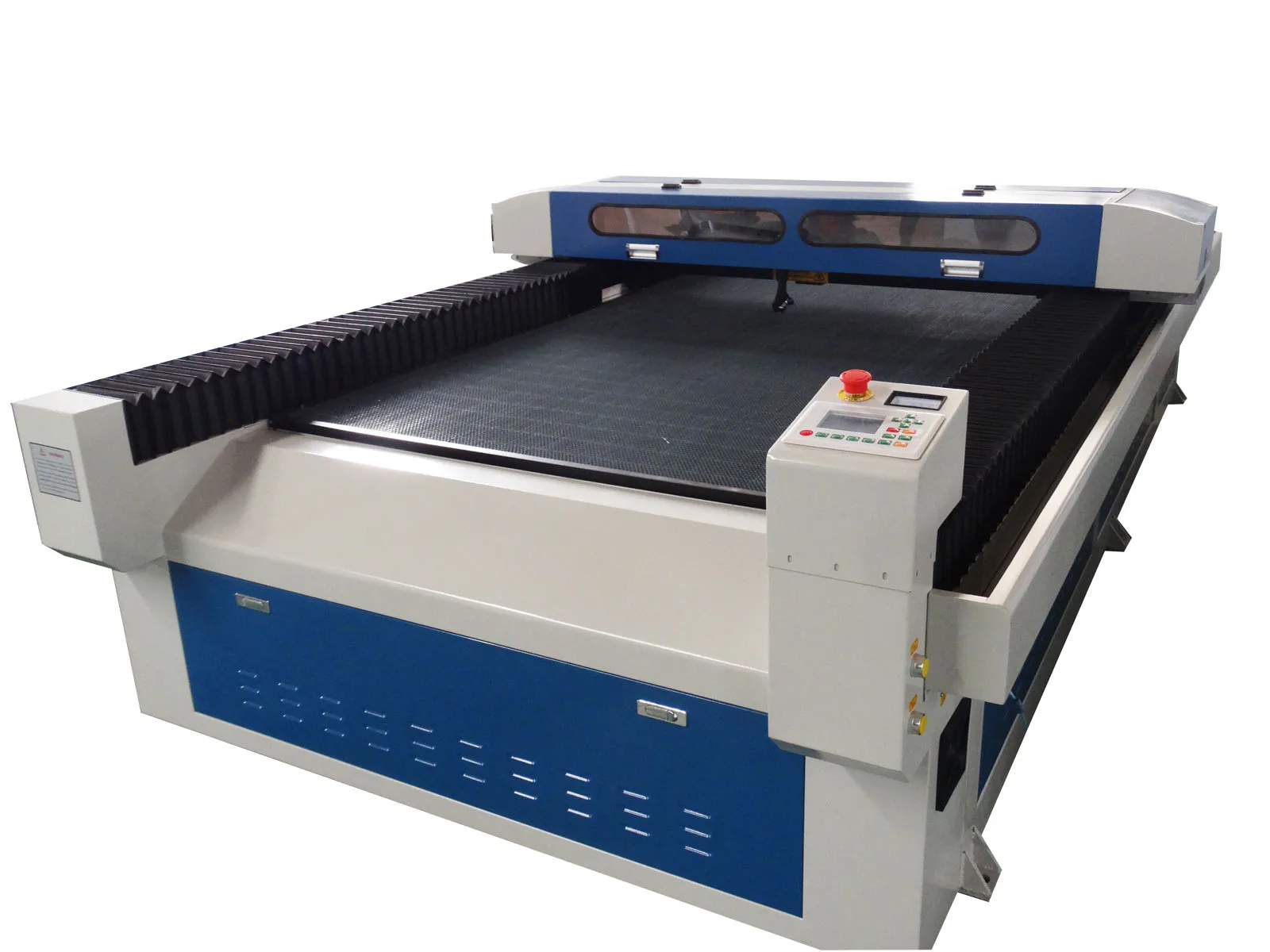

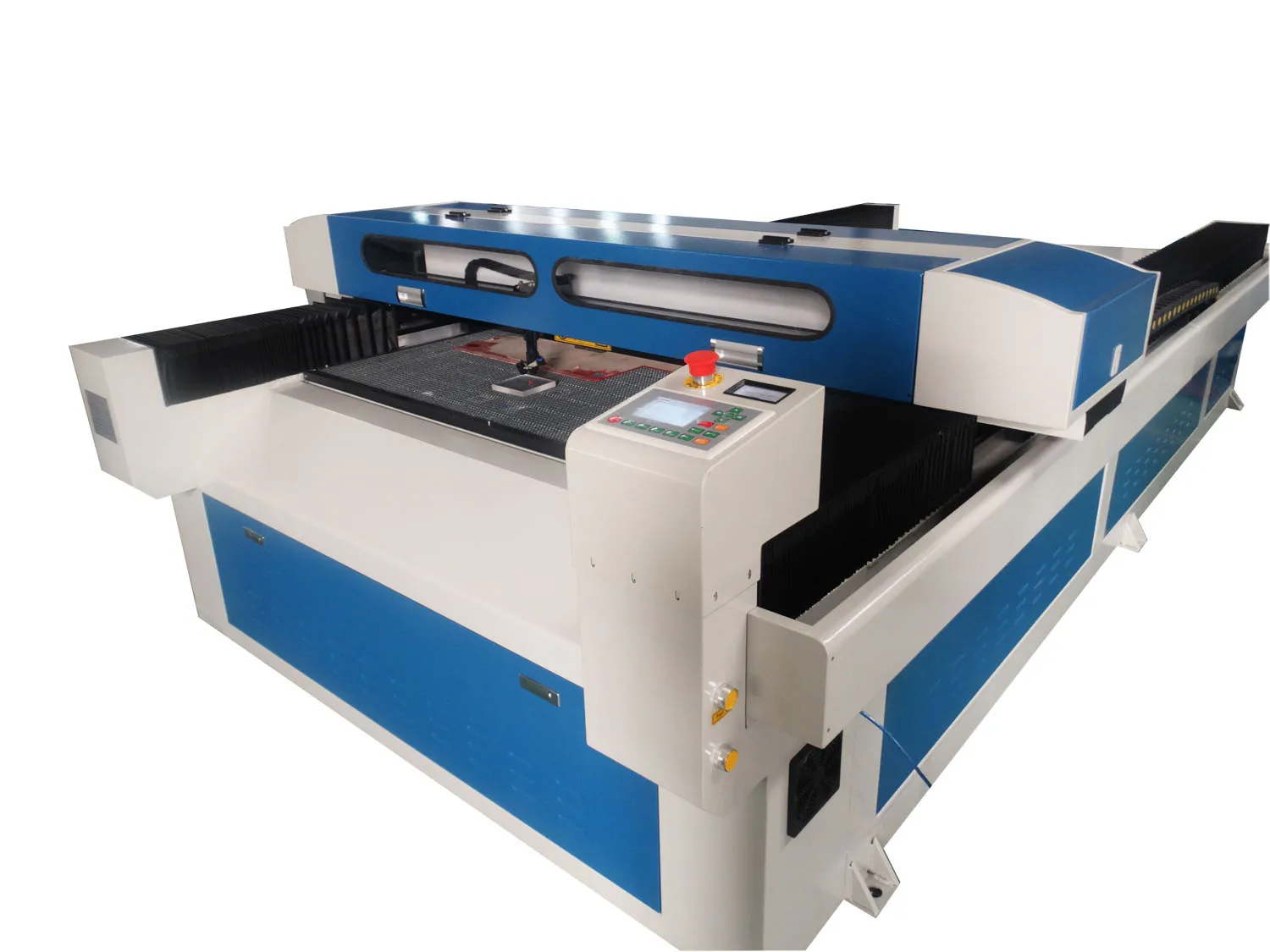

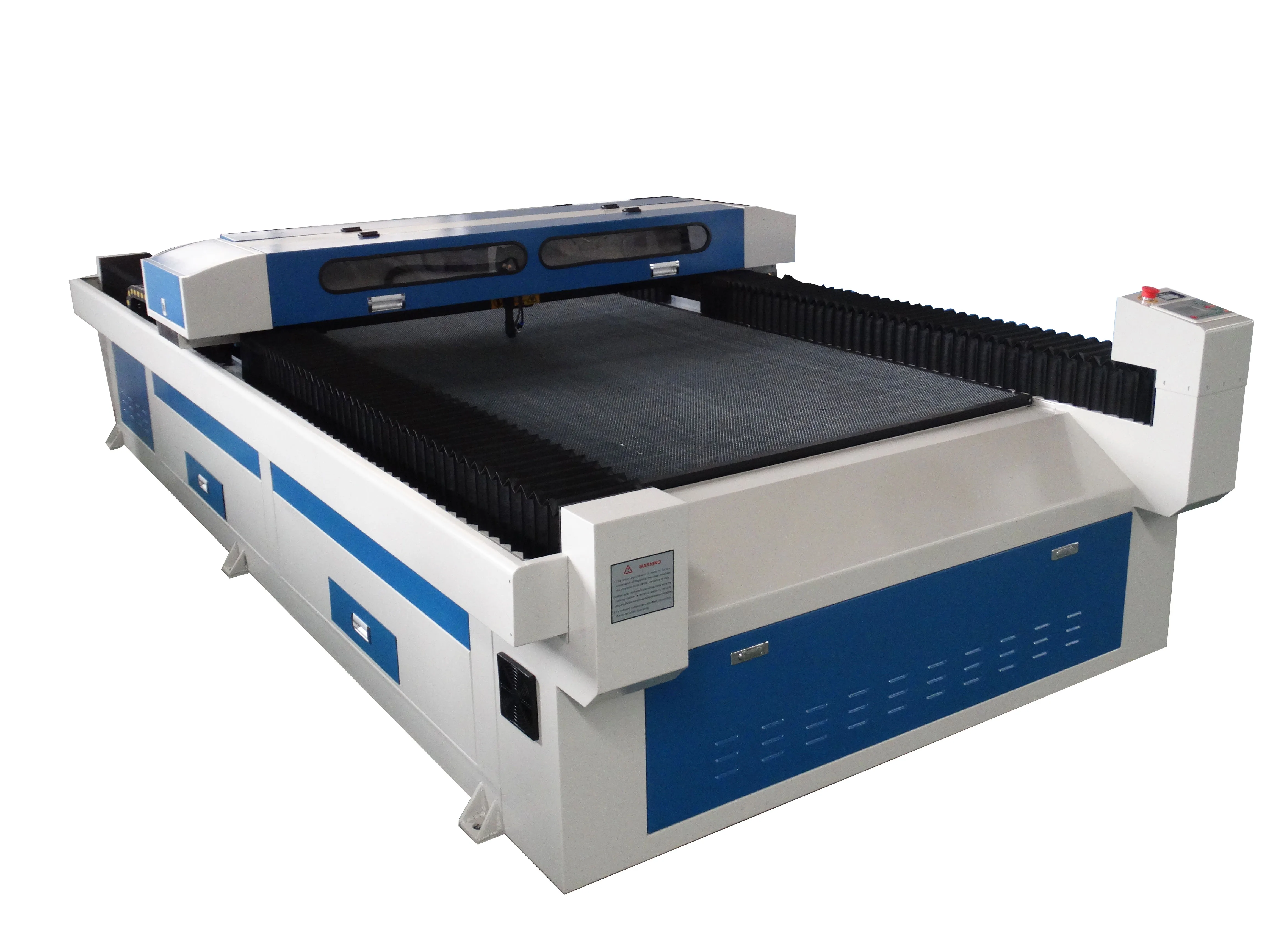

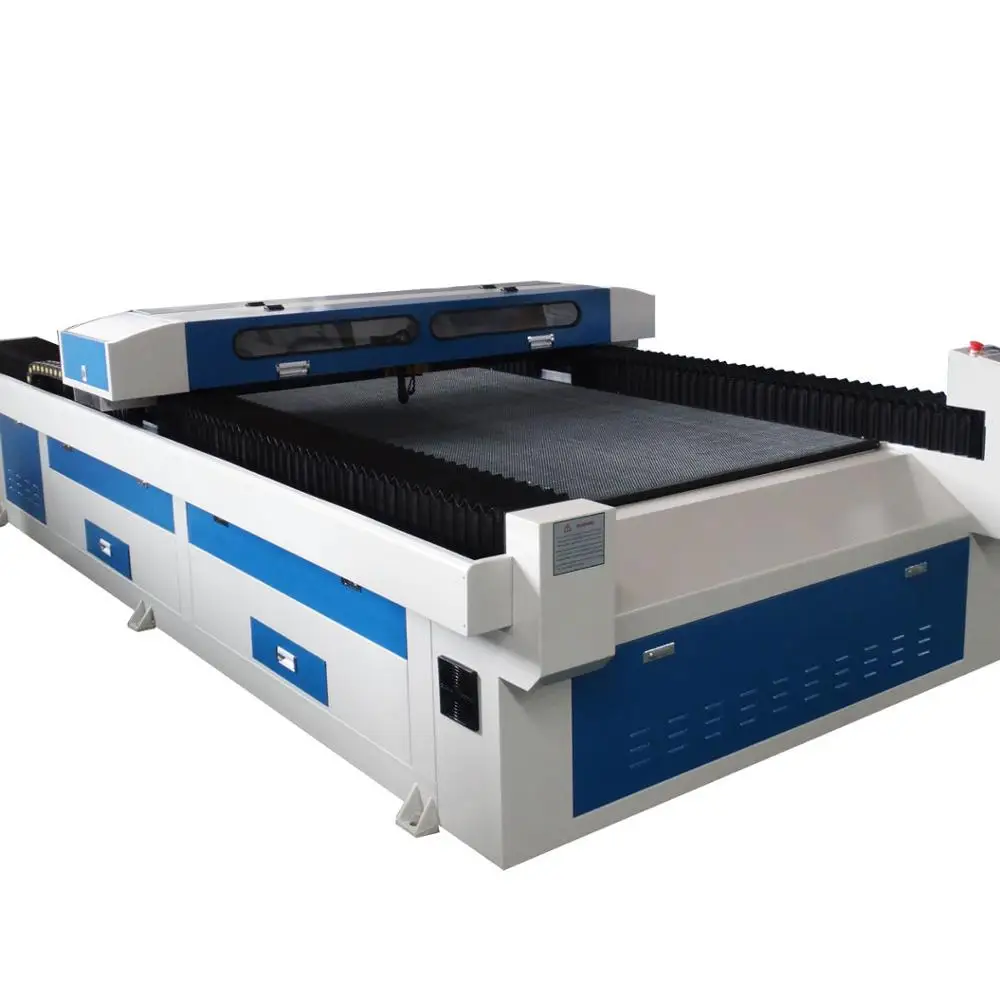

1325 лазерный резак для дерева/акрила лазерная резка гравировальная машина

Цена:*

Количество:

1325 laser cutter machine for wood/acrylic laser cutting engraving machine price

metal laser cutter

Machine introduction

1.Max cutting , can cut stainless steel , carbon dteel ,(within 2mm) MDF , acrylic etc

2.The speed of cutting stainless steel is 1.8m/min .

3.Can cut the acrylic perfectly . Max 3Cm

4.High precision , germany PU steel wire belt , (optional configuration :panasonic servo motor+ imported ball screw)

5.Low energy , whole mahcine only use 2.5KW/h .

Machine configuration :

name	laser max cutting machine
opical laser	150W good quality laser tube(Beijing RECI )
systern	metal cutting systerm -RD
working area	1300*2500mm cutting whole zise
motor	step motor
drive	860H Taiwan Ray plug
laser head	Moving laser
control board	liquid crystal display, DSP smart control board ; offline work ,download in the U disk .
laser lens	63.5 diameter ,imported lens
platform	multi-function platform
rails	imported Taiwan HIWIN square guide rails
cooling system	°C industrial water cooling system , the precision of control temperature :+/-1℃
transmisssion way	belt
positioning accuracy	0.05mm/m +/- 0.05mm/s
positioning speed	20m/min
weight of whole machine	1000kg
require power supply	380V +/- 10%/10A
