Вакуумная экспозиционная машина для шелкографии большого
- Категория: Pre-Press Equipment >>>
- Поставщик: Dongguan,Hoystar,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.12 $* | 0.44 $* |
| Aug-18-2025 | 0.17 $* | 0.86 $* |
| Jul-18-2025 | 0.99 $* | 0.98 $* |
| Jun-18-2025 | 0.68 $* | 0.83 $* |
| May-18-2025 | 0.66 $* | 0.47 $* |
| Apr-18-2025 | 0.32 $* | 0.88 $* |
| Mar-18-2025 | 0.21 $* | 0.4 $* |
| Feb-18-2025 | 0.38 $* | 0.56 $* |
| Jan-18-2025 | 0.91 $* | 0.45 $* |
Характеристики
large size silk screen printing vacuum exposure machine
Application:
It is suitable for making screen printing plate,steel plate,polyester plate,ps plate...and so on
Advantages:
1.Choose high quality UV lamp. keep long life.
2.Reflect cover made by resist aging materials.
3.Whole jointing with zinco plate, both portability and firmly.
4.Exposal time auto adjustment and controlling.
5.High vacuum degree, easy to transfer and copy fine lines ;
6. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;
7. High toughness Rubber Layer ensure Film closely cover with frame.
Technical Parameter:
Max.exposure size:800*1100mm;
Power:200V/380V;
Lamp tube wattage:3KW.
Lamp-house:UV light
Glass size: 900*1200MM Glass thickness:10mm
Vacuum:0.05mpa
Source density:80w/cm
Equipped with auto shutter system
Microcomputer control,easy operation
Uniform light intensity
It can running for 24 hours continuously
package size:1320×1030×1020mm ( L × W × H)
Weight:120kg

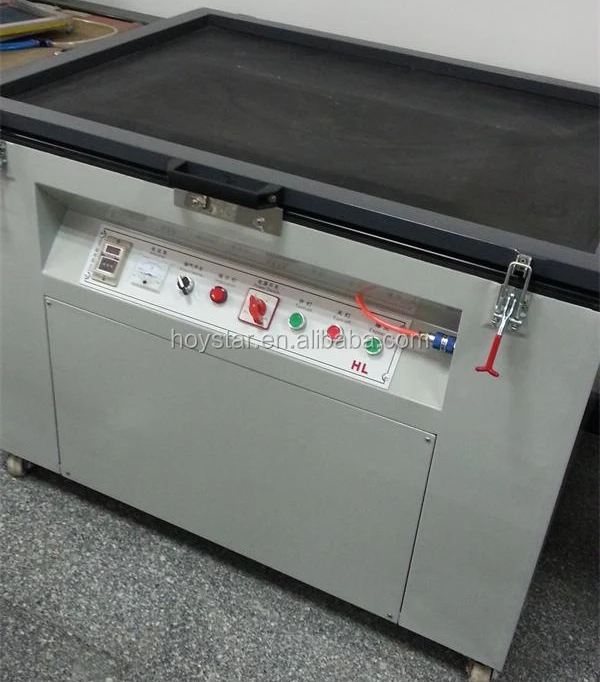

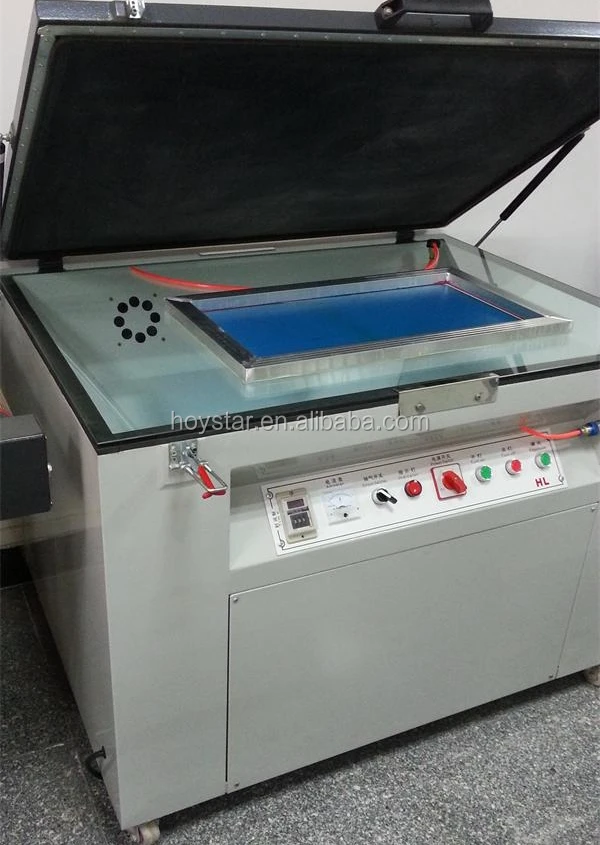

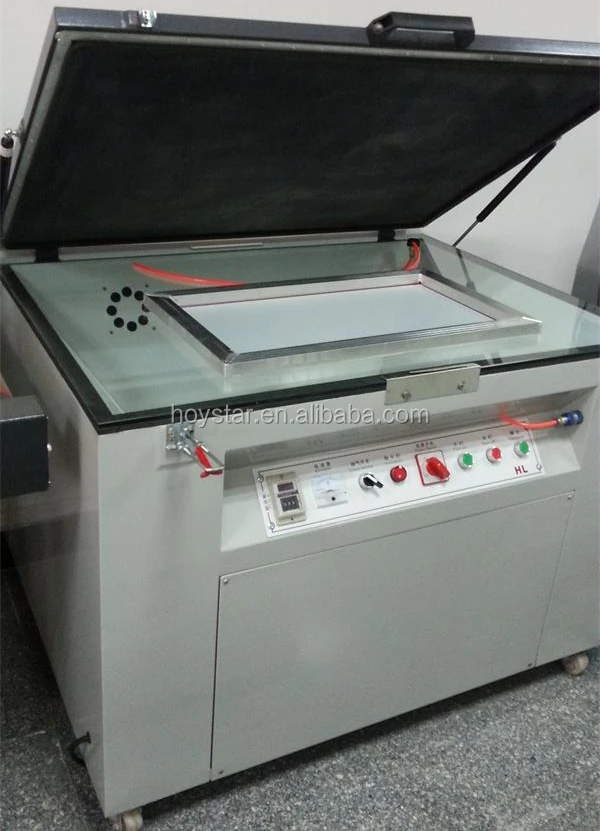

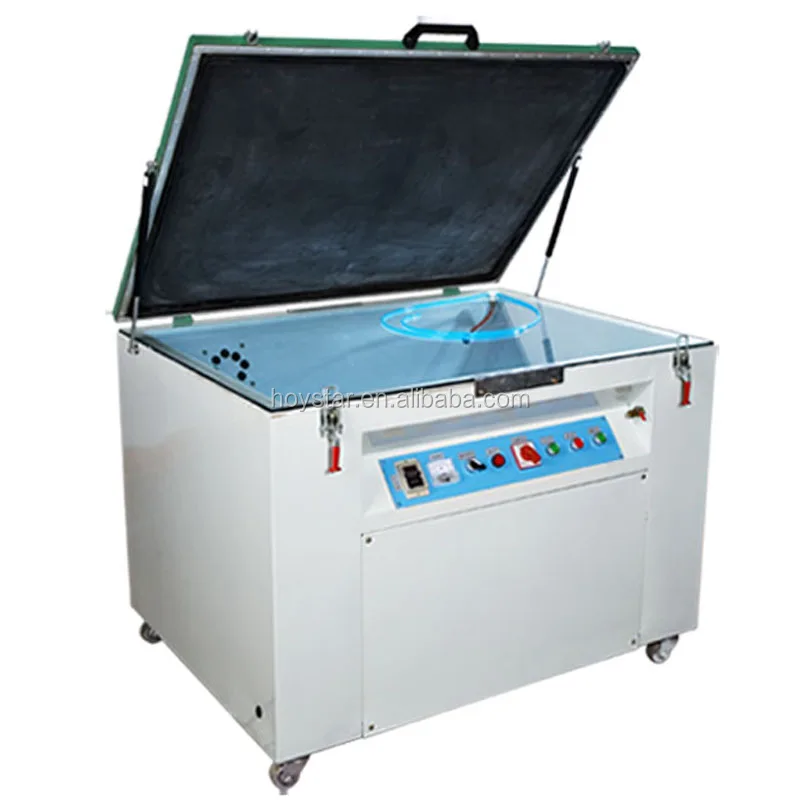

Actual machine pictures:
