3-точечный газонокосилка
US $1100
Сельскохозяйственное оборудование погрузчик сахарного тростника экскаватор для
- Категория: Other Farm Machines >>>
- Поставщик: Quanzhou,Jingli,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 34272.77 $* | 35986.29 $* |
| Aug-19-2025 | 33984.83 $* | 35683.3 $* |
| Jul-19-2025 | 28512.15 $* | 29938.89 $* |
| Jun-19-2025 | 33408.57 $* | 35078.90 $* |
| May-19-2025 | 29088.55 $* | 30542.24 $* |
| Apr-19-2025 | 32832.9 $* | 34474.23 $* |
| Mar-19-2025 | 32544.0 $* | 34171.8 $* |
| Feb-19-2025 | 32256.90 $* | 33869.24 $* |
| Jan-19-2025 | 31968.74 $* | 33566.26 $* |
Характеристики

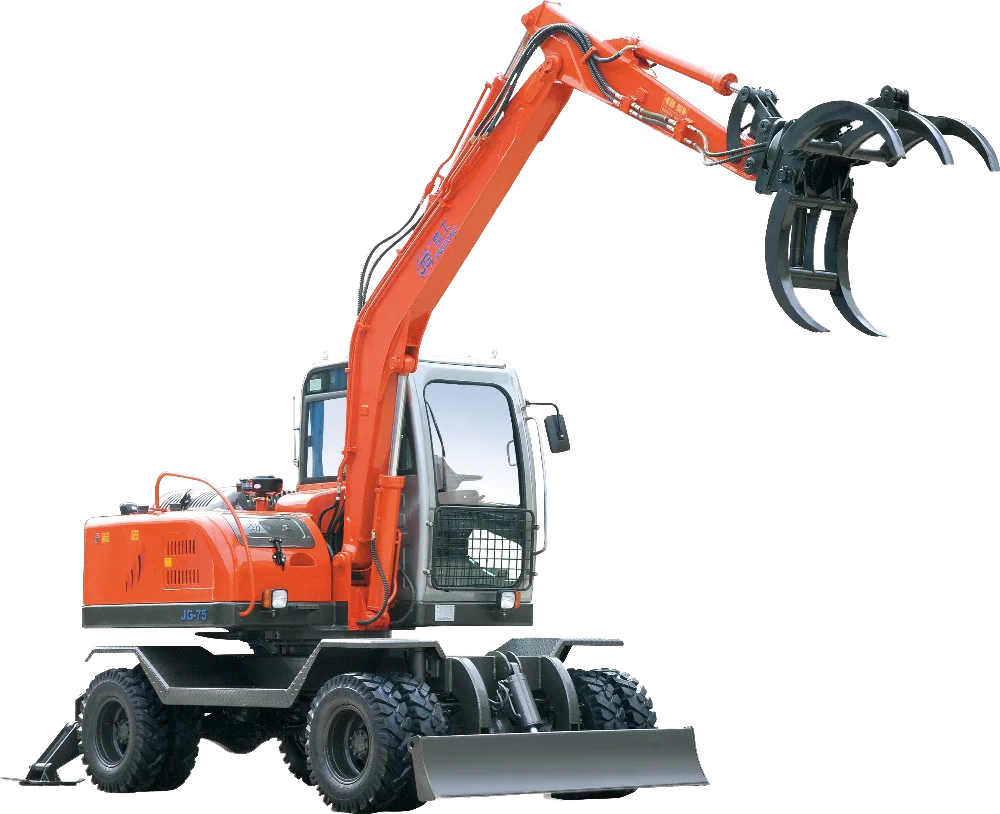

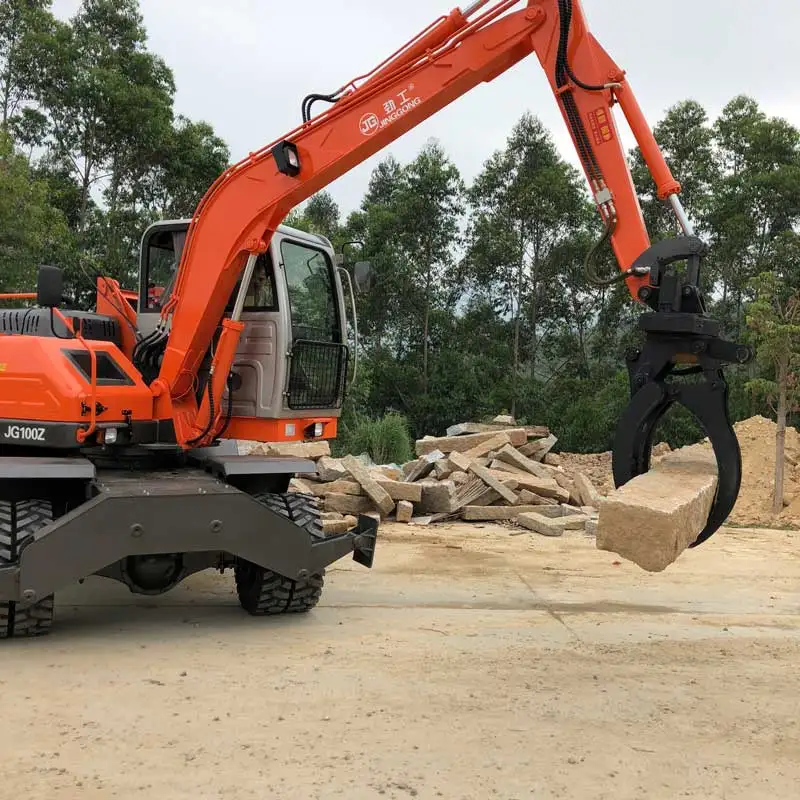

JG100Z excavator with log grapple has 7.5 tons weight, 65kw engine power, plunger pump. These machine have various functions and
I think it can be wildy used in every country. You can use it to grab logs, sugarcane, bamboo, stons or anything else. The grapple can rotate 360 degrees,
very convenient to grab or dumping. Save your time and money instead of manual work. If you have some other projects needs digging.
very convenient to grab or dumping. Save your time and money instead of manual work. If you have some other projects needs digging.
We can also provide the bucket, or you buy it in your local market.sugarcane farming equipment sugarcane loader excavator for sale sugar cane grapple
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3030mm~3475mm | ||||||||
| Arm length | 1860mm | |||||||||
| Maximum Digging Reach | 6080mm | |||||||||
| Maximum Digging Depth | 3380mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6160mm | |||||||||
| Maximum Dumping Height | 4000mm~4650mm | |||||||||
| Back-end radius of gyration | 1750mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5400*2100*2970mm | ||||||||
| Wheel base | 2560mm | |||||||||
| Track(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1050mm | |||||||||
| Min ground clearance | 220mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 6200kg | |||||||||
| Engine model | YN36GB2/YC4F60Z | |||||||||
| Rated Power | 50KW/43KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 126L/min | |||||||||
| Variable piston pump | 63ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 750.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
