Автоматическая C Z Форма прогонами и трек профилегибочная
- Категория: Обрешечивающие машины и машины для стальной рамы >>>
- Поставщик: Nantong,Super,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 35700.16 $* | 37485.75 $* |
| Aug-17-2025 | 35400.13 $* | 37170.77 $* |
| Jul-17-2025 | 29700.17 $* | 31185.88 $* |
| Jun-17-2025 | 34800.73 $* | 36540.4 $* |
| May-17-2025 | 30300.99 $* | 31815.87 $* |
| Apr-17-2025 | 34200.65 $* | 35910.66 $* |
| Mar-17-2025 | 33900.91 $* | 35595.97 $* |
| Feb-17-2025 | 33600.89 $* | 35280.31 $* |
| Jan-17-2025 | 33300.18 $* | 34965.4 $* |
Характеристики

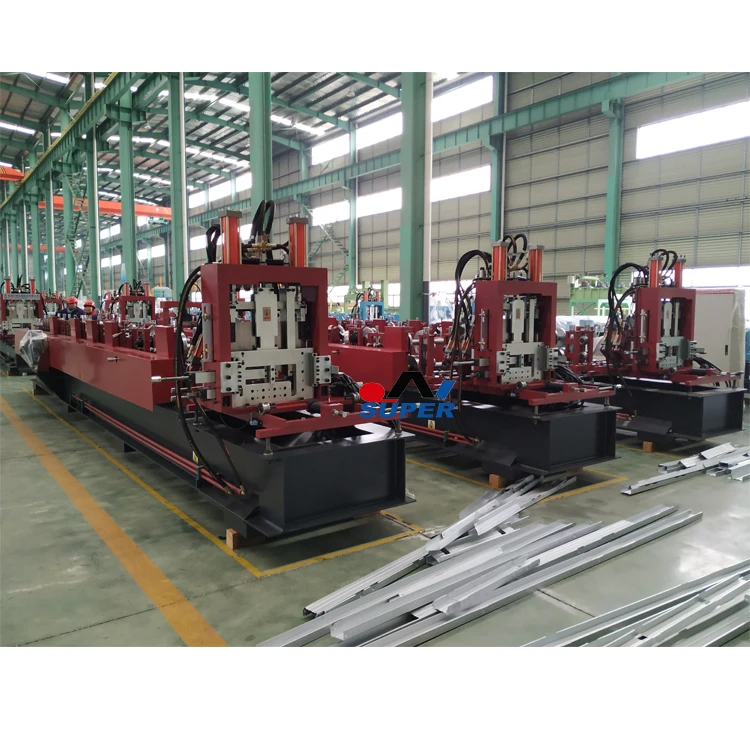

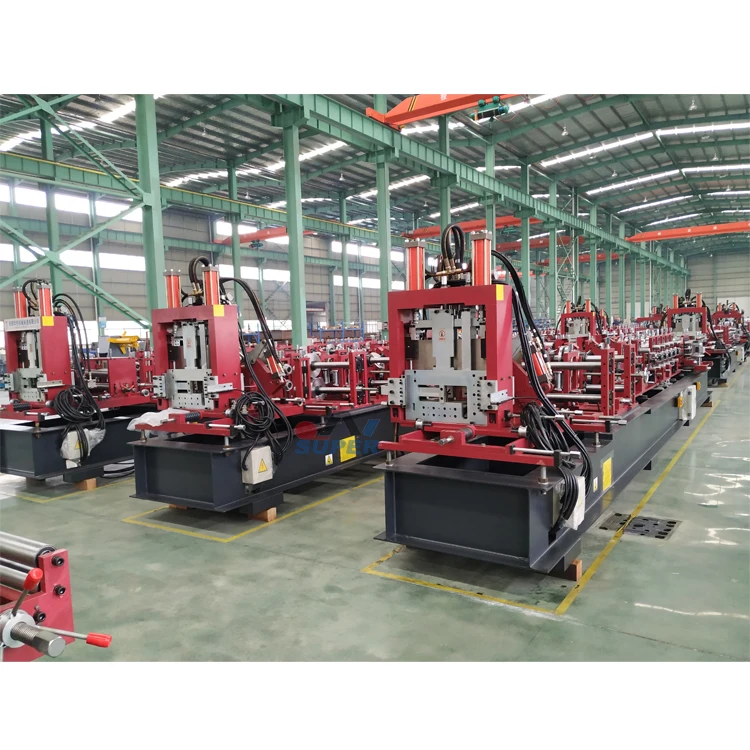

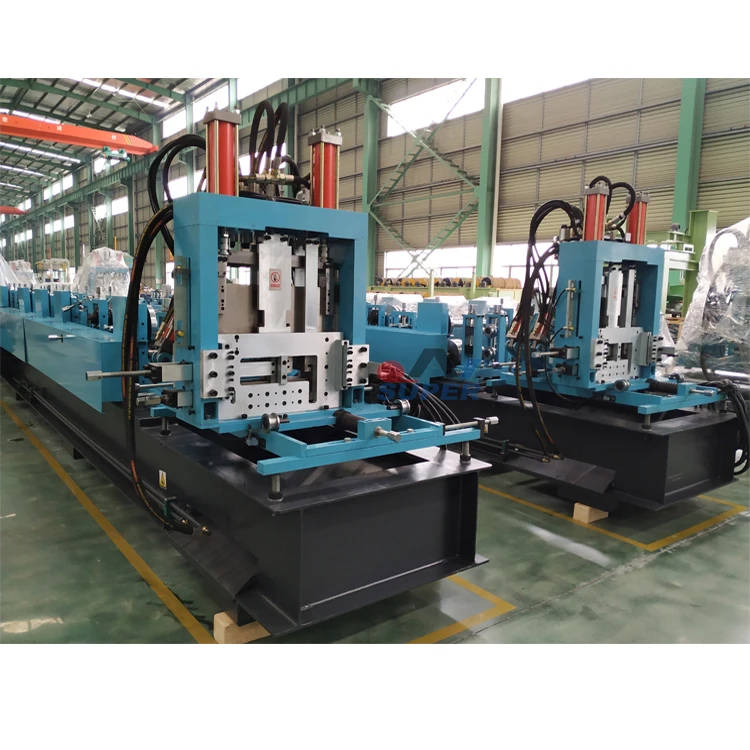

NAME:Automatic C Z Shape Purlin and Track Roll Forming Machine
Products Description
1.Main features of interchange cz cold rolled purlins machine
The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
2.Detailed Images of interchange cz cold rolled purlins machine
Machine Parts
1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) interchange cz cold rolled purlins machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

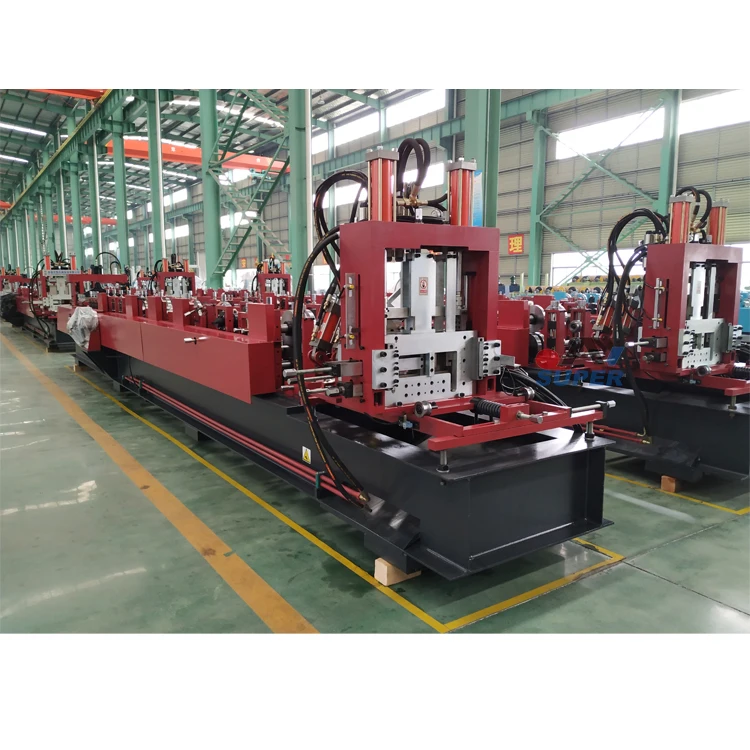

3) interchange cz cold rolled purlins machine post cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
4)interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
5)interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)
Un-powered,two unit (3m*2)
3.Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Item | Parameters |
Coil Thickness(mm) | 1.5~3 |
Max Speed(m/min) | 30 |
Roll standard station (pcs) | 18 |
Main Motor(KW) | 22kw (Hydraulic Motor ) |
Main Shaft(mm) | 80mm |
Shaft materials | 40Cr |
Roller Materials | GCr15 |
Cutting Way | Hydraulic Cutting (7.5KW) |
Cutting Blade Materials | Cr12MoV |
Hole Punching | 3 sets |
Control System | PLC control (Xinjie) |
Size Change | PLC control / Press Button |
C Z Interchange | PLC control / Reverse roll |
Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Optional Configuration

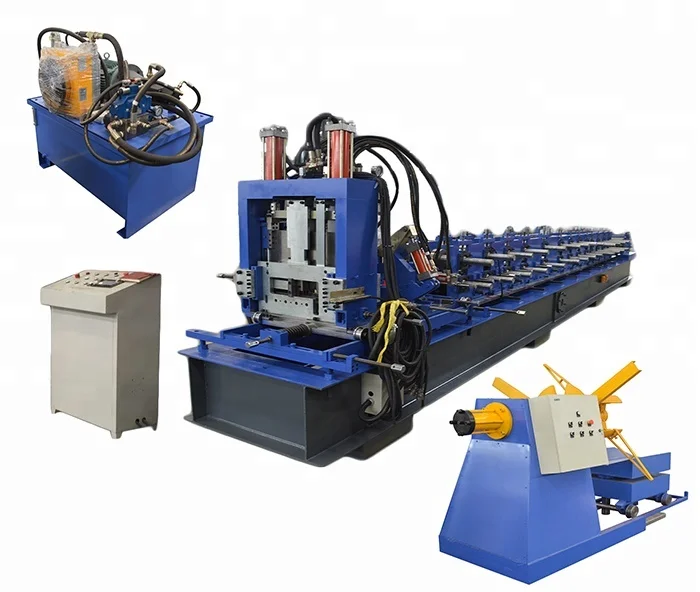

Full automatic CZ interchange and size change purlin roll forming machine.
