Tank Description

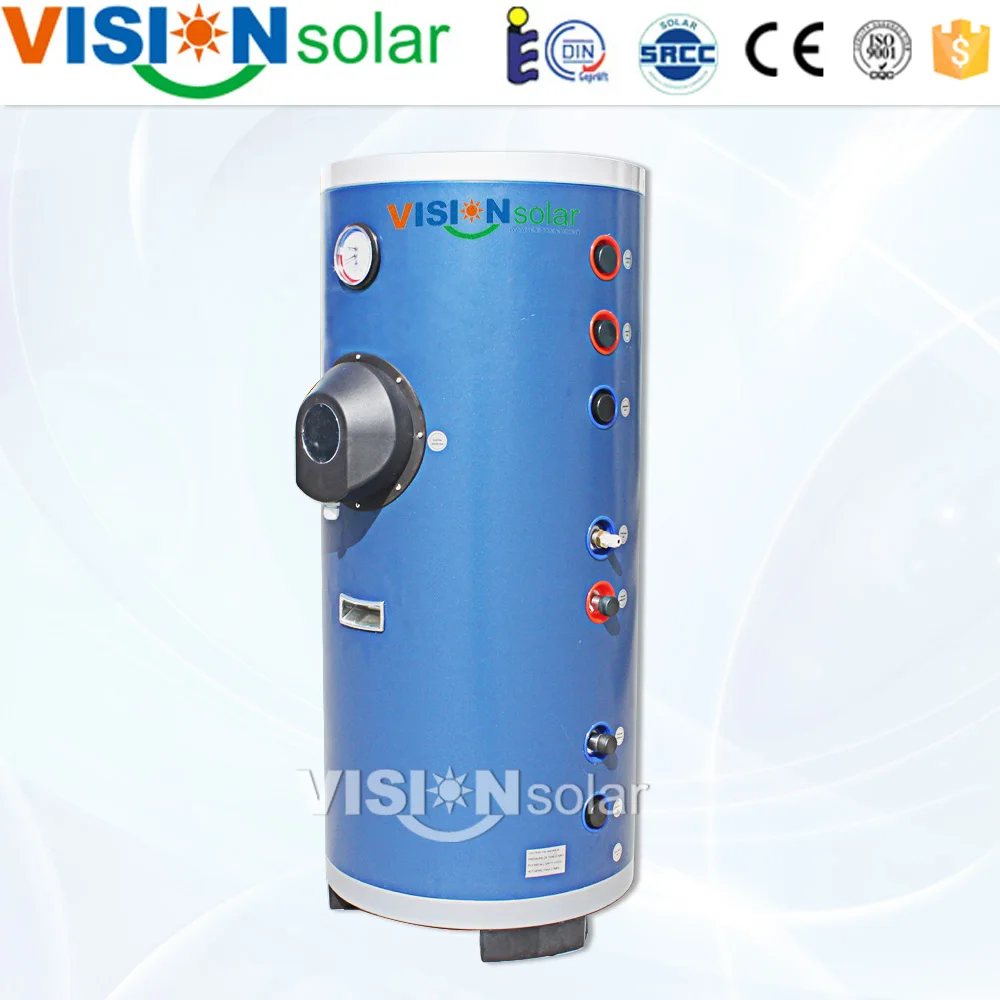

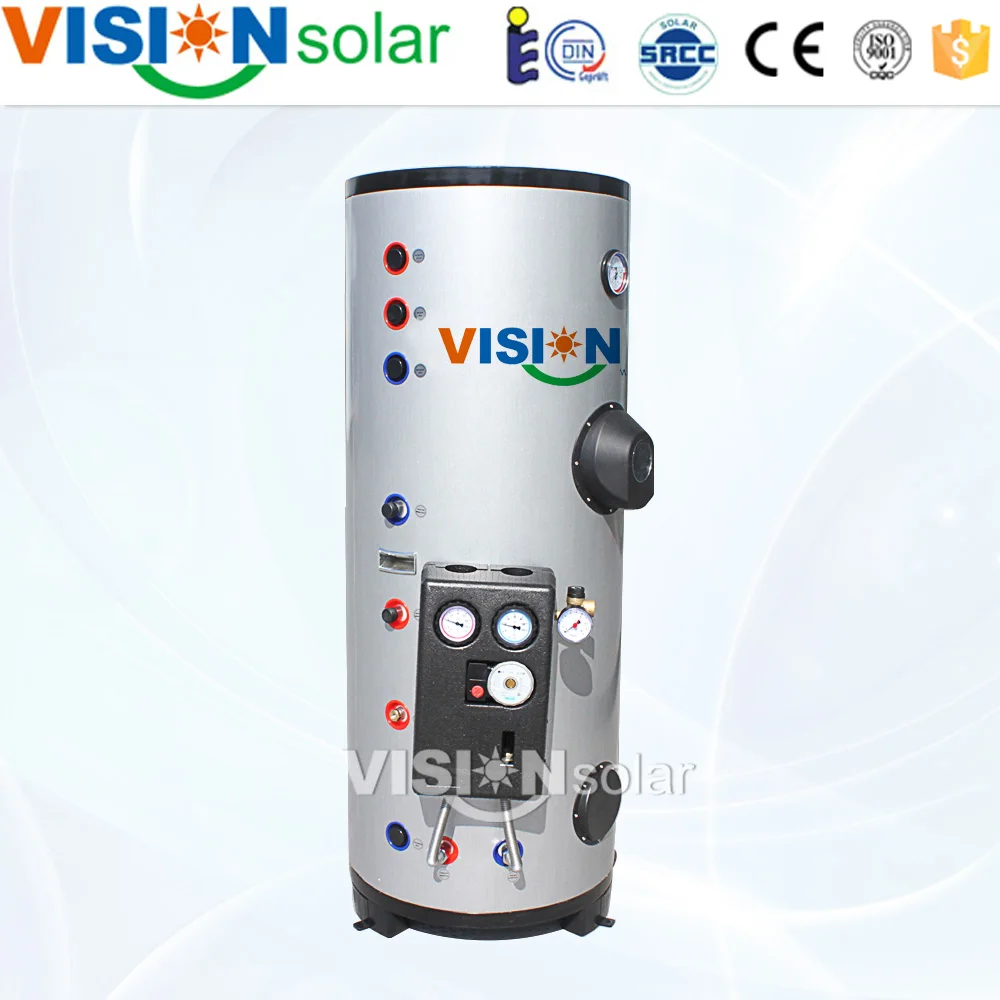

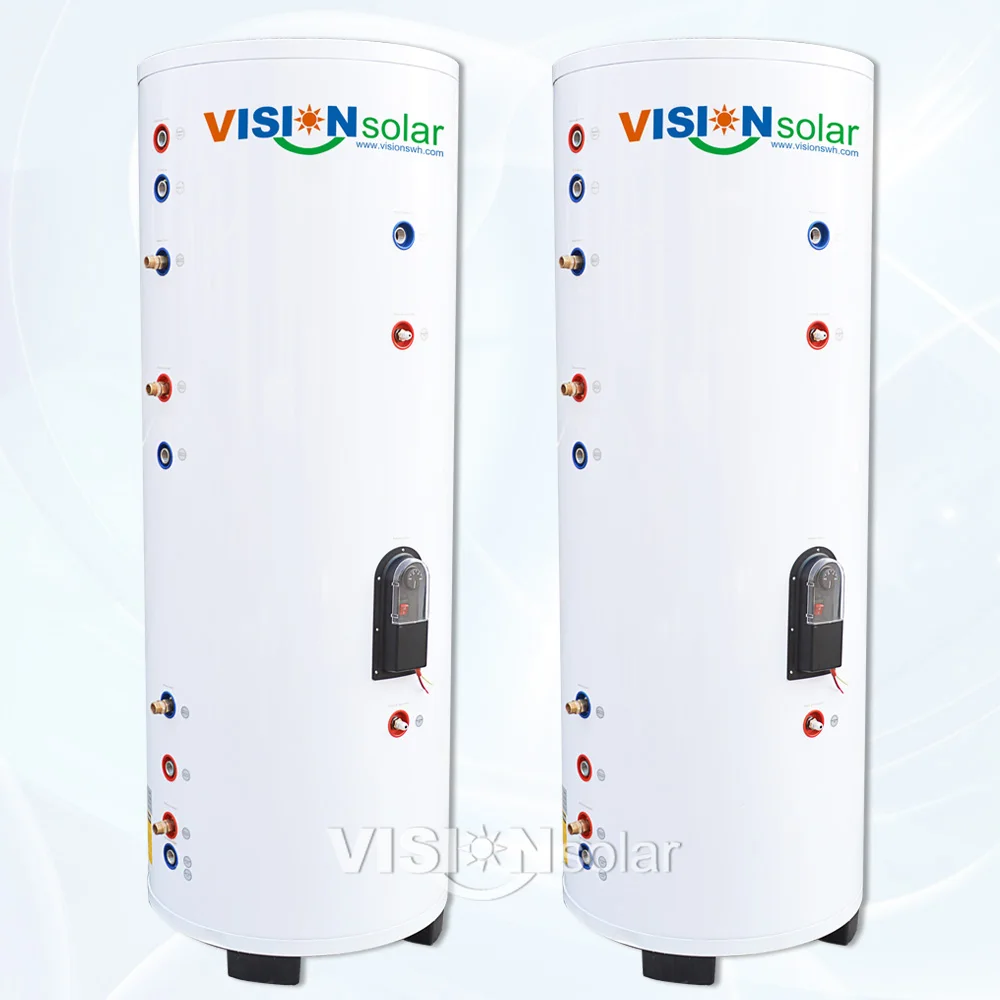

VISION closed loop solar heating system usually incorporates a high pressure tank that stores the solar heated water, the stored hot water could be used for domestic use and room and pool heating;

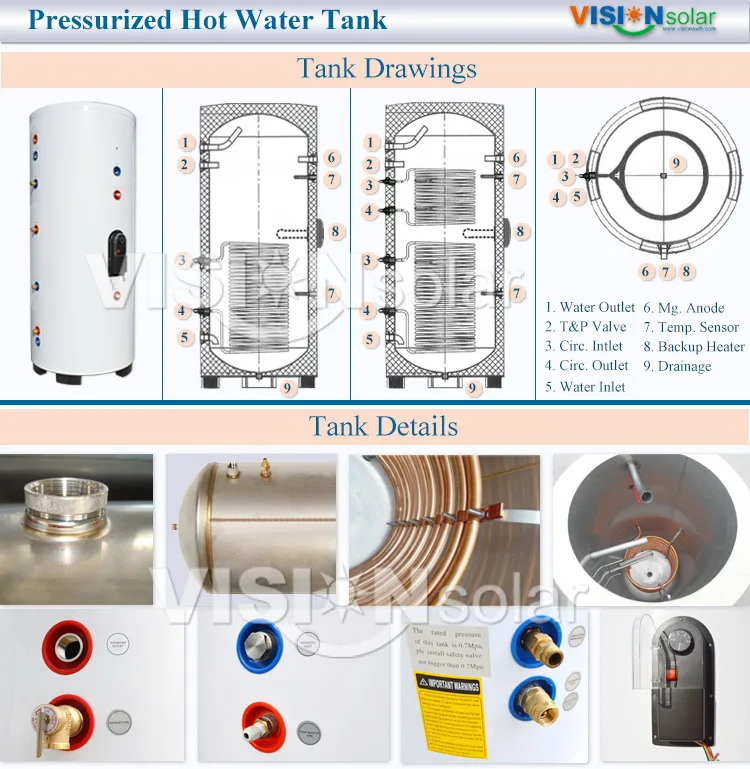

Depending on the system design the pressurized tank may incorporate one or several heat exchangers for indirect solar water heating or other heating applications.

In addition the hot water tank may incorporate both solar and auxiliary heating (gas or electric) or a dedicated solar tank may supply pre-heated water to a second tank that is heated by traditional energy sources.

Main Features

Reliable and stable working for high pressure system

Multi-function tank for various heating applications

Super heat preservation to keep hot water 90 hours

Compatible with electric or gas heating devices

Equipped with safety device for safe working

Designed for more than 25 years working life

Specifications

Remarks:

1. Coil number is variable; e.g. VPT2-150 with 2 coils; VPT1- 300 with 1 coil; VPT0- 100 with 0 coil;

2. OEM & customized order is available for tank size and connections, exchanger coil material and numbers;

3. Tank designs vary somewhat between countries and markets depending on climate, local regulations and system design norms. VISION Company is able to supply a range of hot water tanks to suit most domestic application either VISION branded or using quality local brands where appropriate.
