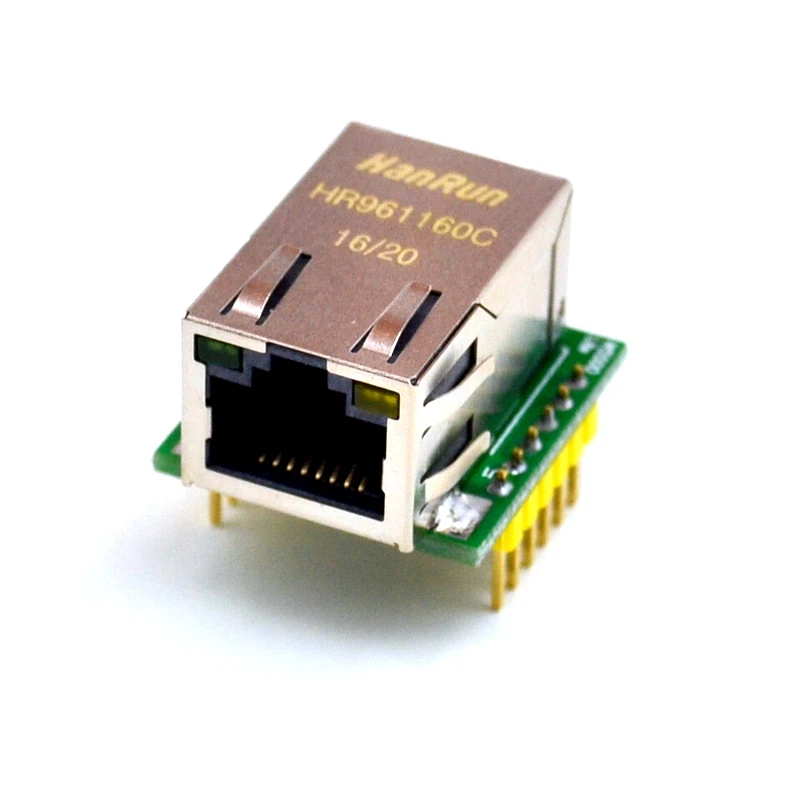

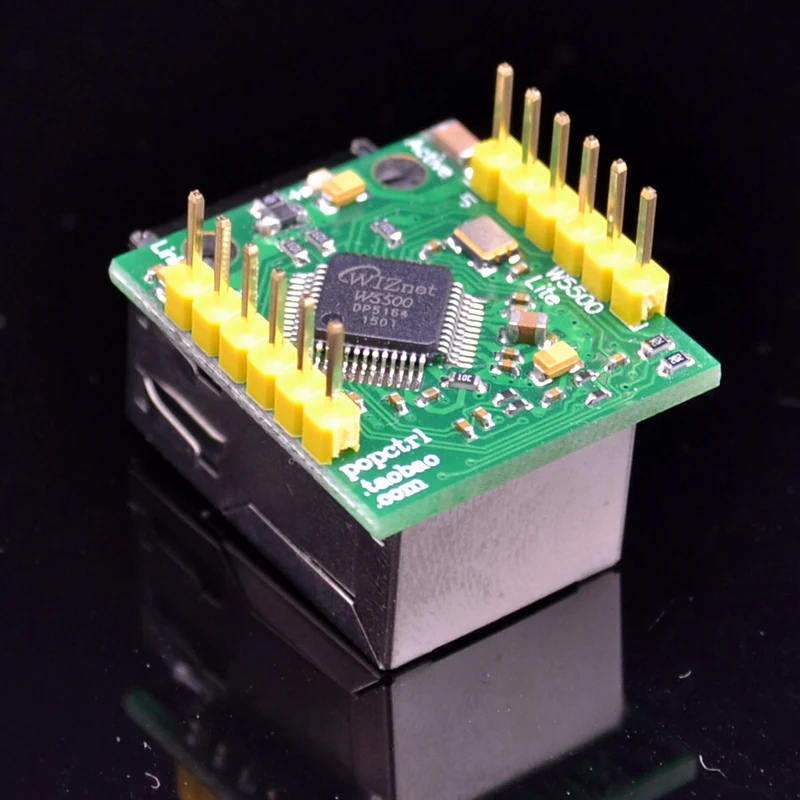

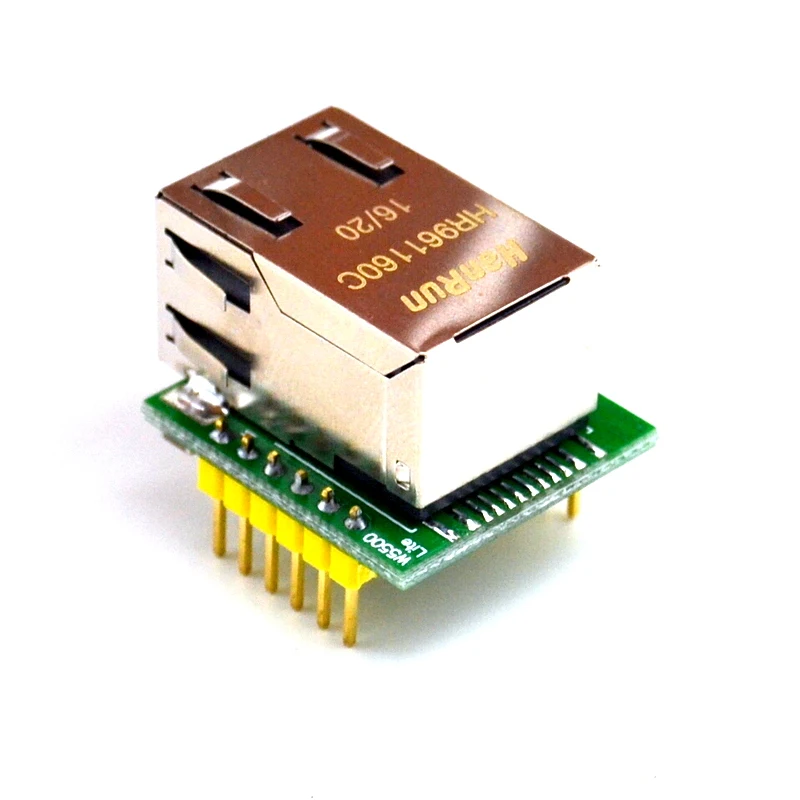

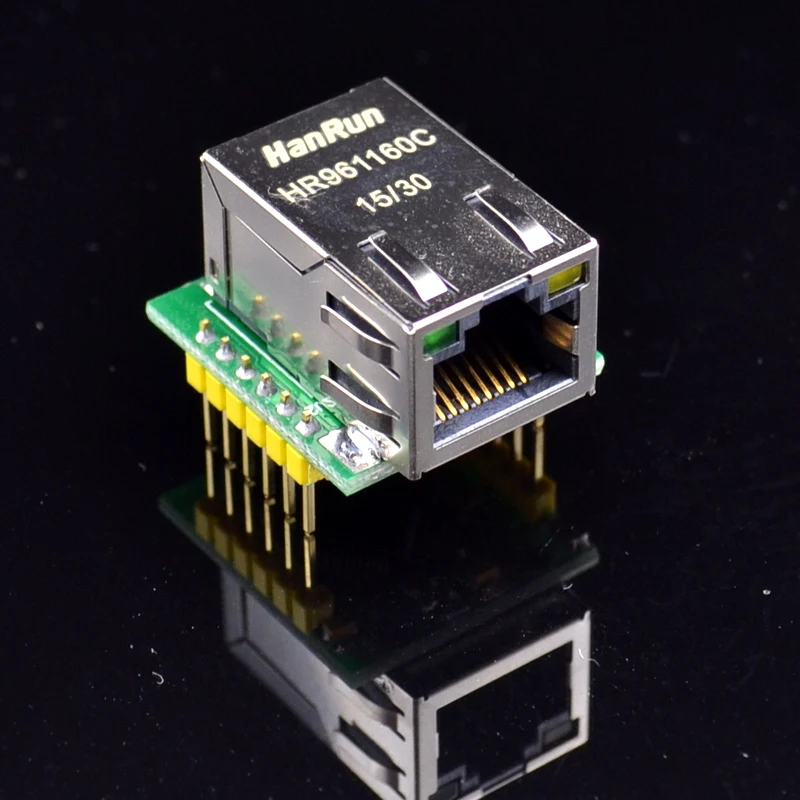

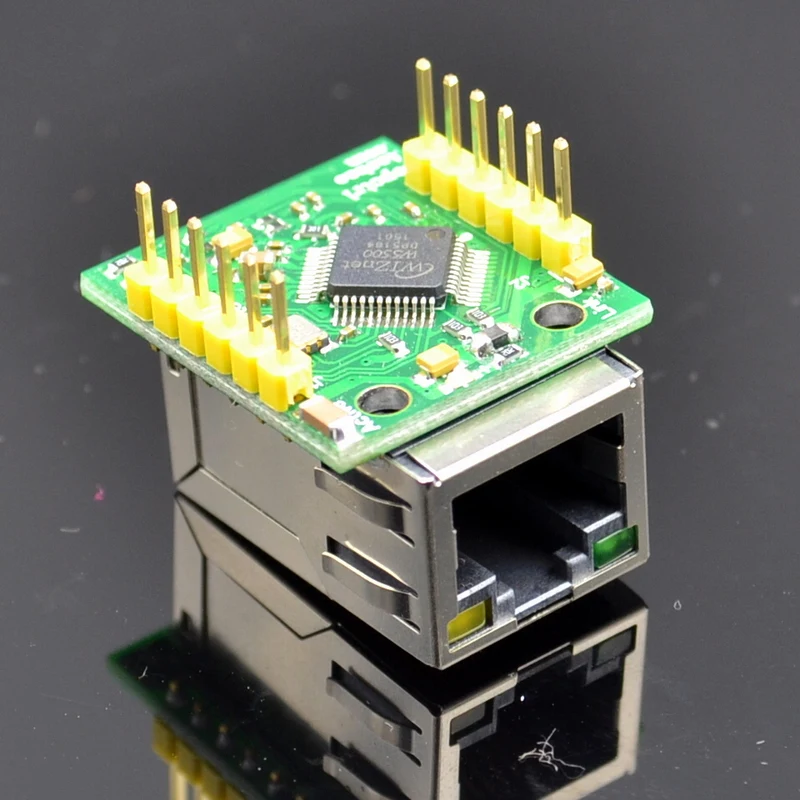

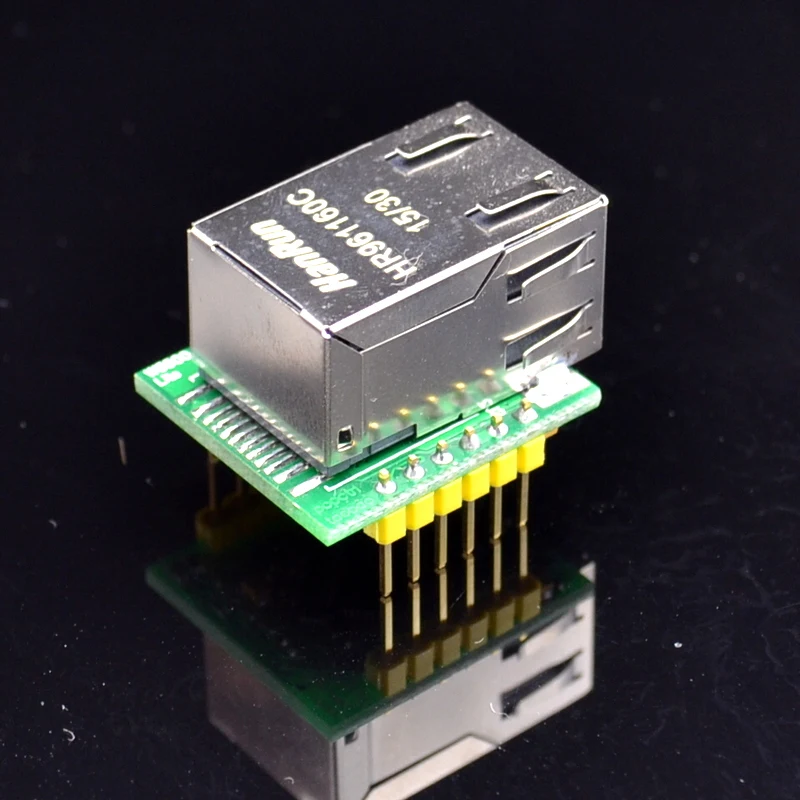

USR-ES1 W5500 чип Новый SPI к локальной сети Ethernet конвертер TCP/IP
- Категория: IoT решения и продукты >>>
- Поставщик: Shenzhen,YTF,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.4 $* | 6.26 $* |
| Jul-16-2025 | 5.36 $* | 5.99 $* |
| Jun-16-2025 | 6.17 $* | 6.64 $* |
| May-16-2025 | 6.20 $* | 6.50 $* |
| Apr-16-2025 | 5.61 $* | 5.47 $* |
| Mar-16-2025 | 6.4 $* | 6.45 $* |
| Feb-16-2025 | 6.15 $* | 6.50 $* |
| Jan-16-2025 | 6.66 $* | 6.41 $* |
Характеристики
USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of +3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable +3.3V.
Function features:
| High speed SPI interface 80MHz |
| Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network protocol knowledge |
| Supports up to 8 Socket |
| Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol |
| Integration of the data link layer, physical layer |
| Support the wakeup |
| Support high speed serial peripheral interface (SPI model 0, 3) |
| Internal 32K bytes receive buffer |
| The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY) |
| Support auto negotiation (10/100-Based full duplex or half duplex) |
| Does not support the IP patch |
| The working voltage of 3.3V, I/O and 5V voltage signal |
| LED display (full duplex or half duplex, network connection, network speed,active) |
| Pin type package ultra small, convenient for embedded applications |
| Application of C sample project |
Product characters:
| Power supply mode | 3.3V external power supply, current should be more than 200mA |
| Control interface | The TTL level, 3.3V SPI interface |
| PCB size | 23 * 25 mm |
| Mechanical Dimensions | 28.5 * 23 * 24 |
