Водонепроницаемая система обратной камеры 12-32 В для грузовиков школьных автобусов тяжелых условий


Поделиться:


Цена:520,29 ₽ - 6 317,81 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 619.68 $* 650.61 $*
Aug-16-2025 614.65 $* 645.15 $*
Jul-16-2025 515.2 $* 541.84 $*
Jun-16-2025 603.44 $* 633.58 $*
May-16-2025 525.96 $* 551.70 $*
Apr-16-2025 593.97 $* 623.89 $*
Mar-16-2025 588.48 $* 617.89 $*
Feb-16-2025 582.55 $* 611.66 $*
Jan-16-2025 577.42 $* 606.33 $*

Характеристики

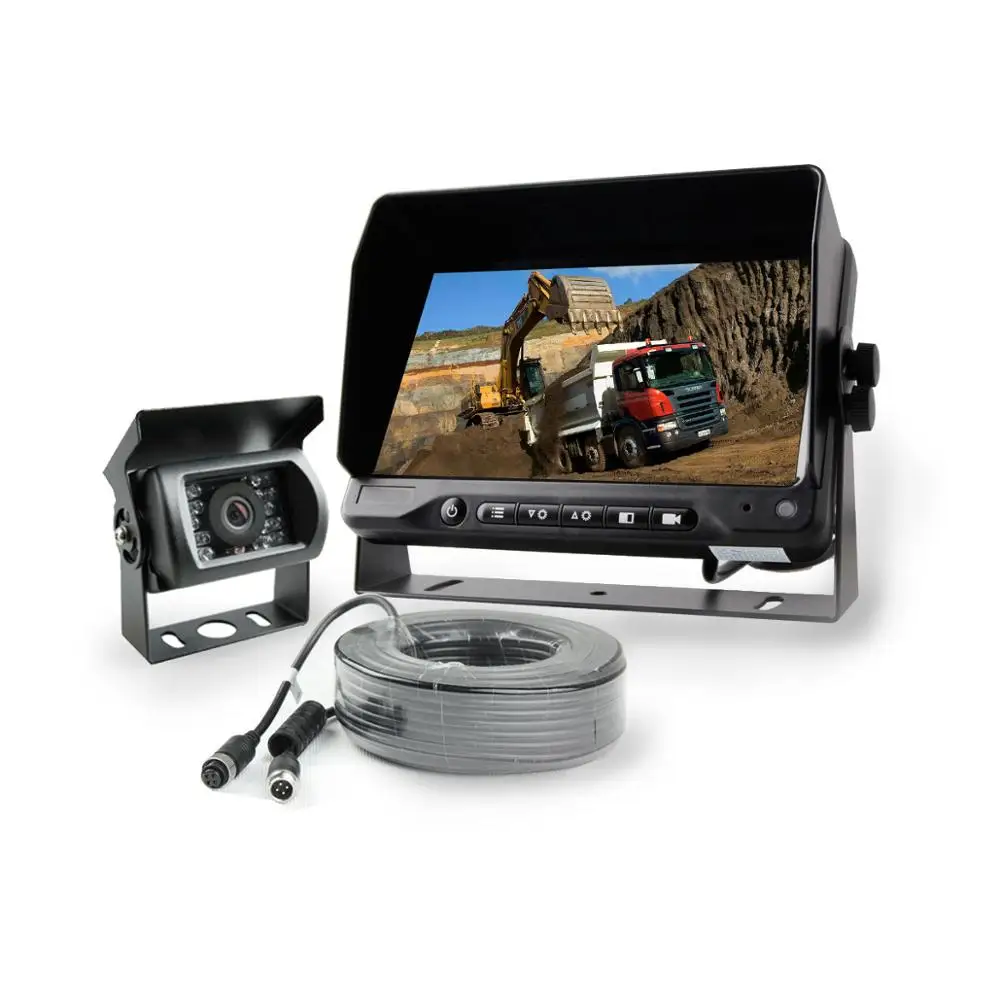

12-32V Volt Reverse Camera System for Truck Tractor Bus RV


Product Description

Because the price of express delivery to different countries is somewhat different, if you need to place an order, please send a private message to us to consult the specific freight. Thank you~







Model NO.:LW-070F



7" LCD Monitor HD 12V-32V 4PIN IR LED CCD Reversing Horizontal 90 degree Camera



Item Description:


This monitor and reverse camera can be used with Trucks/ Caravans/Cars
Two video inputs, reversing first Connect 2 cameras to the monitor(2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
16:9/4:3 switch freely
1x 20m advanced 4PIN cables Allows the monitor to power up cameras, no need to connect to another power cable.
Connect and disconnect the cable between your trailer/caravan easily.
Get CCD not CMOS cameras if you want to view the camera while driving. CMOS cameras are not designed to work for long period of time, otherwise they could get damaged easily.
Easy to install. You can D.I.Y. as long as you can locate your vehicle’s 12V/24V power source.


Monitor:

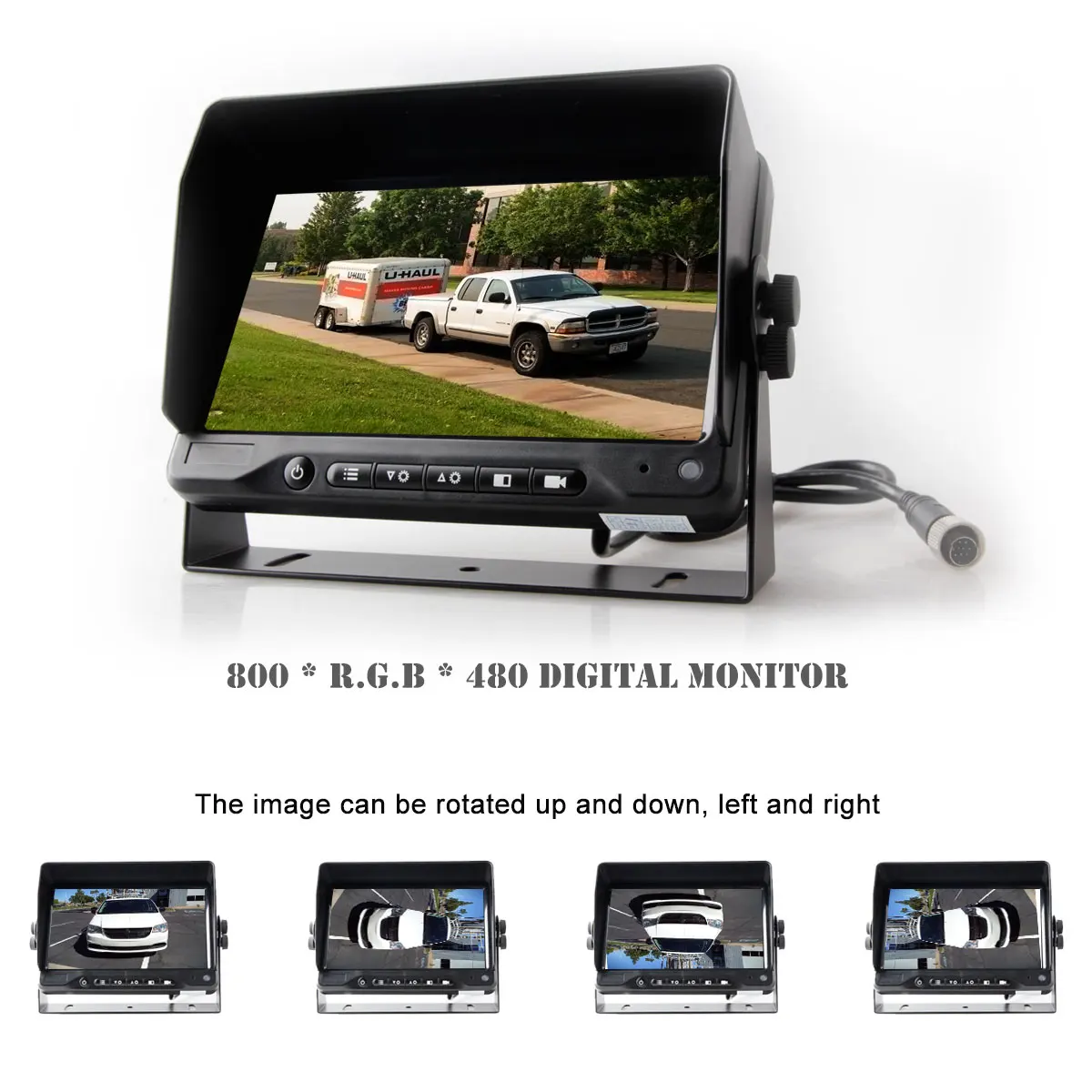

1.800*480 Digital Screen, Crystal Clear Image
2.Sunshade design
3.2 way video input
4.Suitable for 12V-32V vehicle
5.Wireless remote control
6.The image can be rotated up and down, left and right
7.Can connect to DVD/MP4/Camera etc


Camera:
1.IR LED
2.1x15m 4PIN cable
3.Lens Angle:Horizontal90 degree

4.Heavy duty night vision IR CCD Reversing Camera
5.Waterproof and Mudproof



truck camera system

7 Inch AHD LCD Monitor Detail

Application:



support-install

reverse-camera

rear-view-camera

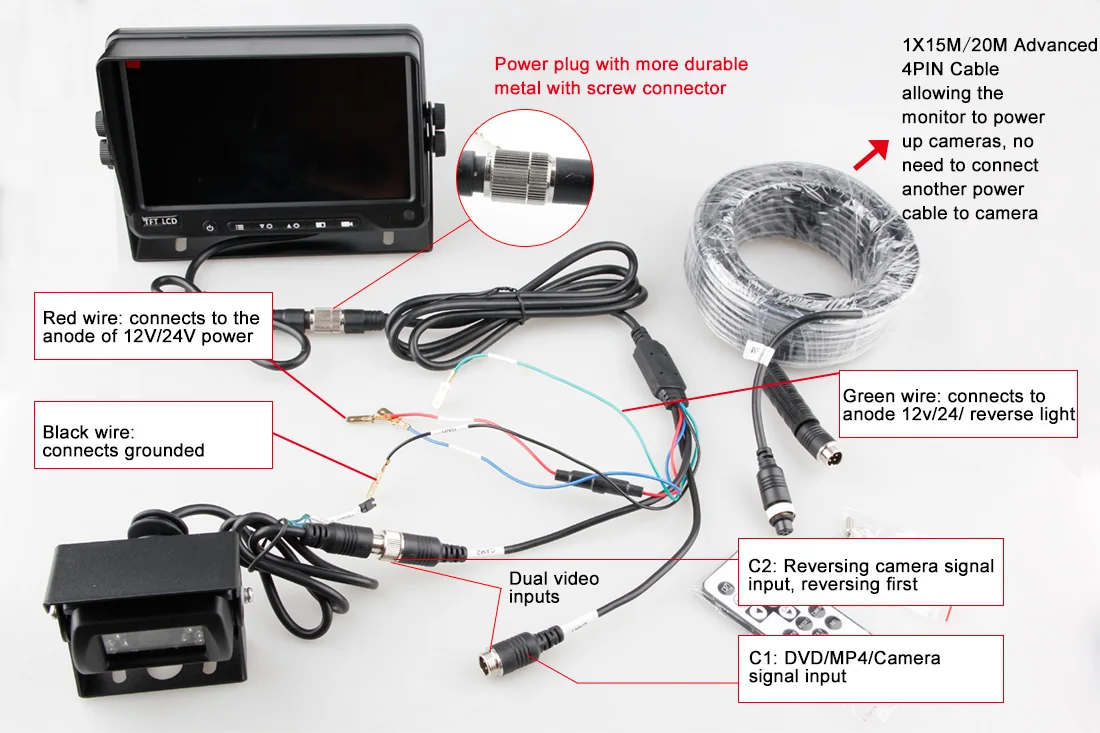

 camera system2-cameras-inputInstallation-Instruction.jpg





Features:

--Stand alone 7 inches TFT lcd display with new panel.

--2 or 4 cameras inputs, with sun shade.

--Button back light for night time operation.

--Loudspeaker built in(optional)~

--Suit for truck,trailer,bus,van,caravan,heavy duty,indoor,outdoor etc.

--Multi-language(English, Dutch, French, Spanish, Russian, German, Italian are available).







LM-070F LCD Monitor Specifications:



Screen size: 7 inches new AU TFT-LCD panel
Type: Stand-alone monitor (16:9) display
Display Resolution: 800 R.G.B x480 dots dightal display
System: PAL/NTSC TV system auto switching
Video input: 2 Channels input/ (4CHs/ quad monitor optional)
Power supply 12~32V DC power input
Power consumption Less than 7W
Image Up/down, Left/right functions
Loudspeaker Optional
Remote control Yes
Operating temperature -10 ~ +65degrees
Storage temperature -40 ~ +65degrees
Without signal Video signal disappear, display blue screen
Languages English, Dutch, French, Spanish, Russian, German, Italian
Suitable for Camera/DVD/VCD player
Trigger cable Yes
Color Black color
Warranty 18 Months

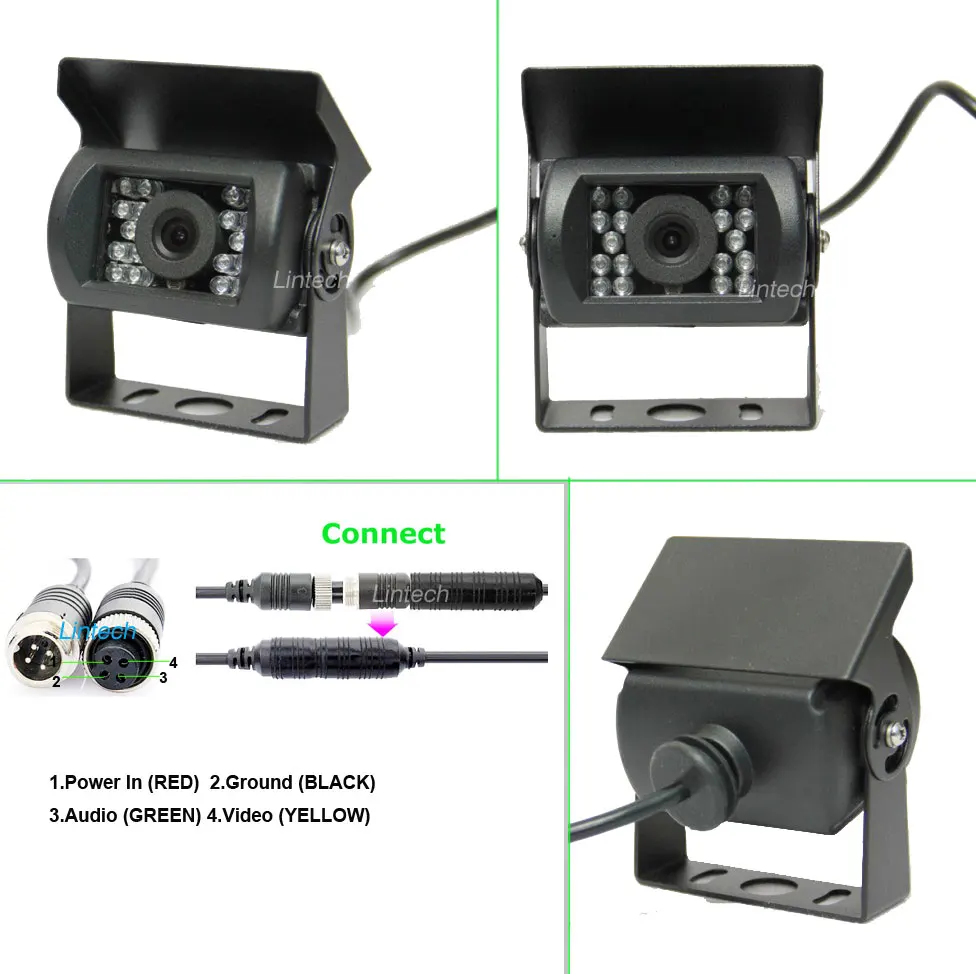

(Model NO:LC-018A) Rear View Camera Specification:

Type
1080P
960P
700TVL
SHARP
Sensor
1/3" APTINA CMOS
1/3" APTINA CMOS
1/3 SONY CCD
1/4 SHARP CCD
Resolution:
1280*960 (2.0M Pixels)
1280*960 (1.2M Pixels)
N:976×494 pixels P: 1020×508 pixels
N:510×492 pixels P: 500×582 pixels
Effective Pixels
2,000,000 pixels
1,300,000 pixels
600,000 pixels
300,000 pixels
Lens:
2.8mm
2.8mm
2.8mm
2.8mm
Min illumination:
0Lux (LED ON)
0Lux (LED ON)
0Lux (LED ON)
0Lux (LED ON)
IR led:
18pcs
18pcs
18pcs
18pcs
Night Vision distance:
15m
15m
13m
10m
Waterproof
IP68
IP68
IP68
IP68
View angle:
120°/90°
120°/90°
120°/90°
120°/90°
Power voltage:
12V
12V
12V
12V
Operation Temp.:
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
Heater built-in(optional)
-40℃~+70℃
-40℃~+70℃
-40℃~+70℃
-40℃~+70℃
Microphone
optional
optional
optional
optional
IR cut
optional
optional
/
/
