LPG-300 система управления натяжением полотна контроль положения края

Описание и отзывы

Трекер стоимости

Характеристики

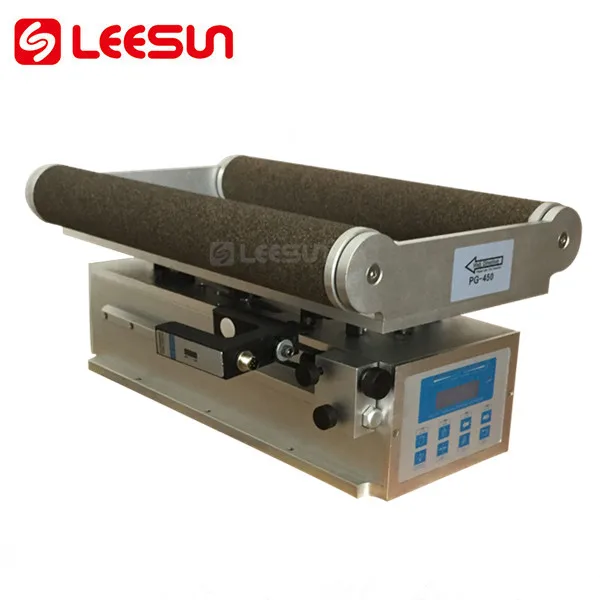

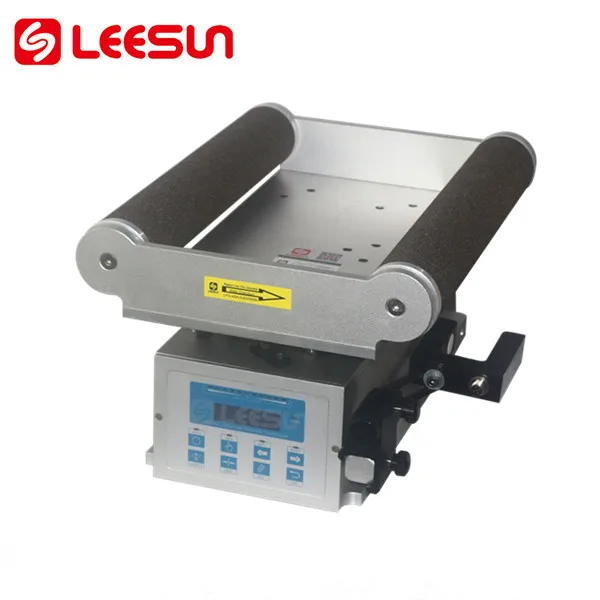

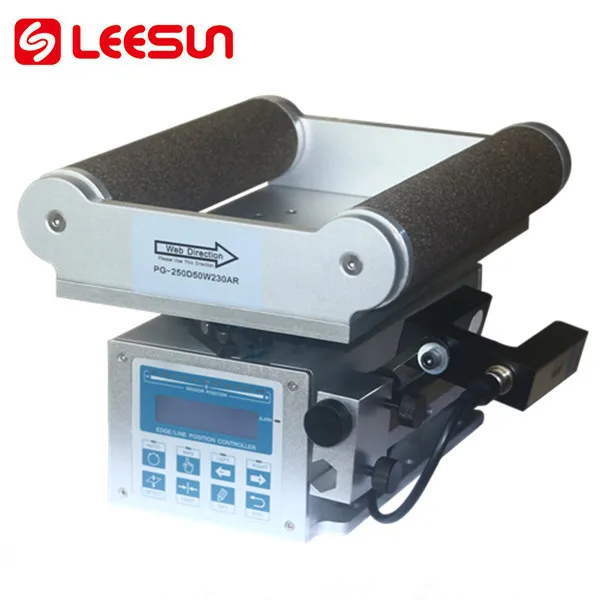

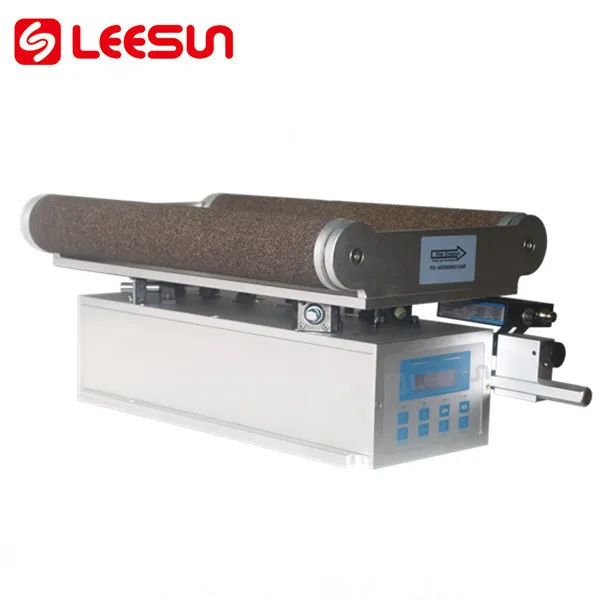

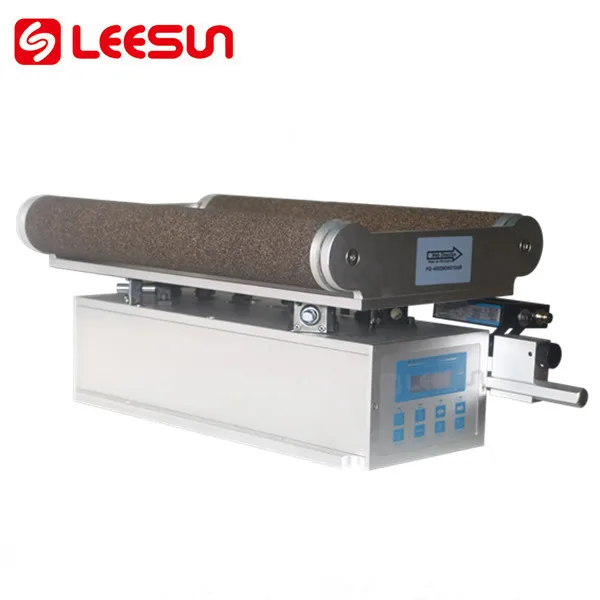

                                   LEESUN ALL in One web guide controls system



 The complete set of  Web guide system  Product Overview:

  Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.

This web guide system can be used for Intermeaiate Guide Roller System,like Picture 2.



Web guide system Product Features:



1. Brushless DC servo motor driving, maintenance free;



2. Accuracy ball screw bar and accuracy positioning;



3. With large guiding travel;



4. Roller length and width can be custom made;



5. Roller surface treatment can be anodized, rubber and cork leather;



6. Manual or air fixture of the cutting station is optional.



 Web guide system Specification:

Power supply	AC220V /80W
Roller diameter	50mm / custom made
Support the sensor type	Ultrasonic sensors,photo sensor,CCD sensor
Roller width	230mm / custom make
Max. driving speed	40mm/S
Environment temperature	-10~60°C, below RH90%





Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers,web guiding systems?



And looking for available and enduring ones with warranty?



You’ve come to the right place!



LEESUN POWER TECHNOLOGY  CO., LTD established in 2001 and located in Dongguan city.

 It's a professional design and development team, the main development and production of industrial machinery of high precision magnetic powder clutch brake, electromagnetic clutch brakes, air pressure disc / pass-axis clutch brakes, as well as packaging and printing Take-up equipment industry-specific inflatable shaft, pressure sets of folders (inflatable swollen), fast and secure chuck, aluminum alloy guide roll, automatic tension controller, the roll diameter Tension controller, guiding systems. Comprehensive range of products in the take-up device industries to provide a variety of tension control solutions.



All along, we are actively enterprising, innovation, integrity management, service industry more than a dozen set, because of the quality of products and companies seeking strict Ke tireless efforts of all colleagues, resulting in "LEESUN" brand to become the industry leader and has been marketing the country and the exported to Europe, Japan, Southeast Asia and other regions and all over world.



Our goal: a strong-the quality of the image outside, the unison into first-class science and technology of modern technology manufacturing companies.



LEESUN Science&Technology, unlimited power!





Since 2007 ,Our factory use “Leesun” brand to attend Intermational Exhibition every time,Our products are popular with custormers from all over the world.

 (2007) PTINTCHINA, (2011 )PTINTCHINA, (2013) SIAF  , (2012)The 19^nd South China International Exhibition on printing Industry, (2014)The 21_^nd South China International Exhibition on printing Industry,(2015) The 22_^nd South China International Exhibition on printing Industry.

How to get your suitable machine or parts ?
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Skype) and let us know your enquiry.

• Discussion:Let us know the model number,like Web guide system PG-280A, specify the items you desire, confirm specification; OEM/ODM consultation.

• Place order as per contract or discussion.

• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.

• Payment settled.

• Order completed under our arrangement.

• Goods shipped as per contracted term.

• Goods arrive at local port or warehouse, depending on contracted term.

• Support & re-ordering.
Any question about Printing Machinery Parts ,contact with us please,sincere service for you and welcome to LEESUN power!
