9CH 60W Factory price cctv switching power supply 12v 5a with metal box for led light and  health care

Features:



 5.2 years warranty



Specifications:


MODEL		GF60-9H-DM
OUTPUT	DC VOLTAGE	12V
	OUTPUT POWER	60W
	CURRENT RANGE	0-0.5Amp(Each channel)  , Total 0-5Amp for 9 channels
	RIPPLE & NOISE(max.)	120mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	110VAC - 220V AC
	AC CURRENT(Typ.)	3.5A/ 226VAC    1.8A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	85%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC   30A/230VAC
	LEAKAGE CURRENT	<2.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	CONNECTION TERMINAL	MARK:  AC-L, AC-N, FG, GND, GND, DC+, DC-
	POWER SUPPLY DIMENSION	L130*W98*H38MM or L111*W78*H36MM
	9CH BOX DIMENSION	L235*W205*H50MM
	WEIGHT	1.56Kg/PC, 10PCS/Carton size:45*32*30MM
	POWER SUPPLY MATERIAL	Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron(silver plating)
	9CH BOX MATERIAL	1.5mm tchickness iron (grey plating)

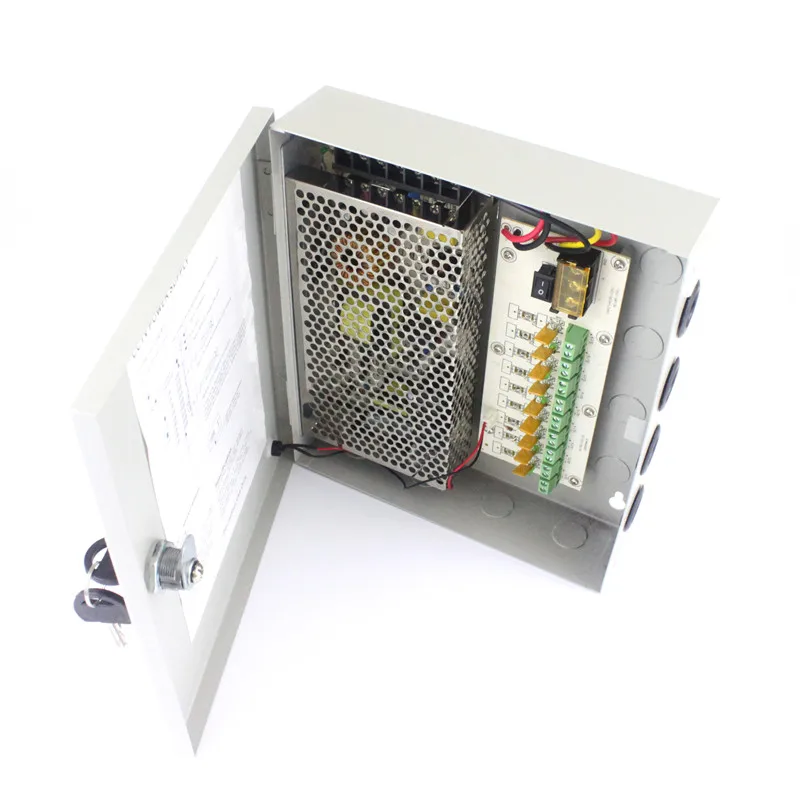

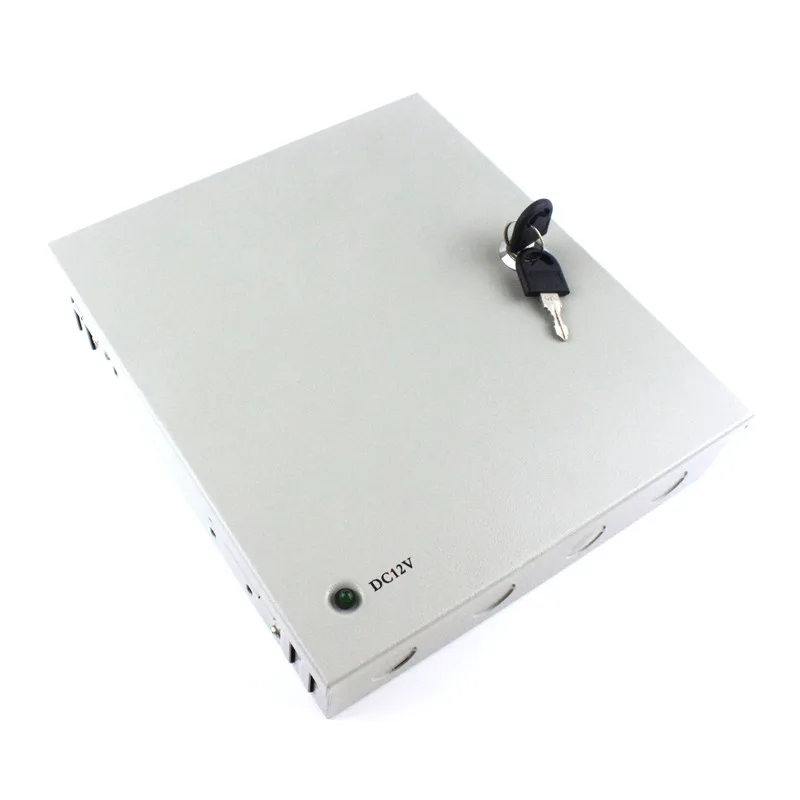

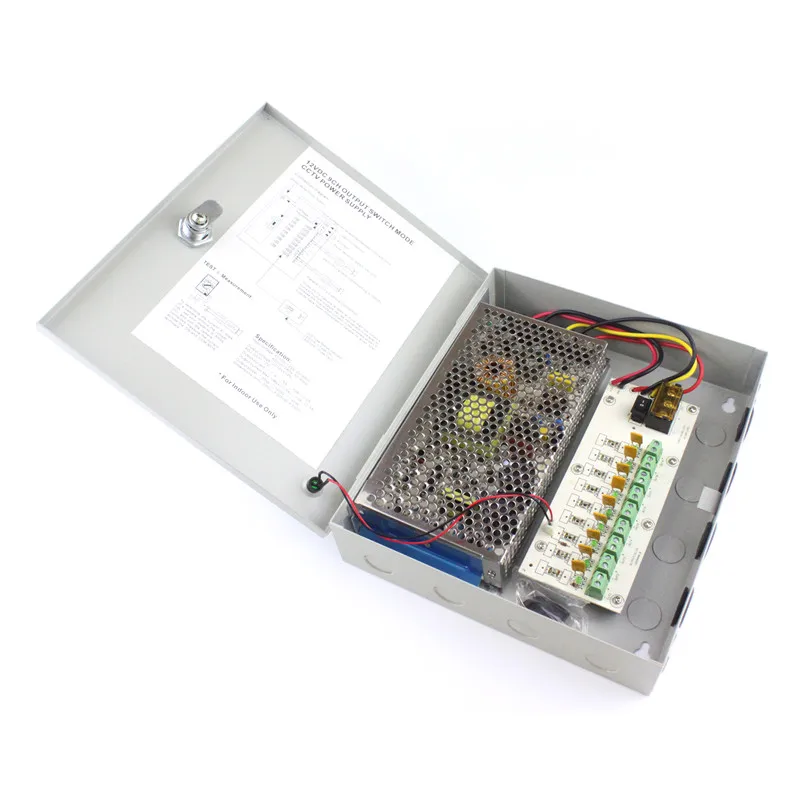

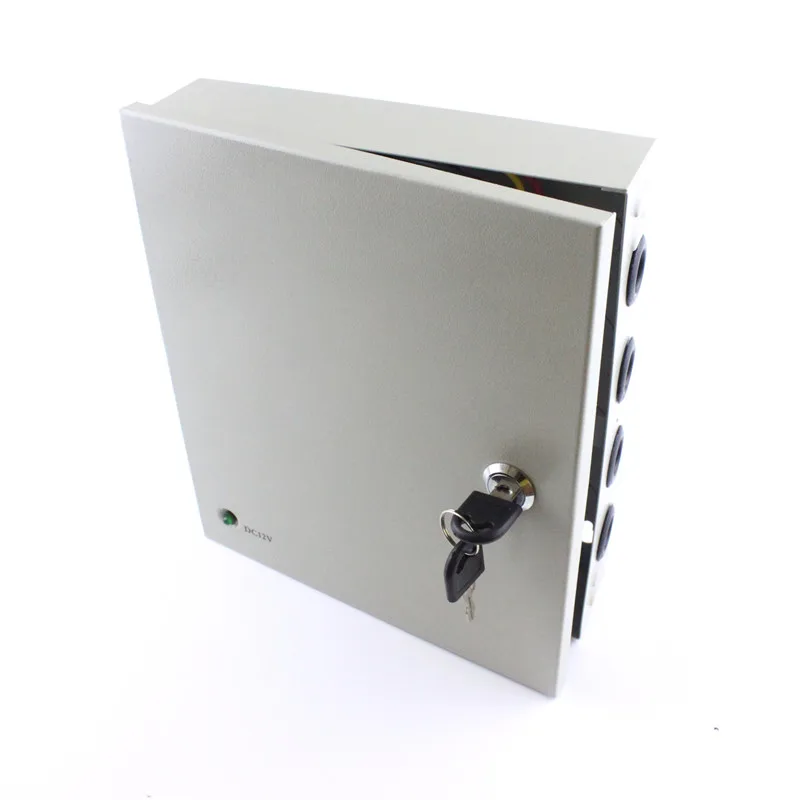

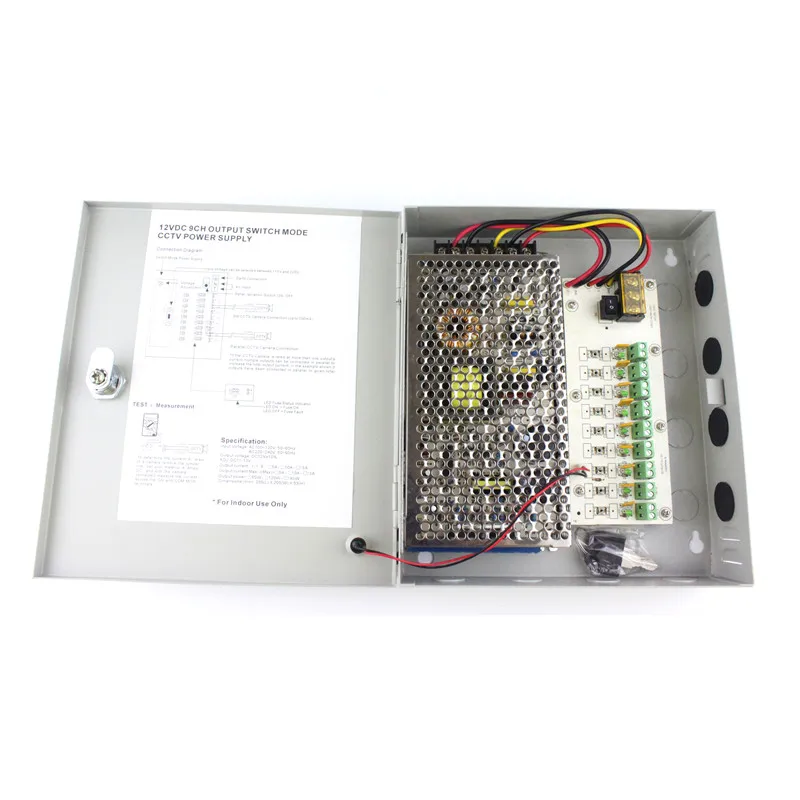

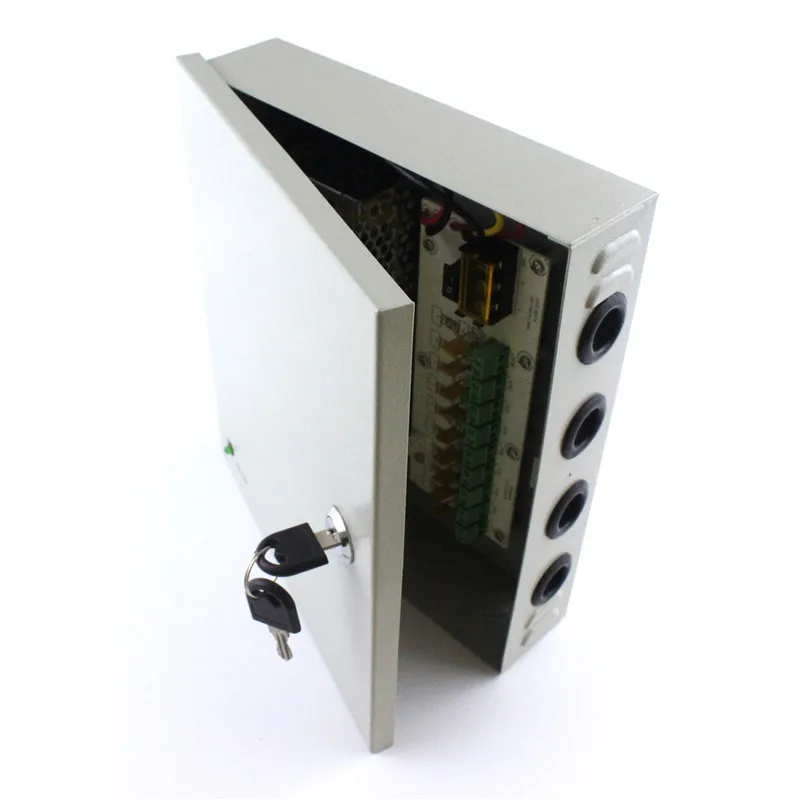

Product Show:
