New automatic ticket vending machine ticket dispenser SK-AD1

other dispenser:



Overview:

SK-AD1-1xxx series card dispenser is a high-performance card issuing device which primarily dispenses paper tickets and PVC cards to users according to instructions from HOST. It is primarily applicable to self-service terminals such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, etc.



Features:

*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.

*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.

*Compact structure design: effectively saves space for the complete machine.

*Rear card capture box: provides convenience for card management.

*Simple collection channel design: satisfies user requirement for large collection amount.

*Multiple sensors: are able to judge the card position and indicate the card status.

*Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.

*Multiple levels of sensor circuit protection: prevents optical interference.

*Supports multiple communications (max. 16 C/Ds).

*Supports online upgrade program.

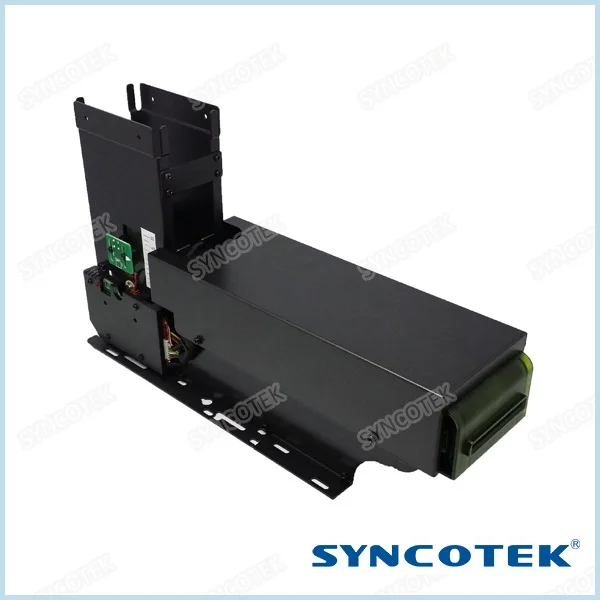

SK-AD1-1

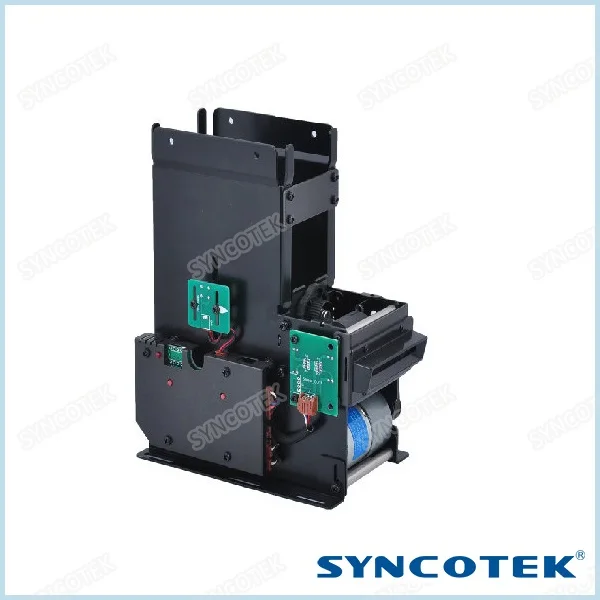

SK-AD1-2



Specifications:

Communication Method	RS232/TTL
Operating Conditions	Power Supply	DC 24V±5%, 2.5A
	Quiescent Current	200mA
Card Stacker Capacity	155 pcs (0.76mm standard card)
	120 pcs (0.76mm embossing card)
	300 pcs (0.4mm thickness)
Card Supported	86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm)
Service Life	1,000,000 passes min.
Operation Temperature / Humidity	-10°C to 70°C, 0 to 90% RH without condensation
Storage Temperature / Humidity	-25°C to 80°C, 0 to 90% RH without condensation
Net Weight	Approx. 1.6KG (excluding accessories and package)
Dimension	236L x 100W x 200H mm



  Please send us an inquiry to get your own special discount now.
