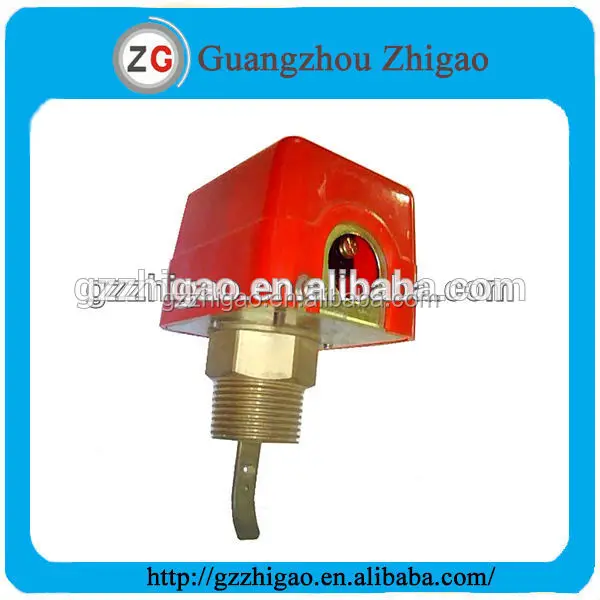

Qualtiy HFS-25 AC 220V 15A Male Thread SPDT Water Paddle Flow Switch
1'' NPT 10KG 100°c
SPDT 15A 250VAC
2.Water flow switch description
The HFS serices Water flow switch can be installed on the water pipe and in the liquid that is not corrosive to brass.It can be typically used to the location that have linkage function or liquid break protection.
3.Technical Sheet
Work pressure
1.0 Mpa
Contact life
1000K Cyc
Pressure
1.75Mpa
Bellows life
50K Cyc
Insulation resistane
>100W.DC500VM
Liquid Temp
Max 100 dgree
Voltage with stand
AC1500v/1 min
4.Liquid Control Range
Type
Liquid Range(LPM)
(Inch)
Flow Direction piece
Min
Max
Open
Closed
Open
Closed
1
1
15
8
45
41
1-1/4
1
26
13
75
68
1-1/2
1
29
20
105
94
2
2
34
17
120
105
2-1/2
2
60
34
210
188
3
2
68
30
288
275
4
3
128
64
412
360
5
3
225
113
750
652
6
3
345
172
1125
975
5.Design drawing
6.Installation drawing.
7.Wiring Diagram

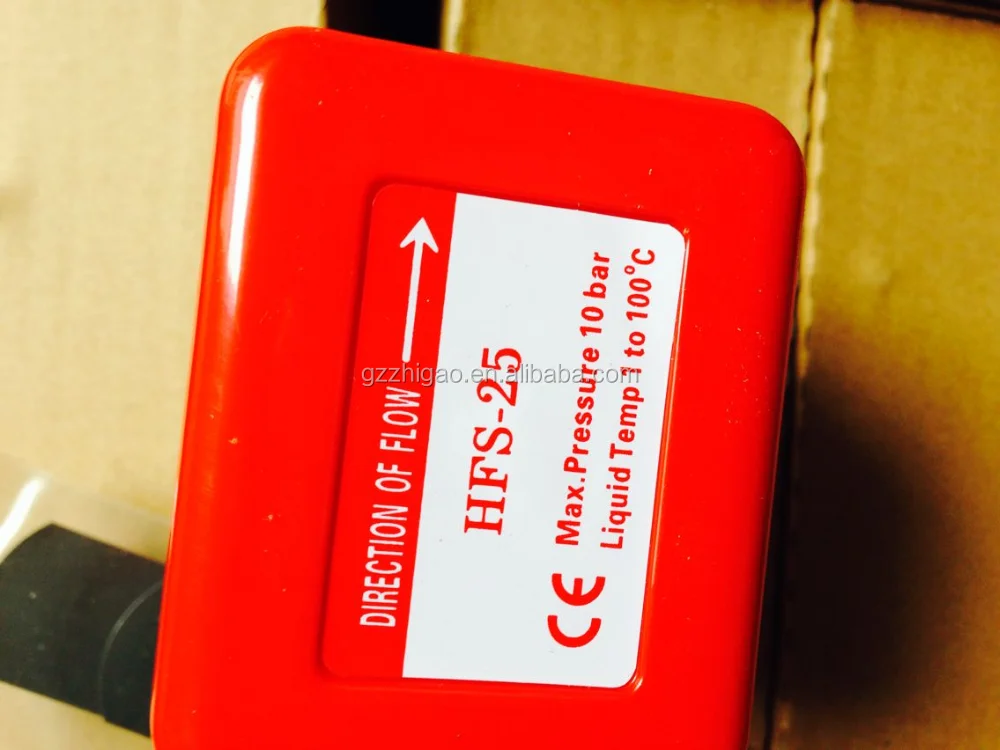

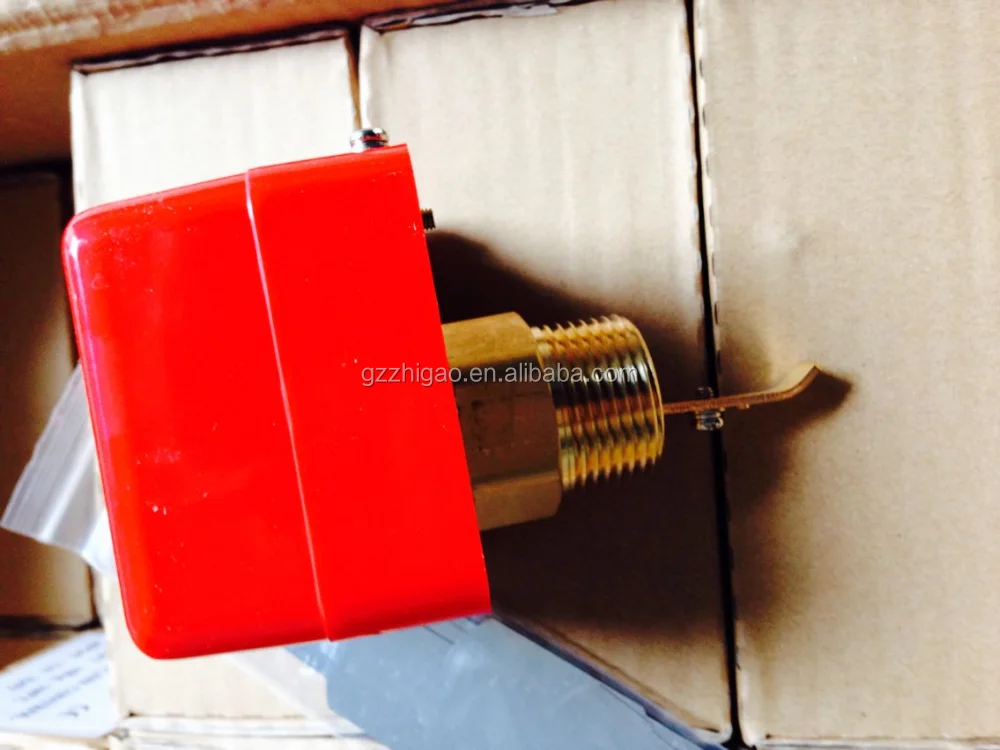

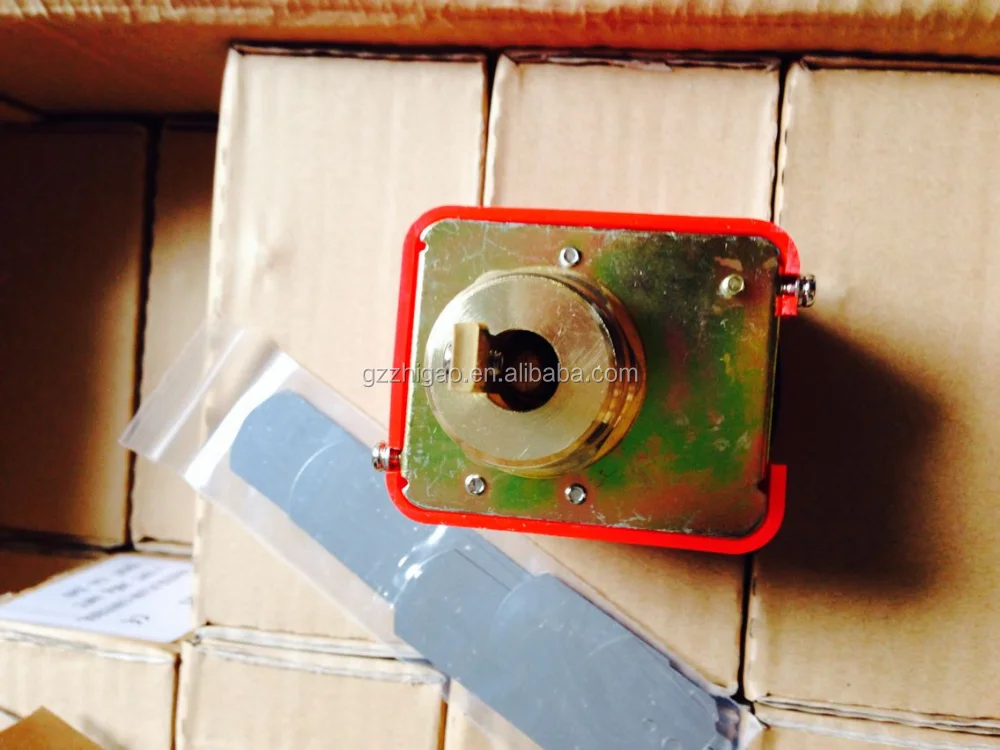

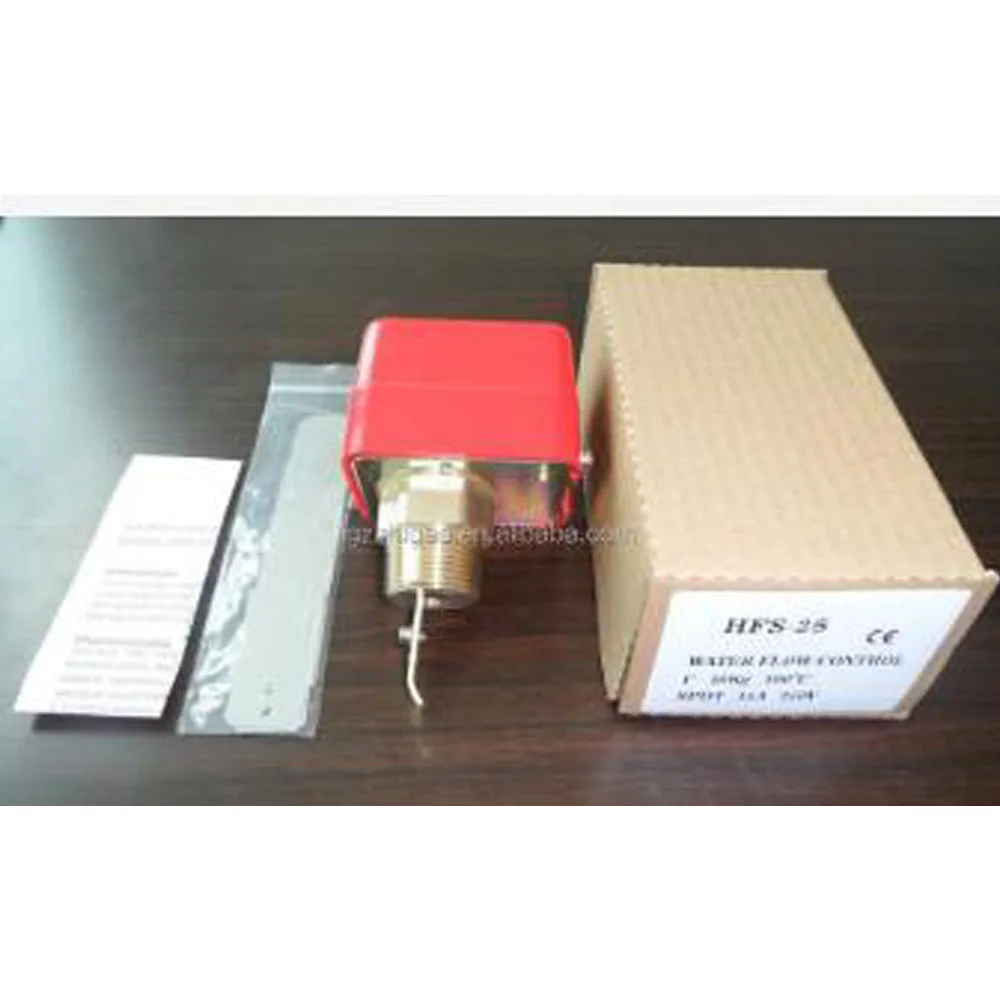

8. More picture to your reference
