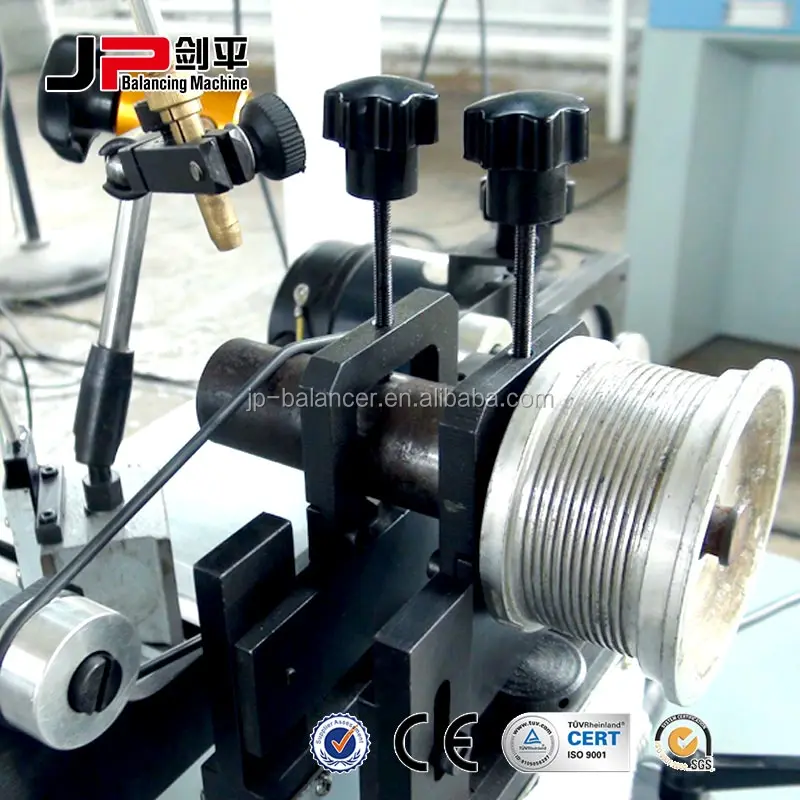

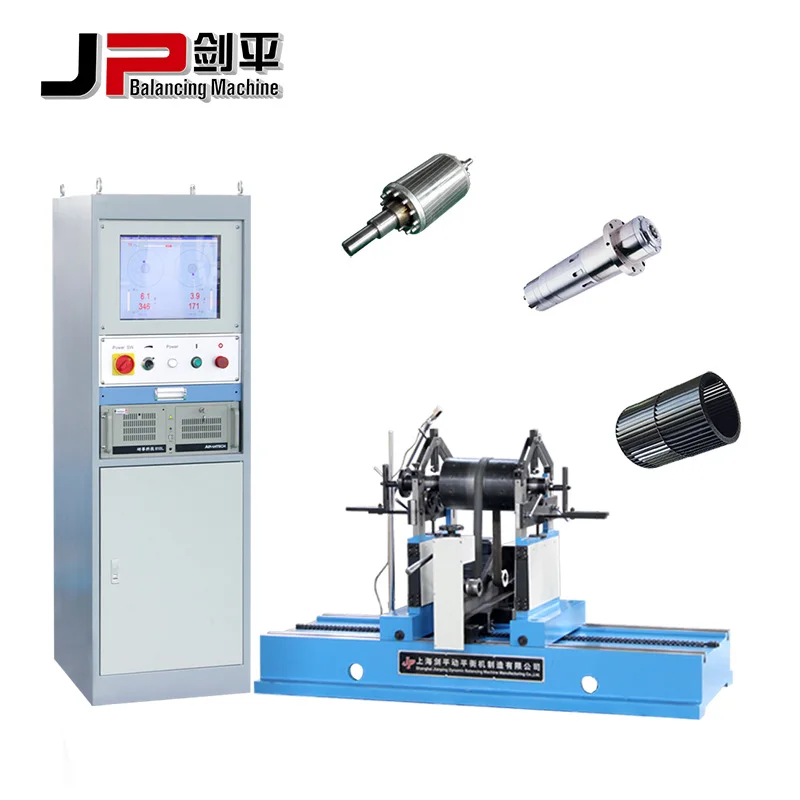

Combing Roller Balance Machine ( PHQ-300H ):



Production Description



• Specially designed brackets transmit mechanical force with low vibration damping
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application



Range of Application

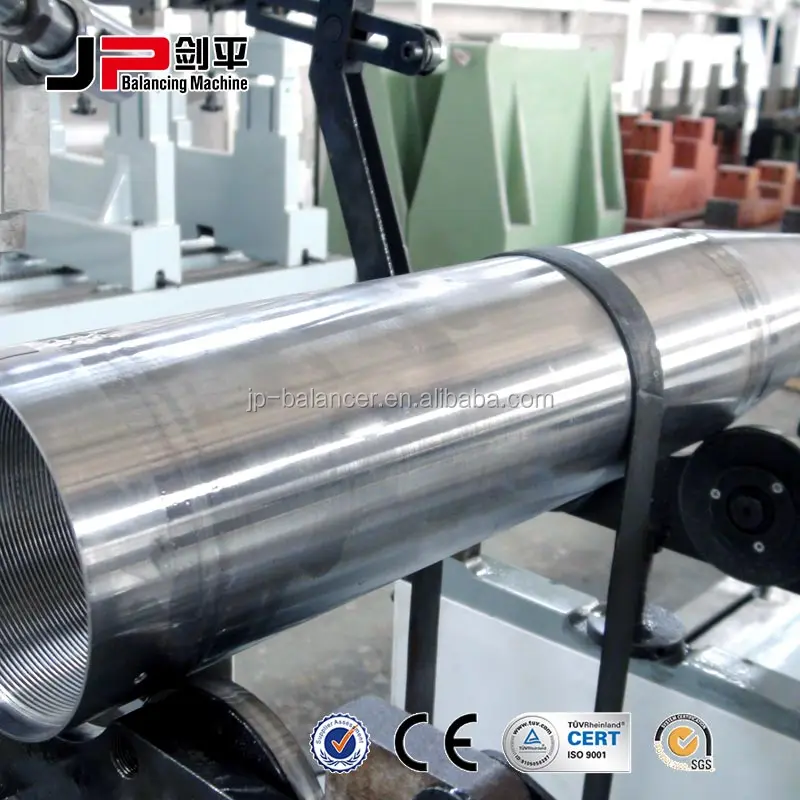

Widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans, impeller, rubber roller, cylinder, shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.



Special Features



The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.



Production Parameters



Technical data at a glance	PHQ-1000	PHQ-2000	PHQ-3000	PHQ-5000
Max Mass of Workpiece (kg)	1000	2000	3000	5000
Max Diameter of Workpiece (mm)	1500	1800	2000	2000
Distance between Two Support Bearings (mm)	160~1500	180~1700	500~2200	500~2200
Journal Diameter Scope of Workpiece (mm)	35~200	40~240	40~380	40~380
Diameter Scope of Driving Belt (mm)	40~400	40~600	50~1000	50~1000
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	1148,15541)	590,13751)	795,18531)	795,18531)
Motor Power (kw)	42)	5.52)	7.52)	152)
Min Achievable Residual Unbalance Amount (emar)	Min 0.5g· mm/kg	Min 0.5g· mm/kg	Min 0.5g· mm/kg	Min 0.5g· mm/kg

1) Stepless speed regulation

2) Frequency conversion

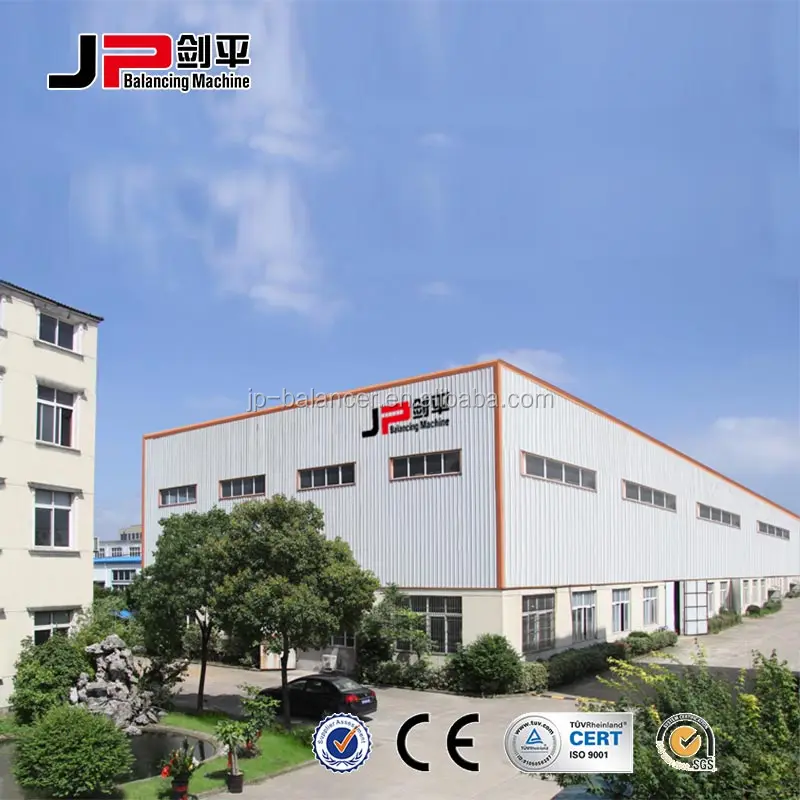

Factory Outlook





  Certificates







Material inspection





Production Process-Measuring system



 easuring system

Production Process-Mechanical parts





Workshop debugging





Delivery inspection





Package and transport
