Инжектор PoE высокой мощности с одним портом 100 м
- Категория: Модули Ethernet и POE >>>
- Поставщик: Optical,Network,Video,Technologies,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.11 $* |
| Aug-16-2025 | 0.63 $* | 0.79 $* |
| Jul-16-2025 | 0.61 $* | 0.68 $* |
| Jun-16-2025 | 0.94 $* | 0.34 $* |
| May-16-2025 | 0.58 $* | 0.15 $* |
| Apr-16-2025 | 0.71 $* | 0.24 $* |
| Mar-16-2025 | 0.64 $* | 0.45 $* |
| Feb-16-2025 | 0.91 $* | 0.18 $* |
| Jan-16-2025 | 0.28 $* | 0.18 $* |
Характеристики
100M Single Port Super High Power PoE Injector (ONV-PSE3501)
Features:
1:100M Single Port Super High Power PoE Injector
2:Supply power to millions HD webcam through Cat5 Ethernet cable
3:2x 10/100 Mbps RJ45 ports
4;Support network port, the power input port features lightning-proof (meet the secondary lightning protection)
5:PoE power supply type is the four line pairs of twisted pairs, among which 1/2, 4/5 line pairs is the power’s positive side, and 3/6, 7/8 line pair is the power’s negative side.
6:Support LTPoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard
7:Single port output power: 95W, voltage: 48V~57V, total power: 100W
8:Dimension: L x W x H (mm) 80x76x25
9:No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall
Specifications:
| Technical parameter list | |
| Product Name | 100M Single Port Super High Power PoE Injector - 95W |
| Model | ONV-PSE3501 |
| Connector Type | In:1x10/100 Mbps RJ45 port; Out:2x 10/100 Mbps RJ45 ports |
| Network Media | 1000BASE-TX: Cat5 or more UTP(≤100 meters) |
| Power Input | DC In 52V 2.5A |
| PoE Port Power | 95W |
| PoE Standard | Support LTPoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard |
| Power Consumption | 100W |
| Working Environment | Working temperature:10℃~+70℃, Storage temperature: -45 ℃~+95 ℃, Relative humidity: 10~95% (non-condensing) |
| Certification | FCC Class A, CE, RoHS |
| Power Supply Type | mid-span (can be customized the end-span) |
Order Information:
Product Model: ONV-PSE3501
Product Description: 100M Single Port Super High Power PoE Injector, Support LTPoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard, Single port output power: 95W, voltage: 48V~57V, total power: 100W
Ordering Note: Default PoE power supply type is the four line pairs of the twisted pairs, among which 1/2, 4/5 line pairs is the power’s positive side, and 3/6, 7/8 line pair is the power’s negative side
Applications:

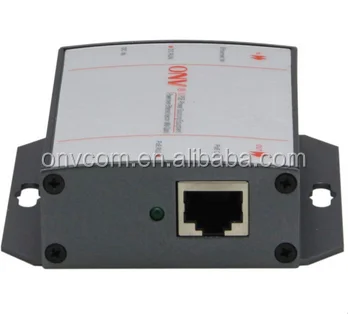

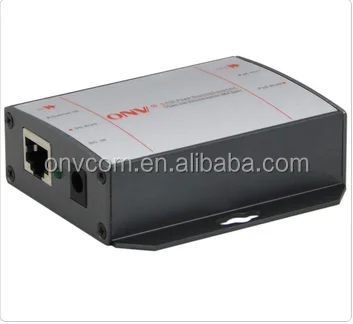

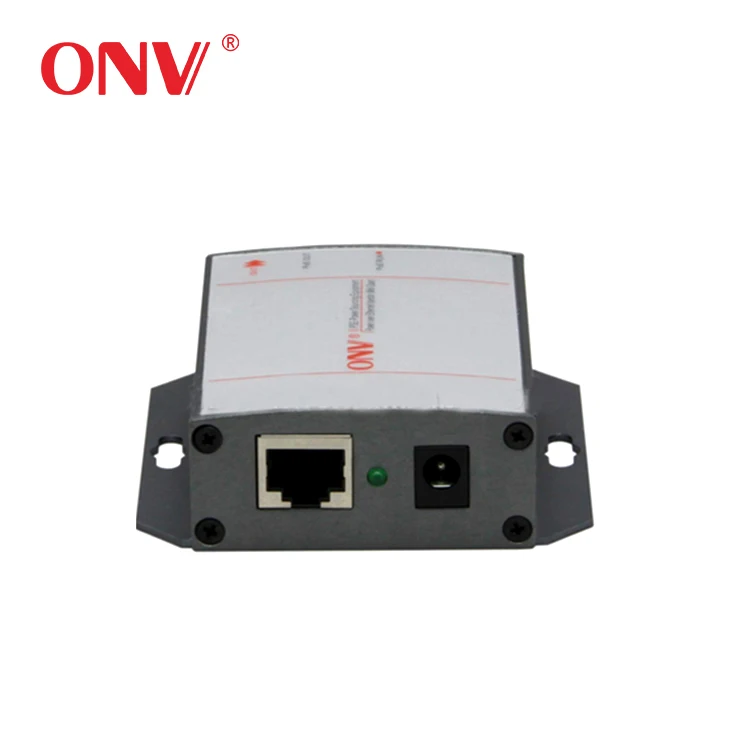

Product Display:
