Характеристики

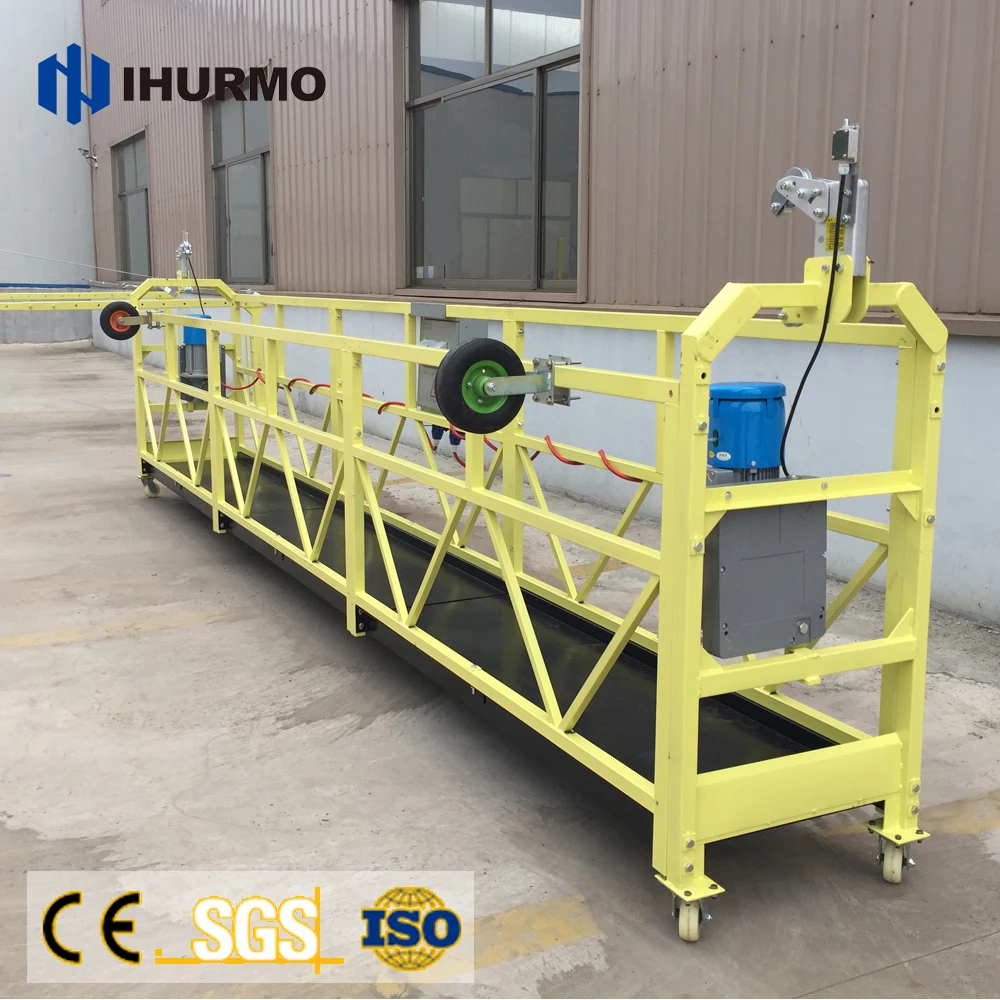

  Beijing IHURMO rope suspended platform cradle



Product Description


The rope suspended platform cradle is motor driven climbing machinery mainly used for the exterior wall construction, decoration and renovation of high-rise buildings and multi-storey buildings. More specifically, cement coating, wainscoting, curtain wall installing, painting, varnishing, cleaning, maintenance, and other tasks can all be completed. This rope suspended platform cradle is also suitable for other engineering work on large tanks, bridges, and dams.





The rope suspended platform cradle  alone is capable of accomplishing construction tasks without the help of scaffolds. Thereby the construction cost is greatly reduced and the efficiency is improved. In addition, this rope suspended platform cradle features reliable performance as well as easy operation and displacement.































































































































rope suspended platform cradle



Name



Technical parameter



Model



ZLP500



ZLP630



ZLP800



ZLP1000



Rated load (kg)



500



630



800



1000



Lifting speed (m/min)



8-10



8-10



8-10



8-10



Platform dimensions (mm)



5000(2+3m)×720
×1300



6000(1+2+3m)×720
×1300



7500(2.5m×3)×720
×1300



7500(3×2.5)×720
×1300



Lifting height (m)



100



100



100



100



Cable (m)



100



100



100



100



Steel rope (mm)



8.3



8.3



9.1



8.6



Hoist



Power



1.5KW*2



1.5KW*2



1.8KW*2



2.2KW*2



Voltage



380V/50HZ



380V/50HZ



380V/50HZ



380V/50HZ



Safety lock



Allowable impulsive force (kN)



30



30



30



30



Cable locking angle



3°~8°



3°~8°



3°~8°



3°~8°



Suspension mechanism(
Galvanized)



Front beam overhang (m)



1.3~1.5



1.3~1.5



1.3~1.5



1.3~1.5



Adjustable height (m)



1.44~2.14



1.44~2.14



1.44~2.14



1.44~2.14



Counterweight (kg)



800



800



1000



1200



20ft container (set)



10



9



8



8

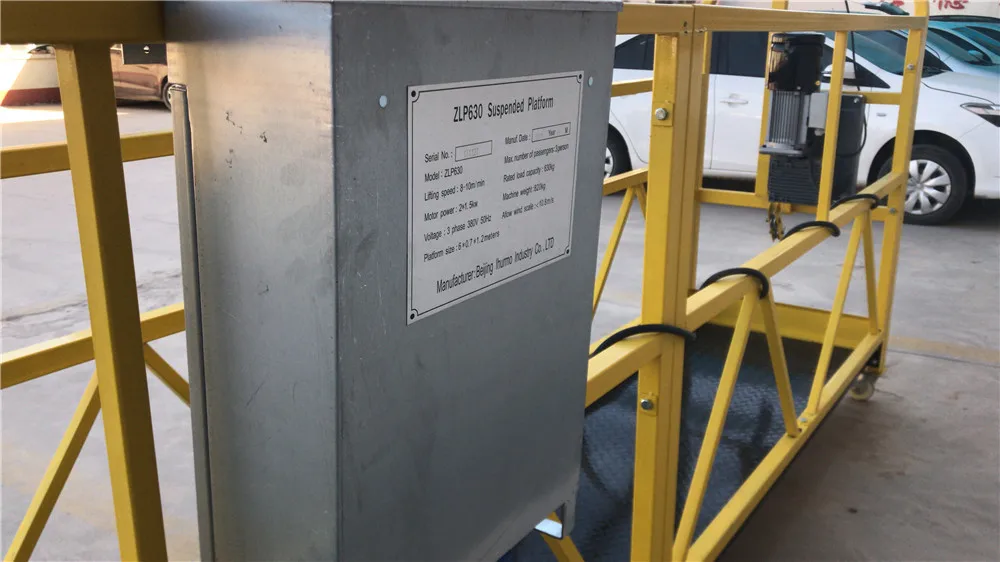

Suspended Platform in India.JPG

Suspension mechanism.jpg






Packaging & Shipping


 rope suspended platform cradle Packaging and Shipping


suspended working platform (4).JPG








Our Services


  rope suspended platform cradle Services


IHURMO, an engineering machinery supplier in China, provides not only quality construction equipment but also first-class services.





Pre-sales Services


1.We offer customers free catalogs of our products and other relevant files.


2. We also provide free shuttle as well as board and lodging (four-star hotel) for customers who come to visit our company.





After-sales Services


1.The construction equipment we offer enjoys one-year guarantee period..


2. We supply free quick-wear parts.


3. Double hot lines for 24-hour after-sales services.


4. Online after-sales service is available as well.


5. The technical documents will be attached with the equipment while leaving the factory.


6. If needed, we will send one technician to the site to provide guidance on installation and debugging as well as the training of operators.


7.We can provide on-site service in some countries and areas where we have overseas office or agents.





In addition, OEM service is available.





Please contact us if you want to know more about us.








Company Information

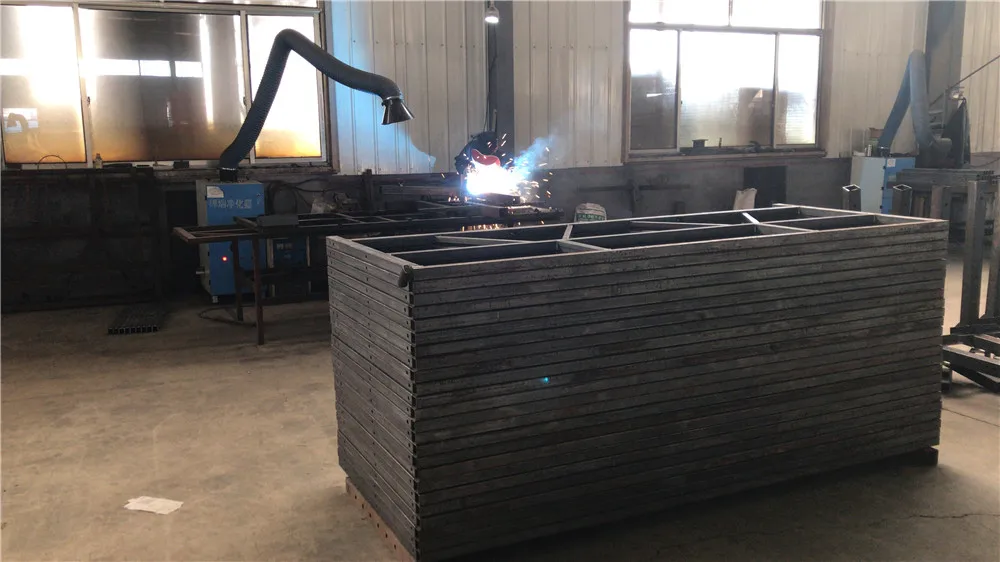

  We are dedicated to the development and production of tower crane, construction hoist, material hoist, simple material hoist, suspended platform and all relative accessories. Our company employs 800 skillful personnel and is equipped with Panasonic professional robotic welding equipment, machining centers, large CNC gantry milling, CNC double-sided milling, CNC plasma cutting machines, computer-aided assembly line, fully automated spraying line and so on. Therefore, we can easily meet your requirements.
