Светодиодный регулятор яркости с таймером привод для регулировки 0-10 В 1-10

Светодиодный регулятор яркости с таймером привод для регулировки 0-10 В 1-10

Категория: Other Electrical Equipment >>>
Поставщик: Guangzhou,Video-Star,Electronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.59 $*	0.77 $*
Aug-15-2025	0.85 $*	0.90 $*
Jul-15-2025	0.25 $*	0.65 $*
Jun-15-2025	0.12 $*	0.85 $*
May-15-2025	0.45 $*	0.61 $*
Apr-15-2025	0.11 $*	0.18 $*
Mar-15-2025	0.19 $*	0.41 $*
Feb-15-2025	0.34 $*	0.97 $*
Jan-15-2025	0.10 $*	0.18 $*

Характеристики

Led Dimmer Controller Timer

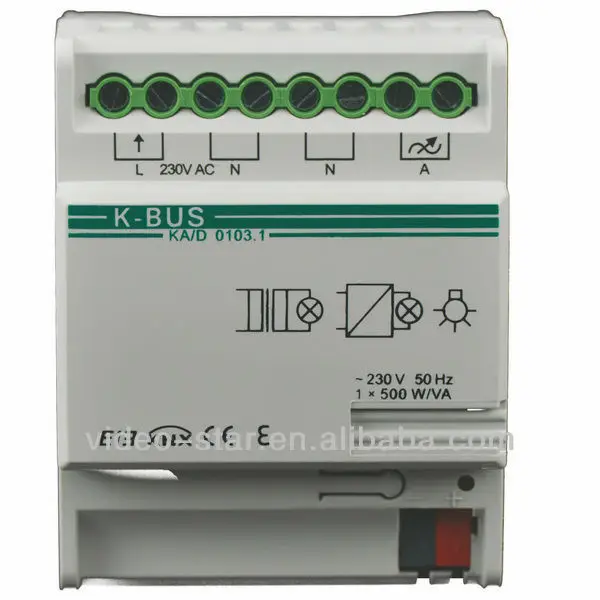

KNX 1/2/4 ch Dimming Actuator

1-F Dimmer Actuator02.jpg

Product feature:

Technical Parameter

Power supply Working voltage 21-30V DC, via EIB bus

Input voltage 230 V AC (50/60Hz)

Output KA/D 01.03.1---1 channel Max. output capacity 500W per channel

KA/D 02.03.1---2 channels Max. output capacity 500W per channel

KA/D 04.03.1---4 channels Max. output capacity 400W per channel

Output voltage 230 V AC (50/60Hz), short-circuit and excess temperature protection

Max. Leakage Loss 5W

Connections EIB/KNX EIB bus connection terminal

Input, Load Circuits Screw terminals

Operation and display Button and red LED For assigning physical address

Green LED flashing Indicate the device running normally

Type of protection IP 20 , EN 60 529

Temperature Operation -5 C~+ 45 C

Storage -25 C ~ + 55 C

Transport -25 C~ + 70 C

Ambient Humidity <93%, except dewing

Mounting On 35mm DIN rail

Dimensions KA/D 01.03.1--- 90×71.5×60 mm

KA/D 02.03.1--- 90×143×60 mm

KA/D 04.03.1--- 90×214.5×60 mm

Weight KA/D 01.03.1--- 0.3kg

KA/D 02.03.1--- 0.5kg

KA/D 04.03.1--- 0.75kg

CE norm In accordance with the EMC guideline and the low voltage guideline

Certification EIB/KNX certified

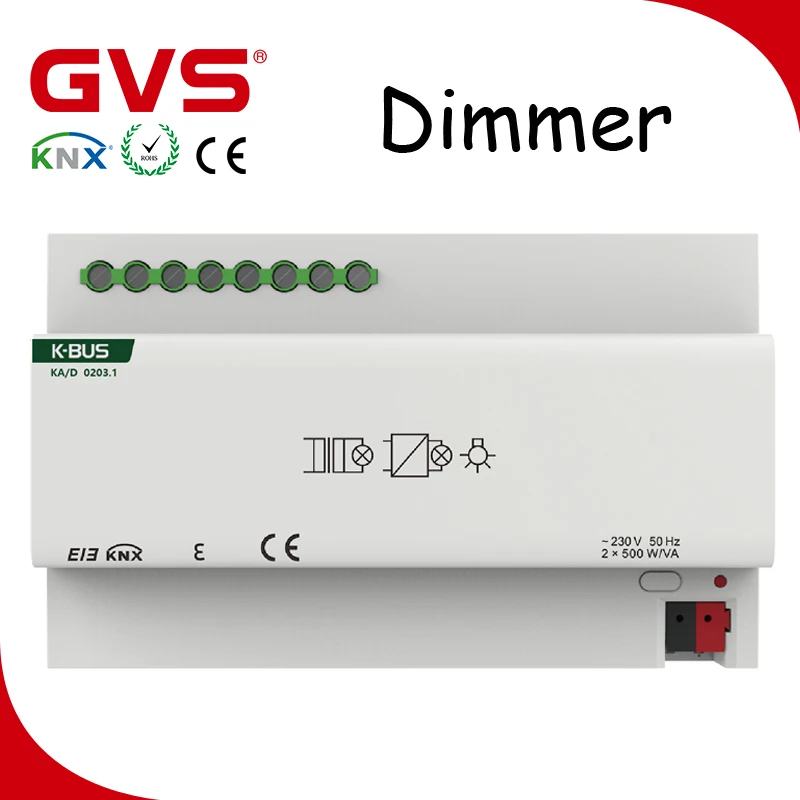

2-F Dimmer Actuator02.jpg

Functions

Switching the LED light

Relative dimming

Absolute dimming

Status report, error report

Setting 15 scenes

Staircase lighting function

Bus recovery (or reset) function

Preset value and modify preset value functions

Set output current for per channel manually

Switch/relative dimming via manual buttons

4-F Dimmer Actuator02.jpg

Why choose us?

Company Introduction

In 2008, Guangzhou Video-star Group (GVS) started developing the KNX/EIB lighting control products from scratch in the wake of becoming KNX member strategically, which offered a new area for the company to step into the intelligent building control system industry.

As a senior manufacturer member of KNX, GVS is one of the best manufacturers specialized in R&D and manufacturing of home and building automation products, which includes dimmer actuator, switch actuator, shutter actuator, power supply, protocol gateway, detector/sensor, user interface, etc.

R & D Research

There are 52 employees working in our R & D center to develop new products to meet the market demand and enrich our product line. As a result, we can offer worldwide clients first class products and strong technical support.

Project Cases

With high-quality and advanced design, our smart home and building products and system are widely used in housing system, smart hotels and other intelligent buildings.

There are some typical project cases:

Domestic

Projects Cases Overseas.jpg

Overseas

Domestic Project Case.jpg

Distributors or Agents offered and OEM, ODM service is available.

If you are interested in KNX smart home and building system products, please send us your enquiries. Any feedback from you will be highly appreciated and get prompt reply.
