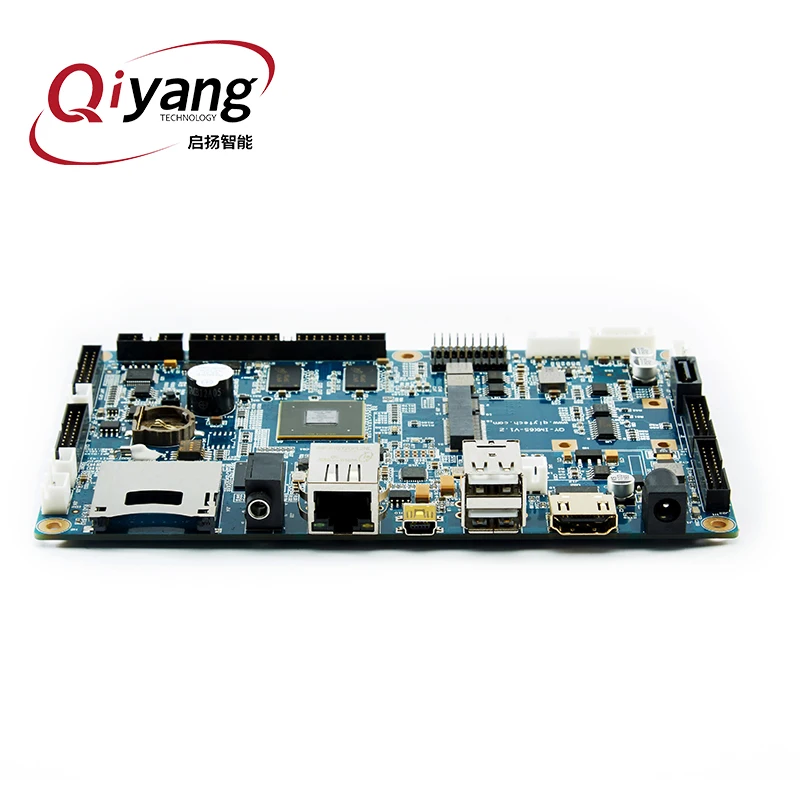

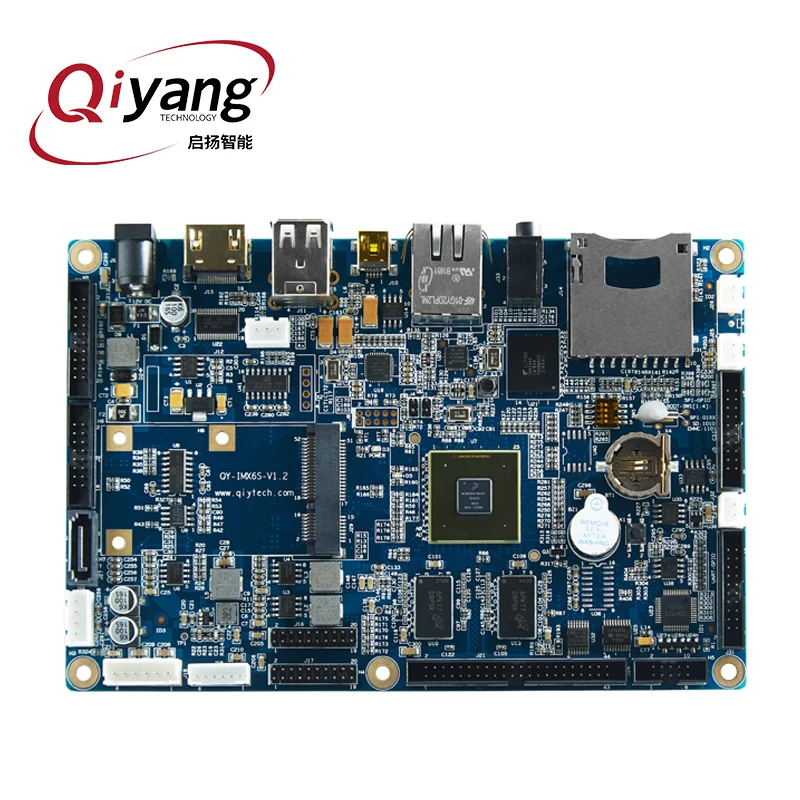

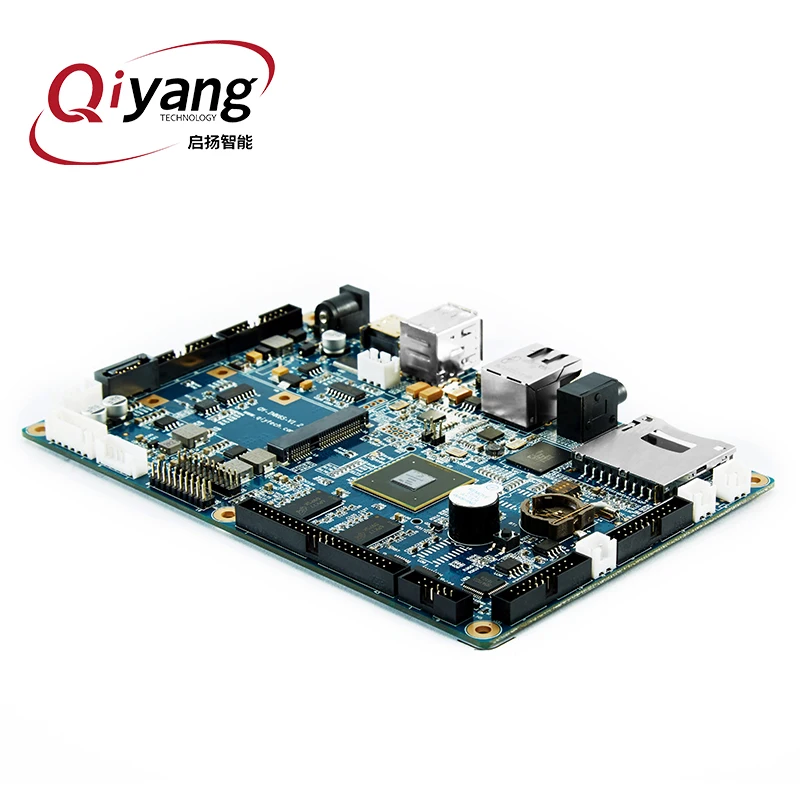

Hardware
Resources
|
CPU
|
Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz
|
RAM
|
DDR3 SDRAM,4*256MB, total 1GB
|
Flash
|
4GB EMMC
|
Network
|
AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M
|
Communication
|
5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485
|
1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface
|
2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output
|
1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator
|
Display
|
18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200
|
VGA, can be connected with universal display
|
2-ch LCDS Interface, each channel can support resolution up to 1920*1200
|
1080P display Interface, support 1080P display 1.4
|
|
Audio
|
McASP audio interface; binaural output; MIC audio input
|
Input Interface
|
4-wire resistive touch panel
|
Standard I2C Capacitive panel
|
CAMERA Interface, standard interface support OV5642 camera module
|
Expansion Interface
|
MINI_PCIE 2.0
|
SIM Card
|
Memory Interface
|
1-ch SD Card interface
|
1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps
|
Other
|
Reset circuit, Watch dog, RTC, Buzzer, JTAG interface
|
Power Input
|
+12V power supply, can support +4.75V~+18V wide range voltage supply
|
Resource
|
Development Tools
|
Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1
|
Application layer development debug tool
|
Cross-compiler
|
Common terminal development debugging tool
|
Image File
|
OS image file, support multiple resolution display
|
Test Program
|
Interface using demo test program and test program source code
|
Source Code
|
Bootloader, kernel, system source code
|
Manual
|
Mainboard User manual,Device Manual
|
Schematic
|
Mainboard structure size chart
|
Electrical Specification
|
Size
|
160mm*105mm
|
PCB
|
8-layer high precision immersion gold process
|
Power
Consumption
|
≤3W
|
Operation Temperature
|
-20°C ~ +70°C
|
Operation Humidity
|
5% ~ 95%, Non-Condensing
|
