350 л барабанная дизельная бетономешалка дизельный двигатель

Описание и отзывы

Трекер стоимости

Характеристики

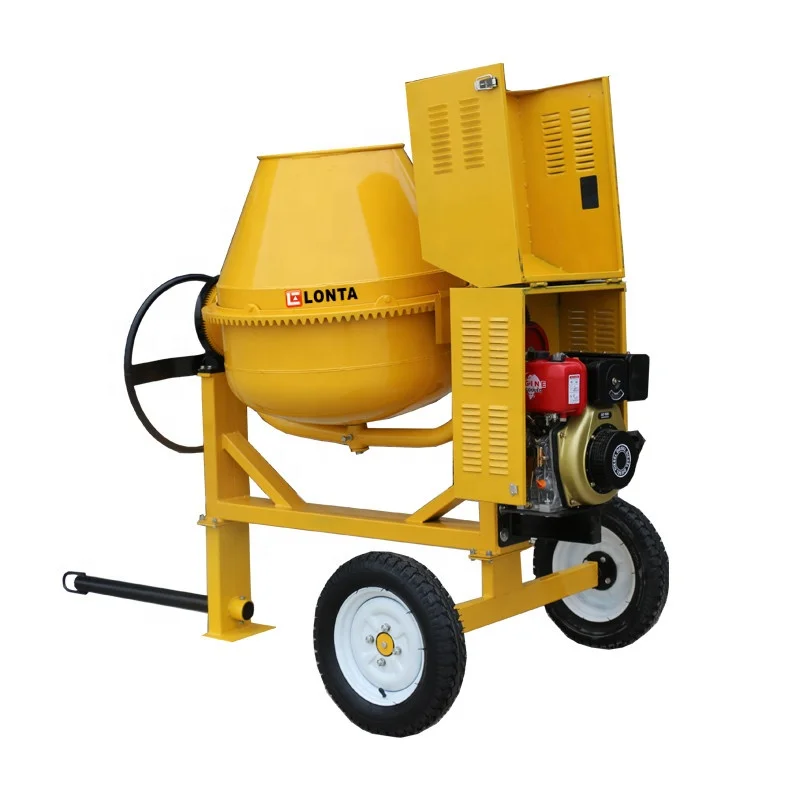

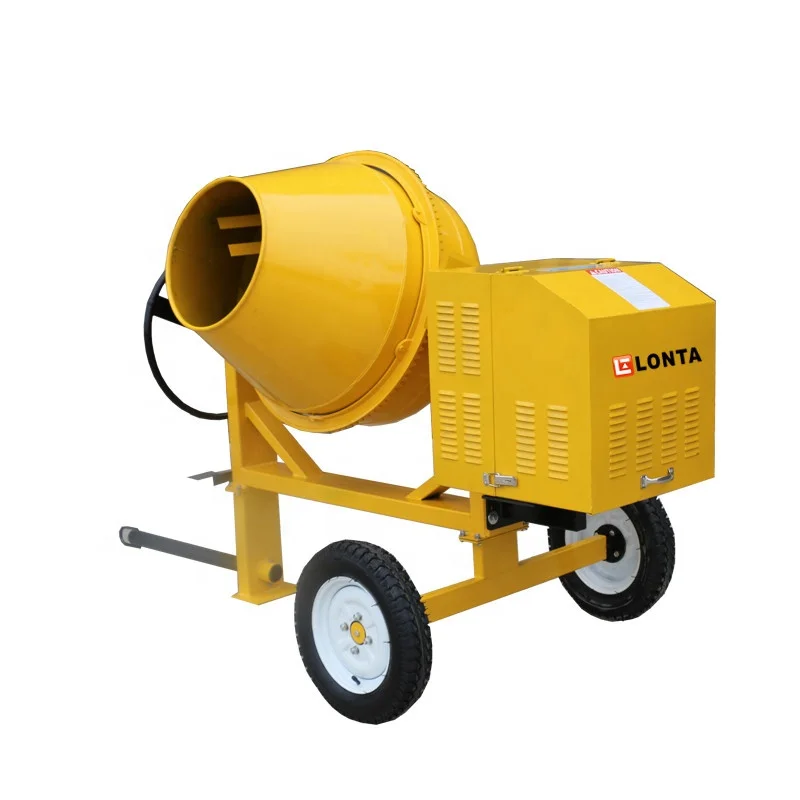

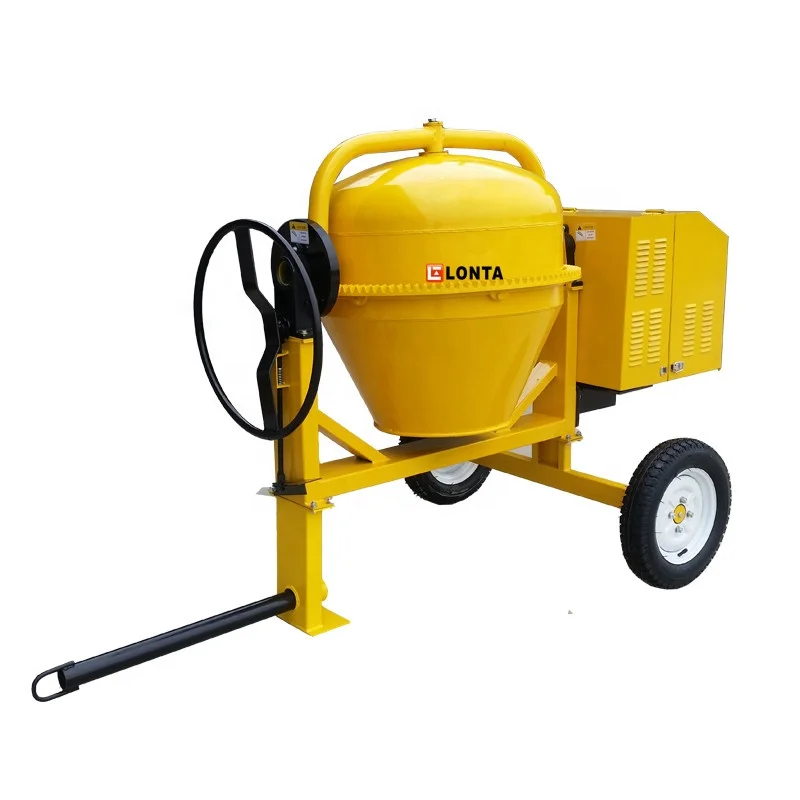

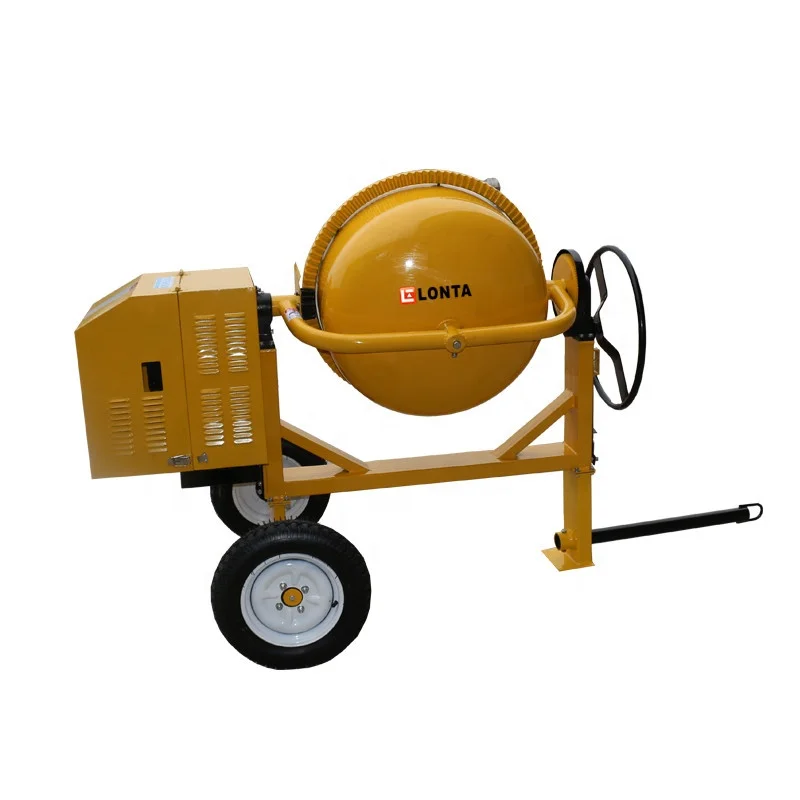

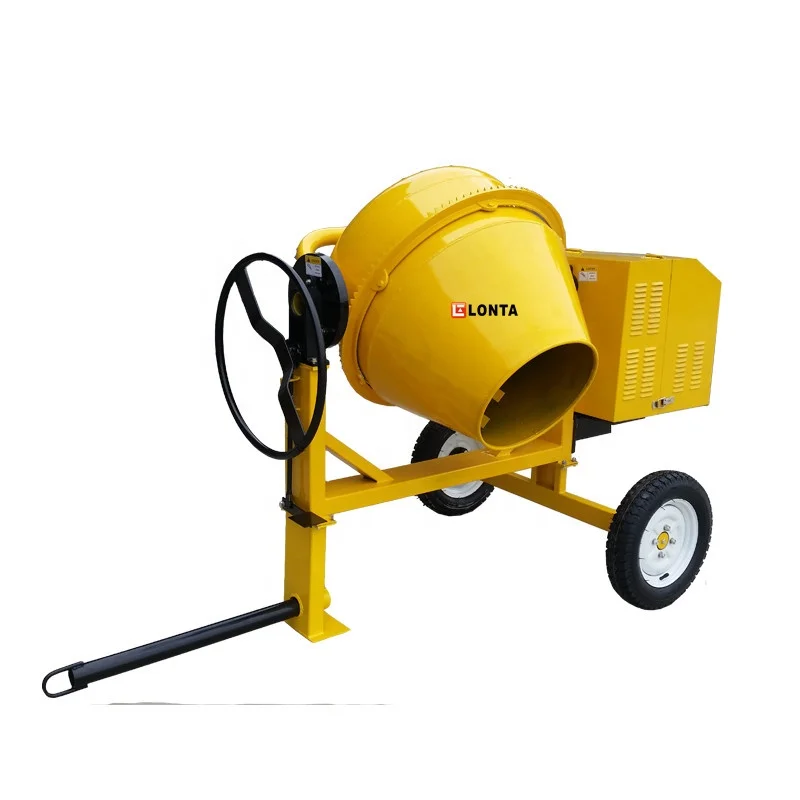

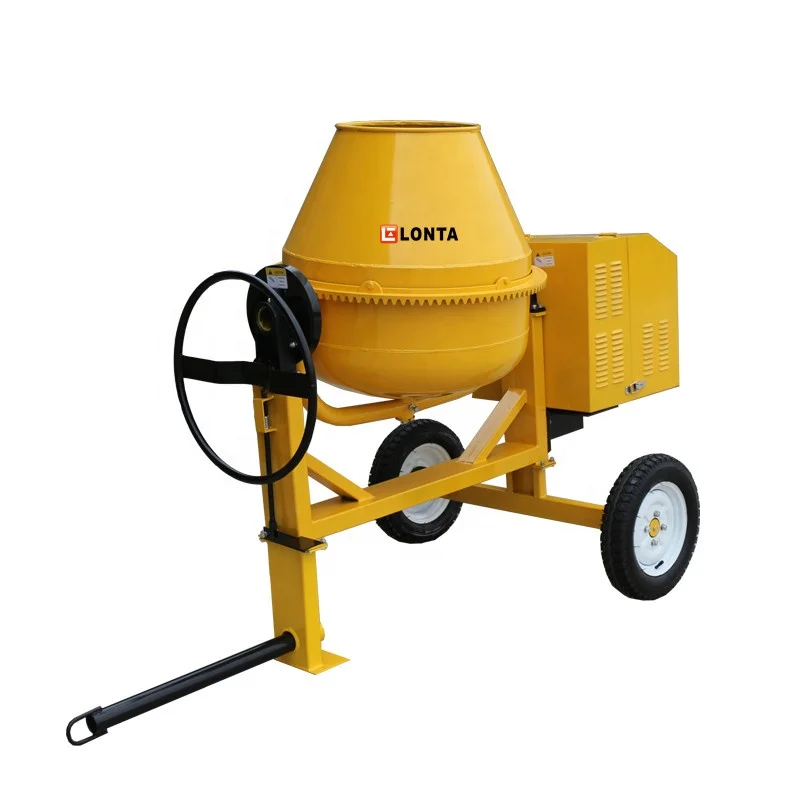

Hot selling drum diesel concrete mixers machine diesel engine china

1. Production Application

LONTA JH SEIRES Concrete Mixer are driven by Diesel, Gasoline engine or Electric motor.

This machine is used for mixing concrete, small quantities of drywall mud, plaster, stucco, mortar, and more. It is suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members,also you can choose as household mixer.



Type	JH350		JH350S	JH400	JH400S	JH500	JH500S	JH700S
Drum Capcity	350L			400L		500L		700L
Mixing Capacity	280L			320L		400L		560L
Productivity	4-5m³/h			5-6m³/h		6-8³/h		8-10³/h
Bags of Cement Per Batch	1Bag			1Bag		1.5Bag		2Bag
Drum Rotation Speed	25-30rpm			25-30rpm		20-25rpm		20-22rpm
Drum thickness	3/4mm(upper/bottom)			3/4mm(upper/bottom)		3/4mm(upper/bottom)		3/4mm(upper/bottom)
Drum Size	Φ800*900mm			Φ850*900mm		Φ950*900mm		Φ950*1050mm
Tyre size & Number	2* (4.00*12)	4* (4.00*12)		2* (4.00*12)	4* (4.00*12)	2* (4.00*12)	4* (4.00*12)	4*(5.00*12)
Power Option	Diesel, Gasoline,Electric (Different Brands for client’s wild choices)
Overall size	1960*1200*1650mm			2100*1200*1700mm		2160*1200*1750mm		2200*1500*1950mm
Packing Size	1860*860*1100mm			1960*960*1200mm		2060*1060*1250mm		2200*1060*1300mm
Loading Plan in assembles	14sets in 20GP, 28sets in 40HQ			12sets in 20GP, 24sets in 40HQ		12sets in 20GP, 24sets in 40HQ		5sets in 20GP, 20sets in 40HQ.
Loading Plan in bulk	26sets in 20GP, 60sets in 40HQ			26sets in 20GP, 54sets in 40HQ		26sets in 20GP, 54sets in 40HQ		/



2.LONTA JH SERIES CONCRETE MIXER FEATURES



1. We machine each gear ring by automatic lathe.

Every gear ring will be machined by our automatic lathe before assembling on the drum of mixer.  This necessary working will make the drum turning smoothly and silently.

2. All-steel construction, Mini Concrete Mixer has long life span.
3.Diesel/gasoline/electric motor,optional as customers' requirement.
4.Spray painted surface,colour as your request. Mini Concrete Mixer is rust- proof.
5.water supply mode:direct input
6.Discharging:semi-automatic

7. We have our own loading plan, it can loads more quantities than other suppliers, it could help you to save the average cost.
