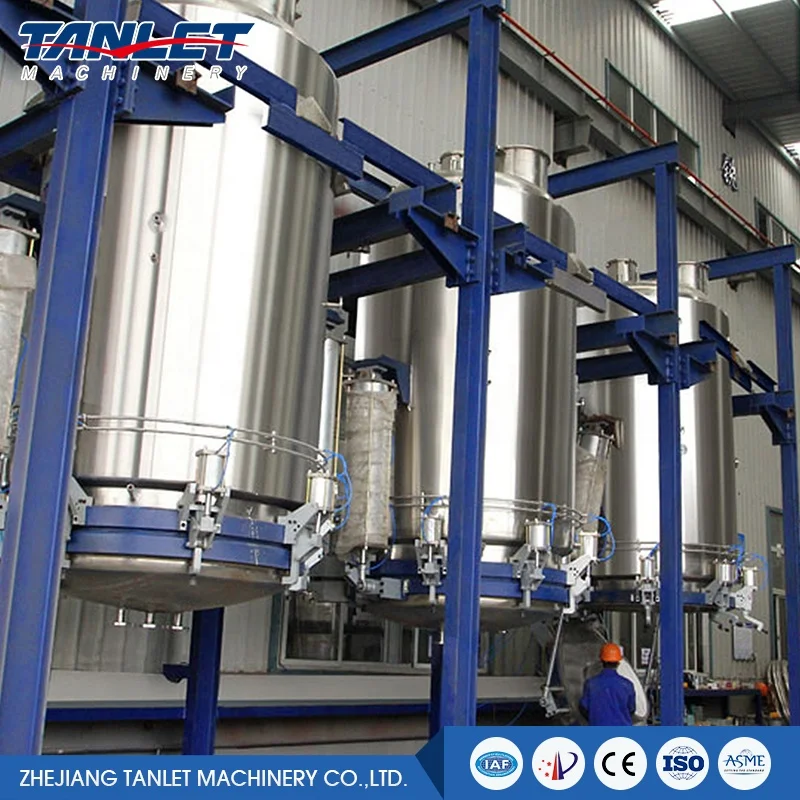

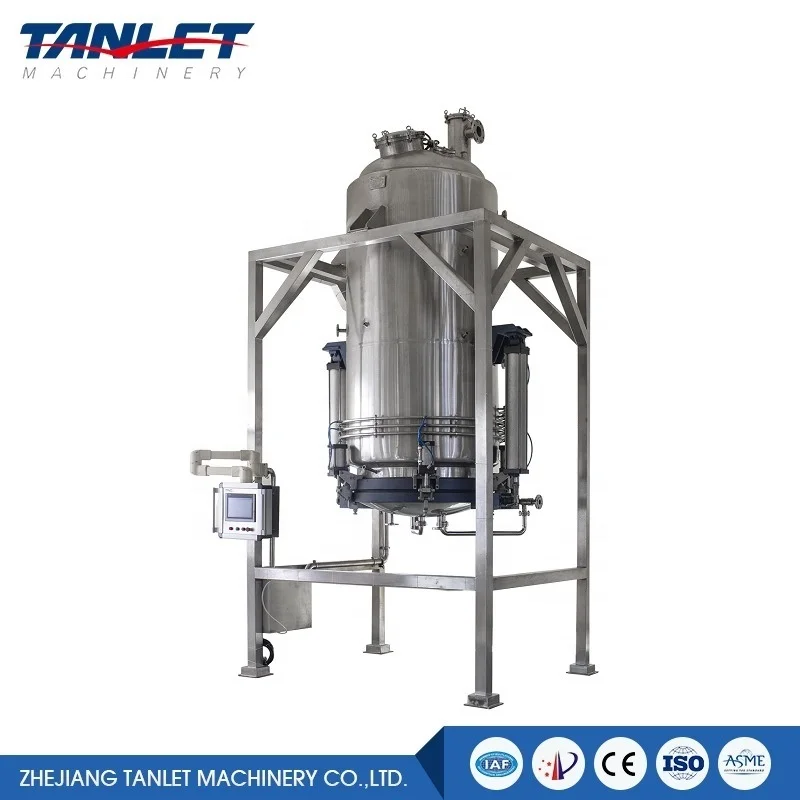

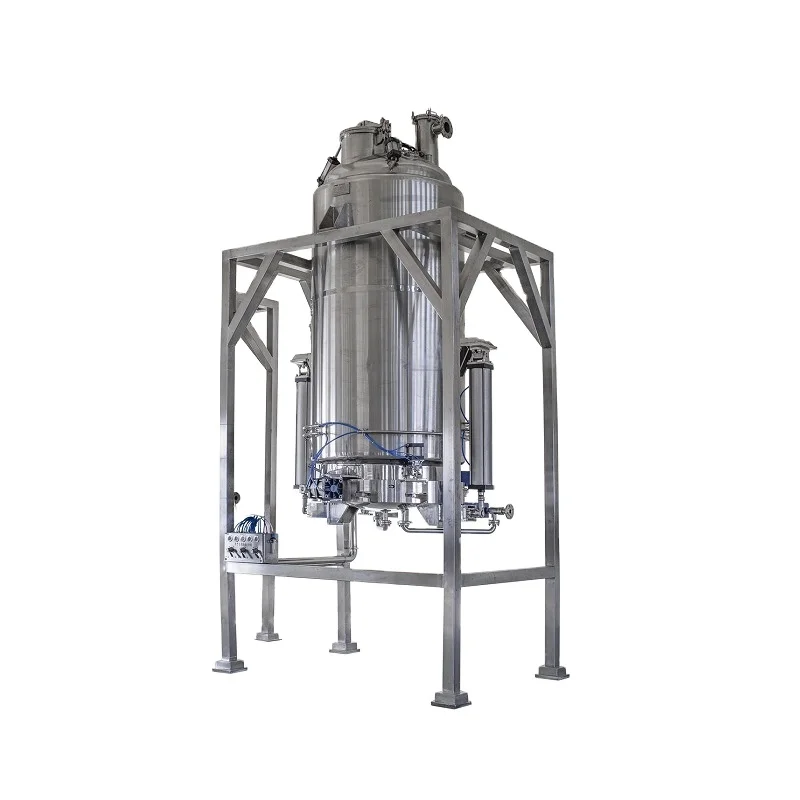

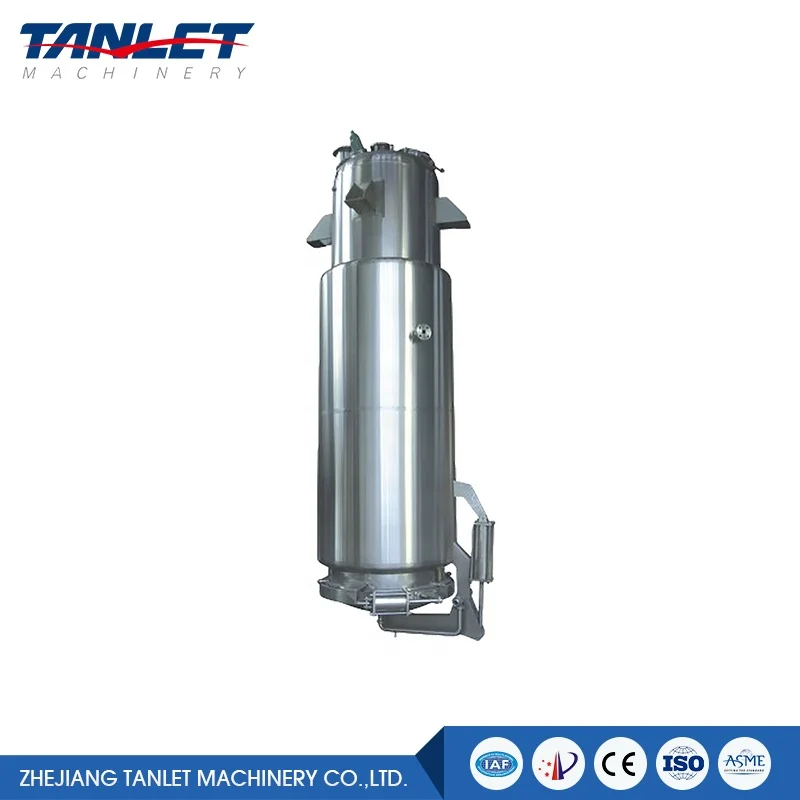

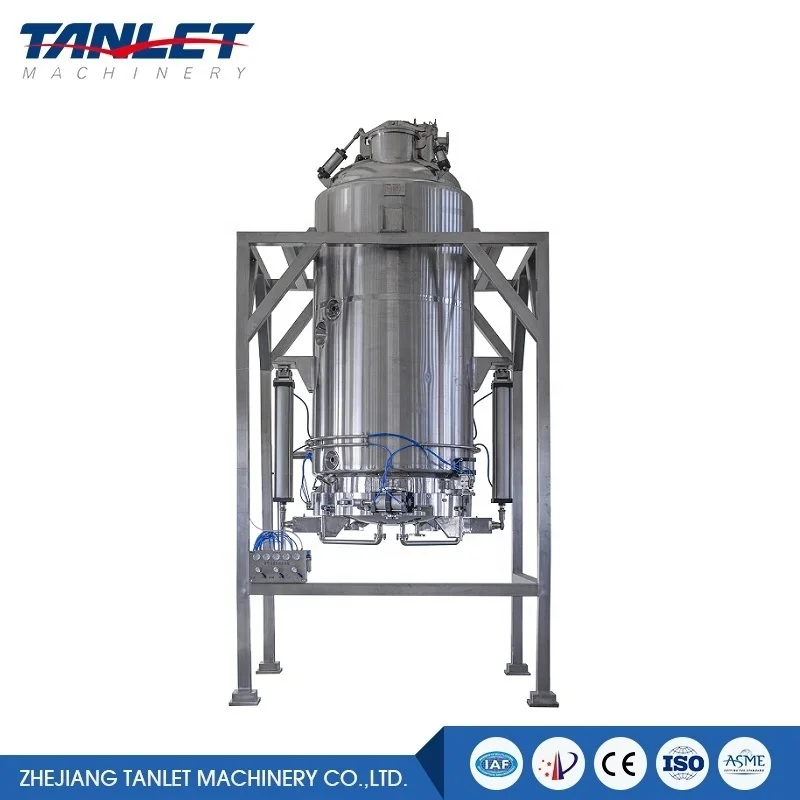

Chinese herb plant extraction machine boiler pharmaceutical extraction tank

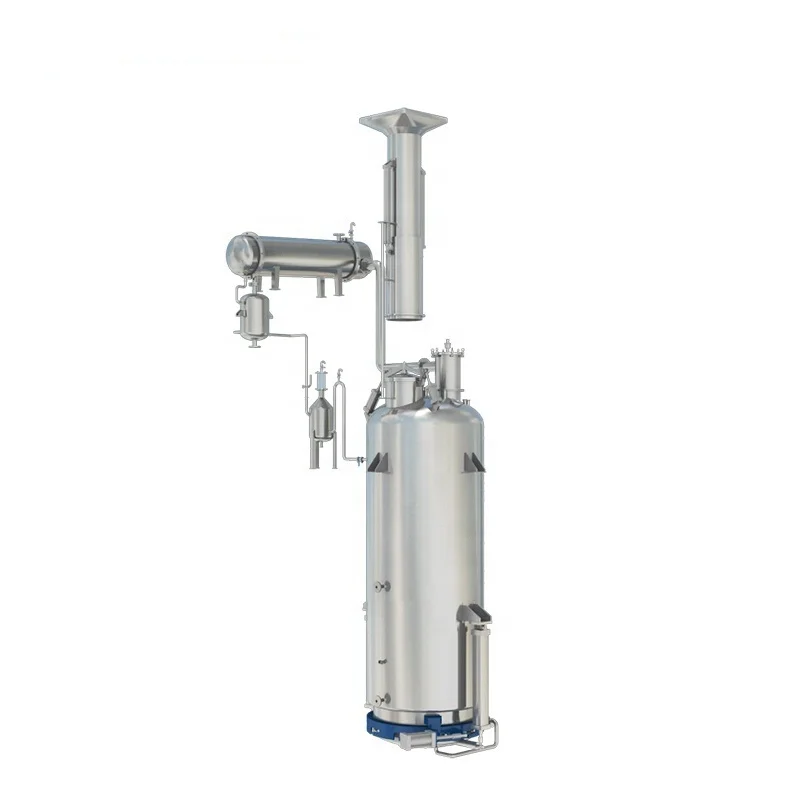

Structure:Collecting machine, condenser, cooler, filter, oil & water separator and cylinder
operation board.Usage:The equipment is applicable to the project operations of water decocting under normal
and compressed pressure, temperature dipping, thermal refluxing, forced circulation,
diacolation, extraction of aroma oil and reclamation of organic solvent,etc, which are in such industries as Chinese traditional medicine, plants, animals,
food and chemistry. And especially, it is more efficient in the case of dynamicor countercurrent extraction, such as shortening time, getting high pharmacycontent, etc.





Main Parameter

Specs	TQ-0.5	TQ-1	TQ-2	TQ-3	TQ-4	TQ-6	TQ-8	TQ-10
Volume (L)	600	1200	2300	3200	4300	6300	8500	11000
Designed Inner Press (Mpa)	0.09
Designed Jacket Press (Mpa)	0.3
Feedstock Inlet Dia. (mm)	400	400	400	400	500	500	500	500
Heating Area (m2)	2.4	3	4.7	6.8	8	10	12	12
Condensing Area (m2)	3	4	5.4	8	10	10	15	18
Cooling Area (m2)	1	1	1	1	1	2.2	2.2	3
Filter Area (m2)	0.25	0.25	0.25	0.25	0.25	0.3	0.3	0.3
Discharging Door Dia. (mm)	600	800	1000	1200	1200	1400	1500	1600
Steam Cost (kg/h)	285	285	346	570	660	718	903	1140
Water Cost (T/h)	2.1	2.1	2.5	4.2	4.5	5.5	6.7	6.7
Steam Inlet (mm)	32	32	32	40	40	50	50	50
Exhaust Outlet (mm)	100	100	100	125	125	150	150	150
Cooling Water Inlet (mm)	40	40	40	50	50	50	65	70
Motor Power (Kw)	2.2	2.2	3	4	5.5	5.5	7.5	7.5
Stirring Rotate Speed (r/min)	36
