10 дюймов Янтарный чугунное барабанное резиновый ролик для шлифовальная машина

Описание и отзывы

Трекер стоимости

Характеристики

Rice Mil Rubber Roller

10inch EPDM rice mil rubber roller

Brand: The brand of "Hongqi bridge" has high market share, and is the first choose of customer all the time. we also accepte  the OME order with your logo.

Production and administration conception:

We have tried our best to provide wonderful goods and service to customers through perfect managment,precise style of work,sincere attitude and enthusiastic cooperation spirit

Operating principle:

Because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers.In the end, rice grains come out.

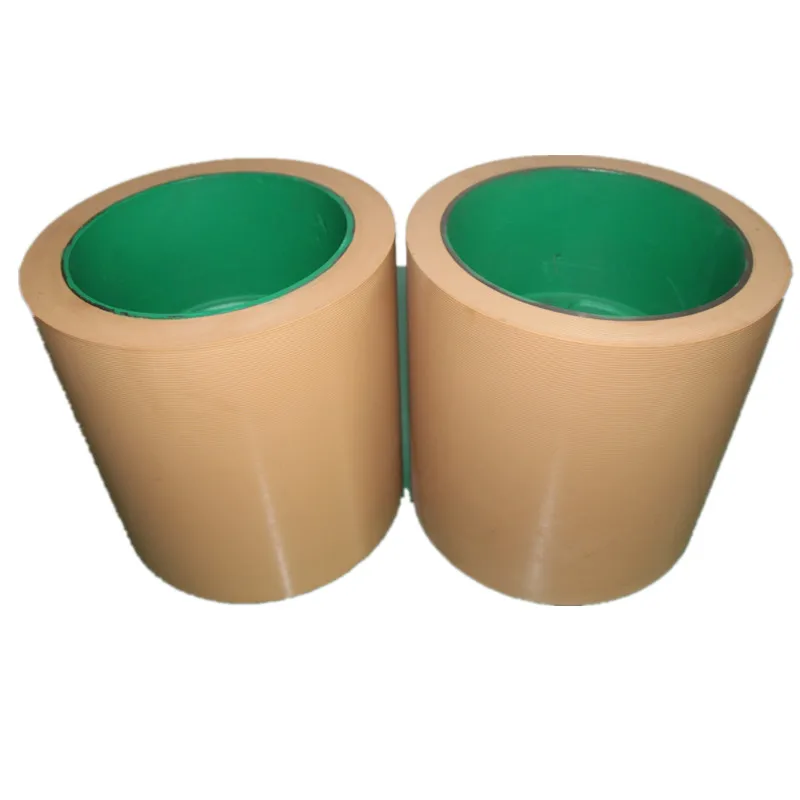

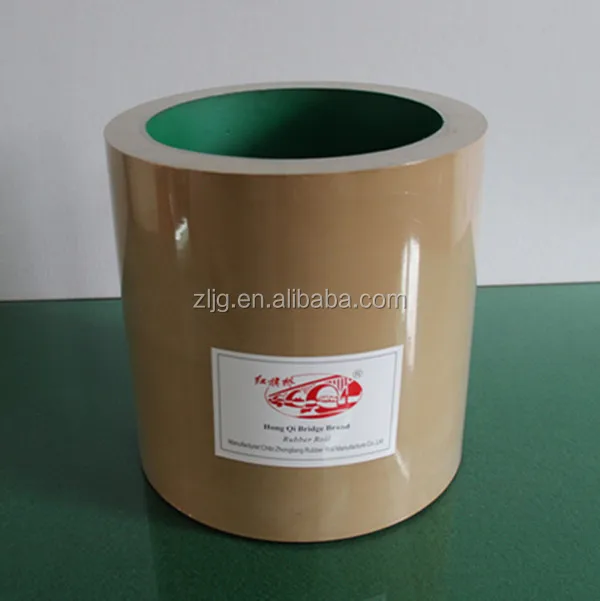

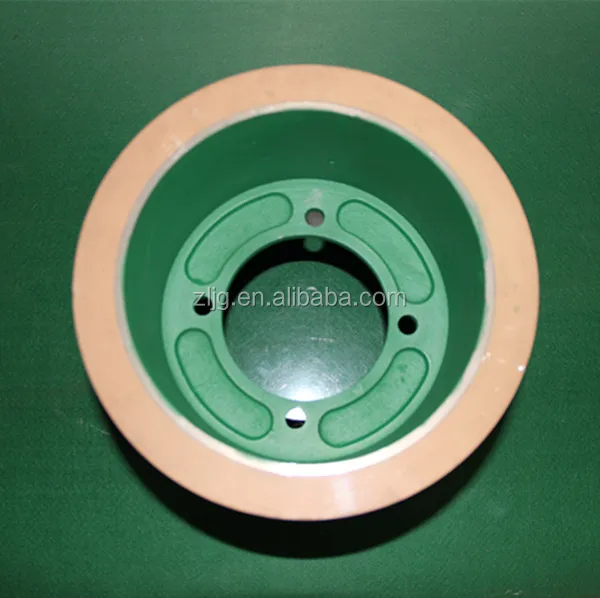

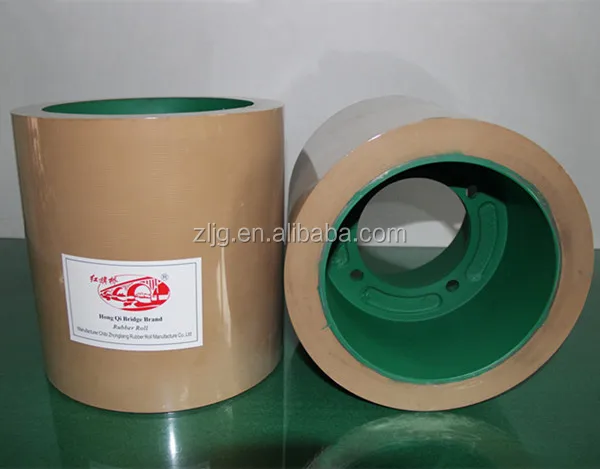

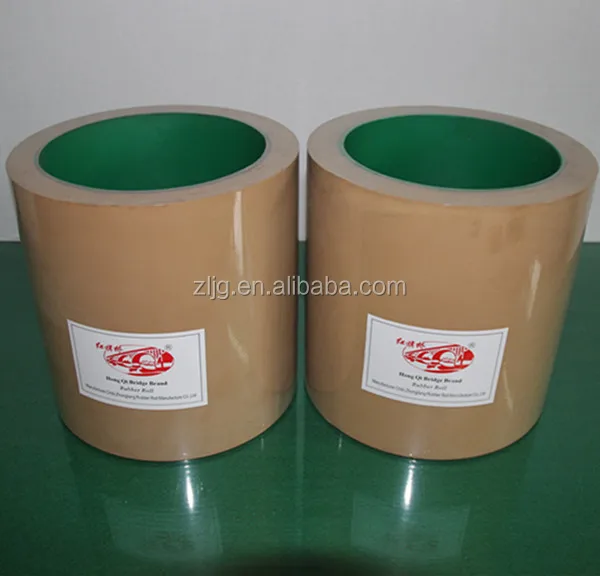

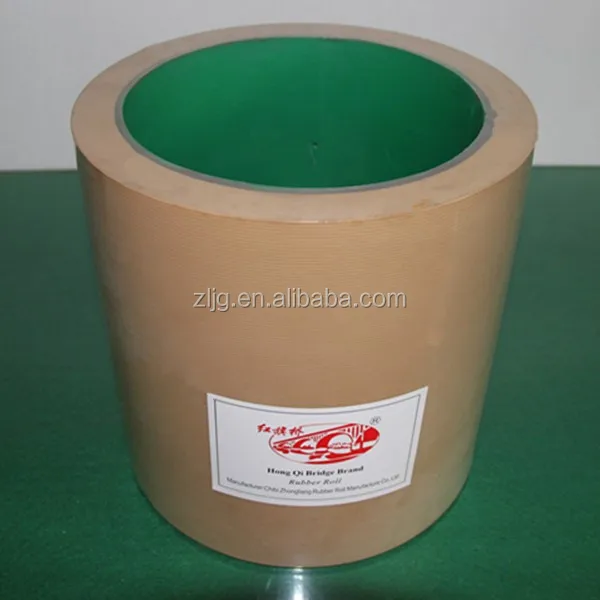

Rice Mil Rubber Roller  Pic

10inch EPDM  rice mil rubber roller ,   rice mil rubber roller , EPDM  rice mil rubber roller , 10inch rice mil rubber roller

 Specification:

Type	Inch	External diameter	Length	Thickness of rubber
Wheel Type	4”	222 mm	100 mm	19.5 mm
	6”	222 mm	152 mm	19.5 mm
	8”	225 mm	200 mm	25 mm
	10”	255 mm	254 mm	24.5mm
Casing Type	14”	227 mm	355 mm	29.5 mm
	18”	232 mm	457 mm	30.5 mm
	20”	258 mm	508 mm	30.5 mm
	25”	255 mm	635mm	30.5mm
	28”	255mm	710mm	30.5mm
Color	Amber
Hardness Shore A	92±3°
Tensile Strength	≥21.0(Mpa) [Superior to international advanced level]
Elongation Rate	≥250%     [Superior to international advanced level]
Brand	Hong QI Bridge, Tiger & Lion, JinBao



Advantage:

1.Strong bonding between rubber roll and drum

2.Ensure high degree of heat resistance and durability

3.High peeling efficience at minimum broken rice to be attained by its well balance of elasticity, hardness and abrassion resistance.



Useful tips:

1.Take away sand from rice,make sure the cleanliness of rice before hulling.

2.Two rolls should be placed at the parallel side,the space must be equal.

3.The flow or discharge should be balanced,the flow layers should well-arranged.

4.Control the segregation efficiency,and use it within the limits.

Standard Quotation Sheet



Model No.	Meas.(mm)	Packaging	Weight(1carton)	20"HQ/PCS		Capaciy		Mill rate		hardness
10inch EPDM  rice mil rubber roller	Product  Size:254*255	Carton or as your  request	N.W:24KG	1520PCS		600 tons/pair		90%-95%		91°~93°
	Carton Size: 510*260*270		G.W:25KG
Material	indicate the different material applied
Delivery	Depend on the quantity in details
Payment	30% T/T in advance,70% against copy of B/L,or by L/C
MOQ	200 pcs





 LOADING PICTURES:





Usage and Attention



1. Optional of Rubber Roller: For the choice of  the black, brown and white rubber roller with  hardnes shore A 90^oC and 95^oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller,  the recommended way is higher hardness for fast roller, lower hardness for slow roller.







2.Temperature and Hardness Control: The proper hardness is shore A 82-86^oC, and the temperature is below 50^oC. When the temperature reaches above 60^oC,  the hardness of roller should be reduced 4-8^oC







3. Alternative use of rubber rollers is recommended:
A: It can increase the usage life of roller and quantity of dehusking rice.



B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference



    upon on different diameters, and controlling the temperature effectively.







4. Two rollers should be at the same level to keep the space equal.







5. The paddy inputting should keep the balance.







6.  Keep the rate of the re-hulling under the limitation







7. Storage:



A: Avoid the direct sun shine and soaked in the rain and snow.



B: Away from the heating device about 1.5m.



C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.



D. Keep the room temperature 10-30^oC, comparative moisture 50-80^oC
E. Keep in vertical position,  horizontal is not allowed.



F. No other materials pressure on it, no hitting to avoid deformation and damage
G. Validity of storage life: one year.
