Baofeng BF-9700 водонепроницаемый baofeng длинный

Описание и отзывы

Трекер стоимости

Характеристики



BAOFENG IP67 2 way radio, the legitimate use of green and healthy.

IP67 Walkie Talkie the Green public radio, can completely relieve your worries!

Emergency alarm call

Noise Reduction Circuit

Long Communication Range

Scrambler

High Capability Li-ion Battery

Battery Save, Ctcss, Dcs

FM radio, receiving alarm call

Long standby Time



Specification

Frequency Range:
	400.00- 520.00MHz
Storage Channel	128
Step Frequency	2.5 KHz,6.5 KHz,10 KHz,12.5 KHz,25 KHz
Rated voltage	DC 7.4V
Frequency Stability	±2.5ppm
Work Temperature	-20 ℃ to +60℃
Battery Capacity	H-1800m Ah (Li-ion Battery)
Battery Life	About 12 Hours
Frequency Combination	PLL frequency synthesis
Antenna Impedance	50 Ω
Wok Mode	Same Frequency  simplex Operation or Different Frequency  simplex Operation
Dimension	135(H)*64(W)*40(D)mm (Excluded Antenna)

                                                                     Transmitter

Output Power	7W(H)/5W(M)/1W(L)
Modulation Mode(W/N Band)	16KΦF3E
Maximum Frequency Deviation (W/N Band)	≤5 KHz
Spurious Power	≤7.5 µW
Adjacent channel power	≤-65dB/≤-60dB
Audio Distortion	<5 %
SNR	≥-45dB/≥-40dB
CTSCC/DCS Frequency Deviation(W/N Band)	0.7±0.1KHz (W), 0.4±0.1KHz (N)
Modulation Sensitivity	8-12mV
Transmitting Current	≤1500mA

Receiver

Sensitivity	<0.20 µ V (12dB  SINAD)
Audio Power	>2W@10%
Inter modulation Interference Resistance	≥65dB (W), ≥55dB (N)
Adjacent channel Sensitivity (W/N Band)	≥65dB (W), ≥55dB (N)
Audio Distortion	5 %
Receiving Current	≤ 380m A

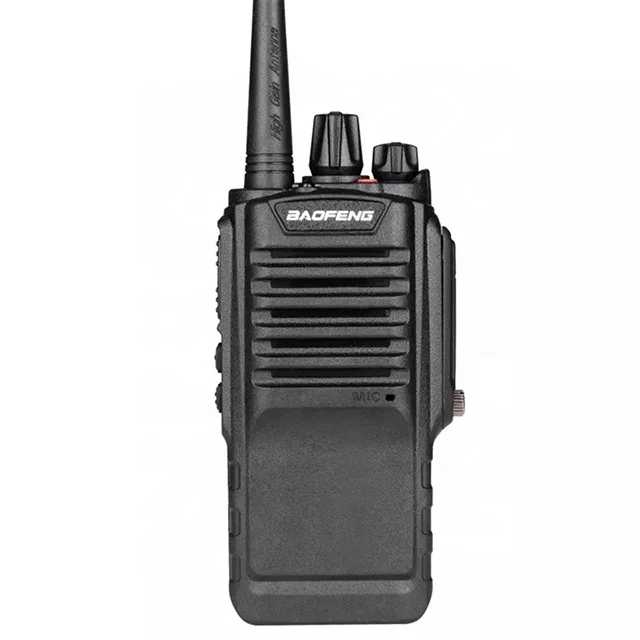

Type: BF-9700 UHF two way radio, walkie talkie, transceiver

Color: black

Weight: 1KG/SET

Using rechargeable walkie-talkie for the first time, please charge for 16 hours.

Turn off your computer before removing the battery.

Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range.

Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face.

Please try to use while driving handsfree speaker and the closing words.

Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized.
