Дуговые сварочные машины sanyu tig/mig/mma
- Категория: Другие дуговые сварочные аппараты >>>
- Поставщик: Shanghai,Sanyu,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 337.92 $* | 344.16 $* |
| Jul-19-2025 | 273.78 $* | 278.22 $* |
| Jun-19-2025 | 331.29 $* | 338.74 $* |
| May-19-2025 | 329.98 $* | 336.30 $* |
| Apr-19-2025 | 262.56 $* | 267.88 $* |
| Mar-19-2025 | 323.91 $* | 329.43 $* |
| Feb-19-2025 | 321.66 $* | 327.66 $* |
| Jan-19-2025 | 318.80 $* | 324.88 $* |
Характеристики
Sanyu tig/mig/mma other arc welders

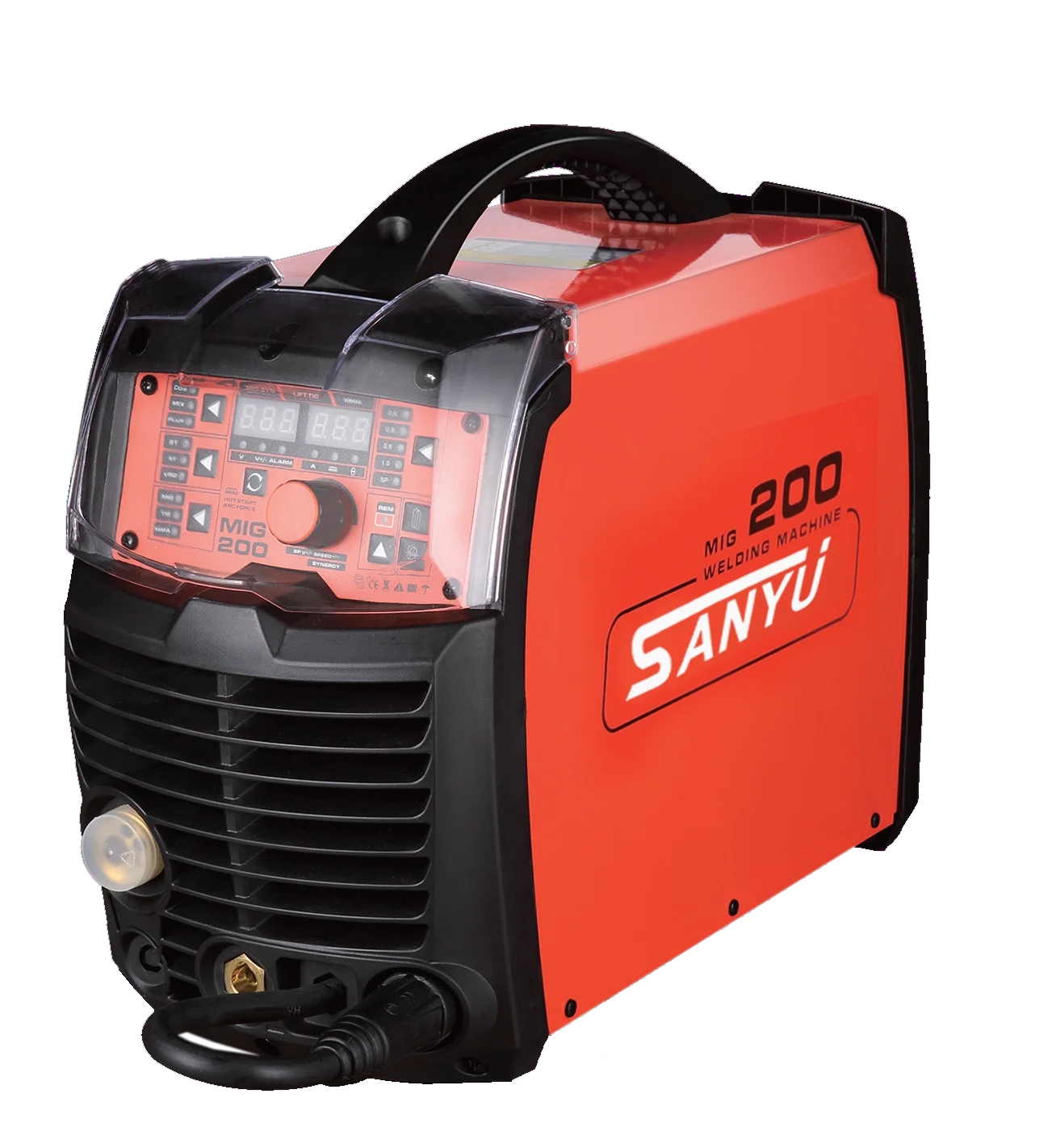

Sanyu IGBT MIG/TIG/MMA welding machine
| 1. MIG SERIES arc welding machine uses Mix gas as shielded gas to realize gas shielded welding, active gas(Ar+O2,Ar+CO2) as shielded gas to realize MAG welding and inactive gas(Ar)as shielded gas to realize MIG welding | ||||

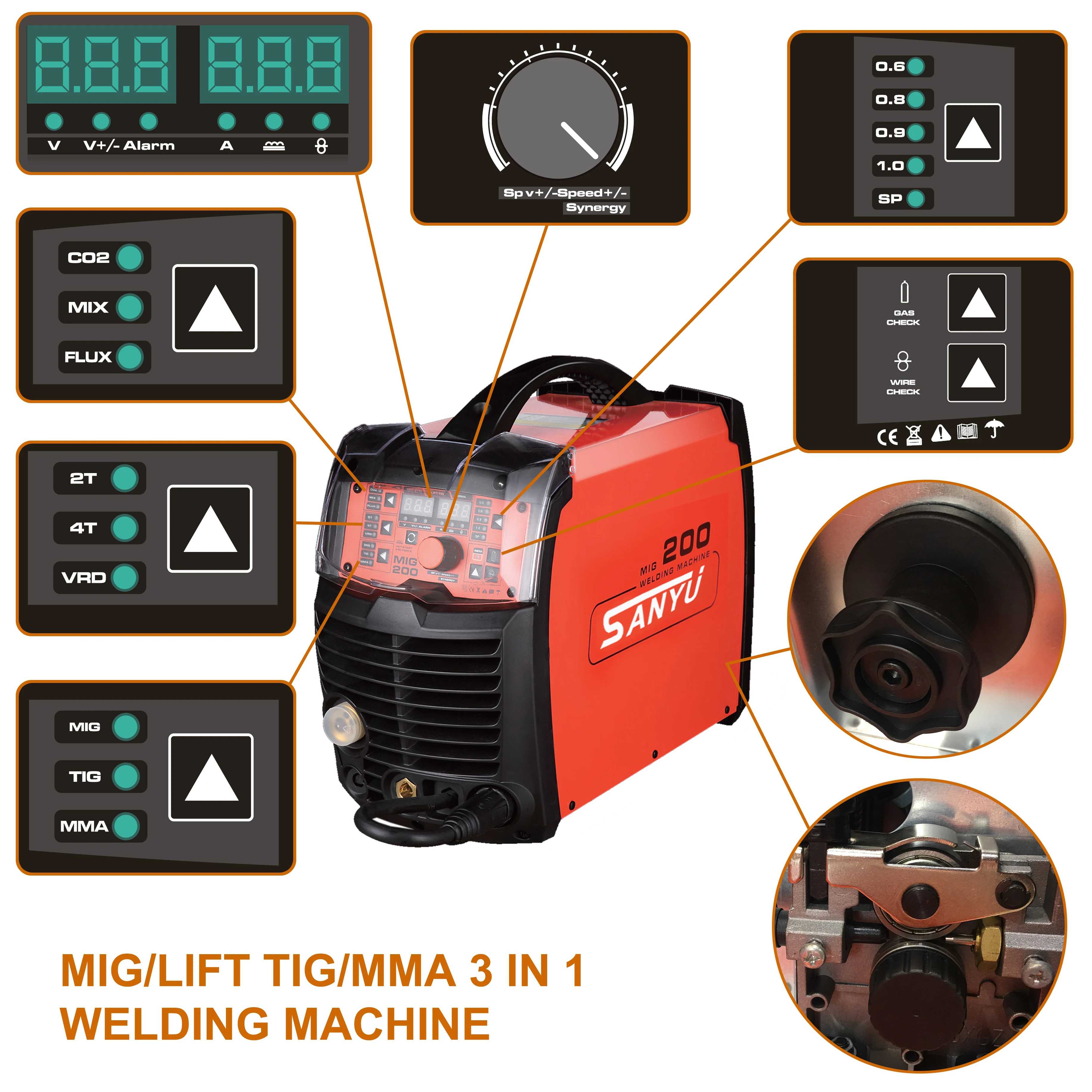

| 2.Easy-to-underdstand operator interface.Select material type,set wire diameter then start welding | ||||
| 3.Digital control system, real-time display the welding parameters;digital voltmeter and ammeters for easy viewing | ||||
| 4.Stick with adjustable Arc force;Wave form control;stable welding arc | ||||
| 5.Lift TIG with solenoid valve and adjustable down slope time | ||||
| 6.Thermal overload,over voltage and over current protection automatically shuts down the power source to prevent high repair cost | ||||
| 7.Synergic control of the welding current and voltage | ||||
| 8.5kg spool size makes machine light and portable | ||||
| 9.Flux cored self-shielded |
Detailed specification list
| Item/Model | MIG-200IGBT | MIG-160IGBT | ||||
| Voltage | 220V+/-15% | 220V+/-15% | ||||
| Frequency | 50/60HZ | 50/60HZ | ||||
| Rated Input Power | MIG | TIG | MMA | MIG | TIG | MMA |
| 5.9KW | 4.3KW | 5.5KW | 4.2KW | 3.2KW | 5.1KW | |
| Rated Input Current | 37A | 27.4A | 36A | 27A | 20A | 31.6A |
| Output Current Range | 25-200A | 10-200A | 10-170A | 25-160A | 10-160A | 10-160A |
| Duty Cycle at 40℃ | 30% | 30% | ||||
| No Load Voltage | 58V | 58V | ||||
| Welding Voltage Range | 15V-24V | 10.4V-18V | 20.4V-26.8V | 15V-22V | 10.4V-16.4V | 20.4V-26.4V |
| Efficiency | 85% | 85% | ||||
| Power Factor | 0.72 | 0.72 | ||||
| Wire Diameter | SS:0.8/0.9/1.0MM;/1.0MM | Fe:0.6/0.8/0.9/1.0MM | ||||
| Net Weight | 13.5kgs | 11.5kgs | ||||
| Gross Weight | 26kgs | 24.5kgs | ||||
| Dimension | 470*210*380MM | 470*210*380MM | ||||
| IP | 23S | 23S | ||||
| Insulation Class | F | F | ||||
| Cooling | Air | Air | ||||
| Product Code | 2014061 | 2014060 | ||||
Company Information
Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in "Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port" etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
FAQ
Q 1. what's the payment term?
A. We accept T/T, L/C, D/P,West Union, PAYPAL,Money Gram,Cash.
Q 2. What's the delivery time ?
A. Sample delivered in 5 days
We deliver 20'GP qty of this welding machine within 25 days.
We deliver 40'HQ qty of this welding machine within 35 days.
Q 3. What is the standard of package?
A. Inverter welding machines are packed in standard carton.
Q 4. what is the Warranty ?
A. We offer 12 months warranty for this welding machine.
We also supply life time technique support.
Q 5. Do you accept OEM business?
A. We accept OEM/ODM for this welding machine.
Q 6.What is your production capacity?
A. 10000 pcs frequency inverter each month.
Q 7.Which market do you already sell?
A. We already cooperate with clients from more than 40 countries in Europe, South America, Asia, Middle east, Africa etc.
