3 5 мм 4-полюсный аудио разъем MPOS NFC мобильный мат смарт-кард-ридер --

3 5 мм 4-полюсный аудио разъем MPOS NFC мобильный мат смарт-кард-ридер --

Категория: >>>
Поставщик: Shenzhen,Hcc,Technology,Co.,Ltd.

Цена:24,00 $ - 32,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	29.9 $*	30.92 $*
Aug-17-2025	28.52 $*	29.16 $*
Jul-17-2025	24.94 $*	25.37 $*
Jun-17-2025	28.35 $*	29.19 $*
May-17-2025	24.64 $*	25.29 $*
Apr-17-2025	27.51 $*	28.22 $*
Mar-17-2025	27.74 $*	28.35 $*
Feb-17-2025	27.90 $*	28.27 $*
Jan-17-2025	27.10 $*	28.86 $*

Характеристики

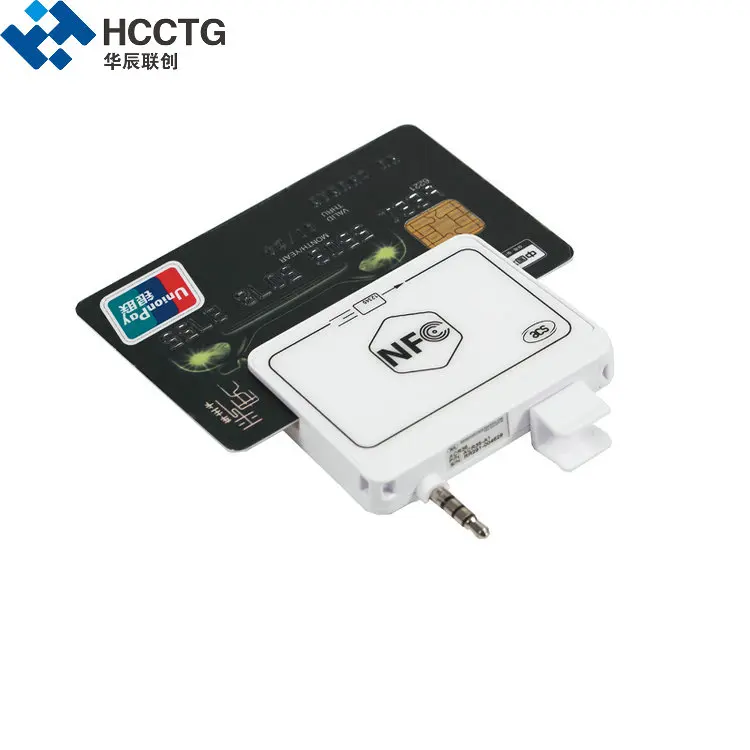

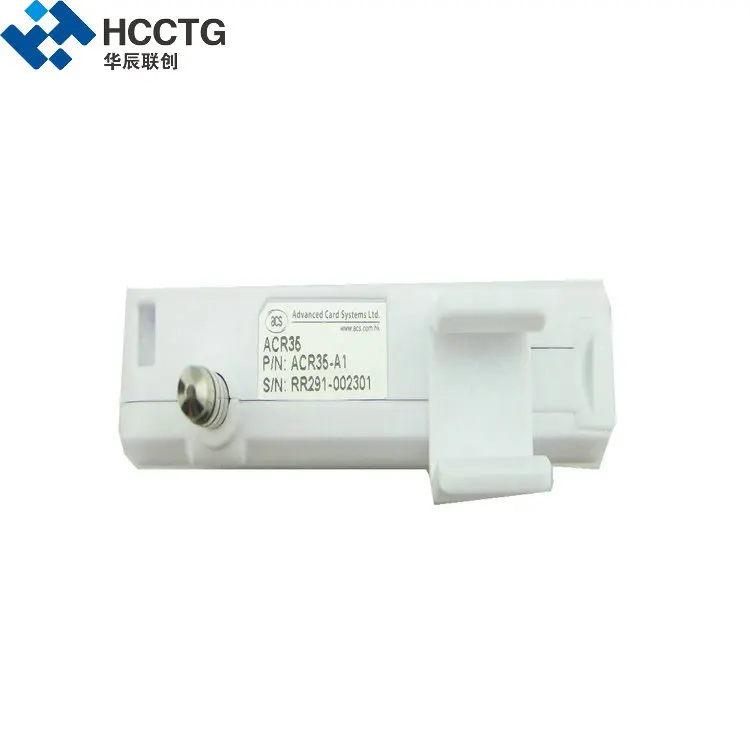

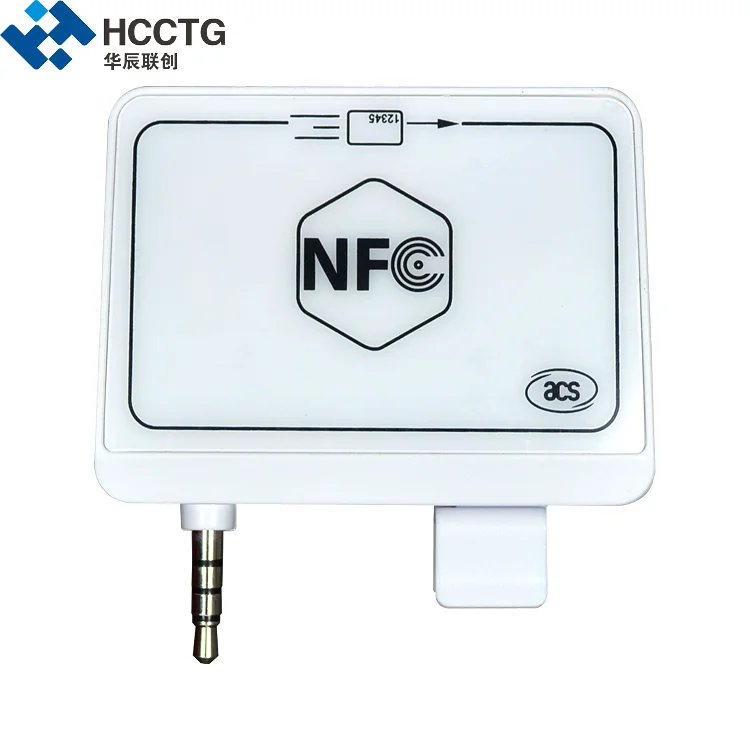

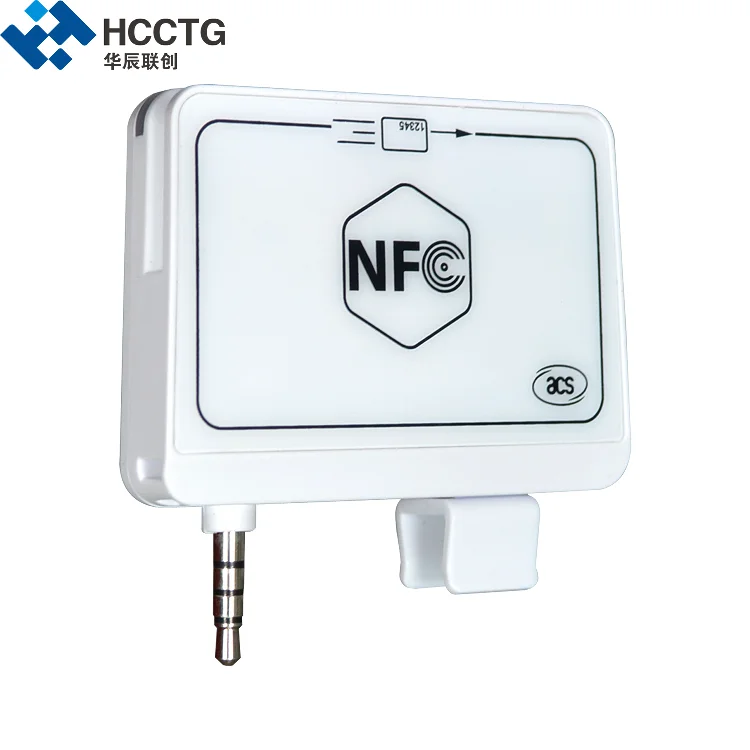

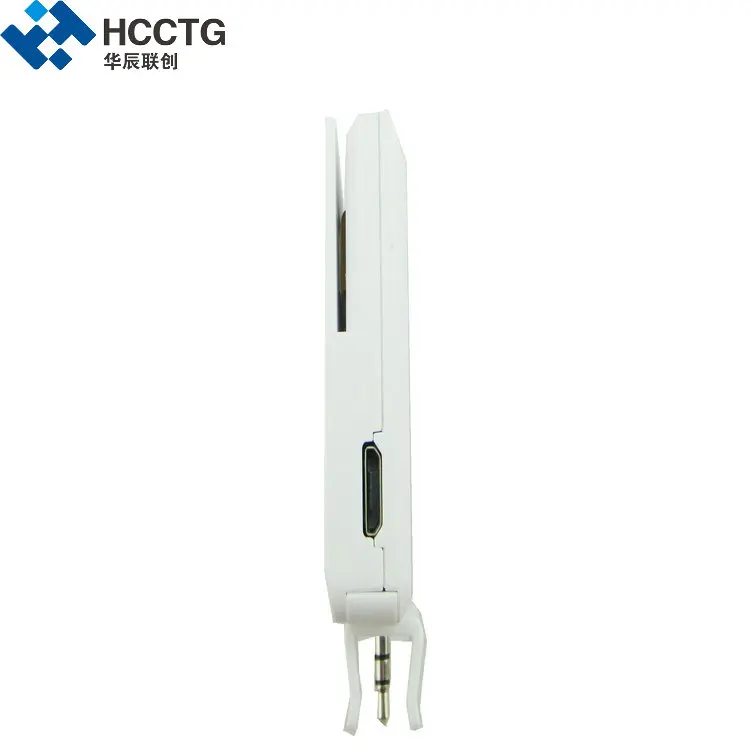

3.5mm 4-pole audio jack MPOS NFC Mobile Mate Smart Card Reader--ACR35

General

ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.

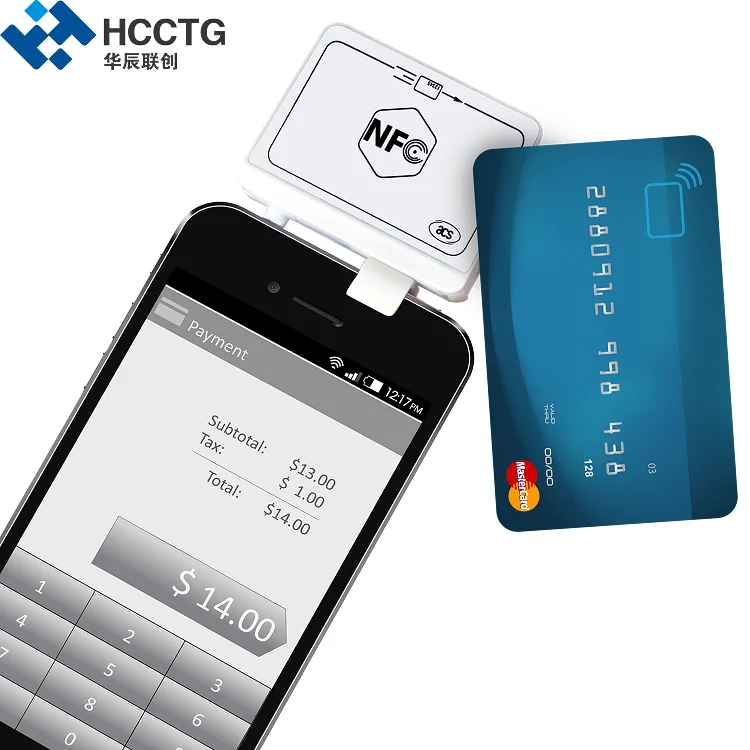

With a rechargeable Lithium-ion battery and standard 3.5 mm audio jack interface, the ACR35 NFC Mobile Mate can seamlessly extend the usefulness of any mobile device. It delivers NFC reader functionality and mobility, which allows you to use NFC and contactless applications, even for mobile readers without built-in NFC functionality.

ACR35 NFC Mobile Mate uses AES-128 encryption algorithm and DUKPT Key Management system to secure your data. Portable. Modern. Versatile. Compact. ACR35 NFC MobileaMate Card Reader is a handy and lightweight card reader that is perfect for users who wish to transact securely while on the go.

Features

Ø 3.5mm Audio Jack Interface

Ø Powered by a Lithium-ion battery (rechargeable through PC-linked mode)

Ø Smart Card Reader:

Built-in antenna for contactless tag access, with reading distance of up to 50mm (depending on tag type)

Supports ISO 14443 Part 4 Type A and B cards

Supports MIFARE

Supports Felica

Supports ISO 18092 Tags (NFC Tags)*

Built-in anti-collision feature

NFC Support: Card reader/writer mode

Ø Magnetic Stripe Card Reader:

Reads up to two tracks of card data (Track 1 / Track 2)

Capable of bidirectional reading

Supports AES128 encryption algorithm

Supports DUKPT Key Management System

Supports ISO 7810 / 7811 magnetic cards

Supports Hi-Coercivity and Low-Coercivity magnetic cards

Support JIS1 and JIS2

Applications

Mobile Banking & Payment

E-Healthcare

E-Purse & Loyalty

Specification

Dimensions	60.0mm (L) x 45.0mm (W) x 13.3mm (H)
Interface	3.5mm 4-pole audio jack
Operating Distance	Up to 50mm (depending on the tag type)
Power	Lithium-ion battery (rechargeable through USB)
Supply Voltage	3.2 to 3.7 V DC
Supply Current	85mA
Operating Temperature	0-50°C
Card Swipe Speed	Max.10 IPS (inches per second)
Card Swipe Cycles	Min. 500,000
Magnetic Stripe Card Support	ISO7810 / ISO7811 cards Hi-coercivity and Low-coercivity cards JIS1 and JIS2 cards
Smart Card Interface Support	ISO 14443 Part 4 Type A and B cards MIFARE Felica ISO 18092 Tags (NFC Tags) (except Topaz type)
Compliance / Certifications	ISO14443, ISO/IEC 18092, CE, FCC, VCCI, RoHS 2, REACH
Operating System Support	Android™ 2.0 and above iOS 5.0 and above


ACR35 (30) ACR35 (15) ACR35 (17) ACR35 (29) ACR35 (26)

Category-Auto ID

Certificates-Auto ID

FAQ

1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years.

We can provide OEM / ODM customized service according to our customers’ various application and demands.

2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?

According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts).

As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?

Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.

7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?

By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.

By Sea: Inform us the Sea Port to check which ship line.

By Air: Inform us the Airport to check which flight.

Or pick up by the customers.

9. What the after sale service?

a. Our all products will provide 12 months warranty;

b. Enough stock spare parts for guarantee;

c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;

d. As for the returned failure products, we will fix it and return to the customers in one week after we received it.
