Машина для прокатки листового металла
US $10000
Dixin металлическая панель toya 840/850 двухслойная роликовая формовочная машина/машина
- Категория: Машины для производства плитки >>>
- Поставщик: Cangzhou,Dixin,Roll,Forming,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.27 $* | 0.75 $* |
| Aug-16-2025 | 0.79 $* | 0.37 $* |
| Jul-16-2025 | 0.53 $* | 0.48 $* |
| Jun-16-2025 | 0.68 $* | 0.95 $* |
| May-16-2025 | 0.93 $* | 0.83 $* |
| Apr-16-2025 | 0.57 $* | 0.82 $* |
| Mar-16-2025 | 0.42 $* | 0.76 $* |
| Feb-16-2025 | 0.85 $* | 0.41 $* |
| Jan-16-2025 | 0.10 $* | 0.99 $* |
Характеристики
Whole line
1. Machine name: dixin Metal panel toya 840/850 double layer roll forming machine /TOYA machine
2. Machine parameters:
| 1 | material of input sheet | galvanized steel/ colored steel |
| 2 | feeding width | 1000/1000mm |
| 3 | effective width | 840/850mm |
| 4 | material thickness | 0.3-0.8mm |
| 5 | main motor power | 3kw |
| 6 | hydraulic pump power | 3kw |
| 7 | forming step | 11/13 steps |
| 8 | diameter of shaft | 75mm |
| 9 | main frame | 300H steel |
| 10 | roller material | 45# steel with chrome |
| 11 | cutting knives material | Cr12 |
| 12 | machine size | 7.0*1.5*1.5m |
| 13 | machine weight | about 3.5 tons |
3. Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

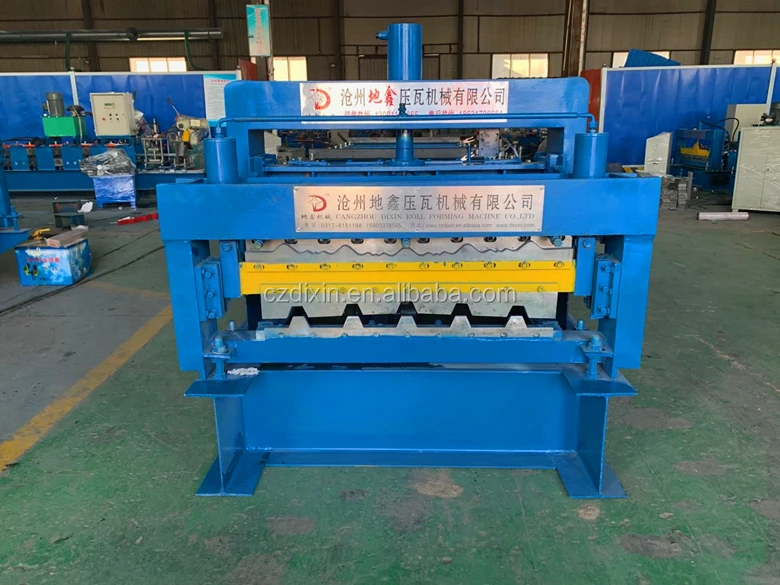

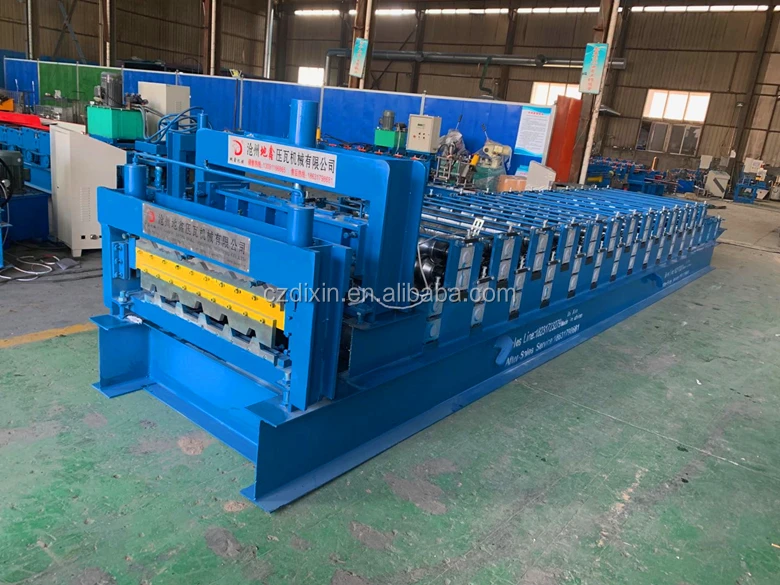

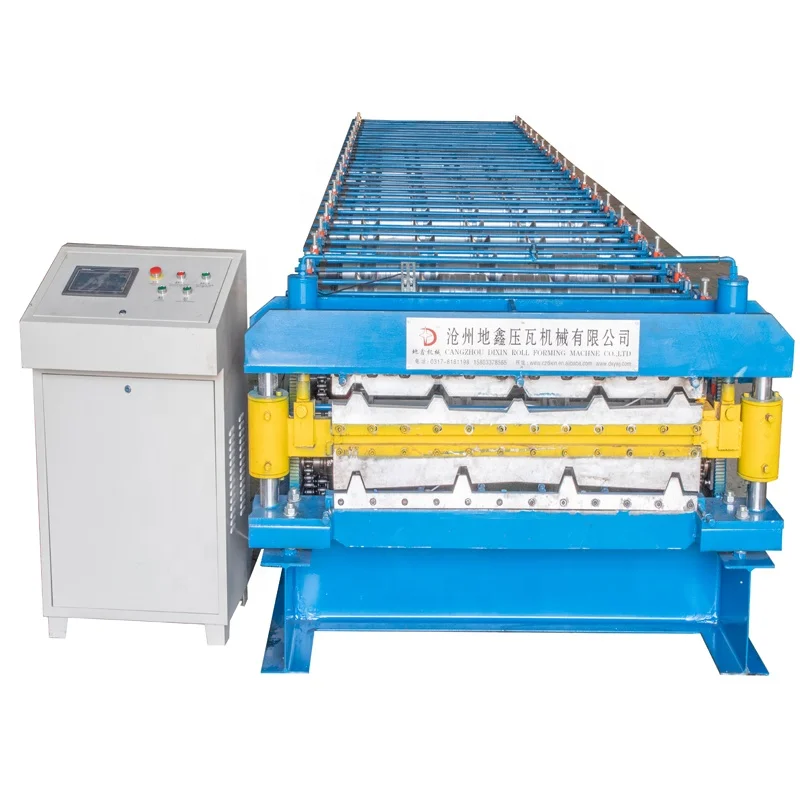

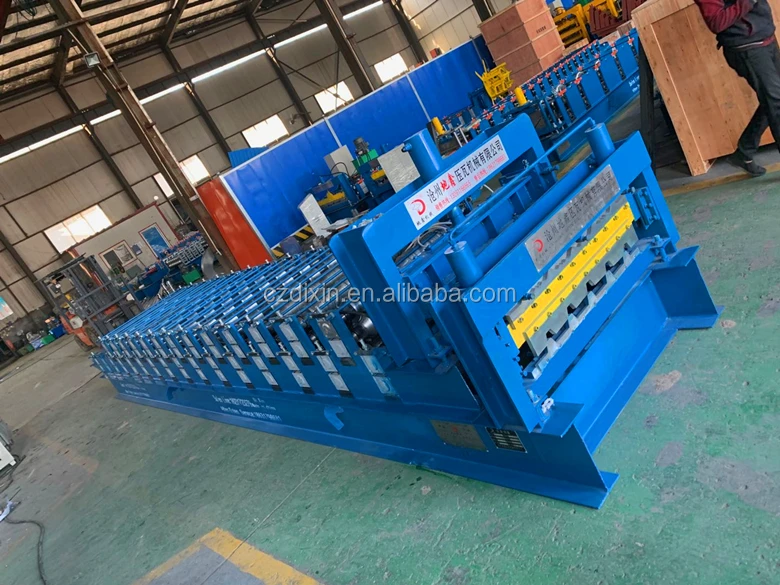

4. Machine pictures:
Packaging & Shipping
1. PLC control system pump station,shafts and rollers are covered with plastic film,water-proof package.
2. Main body of roll forming machine is nude.
3. Spare parts are packed by carton box. Packages are according to customers' requirements.
Fixed well by iron wire in container.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What's your service ?
A: 1. We provide 1 year warranty for our customers.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free in the whole life of the machine.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Tianjin airport: By high speed train From Tianjin Xi or Tianjin Nan to Cangzhou Xi (0.5 hour),then we can pick up you.
contact our
Canpany:CANGZHOU DIXIN ROLL FORMING MACHINE CO.,LTD
WHATSAPP:+8618733707209
WECHANT:15732761755
WEB:www.czdixin.en.ablibaba.com
Notic
Machine made by our factory all is according to the data provided by the customer requirements tailored and plate type, so the machine basic it is one-to-one, we support the processing customized arbitrarily shaped cold bending machine, plate thickness is different, different size, the price also is not the same as the corresponding machine, so please order prior to consulting or call to us, communication and price, thank you for your cooperation!
