Различные типы дополнительных солнечных дорожных знаков безопасности дорожного

 1. Product Description:                                                                   ~!~

1.1 Specification Sheet of Solar Road Guidence Sign:

	Item No	CS-SS-706
	Model	A	B	C
	Size	600*600*65mm	600*800*65mm	800*800*65mm
	Solar Panel	12V/3.5W mono-crystalline silicon	12V/5W mono-crystalline silicon	12V/5W mono-crystalline silicon
	Battery	7.4V/5AH anti-high temperature Li-ion battery	7.4V/7AH anti-high temperature Li-ion battery	7.4V/7AH anti-high temperature Li-ion battery
	LED Work Mode	Flash for 90 times/min or steady
	Lighting Mode	Lighting for 24h or 12h or luminous controlled
	LED	Super bright Epistar Brand Diameter 5mm
	LED Qty	customized
	LED Color	Green/blue/red/white/yellow
	Luminous Intensity	5000~8000mcd
	Visibility	>1000m
	Material	Aluminum board+high quality 3M reflector sheeting
	Lighting Time	>200h after fully charged
	Work Temperature	-20oC~+80oC
	Protect Level	IP55
	Life Time	7-10 years; solar panel:12-15 years
	Weight	7.5kg	8.5kg	9.5Kkg
	Carton Size	67*67*12cm,1pc/ctn	67*87*12cm,1pc/ctn	87*87*12cm,1pc/ctn
	Wind Resistance	>1.5KN/mm
	Warranty	1 year

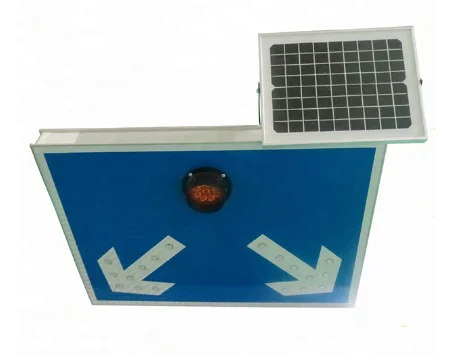

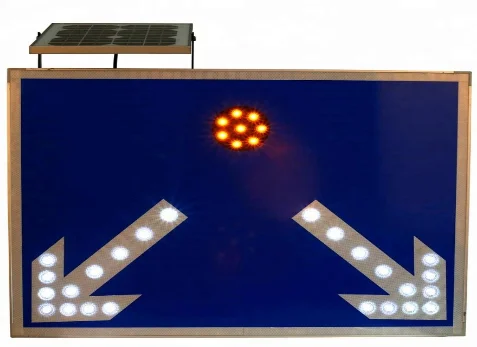

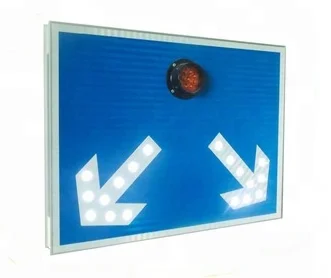

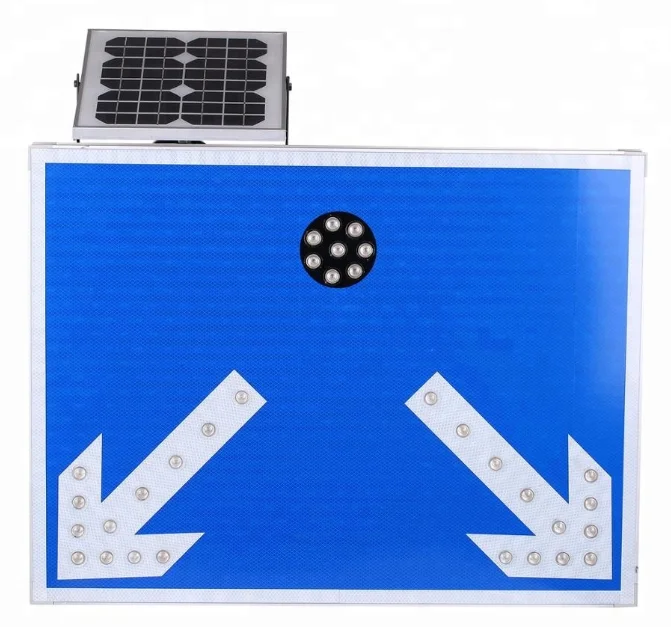

 1.2 Display of different view:

1.3 Conponent View:

1.4 Certificate:

CE                                                    RoHS

2. Features of CadSolar Traffic Sign:                                               ~!~

1.Higher Protect Level:Sealed by epoxy glue,IP55 certificate,highly wind resist,dust resist and corrosion proof.

2.Easy Installation:it can be easily installed with the screws and nuts.

3.Best Energy Conversion Efficiency:Solar power mono crystalline silicon,change solar energy into electric energy with the best efficiency of 18%~20%.

4.Better Working Environment:anti high temperature Ni-mh battery battery,can work under -20^oC~+80^oC.

5.Long Distance Visibility:Super brightness Taiwan Epistar Chip LED light,visible for 1000 meters.

6.Long Life Time & Long Working Time: 7 to 10 years lifespan,solar panel can work for 12 to 15 years.It can work for more than 10 days after fully changed.Fully change only need 2-3 days.

7.Intelligent Control System:It is automatically controlled by a mini controller,and LED will be light on when it become dark.

8.Energy Saving & Environment Protection:solar energy powered system,100% clean energy.

9.China Manufacture:ODM & OEM are welcome.

3. Installation Manual:                                                                     ~!~

1)Make sure the place and the pole you are ready to install the traffic sign

2)Clean the pole surface and the conponenets

3)Determine the right highth for installation

4)Use the screws and nuts to tighten the traffic sign on the pole

5)Check if the traffic sign fixed firmly or not

6)If it is fixed loosely,you need to tighten the screws until it is fixed firmly

7)Keep the solar panel be toward to the sun so that it can charge efficiently.

 4. Application:                                                                                 ~!~

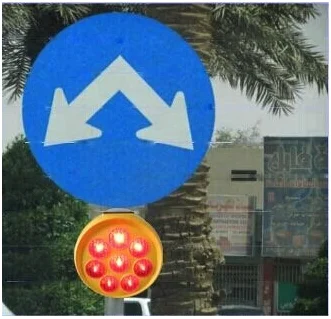

Solar traffic road guidence signs, used to indicate the vehicle drivers choose the correct road line when they drive to a crossroad. Usually,this signs are installed on the crossroad to show the destinations of different directions or show the vehicle Lanes for different vehicle turning.

5.Our Service:                                                                                ~!~

1.Advisory:

Any inquiry will be replied within 24 hours.

2.Experience & Business:

We have 10 years industry experience of solar traffic safety products.Our main businesses are solar road stud,solar traffic sign,solar burst light,yellow flashing light.

3.Certificate:

We get CE/RoHS certificates.

4.After-Sales Service:

• Each item will be strictly inspected in warehouse before packing.


• Each item will be packed carefully before shipping.


• Each`item will enjoy 1year warranty.If there is any natural damage in the warranty period,we will ship you a new one for free.


• We can offer an installation brochure or a video to help you install them correctly.

5.Delivery:

In a General way,we deliver cargoes in 3-5 days according to your order quantity.

6.Terms of Payment:

You can pay for the cargoes through L/C,T/T,Western Union, PayPal,etc.And 30% should be paid in advance,the rest can be paid before shipping.

7.Shipping:

We can ship our products by air or courier in 3-10 days or by sea in 20-45 days.

6. Packaging & Shipping:                                                                 ~!~

 6.1 Packaging Sheet:

6.2 Shipping Details:

1.  We ship by EMS, DHL, FEDEX, China Post air mail, China Post air parcel and other way.
2.  The below are some express company delivery time.
3.  DHL shipping usually takes 3-7 working days dependent on the country delivered to.
4.  EMS shipping usually takes 8-12 working days dependent on the country delivered to.
5 . FEDEX shipping usually takes 3-7working days dependent on the country delivered to.
6 .China Post Air Mail: shipping usually takes 15-30 working days dependent on the country delivered to.

7. Company Information:                                                                  ~!~

7.1 Company Profile:

Shenzhen CadSolar Technology Co.,Ltd(CadSolar) is a high-tech enterprise located in Shenzhen—a beautiful coastal Chinese city that specializes in manufacturing LED solar traffic products.We CadSolar have a professional R & D group and an outstanding sales team. Oriented by "Technology Innovation,Friendly Environment and Green Future", CadSolar develops various new models of solar traffic products with proprietary intellectual property rights, include'solar road stud,solar warning light(strobe warning light/yellow flashing light/solar sunflower/roadblocks light), solar traffic sign,solar traffic signal and other products, such as reflective road stud,wired road stud,parapet light and bull barrels,etc. ODM & OEM are both welcome.

 After 8 years of effort,CadSolar becomes a leading global golden supplier on alibaba platform with trade assurance now. CadSolar always trusts and insists "quality priority",which earns a large number of customers from domestic market and international markets. And now,customers from more than 30 countries trust CadSolar and have established good relationships with CadSolar. Through the exquisite design,strict quality control system and customized service, our CadSolar products are exported to Europe, the Middle East, Australia, America, New Zealand,Southeast Asia,Africa,Chile,Russia,Brazil,etc. CadSolar products comply with international and get many certificates or compliance for ISO9001,CE,RoHS,IP68 and the Stress Test Report.

 CadSolar aims to create safe & clear traffic environment and provide a road safety awareness for people. In order to accomplish this goal,CadSolar will continue to put forward and make a more brilliant achievement. CadSolar is a rapidly developed company towards the best service providers of solar traffic products in the global market and the platform where staffs realize their dreams. CadSolar insists company value of "Integrity,Thanksgiving,Innovation and Win-win Situation", welcome to communicate with us.

7.2 Company Staff & Product:

 www.cadsolarledlight.com

7.3 CadSolar Production Line:

1.Solar LED Road Stud

2.Solar LED Traffic Sign

3.Solar LED Traffic Light

4.Solar LED Strobe Warning Light

5.Solar LED Sunflower Warning Light

6.Solar LED Removable Traffic Signal

7. Solar LED Road Barricade Light

8. Solar LED Underground Light

9.Wired LED Road Stud

10.Wired LED Delineator

11.Reflective Road Stud

12.LED Crash barrels

13.We accept ODM & OEM

8.FAQ:                                                                                              ~!~

1.Q:Whether your solar traffic sign can work normally in tropical areas?

A: It can be functioned very well in -20 degree centigrade to 80 degree centigrade since its anti-high temperature battery.

2.Q:How long will the solar traffic sign work in raining days?

A:It can work properly for constant 7-10 days after fully charged.

3.Q:Do you have any installation guide for us?

A:Yes,we can prepare an installation manual or a video for you and the solar traffic sign can be easily installed by screws and nuts.

4.Q:What’s your payment clause?

A:We accept L/C,T/T,Western Union and Paypal,and 30% should be paid in advance,the rest can be paid before shipping.

5.Q:What’s the minimal order quantity?

A:1 piece also is OK.

6.Q:Where are the main markets of your solar road stud?

A:Europe,America,Latin America,the Middle East and Africa.

7.Q:How about the production time?

A:It will take 3-10 days according to the quantity.

8.Q:What’s your shipping time?

A:It will take 3-10days by air or courier and 20-45 days by sea.
