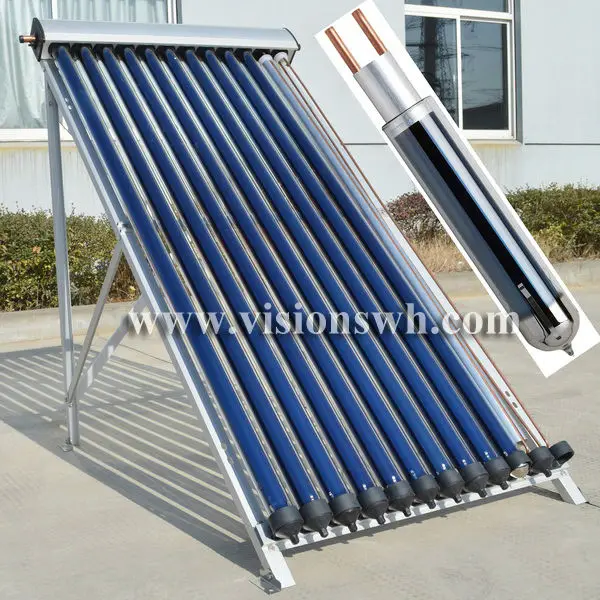

  China U Pipe heat pipe solar energy collectors supplier

Application of VISION U Pipe Solar Collector:



VISION high pressure U pipe vacuum tube solar collectors are usually used in active closed loop system with connection in series and parallel for domestic and large-scale commercial solar water heating applications, such as hot water for real estate, hotels, factories, hospitals, schools, swimming pools, space or floor heating, etc.



Technical Data:



U Pipe Vacuum Tube	Size (mm)		Φ58*1800
	Tubes (pcs)		10 / 12 / 15 / 18 / 20 / 24 / 30
	Glass tube		Vacuum Tube with three-target coating Cu-SS-ALN/AIN
	U pipe		TU1 copper pipe Φ8mm welded with copper header pipes
	Heat conductor		Shaped aluminum wrapping tightly contact copper U pipe
Manifold	Manifold header		TP2 copper Φ22*1.0mm (larger size is available)
	Manifold shell		Anodized aluminum alloy
	Insulation		High-density fiberglass module
	Seals		High-temperature resisting silicon seal
Bracket	Material		Shaped strong aluminum alloy adaptable to flat & slope roof
	Tube holder		Anti-aging UV stabilized nylon
Heat Carrier	Distilled water / Anti-freezing propylene glycol and water mixture
Connection	Φ22mm or 1/2 inch male threaded
Hail Resistance	Φ25mm diameter
Collector Angle	0 ~ 90°
Test Pressure	12.0 bar
Working Pressure	6.0 bar
Anti-freezing	(-) 40°C
Model Number	Solar Vacuum Tube			Aperture Area/ m2	Collector Size L*W*H/ mm	Container Loading Qty /sets
	Size /mm	Qty /pcs				20GP	40GP	40HQ
VUC-5818A-10	Φ58*1800	10		0.94	1950*900*135	78	156	189
VUC-5818A-12		12		1.13	1950*1040*135	67	133	162
VUC-5818A-15		15		1.41	1950*1270*135	54	108	131
VUC-5818A-18		18		1.69	1950*1490*135	46	92	111
VUC-5818A-20		20		1.88	1950*1640*135	42	84	101
VUC-5818A-24		24		2.26	1950*1940*135	35	71	86
VUC-5818A-30		30		2.82	1950*2390*135	29	58	71



Warranty:

5 years international responsibility for U pipe solar collector and 15 years for vacuum tubes due to original quality problems.



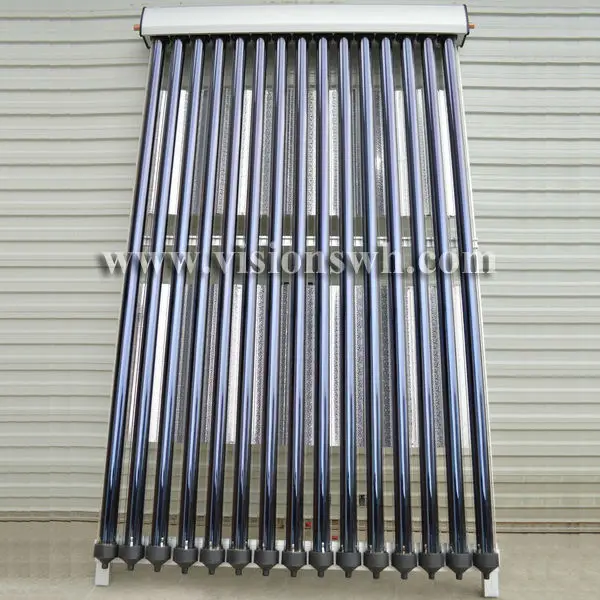

Working Theory & Parts Description:

VISION VUC series high pressure U pipe solar collector is one of the most popular solar collector with pretty high efficiency.

The selective three-target coating of vacuum tubes converts solar irradiation into heat energy and transfers to copper U pipes by aluminum wrapping, the water or heat transfer liquid pass through U pipes absorbs heat all the way, taking away the heat to store in tank water.







VISION U pipe solar collector is comprised of four main parts:



Vacuum Tube: Absorbs solar energy and converts it to usable heat. Vacuum between the two glass layers insulates against heat loss.

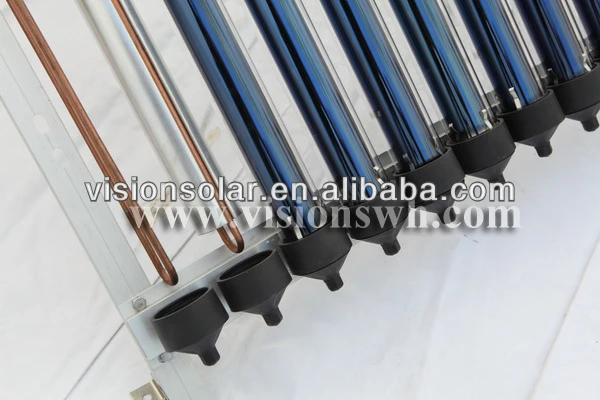

U Pipe: The VISION U pipe is a U-shape copper pipe with two sides welded into two seperate copper header pipes, the U pipes are wrapped with aluminum fin that absorbs the heat from within the vacuum tube.

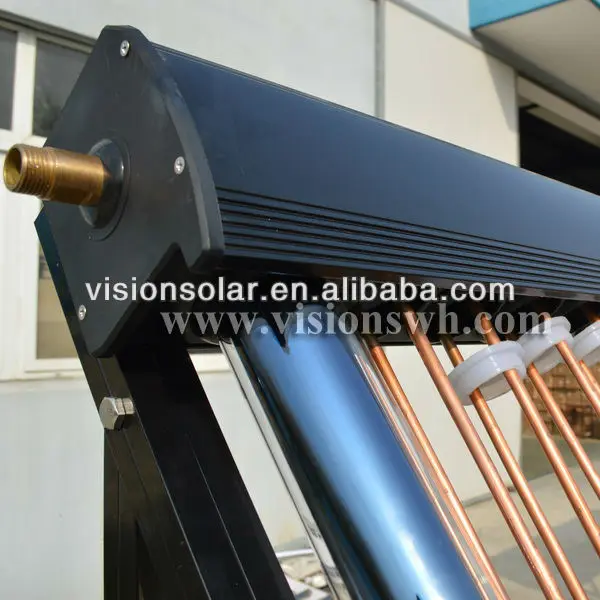

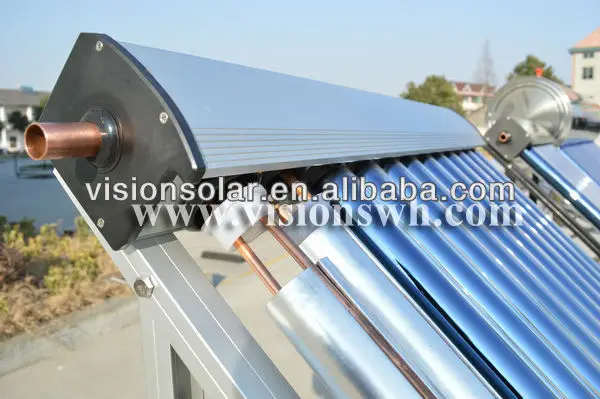

Manifold: Insulated box containing the copper header pipe. The header is two seperate copper pipes welded with U pipes. The U pipe manifold bears high pressure and usually work in closed loop solar system for indirect solar water heating.



Mounting Frame: Strong and easy to install with various options to match different mounting methods.



 Features of VISION U Pipe Solar Collector:

1. One of the most popular and practical collector in solar water heating system;

2. Wide applications for water heating, pool heating, space heating;

3. Large heating capacity up to 100,000 Liter hot water;

4. Much safe and stable performance with high pressure;

5. Super anti-freezing performance to work in (-) 40°C;

6. Very efficient direct or indirect solar water heating;

7. Applicable to active closed loop or open loop system.

8. Strong adaptability to flat or slope roof installation;

9. Easy installation and connection with simple structure;

10. With no limitation in collector angle for installation;

11. More than 10 years experience from VISION company for consultation.



Advantages of VISION Heat Pipe Solar Collector:



Comparing with heat pipe solar collector:

1. Higher efficiency solar water heating;

2. No collector angle limitation in installation;

3. Bigger flow rate with more efficient heat exchange;

4. More adaptable to different building structure installation.



Comparing with vacuum tube solar collector:

1. High efficient heat pipe tubes;

2. High pressure and anti-freezing collector;

3. Less heat loss for closed loop circulation;

4. No risk of tube breaking from thermal shock;

5. No risky of tube breaking from water freezing.

6. No system drainage even though one or several tubes are broken;



Comparing with flat plate solar collector:

1. Higher efficiency collector, much lower heat loss with vacuum insulation;

2. Super anti-freezing performance with waer & glycol mixture heat carrier;

3. No system drainage even though one or several tubes are broken;

4. More convenient in system parts carring and installation;



System illustration:



Technical support: VISION company offers design and installation instruction with 10 years installation experience.



OEM: Your LOGO information can be made on our solar collector and carton boxes.



ODM: Design manufacturing is available for manifold header and connection, heat pipe condenser, frame structure, etc.

Packaging Details: Export strong corrugated carton outside with polybag and styrofoam protection inside.



Delivery Detail: Within 7 - 10 days for container order quantity upon confirmed invoice or sales contract.

Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;



Technical support: You have more than 10 years experience from VISION SOLAR for product suggestion, installation guidance, market analysis, etc.



OEM & ODM: We welcome OEM & ODM requirements for solar collector, installation frame, and even for some out-sourcing equipments;



Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;



Minimum order quantity: We offer sample sample manufacturing for customers to check VISION quality and service;



Shipping service: VISION company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;



Import certificates: VISION company offers to make Certificte Origin CO, FORM A, FORM E, FORM F, customs certification, etc.
