Мягкая Магнитная защитная лента 80Ni5MoFe metal

Описание и отзывы

Трекер стоимости

Характеристики



metal mu
Grade: 1j50, 1j79, 1j85, 1j86

Shape: wire, bar/rod, strip, sheet, tube
straight and solid spooling
long life service

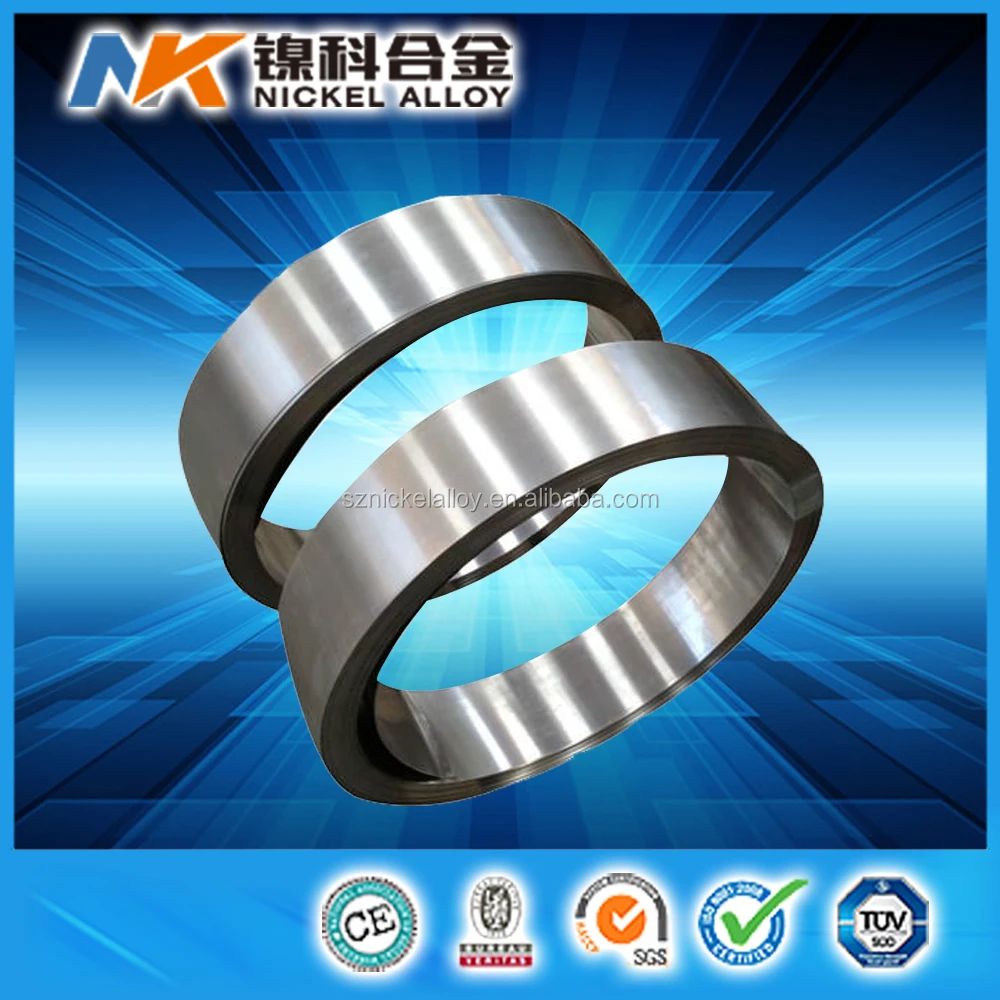

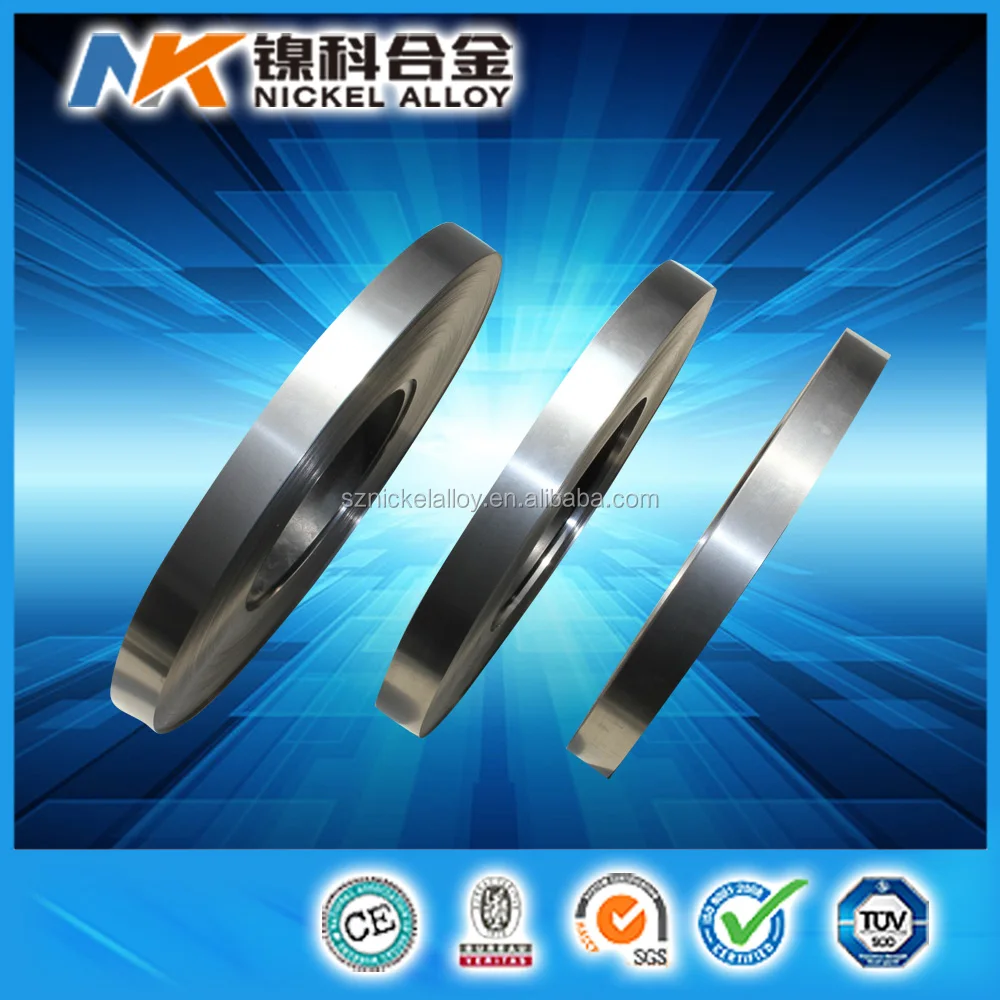

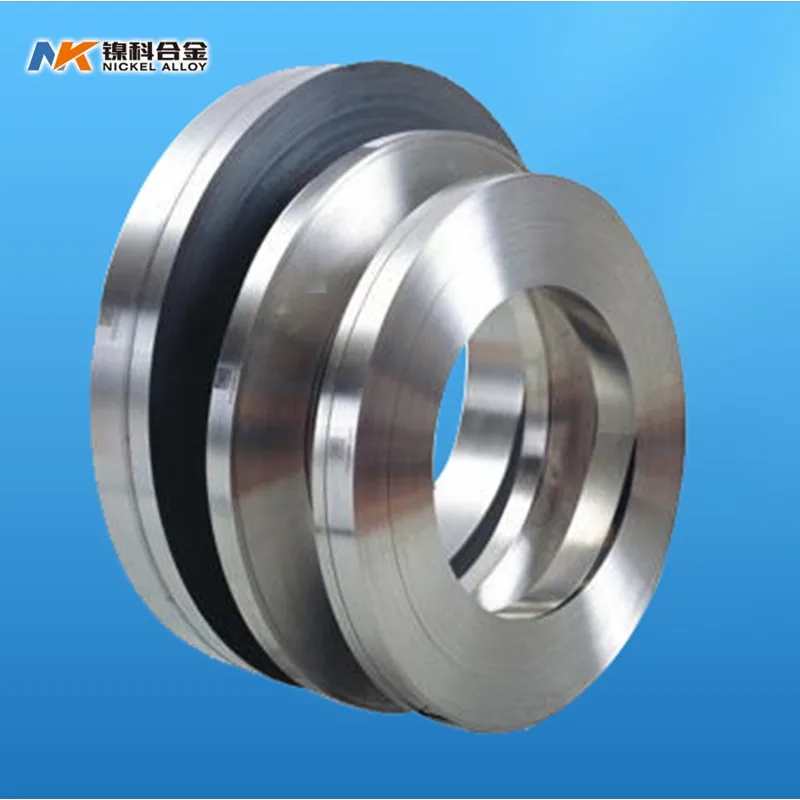

                           Soft magnetic shielding 80Ni5MoFe strip metal mu



Our product is available in the form of  Strip, Sheet, Strip, Bar, Tubes and Rod.



Mumetal



Mumetal is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596



Chemical composition



Weight%	Ni	Cu	Cr	S	P	Si	Mn	C	Mo	Fe
Hymu 80 (Comp1)	79.0-80.6			0.008	0.02	0.42	0.95	0.03	3.8-5	Rem
MIL N 14411C (Comp2)	75.0-77.0	4.0-6.0	3.0	0.02	0.02	0.50	1.8	0.05





Physical Properties (Annealed Condition)



Specific Gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lb/cu.in. - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2in/in °F x 10-6 between 70 and 400F
13cm/cm/ °C 10-6 between 30 and 204 °C



FeNi Soft Magnetic Alloy (GBn198-1988)

Grade & Chemical Composition

Sort

Grade

Chemical Composition (%)

C≤

P≤

S≤

Mn

Si

Ni

Cr

Co

Mo

Cu

Fe

High magnetic  conductivity

1J46

0.03

0.020

0.02

0.60~1.1

0.15~0.3

45.0~46.5

≤0.20

Balance

1J50

0.30~0.6

0.15~0.3

49.0~50.5

≤0.20

1J77

0.03

0.020

0.02

0.30~0.60

0.15~0.3

75.0~78

3.9~4.5

4.80~6

1J76

0.30~0.60

0.15~0.3

75.0~76.5

1.80~2.2

4.80~5.2

High initial  permeability  of soft magnetic  alloy

1J79

0.60~1.1

0.30~0.50

78.5~80.0

3.80~4.10

≤0.20

1J80

0.60~1.1

1.10~1.5

79.0~81.0

2.6~3.0

≤0.20

1J85

0.30~0.60

0.15~0.3

79.0~81.0

4.80~5.20

≤0.20

1J86

≤1.00

≤0.30

80.5~81.5

5.80~6.2







Product sizes are:

cold rolling strip:0.1mm-3.0mm×≤420mm
hot forged material:diameter5.5mm--250mm,square:40mm240mm×40mm240mm
cold drawing wire:0.1mm-18mm
hot rolling plate  3.0mm-60.0mm×1000mm*2000mm

Seamless tube:  φ6mm~φ219mm×0.5mm~18mm

Welded tube: φ1mm~φ120mm×0.1mm~10mm



PRODUCT APPLICATION

mumetal Shielding Sheet

High performance magnetic cores such as toroids and stacked laminations

Magnetic shielding to protect sensitive components from extraneous magnetic fields

Magnetic sensors

Current sensors

Any delicate application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz









Why Choose SZNK Heating Resistance Alloys



All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing resistance heating alloys.



In the market, not all the NiCr alloys are with standard chemical composition and stable resistance. Professional and reliable is the soul of our business.



1) We achieve consistent production from smelting to complete products, we are able to supply satisfactory products.



2) We have has the world's advanced level of German ALD - VIDP1000 - 8000KG vacuum induction furnace and wire drawing machines from Japan.



3) With our skilled spooling knowhows, we have successfully magnified the take - up weight on spool. For example, even a superfine wire of 0.04 mm in diameter can be wound and shipped on a 3 - 4 kg bobbin, thus immediately contributing to your productive efficiency.



4) In order to prevent a wire from loosening, we have introduced a developed tension controlled systems into our take - up machine and respooling machine.

We think you can anticipate smooth despooling.



5) Rolling mill with 4 stands in tandem is applied to our ribbons (rolled wires) manufacturing.



Why Us:



•Good quality control in production process, ISO9001:2008,SGS,BV approved.



• Excellent quality and Competitive price, OEM is available.



• Available in an extensive range of stock or custom size.



• The whole process from material to finished products can be traced.



Our Service:



• Your inquiry related to our product & price will be replied within 24hours.



• Well-trained & experienced staff are to answer all your inquiries professional in English of course.



• OEM is highly welcomed. We have strong R&D team here to help.



• Good after-sale service offered, please get back if you got question.



Q1.Do you attend exhibition every year?



A .Yes



Q2.Is there any discount of the nickel wire?



A.  Yes. Bigger quantity will get a discount.



Q3.Information needed if I want a quotation?



A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.



How to contact us?



Send your inquiry details in the below for free sample, click "send" now.
