Супер изоляционный металлический гибкий шланг для установки солнечного
- Категория: Запчасти для солнечного водонагревателя >>>
- Поставщик: Haining,Vision,Solar,Water,Heater,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.20 $* | 0.88 $* |
| Aug-15-2025 | 0.8 $* | 0.47 $* |
| Jul-15-2025 | 0.81 $* | 0.72 $* |
| Jun-15-2025 | 0.31 $* | 0.95 $* |
| May-15-2025 | 0.76 $* | 0.31 $* |
| Apr-15-2025 | 0.92 $* | 0.54 $* |
| Mar-15-2025 | 0.66 $* | 0.40 $* |
| Feb-15-2025 | 0.17 $* | 0.94 $* |
| Jan-15-2025 | 0.37 $* | 0.3 $* |
Характеристики
Super insulation metal flexible hose for solar water heater installing
Product Description
Features of VISION Pre Insulated Solar Flex Tube:
VISIION dual solar tube is an easy-to-install pre-insulated tubing system for reducing the energy loss. It is specially designed for the solar hot water systems to save time and money in installation.

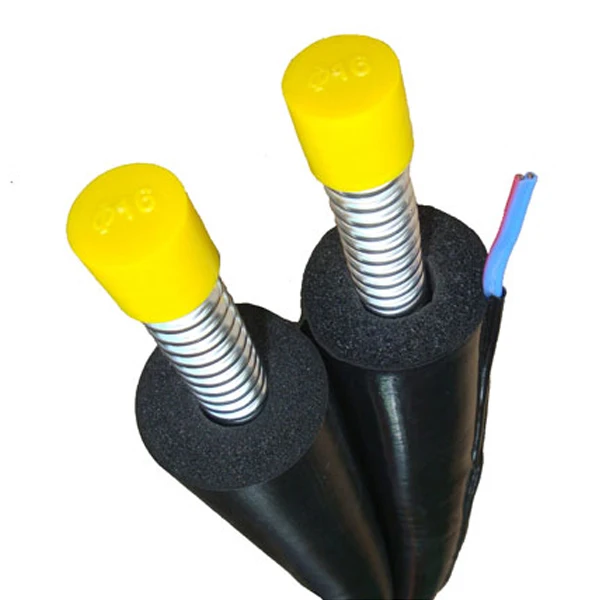

The whole system is a product that a corrugated stainless steel pipe fully insulated and incorporates a dual core sensor cable for easy connection to collector and controller.
The stainless steel corrugated tube allows the connection from the collector to the pump station and storage tank without any welding joints.
The insulation of the hose is suitable for outdoor application, as the EPDM wrapping material is high temperature, UV and tuff weathering resistant.
The flow and return path of the solar hose are connected, and can be separated as required.
1).Solar Pipe Sizes: DN12 (1/2”), DN16 (3/4”), DN20 (1”)
2).Solar Pipe Roll Lengths: 5m,10m,15m, 20m, 25m, 30m, 50m
3).Thermal Insulation Tube: Quality EPDM insulation tubes
4).Insulation Tube Wall Thickness: 13mm/ 20mm
5).Flexible SS Corrugated Pipe: SUS304/ SUS316L
6).SS Pipe Wall Thickness: 0.25mm - 0.3mm
7) Temperature Sensor Cable: Silicon insulated high temperature two cores cable
8). Protection Film : UV resistant and water proof adhesive protection film
9) Insulation Working Temperature: - 57°C to + 150°C ( shortly for + 175°C)
10).Max Working Pressure: 12 bar

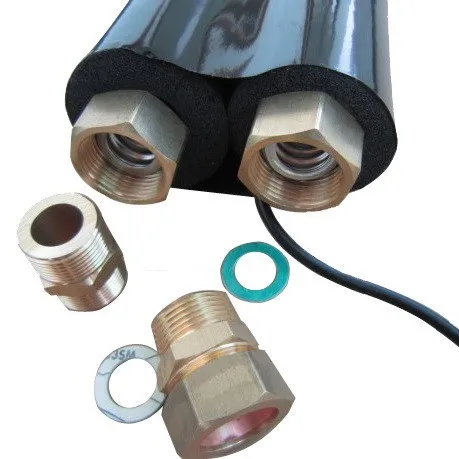

11). Solar Pipe Brass Fittings: Brass Ms58, flat surface
12).Sealing Material: Klingerit fiber washer from Germany
13).Split Clip Material: SUS430
14). Applications: Solar Thermal Plumbing Systems
15).Color: Black
Technical Data for VISION Pre Insulated Solar Flex Tube:
EPDM Insulation Pipe | |||||||||||
Cell Structure | Closed cell | ||||||||||
Temperature Range | - 57 °C to +150°C; short term up to +175°C | ||||||||||
Thermal Conductivity | λ40°C = 0,040W/mK λ0°C= 0,033 W/mK | ASTM C 177 JIS A 1412 | |||||||||
Corrosion of Copper , Stainless Steel | Non-corrosive | DIN1988 | |||||||||
Environment Friendly | CFC, HCFC free | ||||||||||
UV Weather Resistance | Excellent | ||||||||||
Flexible Stainless Steel Corrugated Pipe | |||||||||||
Material | SUS304/316L | ||||||||||
Outer Diameter(mm) | DN | Thickness(mm) | Max Operation Pressure (bar) | ||||||||
16.0 | 12 | 0.25 | 12 | ||||||||
20.0 | 16 | 0.25 | 12 | ||||||||
25.0 | 20 | 0.3 | 12 | ||||||||
Temperature Sensor Cable | |||||||||||
Temperature Resistance | -60 ~ +200°C | ||||||||||
Insulation Material | Silicon | ||||||||||
Nominal Voltage | 300/500V | ||||||||||
Size | 2*0.5mm2 | ||||||||||
Container Loading Quantity | |||||||||||
Model | Package Size (20M/ PCS) | Quantity/ 20GP | Quantity/ 40HQ | ||||||||
VSH-1213 | 750*750*200MM | 5160M (258PCS) | 12060M (603PCS) | ||||||||
VSH-1613 | 750*750*300MM | 3300M (165PCS) | 8280M (414PCS) | ||||||||
VSH-2013 | 750*750*400MM | 2280M (114PCS) | 5580M (279PCS) | ||||||||
VSH-1220 | 750*750*400MM | 2280M (114PCS) | 5580M (279PCS) | ||||||||
VSH-1620 | 750*750*400MM | 2280M (114PCS) | 5580M (279PCS) | ||||||||
VSH-2020 | 750*750*600MM | 1140M (72PCS) | 3600M (180PCS) | ||||||||
Installation Steps for VISION Pre Insulated Solar Flex Tube:
FAQ
Application: All kinds of solar water heaters.
OEM: Your LOGO information can be made on our solar products and carton boxes.
Packaging & Shipping

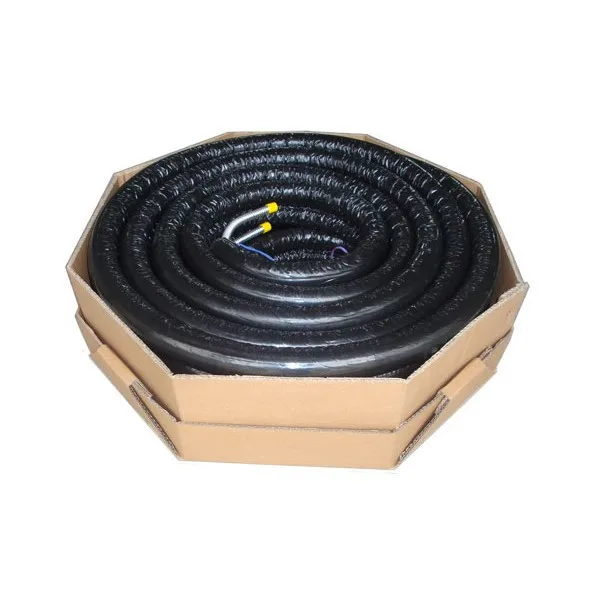

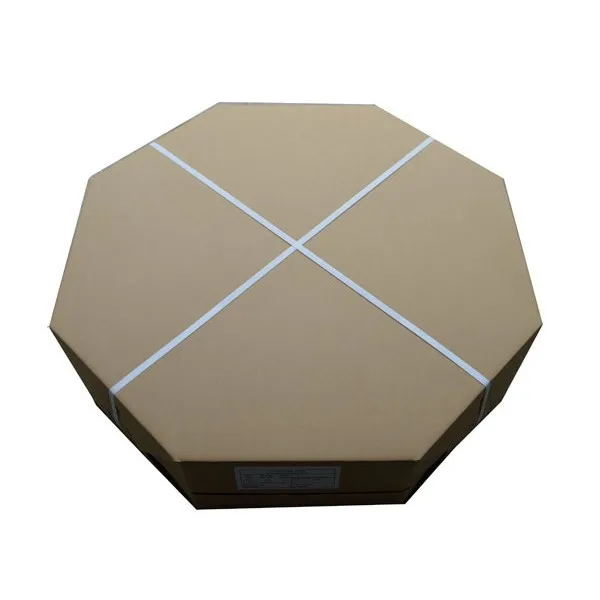

Packaging Details: Export strong corrugated carton outside with polybag and styrofoam protection inside.
Delivery Detail: Within 5 - 7 days for container order quantity upon confirmed invoice or sales contract
Our Services
Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;
Technical support: You have more than 10 years experience from VISION SOLAR for product suggestion, installation guidance, market analysis, etc.
OEM & ODM: We welcome OEM & ODM requirements for solar controller, solar collector, storage tank, etc.;
Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery;
Minimum order quantity: We offer sample sample manufacturing for customers to check VISION quality and service;
Shipping service: VISION company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;
Import certificates: VISION company offers to make Certificte Origin CO, FORM A, FORM E, FORM F, customs certification, etc.
Company Information
Installation pictures for VISION Solar Hose Pipe:
