Настенный точка доступа маршрутизатор POE 802.11n предприятия Wi-Fi системы роутера USB

What this product does?

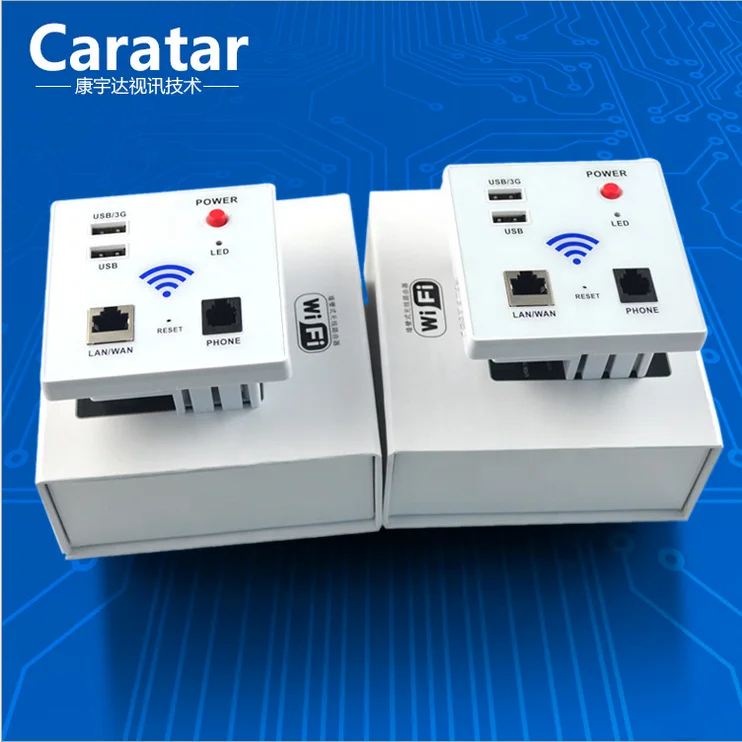

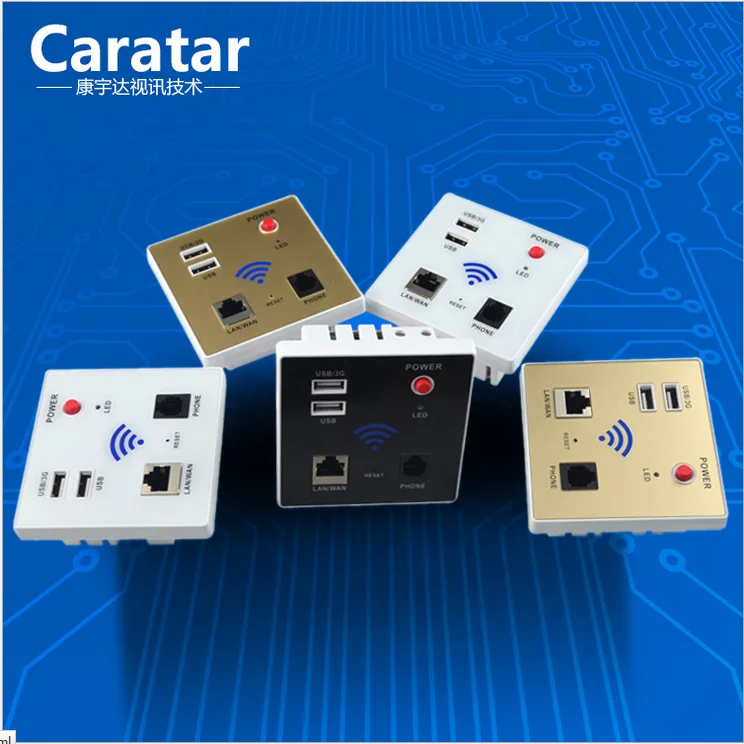

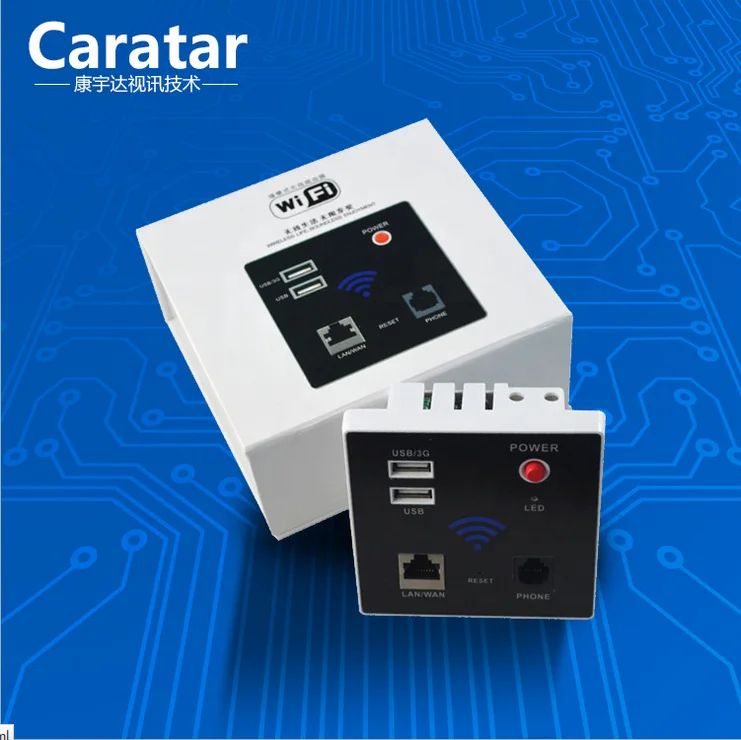

This product is a WIFI wireless router fixed to the wall with a standard wall switch junction box. It integrates multi functions, such as 3G/4G routing, wireless routing, adsl dial-up internet connection, wireless network storage, USB charging and wireless relay. It gets featured by its powerful functions, stable performance, easy installation, simple setting and stylish appearance. It’s especially applicable for wireless WIFI network coverage in places such as modern homes, hotels, enterprises, schools and small office areas.

Product Description:

1, Connect it to the mains supply AC110~380V without any extra power adapters.

2, With a world top built-in antenna, it has super signals, wider coverage and stronger penetration.

3, With 5V 1500mA USB power output, it can provide fast charging for the vast majority of devices, like mobile phones and tablet PCs.

4, It supports LAN port output, optional for either wired or wireless networks.

5, It supports accessibility to 3G cards, compatible with major 3G cards.

6, Its USB port is available for plug-in of flash disks, mobile hard disks for data sharing.

7, The hardware design of a WPS/WIFI switch facilitates password protection and on-off of WIFI signals.

8, Its convenient relay function can extend the WIFI distance significantly and save a lot of network cables.

Product Features

* Wall type WIFI router with the country's first telephone interface

* The 11N 150M Wireless AP, transfer faster and more stable

* Exempt hotel walls trouble playing online module

* Wired and wireless integration

* The most complete wireless encryption technology, with WEP, WPA-PSK, WPA2-PSK, WPA, WPA2, MAC address authentication,

  and other encryption / security settings to make wireless networks more secure

* Support relay function, let your WIFI broader range of distances.

Product Specification:

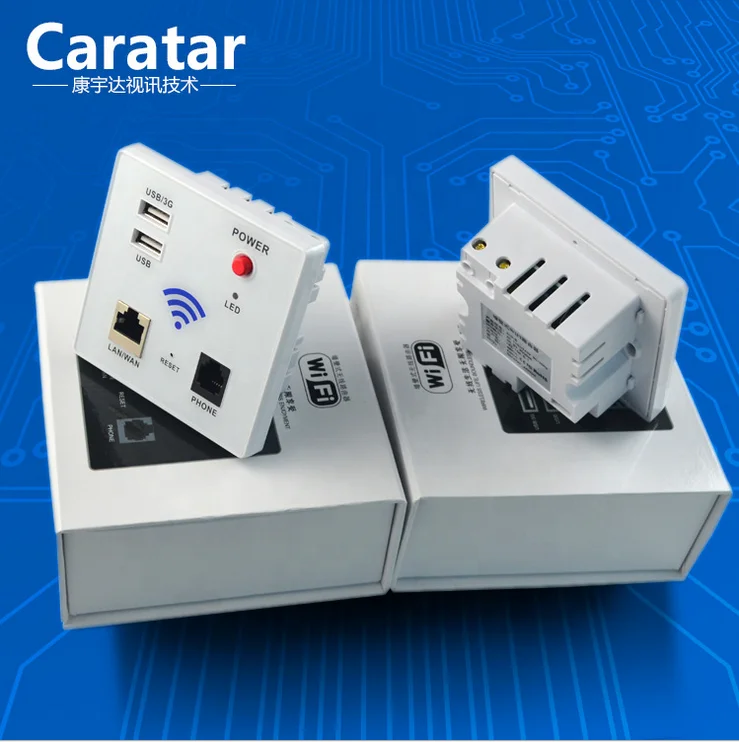

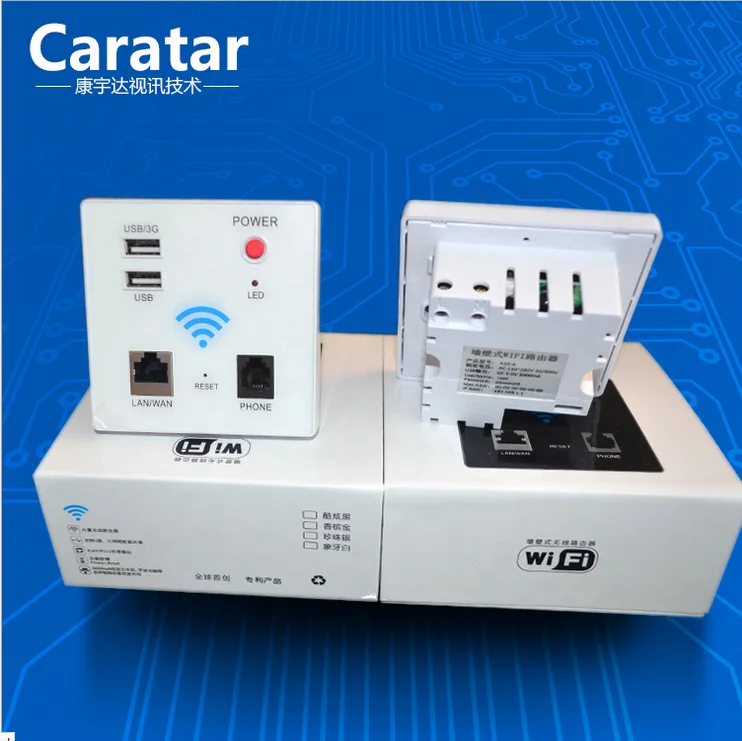

1. Remove the cover(Use a screwdriver to remove the cover from the panel surface)


2. Connecting wire(The 220V wires, cables, telephone lines connected to the specified interface on the rear panel to ensure a firm connection,Connect the power off before connecting wires to connect 220V,Avoid electric shock).


3. Mounting screws(Remove the screws from the box, put the socket into the bottom box fixed rear panel, the panel surface cover to cover, the surface.In the bottom box to adjust the screws tighten the screw ratio.)


4. Install the cover(Cover snaps into the slot above the panel).

       Shenzhen Caratar Technology Co., Ltd, Is a leading providers of SOHO & SMB networking products, offering both innovative and award winning solutions to the market.

       R&D Manufacture that is fully committed to developing its products, services and consumer relations through extensive R&D, strict Quality Assurance practices, and effective outreach initiatives. Customer loyalty through interaction, focus and feedback are policies that help form the Caratar culture, as well as a commitment to achieve, and a dedication to innovate.

      Technology be focused on RF Bluetooth Wi-Fi Zigbee Z-wave Enocean etc. Many years of experience on wireless network product andEmbedded Industrial product . offering a complete range of networking solutions consisting of Routers, Adapters, Cameras, Switches, and many other WLAN Wired and Wireless devices for both Home and Office use.

      The Main product :

Wireless department : In-wall AP Router   WI-FI module Mini pocket wifi router

Industrial department : Air purifier  USRP  Warm clothing
