Гидравлический разветвитель камня с дизельным приводом для разделения
- Категория: Каменный сплиттер >>>
- Поставщик: Beijing,Pro,Drill,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 396871.88 $* | 404808.17 $* |
| Jul-16-2025 | 321872.82 $* | 328309.57 $* |
| Jun-16-2025 | 390621.33 $* | 398433.86 $* |
| May-16-2025 | 387496.38 $* | 395246.78 $* |
| Apr-16-2025 | 309372.97 $* | 315559.59 $* |
| Mar-16-2025 | 381246.60 $* | 388871.38 $* |
| Feb-16-2025 | 378121.40 $* | 385683.77 $* |
| Jan-16-2025 | 374996.89 $* | 382496.94 $* |
Характеристики
Product Description
| General introduction: |
42-45mm core PD42-350 hydraulic rock crack machine, concrete and stone splitter for mining
Specifications
1)Enormous splitting force up to 410 tons
2)Dust free and near silent operation
Product Features
Hydraulic concrete & rock splitter is one of the efficient, safest and easiest ways of mining,quarring, demolition & removing mass and reinforced concrete.
The supper-high-pressure oil-driven oil cylinder outputted by the pumping station generates gigantic driving power, which can split the object to be split to preset direction after mechanic amplification."
Applications:
1)Demolition of concrete and reinforced concrete
2)Demolition of rock and natural stone
3)Block quarrying in the natural stone industry
This product is mainly applicable to mining work of construction stones: the secondary breaking of large ores (mental ores or non-metal ores) and the partial or integral removing of concrete facilities (cement road, machinery base, bridge and building parts) pared with traditional working mode, the above method features simple structure, convenient operation, efficient work and low price (some 1/4 of that of foreign products). It offers high efficiency (double speed) and good performance, and is more applicable to the secondary breaking of large ores. It is an ideal product to replace secondary blasting and manual breaking.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also anindispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
We already successfully copied the same cylinder from German Darda.
It have the exact same shape, same parts and same performance as the original one.

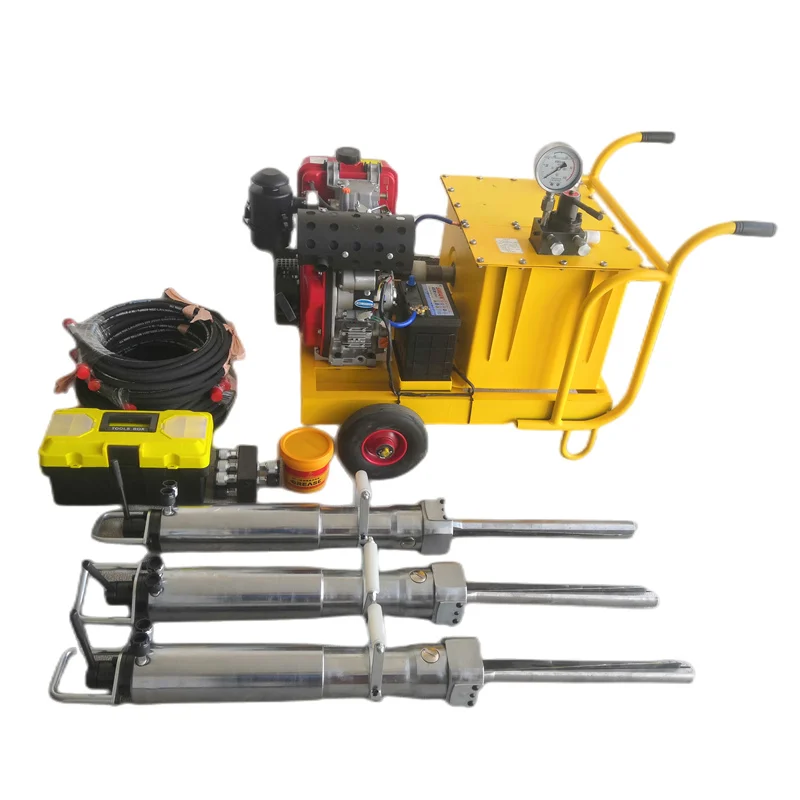

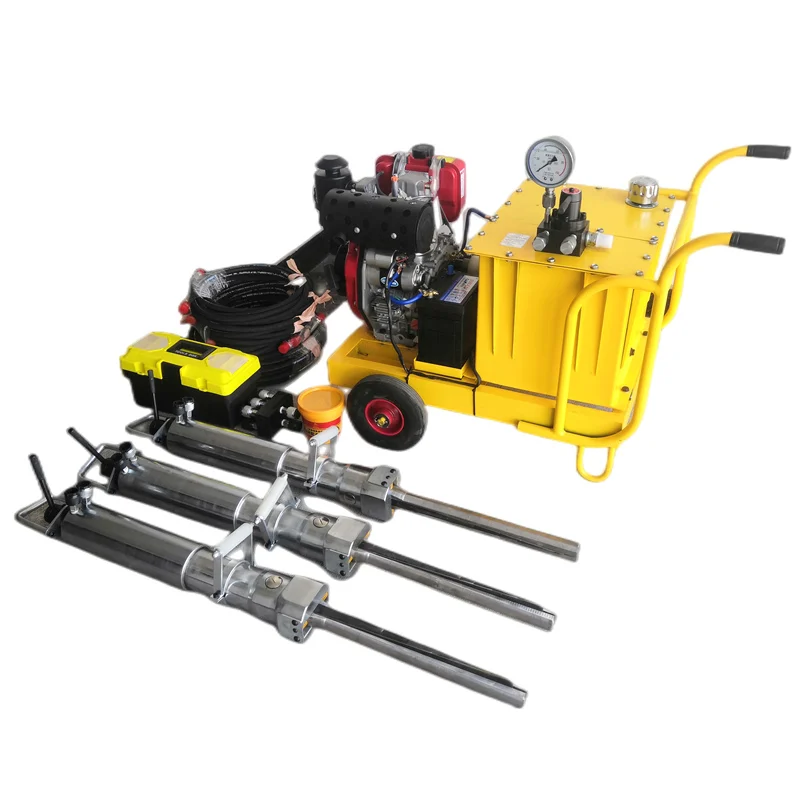

"Hydraulic splitter is composed of three parts:
1) steel or aluminum cylinder with centre wedge and one counter wedge for each,
2) and plus diesel motor engine, pumping station: Driven Mortor: Electric / Diesel / Gasoline
3) and high pressure hose etc.
Hydraulic splitting cylinder Technical data
| Model | Pre-drilling Hole Diameter | chop block / Counter Wedge Diameter (Length) | Drilling Depth | Working Pressure | Actually Splitting Force (T) | Splitting Gaps (mm) | Use thick chop block away from the second division |
| PD40-250 | 42 | 40 (250) | 550 | 60 | 400 | 10~18 | 18-100 |
| PD42-350 | 44 | 42 (350) | 650 | ||||
| PD44-450 | 46 | 44 (450) | 750 |
| Model | Steel Cylinder with Wedge Set | Aluminum Cylinder with Wedge Set | Wedge Set NW/kgs |
| PD40-250 | 34 | 9 | 9 |
| PD42-350 | 35 | 10 | 10 |
| PD44-450 | 36 | 11 | 11 |
Pumping Station Technical data:
| Power Model | Overall Size (Mm) | Weight (Kg) | Oil Pumping Station Reserves (L) | Engine Power | Working Pressure (Mpa) | Flux (L/M) | Towable Of Splitter Quantity (Pc) |
| Diesel Engine | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
| Gasoline Model | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 |
| Electric Motor | 380*240*410 | 23 | 5 | 0.75KW(220V/380V) | 55-60 | 0.8 | 1 |
| 384*280*620 | 75 | 30 | 4KW(380V) | 55-60 | 2-13 | 1-10 | |
| 450*410*700 | 100 | 40 | 7.5KW(380V) | 55-60 | 13 | 1-10 |
How to order: choose pump station type, cylinder material and wedge set size.
More details, please check with me.
| Images |
Applications

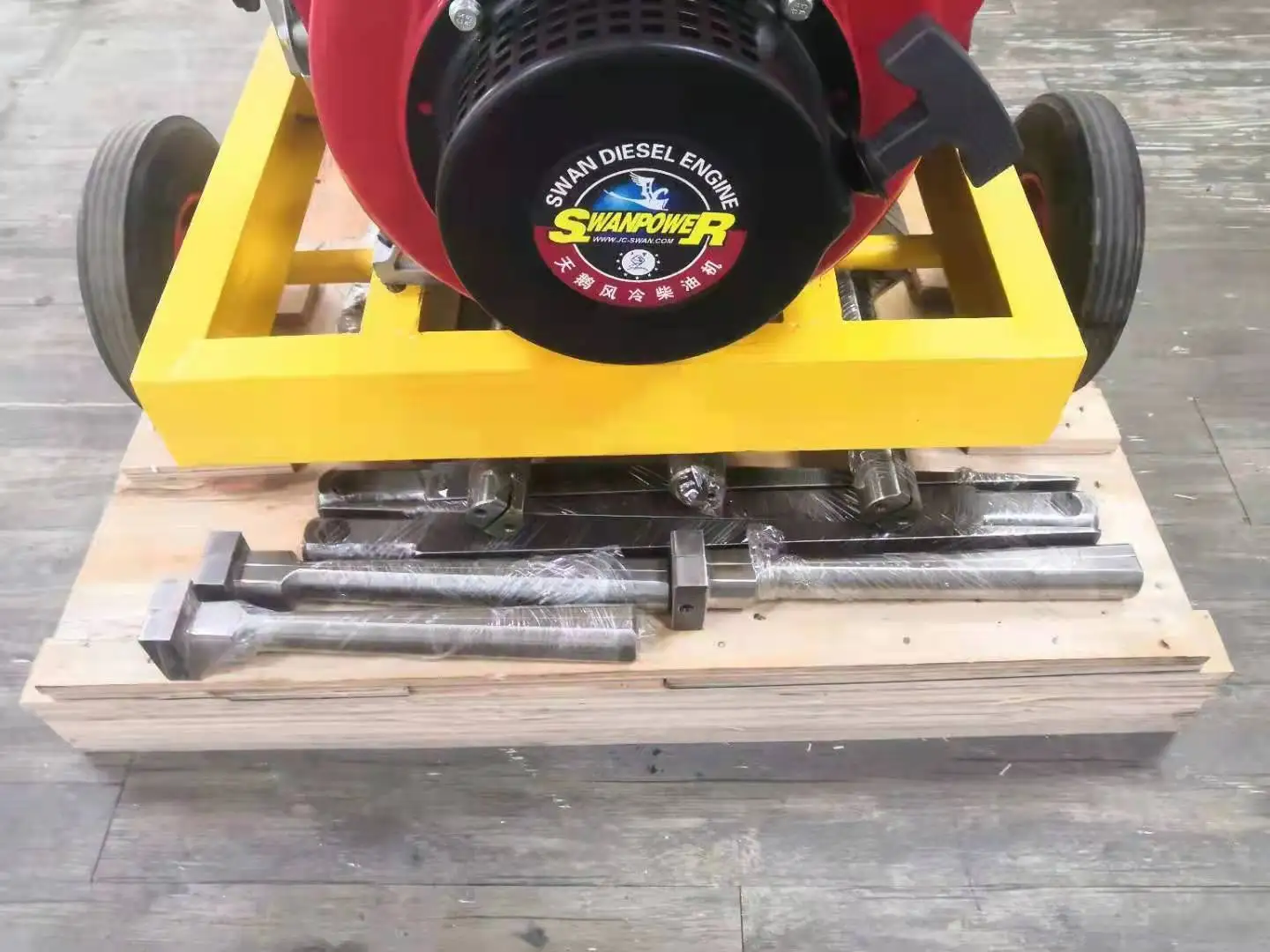

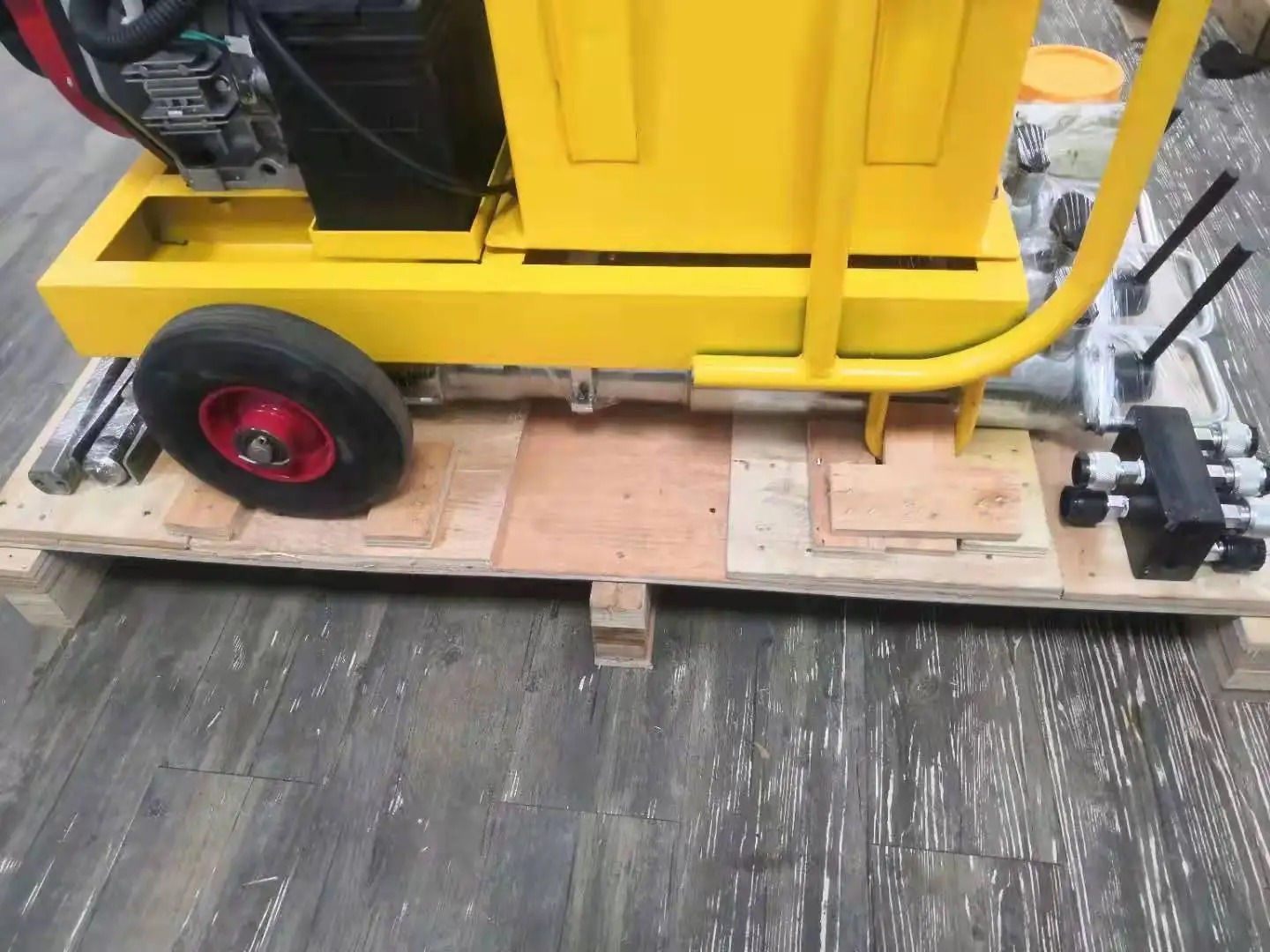

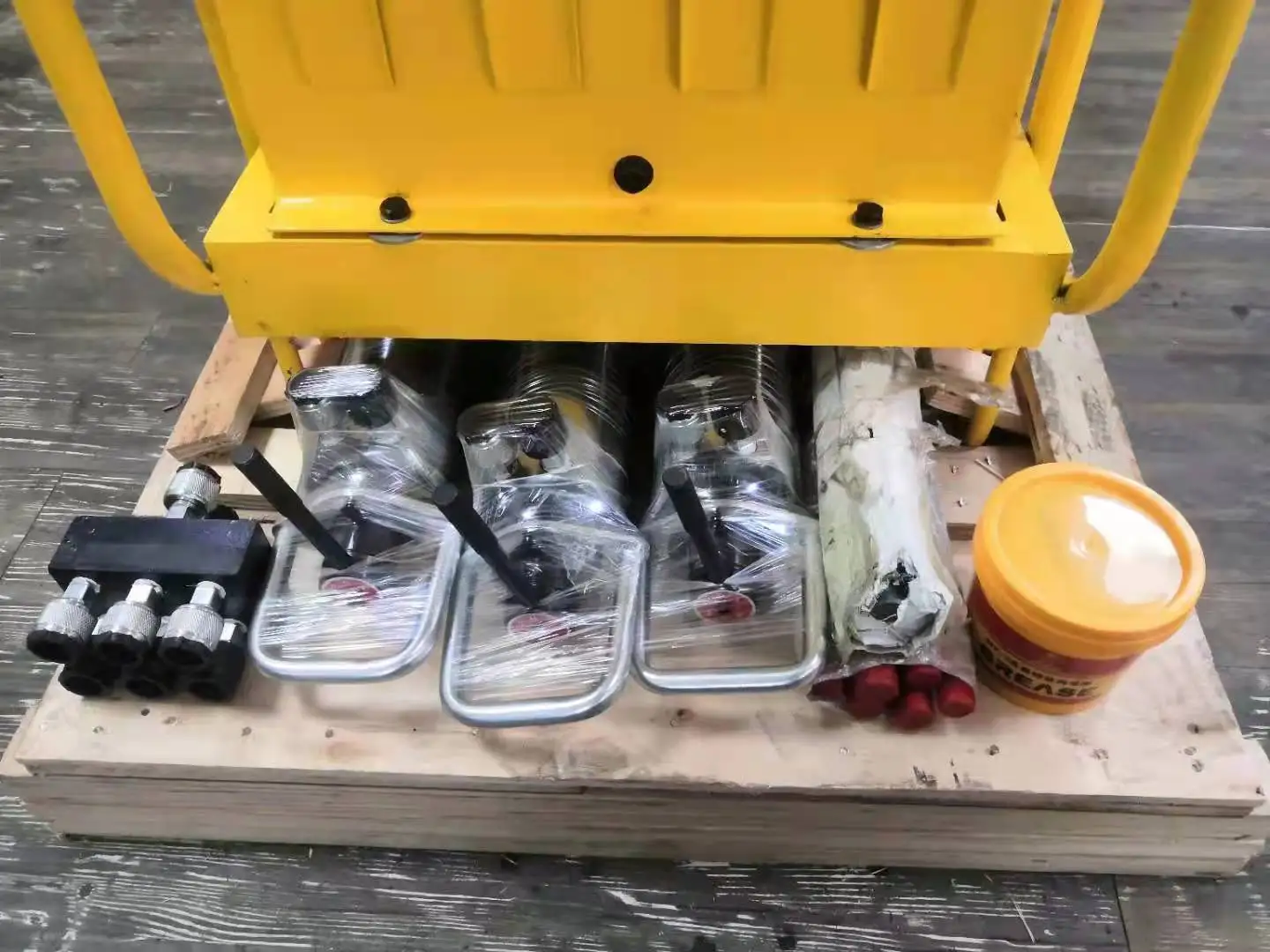

Packaging & Shipping
More Products
DTH Hammer >> DTH BIT>> Thread Button Bits>>
ODEX Eccentric Casing >> Symmetrix Overburden Drilling System>> RC Bits>>
FAQ
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
