Термоусадочная крышка для кабеля с

Категория: Колпачки для кабелей >>>
Поставщик: Guangzhou,Kaiheng,K&S,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.34 $*	0.87 $*
Aug-17-2025	0.10 $*	0.3 $*
Jul-17-2025	0.28 $*	0.15 $*
Jun-17-2025	0.22 $*	0.87 $*
May-17-2025	0.50 $*	0.55 $*
Apr-17-2025	0.68 $*	0.38 $*
Mar-17-2025	0.96 $*	0.68 $*
Feb-17-2025	0.34 $*	0.39 $*
Jan-17-2025	0.88 $*	0.77 $*

Характеристики

Product Description

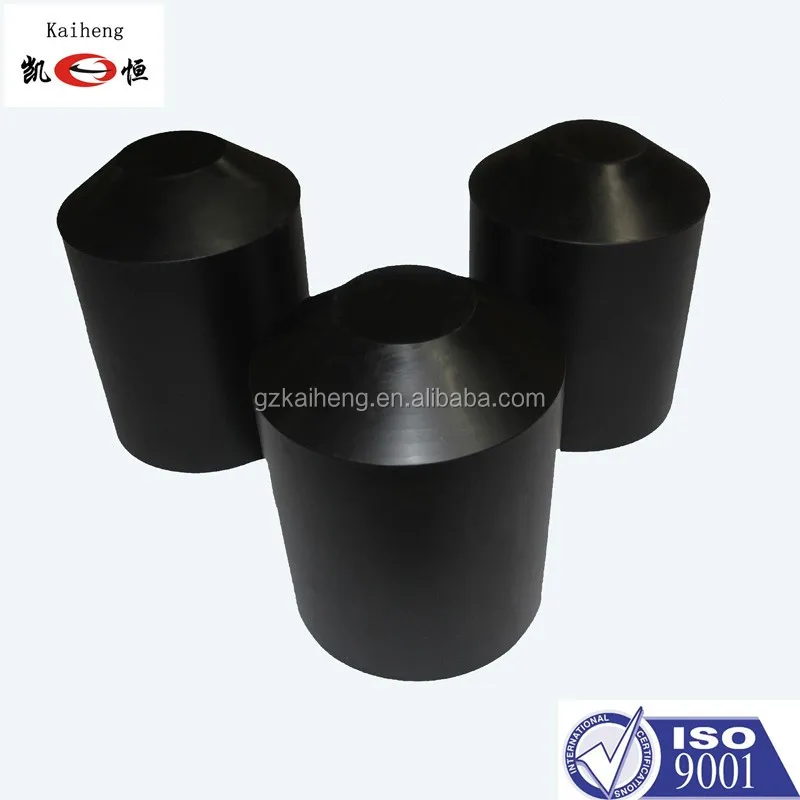

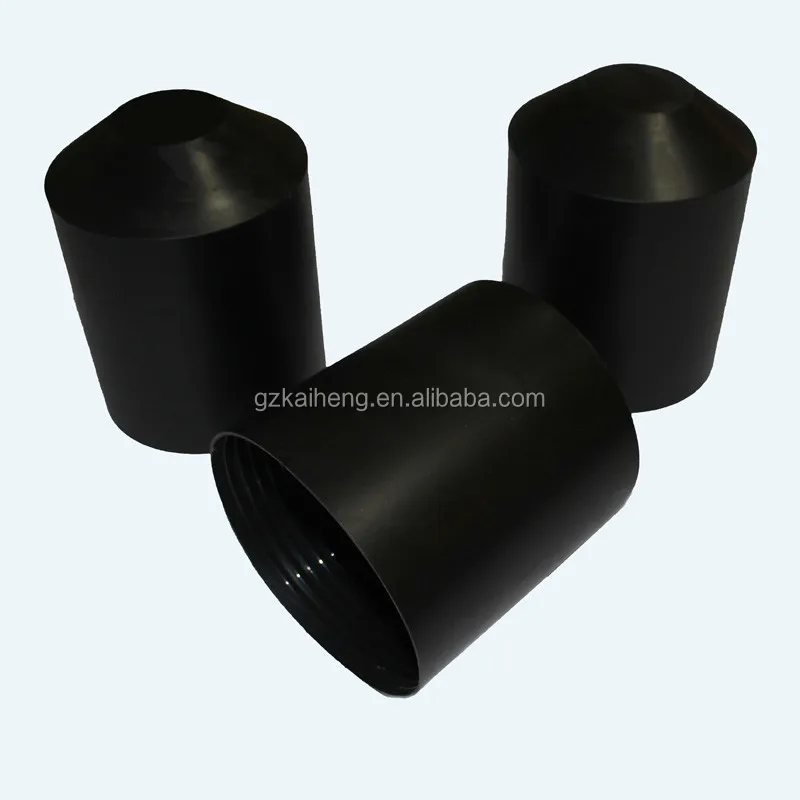

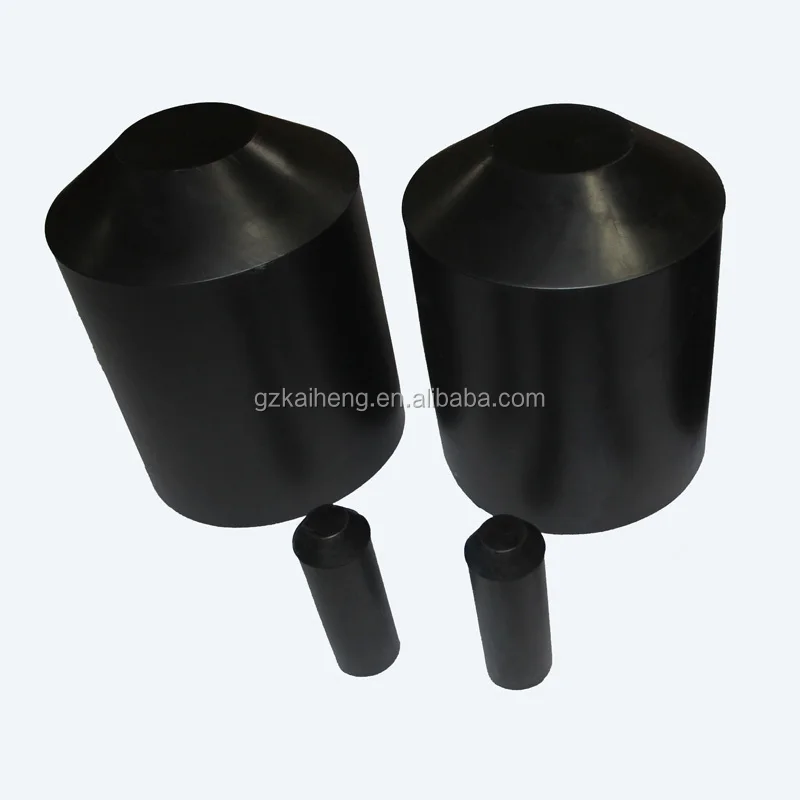

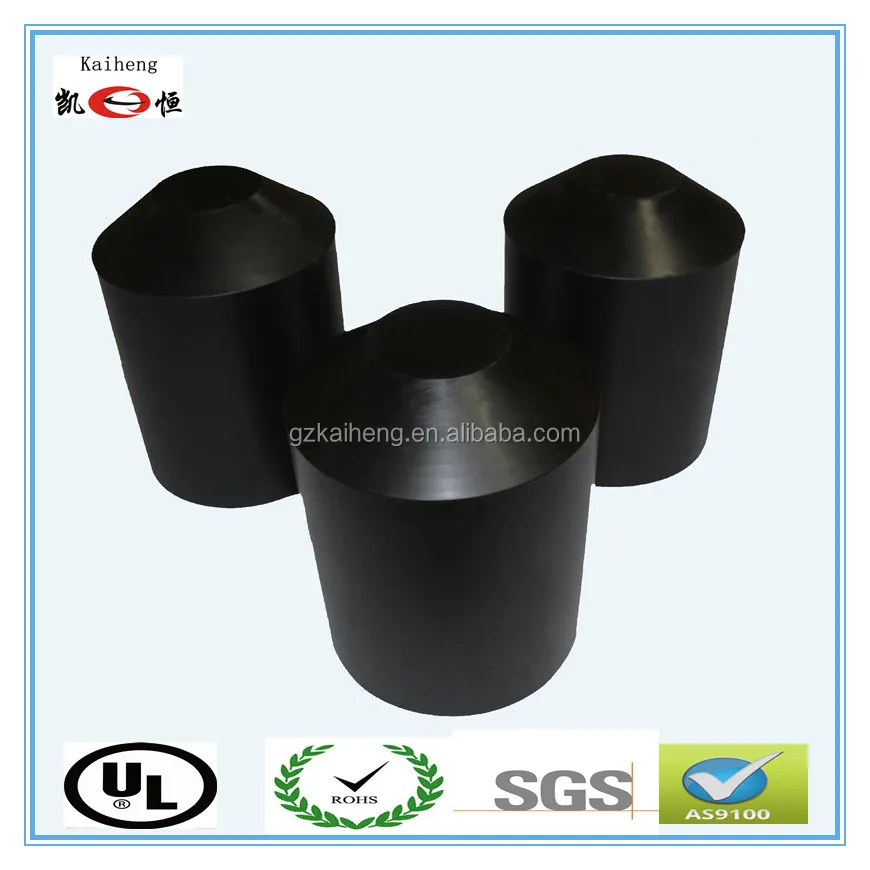

Heat shrinkable cable end caps with spiral adhesive coating

EC offers an economical means of sealing the end of power cable with a completely watertight seal. The internal surface of the end cap has a layer of spiral coated hot melt adhesive, which retains its flexible properties after recovery. EC is recommended for application both in open air and on underground power distribution cables with PVC, lead or XLPE sheaths.

Features

Effectively offering protection against oxidation,

Ozone, UV-radiation et

Coated with hot melt adhesive to ensure environment seal

Easily to fit into the cable end

Minimum fully shrink temperature: 120℃

Product Sizes

Product Dimension (standard length end caps)

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55 to +110 ℃℃
Tensile strength	ASTM D 638	>14MPa
Elongation at break	ASTM D 638	>400%
Density	ASTM D 792	1.05
Elongation at break after aging	150 /168hrs.℃	>300%
Dielectric strength	IEC 243	>15kV/mm
Volume resistance	IEC 93	>10¹⁴ Ω. cm

EC-12/4		12	4.0	15	40	2.6	4 -10
EC-14/5		14	5.0	18	45	2.2	5 -12
EC-20/6		20	6.0	25	55	2.8	6 -16
EC-25/8.5		25	8.5	30	68	2.8	10 - 20
EC-35/16		35	16.0	35	83	3.3	17 -30
EC-40/15		40	15.0	40	83	3.3	18- 32
EC-55/26		55	26.0	50	103	3.5	28 48
EC-75/36		75	36.0	55	120	4.0	45 -68
EC-100/52		100	52.0	70	140	4.0	55 -90
EC-120/60		120	60.0	70	150	4.0	65-110
	EC-145/60	145	60.0	70	150	4.0	70-130
	EC-160/82	160	82.0	70	150	4.0	90-150
	EC-200/90	200	90.0	70	160	4.2	100-180

K EC110L-14/5	14	5.0	30	55	2.2	5 -12
K EC130L-42/15	42	15.0	40	110	3.3	18 - 34
K EC140L-55/23	55	23.0	70	140	3.8	25 -48
K EC145L-62/23	62	23.0	70	140	3.8	25 -55
K EC150L-75/32	75	32.0	70	150	4.0	40 -68
K EEC150L-75/36	75	36.0	70	170	4.2	45 -68
K EC160L-105/45	105	45.0	65	150	4.0	50 -90
