Шаровой кран из нержавеющей стали 304 от китайского
- Категория: Клапаны >>>
- Поставщик: Wuxi,Sikaifu,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 33.76 $* | 35.3 $* |
| Aug-18-2025 | 33.19 $* | 35.69 $* |
| Jul-18-2025 | 28.53 $* | 29.57 $* |
| Jun-18-2025 | 32.34 $* | 34.74 $* |
| May-18-2025 | 28.10 $* | 29.78 $* |
| Apr-18-2025 | 32.96 $* | 34.68 $* |
| Mar-18-2025 | 32.61 $* | 34.19 $* |
| Feb-18-2025 | 31.57 $* | 33.19 $* |
| Jan-18-2025 | 31.52 $* | 33.54 $* |
Характеристики

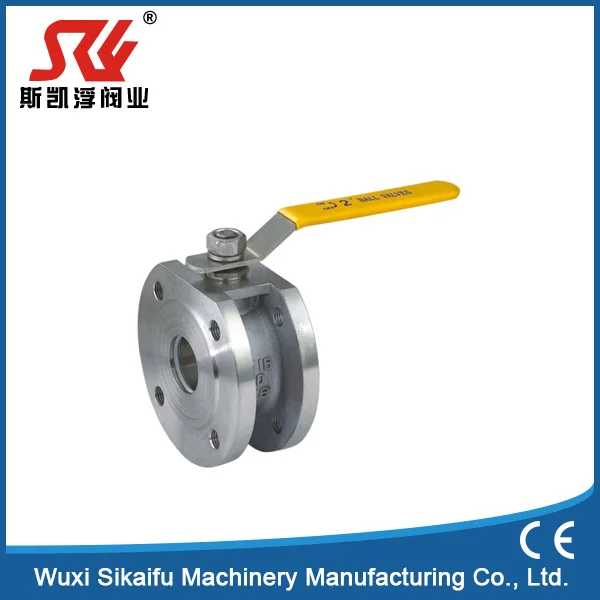

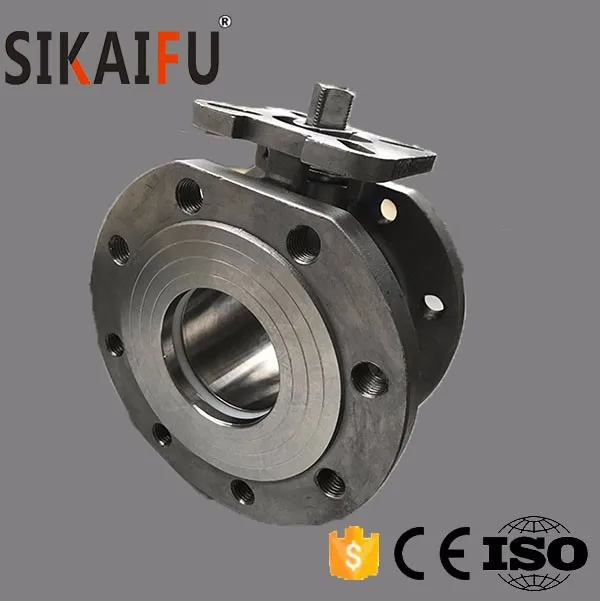

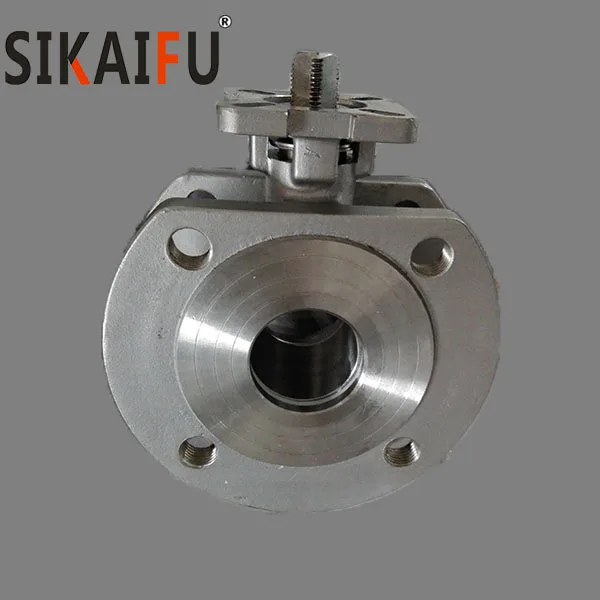

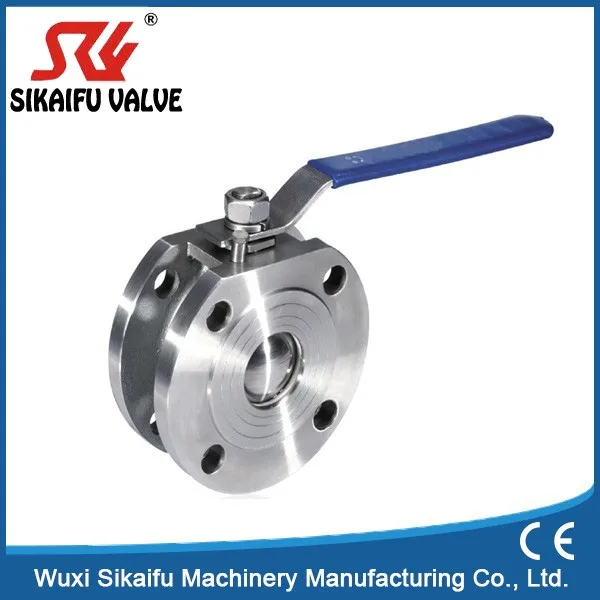

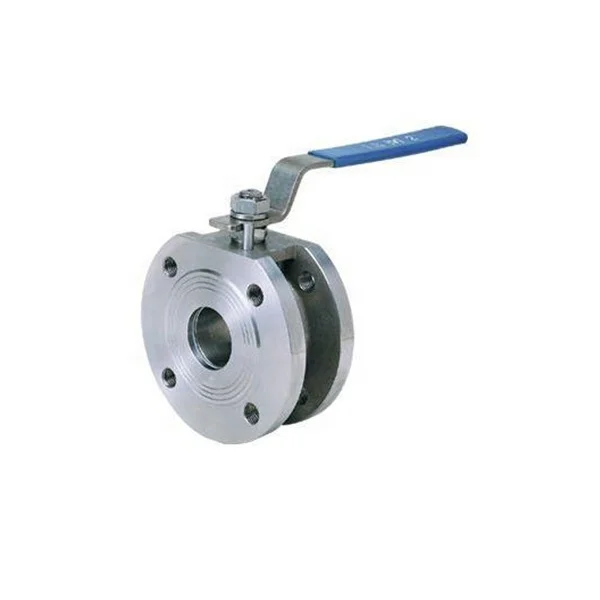

China supplier wafer type stainless steel 304 floating ball valve
Product Description
Advantages
- Blow out proof stem design
- Full port design
- ISO5211 direct mounting pad
- Flange Standard:DIN
- Various sealing materials and carbon steel options
- Wafer ball valve structure simple, small size, light weight.
Specification
1.Size:1/2'' -6''
2.Working Pressure:PN16-40
3.Body Material: WCB,CF8, CF8M
4.Operation:Manual, electric, pneumatic
5.Design & Manufacture Acc: ASME B16.34
6.End Connection Std: ASME B16.5,JISB2212/JISB2214, DIN2543-2544
7.Testing Standard: API598
Application:
Chemical,
petrochemical,
metallurgy,
medicine,
food and other industries

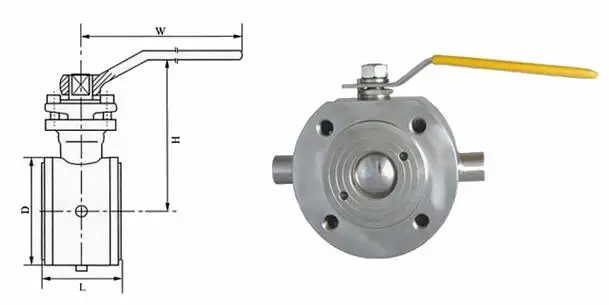

Wafer ball valve Out Size
SIZE | d | L | D | D1 | D2 | H | E | b |
1/2″ | 15 | 32 | 95 | 65 | 45 | 62 | 110 | 14 |
3/4″ | 19 | 38.5 | 105 | 75 | 55 | 70 | 125 | 14 |
1″ | 23.5 | 45 | 115 | 85 | 65 | 79 | 135 | 16 |
1 1/4″ | 30 | 55 | 135 | 100 | 78 | 86 | 150 | 16 |
1 1/2″ | 36 | 62 | 145 | 110 | 85 | 92 | 150 | 18 |
2″ | 45 | 72 | 160 | 125 | 100 | 102 | 180 | 20 |
2 1/2″ | 58 | 95 | 180 | 145 | 120 | 158 | 250 | 22 |
3″ | 67 | 120 | 195 | 160 | 135 | 172 | 300 | 24 |
4″ | 76 | 145 | 215 | 180 | 155 | 187 | 350 | 24 |
5″ | 100 | 200 | 245 | 210 | 185 | 200 | 650 | 26 |
6” | 125 | 225 | 280 | 240 | 210 | 240 | 840 | 26 |
Wafer ball valve main parts materials
| Parts name | Materials | |
1 | Body | CF8M/CF8 | WCB |
2 | Ball | 316/304 | SS304 |
3 | Seal Gasket | PTFE | PTFE |
4 | Stem | 316/304 | SS304 |
5 | Packing | PTFE | PTFE |
6 | Locking | 304 | SS304 |
7 | Handle | 304 | SS304 |
8 | Stem Nut | 304 | SS304 |
9 | Packing Gland | 304 | SS304 |
10 | Handle Cover | Plastic | Plastic |
11 | Sealing Cap | 316/304 | SS304 |
12 | Gasket | PTFE | PTFE |
Packaging & Shipping
1. Inner Packing: opp bag, then a small carton box for each product.
2. Outside Packing: standard exporting carton box or wooden box or as you required,
Foam outside protecting the valves against damage
3. Usually, we ship your order by sea or by express
4. Sample delivery: 3-7days after receiving payment by express;
100~500pcs: 10~15 working days by ship.
Above 500pcs: 30~45 working days by ship.
Our Services
1. Customized service. OEM/ODM accepted.
2. One-Stop Service.
3. Sample Service. We can offer samples.
4. After-sales service. We have one year warranty.
