Здоровая рентгеновская машина для продуктов
- Категория: Испытательное оборудование >>>
- Поставщик: Techik,Instrument,(shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.13 $* | 0.0 $* |
| Aug-19-2025 | 0.36 $* | 0.52 $* |
| Jul-19-2025 | 0.16 $* | 0.62 $* |
| Jun-19-2025 | 0.36 $* | 0.41 $* |
| May-19-2025 | 0.81 $* | 0.17 $* |
| Apr-19-2025 | 0.39 $* | 0.9 $* |
| Mar-19-2025 | 0.30 $* | 0.87 $* |
| Feb-19-2025 | 0.85 $* | 0.54 $* |
| Jan-19-2025 | 0.56 $* | 0.2 $* |
Характеристики

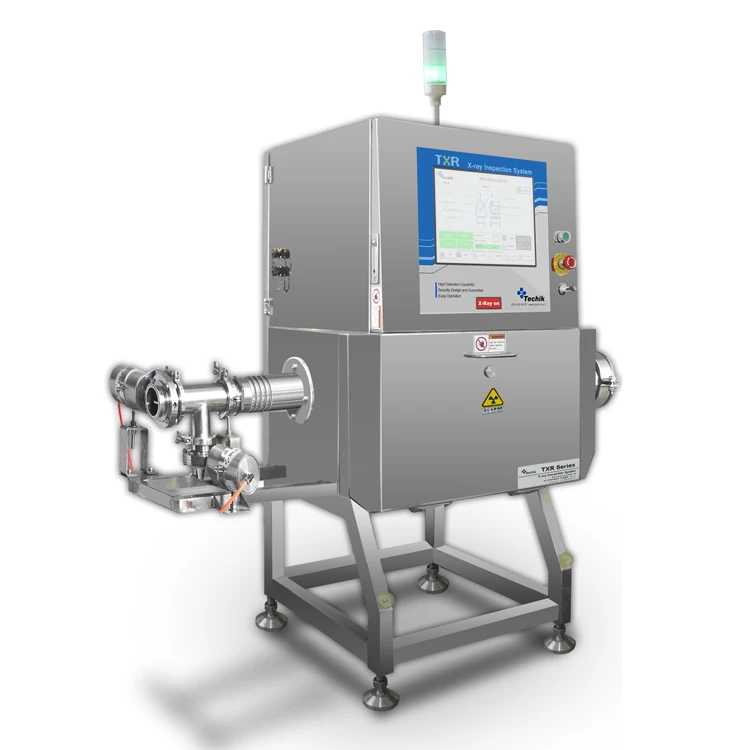

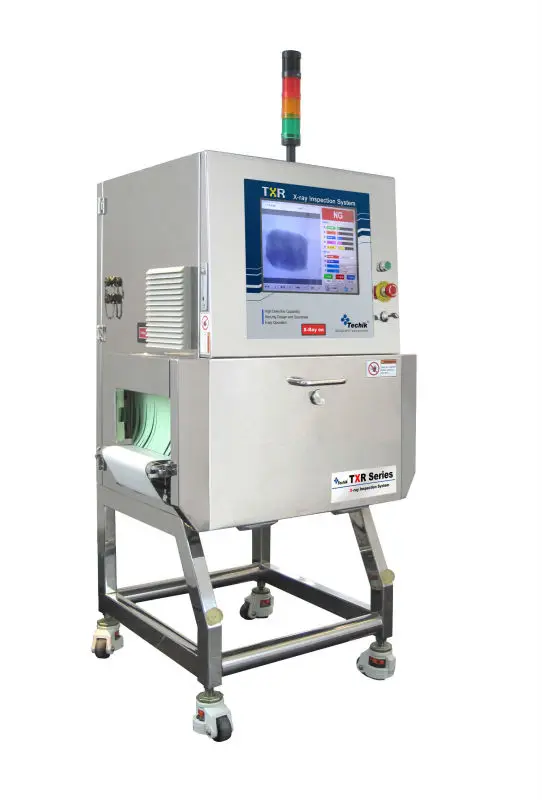

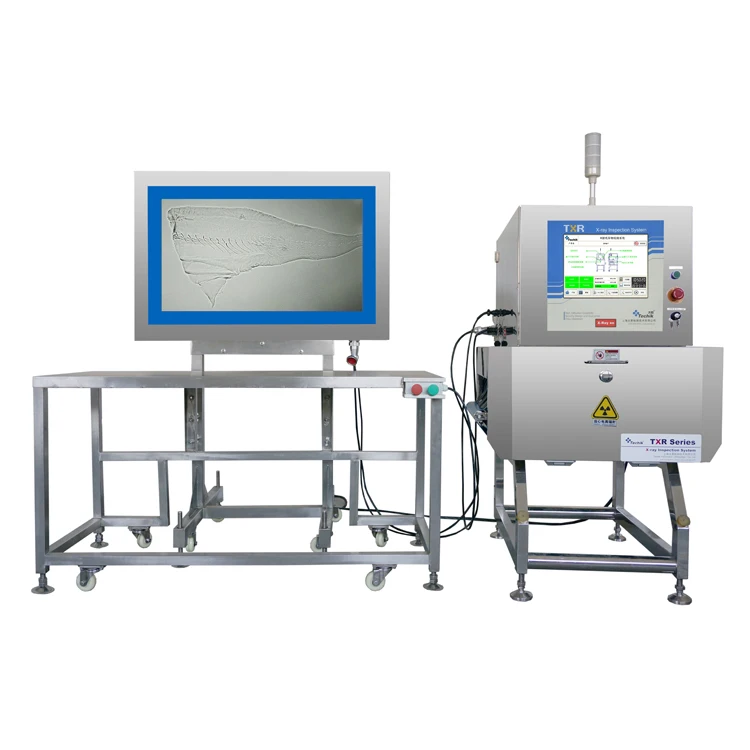

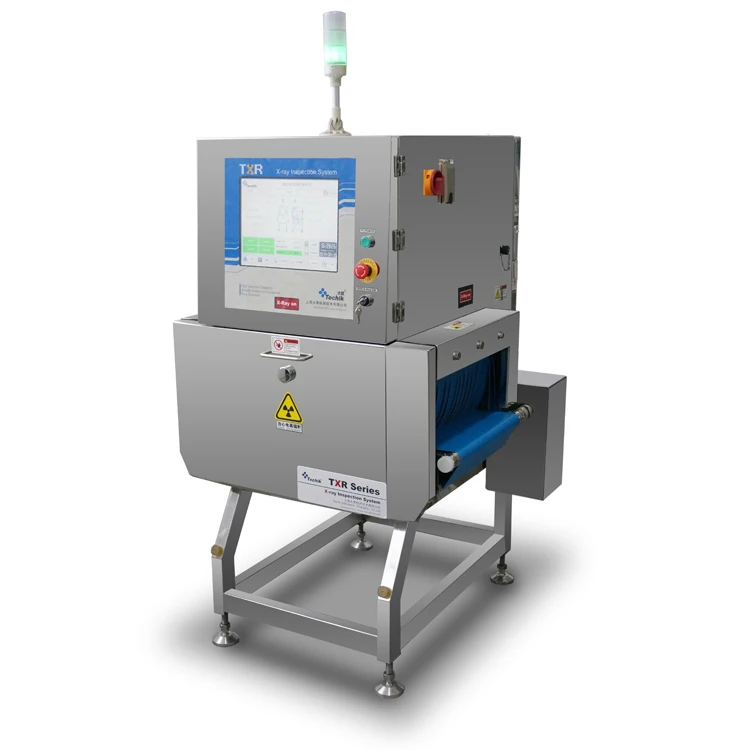

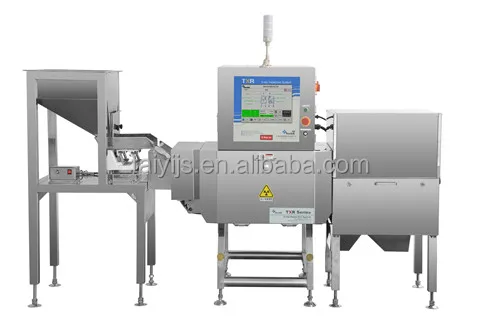

X-ray Inspection System For Food
Features
Specifications
Model | Standard TXR Series | |||||||
Standard | 2480 | 4080 | 4080L | 4080S | 4080SL | 4080SH | 5080SH | 6080SH |
X-ray Tube | MAX. 80kV, 150W | MAX.80kV, 210W | MAX. 80kV,350W | |||||
Inspection Width | 240mm | 400mm | 500mm | 600mm | ||||
Inspection Height | 110mm | 160mm | 100mm | 160mm | 100mm | 220mm | 250mm | 300mm |
Best Inspection Sensitivity | Stainless steel ballΦ0.3mm Stainless steel wireΦ0.2*2mm Glass/Ceramic ballΦ1.0mm | Stainless steel ballΦ0.4mm Stainless steel wireΦ0.2*2mm Glass/Ceramic ballΦ1.0mm | ||||||
Conveyor Speed | 10-60m/min | 10-40m/min | ||||||
Operation System | Windows 7 | |||||||
Protection Method | Soft curtain | |||||||
X-ray Leakage | < 1 μSv/h (CE Standard) | |||||||
Level of Protection | IP66(Under belt) | |||||||
Working Environment | Temperature: -10~40℃ Cooling Mode: industrial air conditioning | |||||||
Humidity:30~90% no dew | ||||||||
Rejecter Mode | Sound and light alarm, belt stops(Rejecter optional) | |||||||
Air Pressure | 0.8 Mpa | |||||||
Power Supply | 1.5kVA | |||||||
Main Material | SUS304 | |||||||
Surface Treatment | Mirror polish/Sand blasting | |||||||
Note:
The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The actual sensitivity would be affected according to the products being inspected.
Application
Company Profile
Certifications
Other Product
The Factory
FAQ
Q:Are you a factory or trading company?
A:Techik Instrument (Shanghai) Co., Ltd is the leading manufacturer of X-ray inspection, check-weighing and metal detection system with IPR in China and pioneer in indigenously developed Public Security.
Techik designs and offers the art products and solutions to meet the demands of global standards, features and quality. Fully comply with CE, ISO9001, ISO14001 management systems and OHSAS18001 standard which bring you great confidence and reliance.
Q:What's your main products?
A:Our main products include metal detector and x-ray inspection machine for contaminants inspection, checkweigher for weight check, weight sorting machine for product grading and optical color sorting machine for impurity sorting.
Q:What’s the warranty of your machines?
A:One year warranty and life-time service
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)One-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course, either in Techik Shanghai or through the internet
Q:How about the lead time?
A:Metal detector (Standard): 17 working days
Check weigher (Standard): 17 working days
X-ray inspection system (Standard): 1~2 months
Weight sorting machine (Standard): 1 month
Optical color sorting machine (Standard):2 months
