Завод по производству куриных отходов/линия

Категория: Slaughtering Equipment >>>
Поставщик: Shandong,Sensitar,Machinery,Manufacturing,Co.,Ltd.

Цена:15 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	17850.29 $*	18743.73 $*
Aug-18-2025	17700.8 $*	18585.71 $*
Jul-18-2025	14850.5 $*	15593.25 $*
Jun-18-2025	17400.83 $*	18270.57 $*
May-18-2025	15150.97 $*	15908.7 $*
Apr-18-2025	17100.8 $*	17955.60 $*
Mar-18-2025	16950.12 $*	17798.75 $*
Feb-18-2025	16800.39 $*	17640.65 $*
Jan-18-2025	16650.7 $*	17483.28 $*

Характеристики

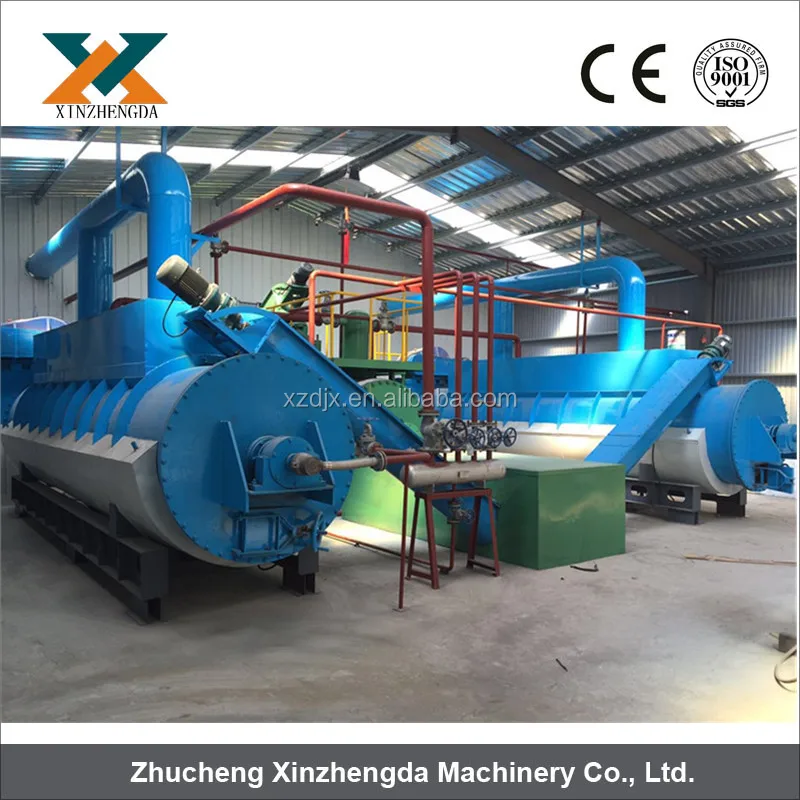

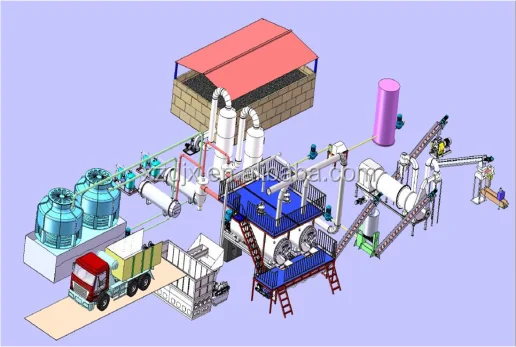

Chicken waste rendering plant /chicken waste production line

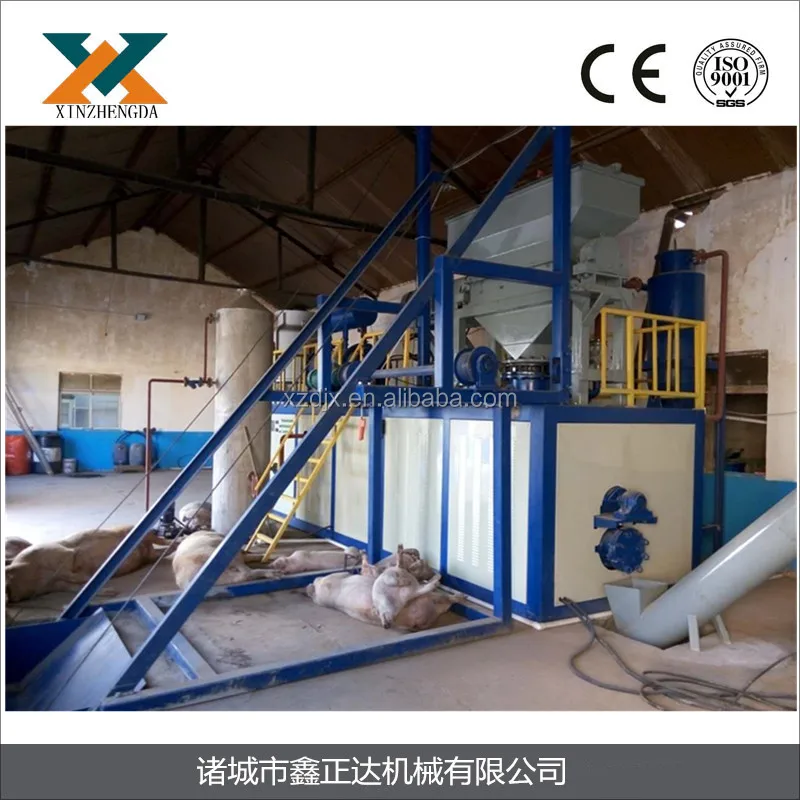

1.conveyor system


a.The top the equipment as the raw material warehouse.

Function: used for raw material storage, transport(such as poultry feathers, animal

corpses, etc)

b.The middle is a pre –broken machine

Function: large scale livestock and poultry carcasses can be broken into less than 50mm.

c.The bottom is a material pump.

Function: transport the material to batch cooker.

2. Sterilization cooker System


Structure:

1.Jacket structure, which is filled with steam.

2.the stirring shaft with steam to increase the heat exchanger area, improve the

production efficiency.

3.The insulation is made of SUS 304, to enhance the corrosion resistance, prolong the

service life.

4.The use of steam recovery system, recovery boiler steam to reduce energy consumption and save water.

Material temperature:140℃--160℃

Jacket pressure: 0.6-0.7Mpa

Inner pressure:0.4-0.6Mpa

Batch capacity:1-5T

Working time: 5-6H

3. Degreasing system

Fat can be extracted from the material. Oil yield is more than 5%.

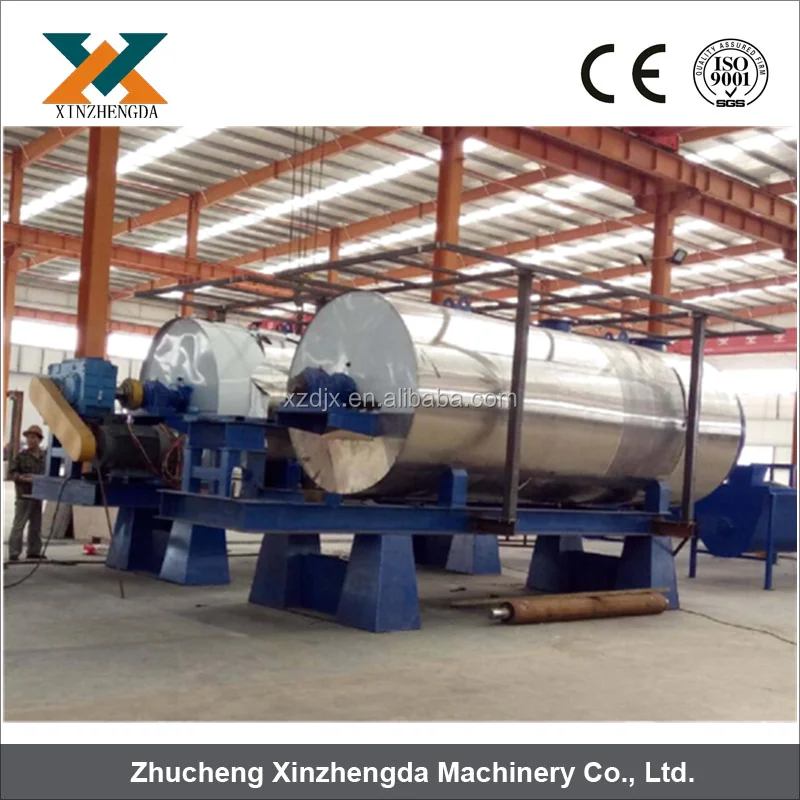

4.Dryer

1.Equipped with clutch,it can restart with loading in sudden stop during production,no

need for emptying inside material.

2.With steam jacket,increase drying area,properly improve drying efficient,to assure

material drying adequately

3.Compression handles,compact structure,convenient open and shut

4.The main shaft is made of super thick quality seamless steel tube

5.With steel foundation,no concrete foundation,changeable installation position.

4. Cooling machine


Degreasing materials will be cooling down, crush and packed. The powder can be used for animal feed or organic fertilizer.

5. Pollutant treatment system

$05_B)]R8O0DZP~VI{7%{K9.png$

The hot steam that is produced during drying is put into condenser, and become

condensed water. This water is innocuous and can be used to Cooling tower circulation.

Machines list:

Item	Machine	Remark
1, Conveying,grinding,delivery
1·	conveying system	Power:6kw Material:PVC
2	grinding system	Power: 6kw Capacity:1t/h
3	delivery pump	Power:15kw
4	Steel Frame
2,Batch cooker system
1	Cooker	Type:XZD-5000 Capacity:5000KGS/Batch;Power:45KW
2	dust catcher	dedusting
3	Condenser	To cool the exhaust gas,Heat exchange area: 18m2
4	Vacuum Pumping Stations	Vacuum dry
3,Oil Water Separator System
1	screw-type oil expeller	Material:Q235B;Power:18.5kw;
2	Oil tank	Material:Q235B; Size:800mm*1500mm ; Pump 1.5kw
3,Waste gas treatment system
1	Cooling tower	Capacity :1T/H;Pump:2.2KW.
2	Biological Washing Tower
4,Control system :Siemens PLC
Total Price: FOB Qingdao
