1S 2A MNC LiFePo lipo аккумулятор pcm для батареи

Категория: Многослойные печатные платы >>>
Поставщик: Shenzhen,Li-Ion,Battery,Bodyguard,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.24 $*	0.51 $*
Aug-17-2025	0.39 $*	0.1 $*
Jul-17-2025	0.17 $*	0.30 $*
Jun-17-2025	0.34 $*	0.40 $*
May-17-2025	0.33 $*	0.6 $*
Apr-17-2025	0.85 $*	0.23 $*
Mar-17-2025	0.87 $*	0.79 $*
Feb-17-2025	0.42 $*	0.82 $*
Jan-17-2025	0.19 $*	0.49 $*

Характеристики

Product Paramenters

Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD
PCM Specifications For 3.7V（1S） Li-ion Battery Packs

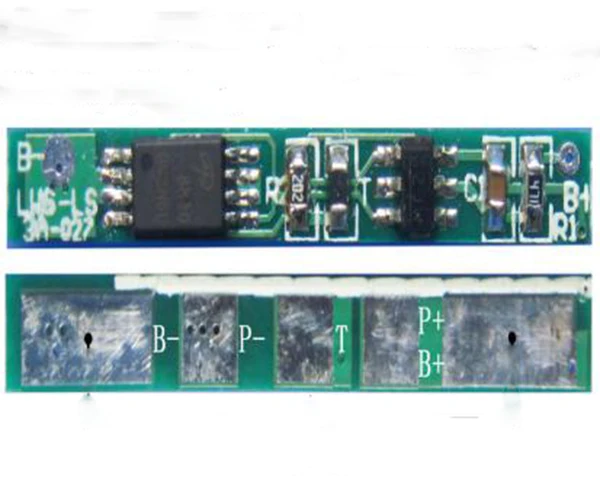

Model:LWS-LS3A-027(1S)
No.	Test item			Criterion
1	Voltage	Charging voltage	DC:4.2V CC/CV
				Balance voltage for single cell
2	Current	Balance current for single cell
				Current consumption	≤20μA
				Maximal continuous charging current	2A
				Maximal continuous Discharging current	2A
3	Over charge Protection	Over charge detection voltage for single cell	4.30±0.05V
				Over charge detection delay time	0.5S—2S
				Over charge release voltage for single cell	4.10±0.05V
4	Over discharge protection	Over discharge detection voltage for single cell	2.40±0.10V
				Over discharge detection delay time	10mS—200mS
				Over discharge release voltage for single cell	3.0±0.10V
5	Over current protection	Over current detection voltage	0.14±0.02V
				Over current detection current	3.5±1A
				Detection delay time	5ms—20ms
				Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
				Detection delay time	200-500us
				Release condition	Cut load
7	Resistance	Protection circuitry（MOSFET）	≤50mΩ
8	Temperature	Operating Temperature Range	-40～+85℃
				Storage Temperature Range	-40～+125℃

Related Products

Packing&Shipping

Pack the BMS board in an anti-static bag, add foam to prevent impact, put a layer on each partition, and then put it in a carton. Four cartons are placed in a larger carton.

Company Profile

Certifications

Exhibition

International and domestic exhibitions

Our company actively participate in the exhibition every year.

We've attended exhibition in Shenzhen, Hong-Kong, India, Germany, etc.

FAQ

Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.

If the normal voltage of your battery shows as 3.2V, the battery will be LiFePO4.
If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery.
You can also ask battery manufacturer the material of battery.

Q: Can I use this protection circuit board for my battery?
A: The protection circuit board you need to buy must be same cells in series as your battery pack.
Please also tell us your battery material: LiFePO4 or Li-ion battery?

As well as, working current, application, motor wattage, etc.

Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don't have MOQ.
Different customer have different requirement.
We can provide various capacity and size is per your requirements, Also ODM / OEM is welcome.
