AIGER brush type water purifier self cleaning filter for irrigation or industry

AIGER brush type water purifier self cleaning filter for irrigation or industry

Категория: Water Filter >>>
Поставщик: Beijing,ZhongYuanTong,Science,&,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.34 $*	0.20 $*
Aug-18-2025	0.77 $*	0.72 $*
Jul-18-2025	0.31 $*	0.56 $*
Jun-18-2025	0.26 $*	0.12 $*
May-18-2025	0.81 $*	0.52 $*
Apr-18-2025	0.49 $*	0.84 $*
Mar-18-2025	0.47 $*	0.82 $*
Feb-18-2025	0.70 $*	0.56 $*
Jan-18-2025	0.19 $*	0.67 $*

Характеристики

AIGER brush type water purifier self cleaning filter for irrigation/industry use

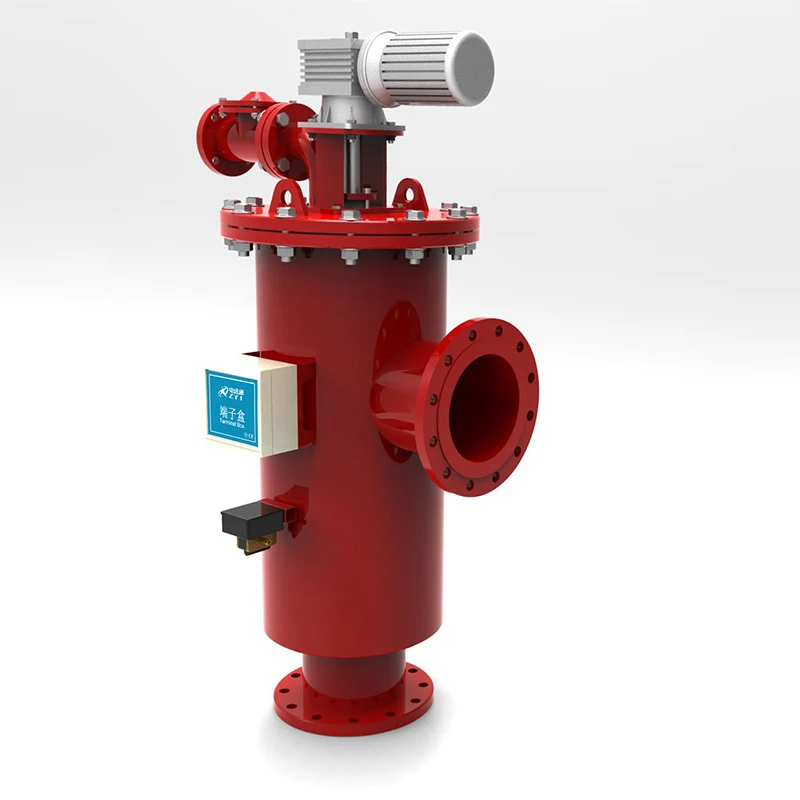

AIGER brush type water purifier self cleaning filter is vertical self cleaning filter, small footprint saves valuable installation space. The cleaning mode is motor brush with good cleaning effect.

Operation

The Filtering Process

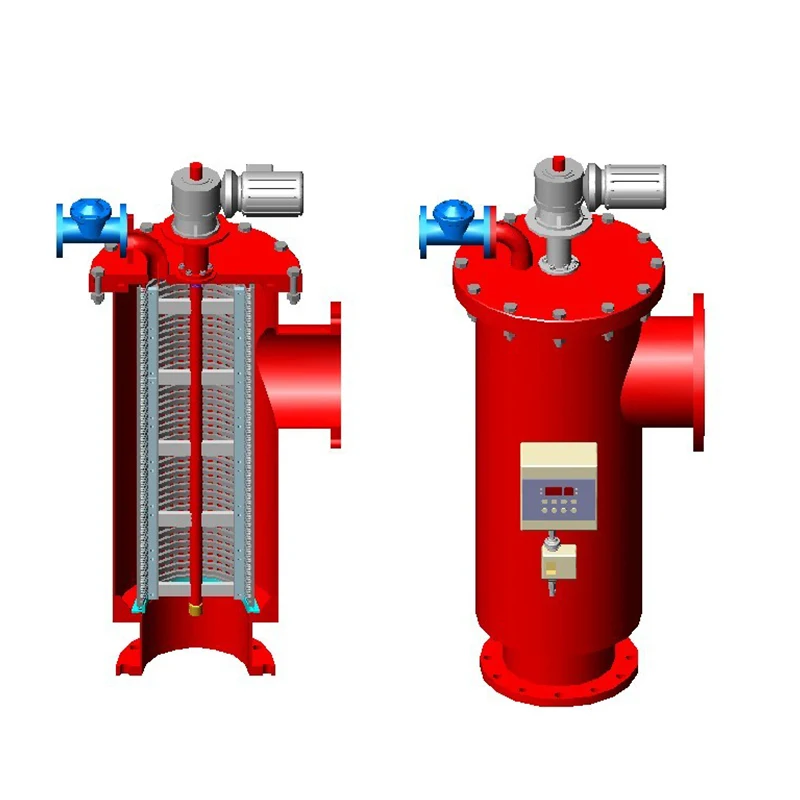

Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet. The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen.

A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.

The Self Cleaning Process

During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.

The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.

The Control System
Two types of control boards are available for the A600 filters: PLC/Timer.
The self cleaning cycle begins under any one of the following conditions:

1. Receiving a signal from the Pressure Differential Switch

2. Time interval parameter set at the control board

3. Manual Start

Technical Parameter

Filter flow	80-4200 m³/h
Max. recommended working pressure	10 bar/16 bar/25 bar
Min. operating working pressure during backwash	2.5 bar
Water temperature range	0 ~ 65 °C
Available filtration	From 50 to 3000micron
Pressure loss	< 0.1 bar
Connections	Flange
Backwash time	12-18 seconds
Water consumption during backwash	1%-3% of filtered water
Control model	DP/Timer/Manual
Cleaning way	Brush
Drive way	Motor drive
Filter element	Stainless steel 304 mesh
Filter housing material of construction	Carbon steel ST37-2/SS304/SS316
Sewage way	Fully automatic
Installation	Vertical
Rated operating voltage	3ph/380V/220V/50Hz or Customized

Product Parameter

Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

Mode	DN		Flow	Dimensions
	DN		Flow	Filtration Area	Weight	Number of motors	D	H	H1	H2	H2*	L1	L2
	inch	mm	m³/h	cm2	Kg	Number of motors	mm
A604	4	100	80	3530	175	1	377	500	875	1088	1350	373	350
A606	6	150	150	3530	180	1	377	500	875	1088	1350	373	350
A608	8	200	300	5650	210	1	377	700	1175	1388	1950	373	350
A610	10	250	400	7910	305	1	480	700	1195	1398	1950	403	420
A612	12	300	600	10880	340	1	480	1000	1495	1698	2550	403	420
A614	14	350	900	13820	540	1	610	1000	1545	1749	2600	443	480
A616	16	400	1100	13820	555	1	610	950	1545	1749	2600	443	500
A618	18	450	1500	13820	730	1	720	950	1555	1749	2600	443	550
A620	20	500	2000	21760	1120	2	1016	1200	1933	2136	3600	403	700
A624	24	600	2800	32640	1570	3	1220	1200	2000	2203	3060	723	800
A628	28	700	3200	41450	2250	3	1420	1300	2370	2573	3350	828	900
A632	32	800	4200	55360	2935	4	1620	1400	2450	2653	3450	780	1050

Product Details

Application Area

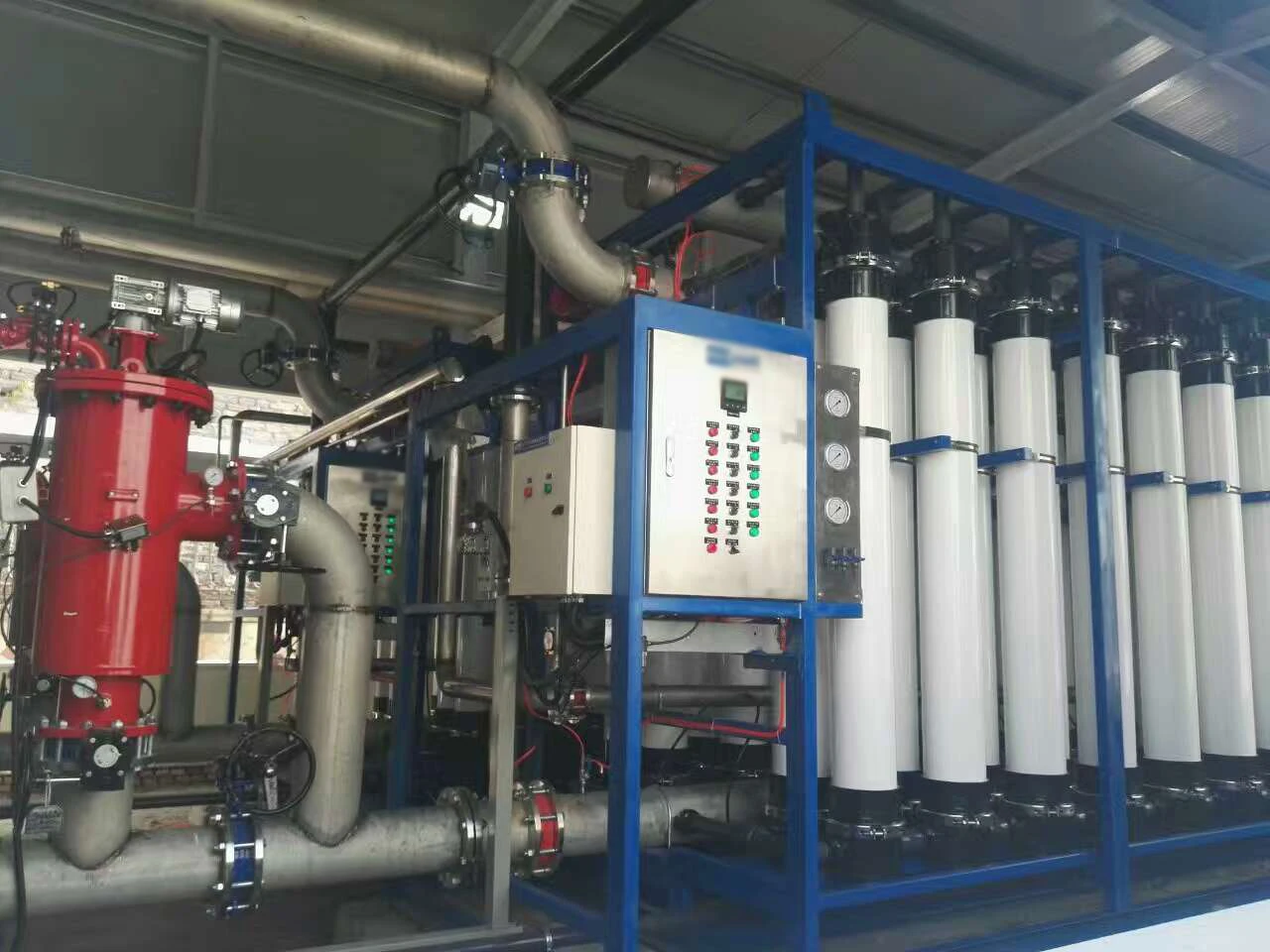

AIGER brush type water purifier self cleaning filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
