Машина для втулки с шестигранной

Категория: Оборудование для производства резиновых изделий >>>
Поставщик: Qingdao,Plastsea,International,Trade,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.7 $*	0.76 $*
Aug-16-2025	0.64 $*	0.24 $*
Jul-16-2025	0.35 $*	0.37 $*
Jun-16-2025	0.74 $*	0.60 $*
May-16-2025	0.50 $*	0.25 $*
Apr-16-2025	0.83 $*	0.48 $*
Mar-16-2025	0.1 $*	0.83 $*
Feb-16-2025	0.95 $*	0.62 $*
Jan-16-2025	0.56 $*	0.65 $*

Характеристики

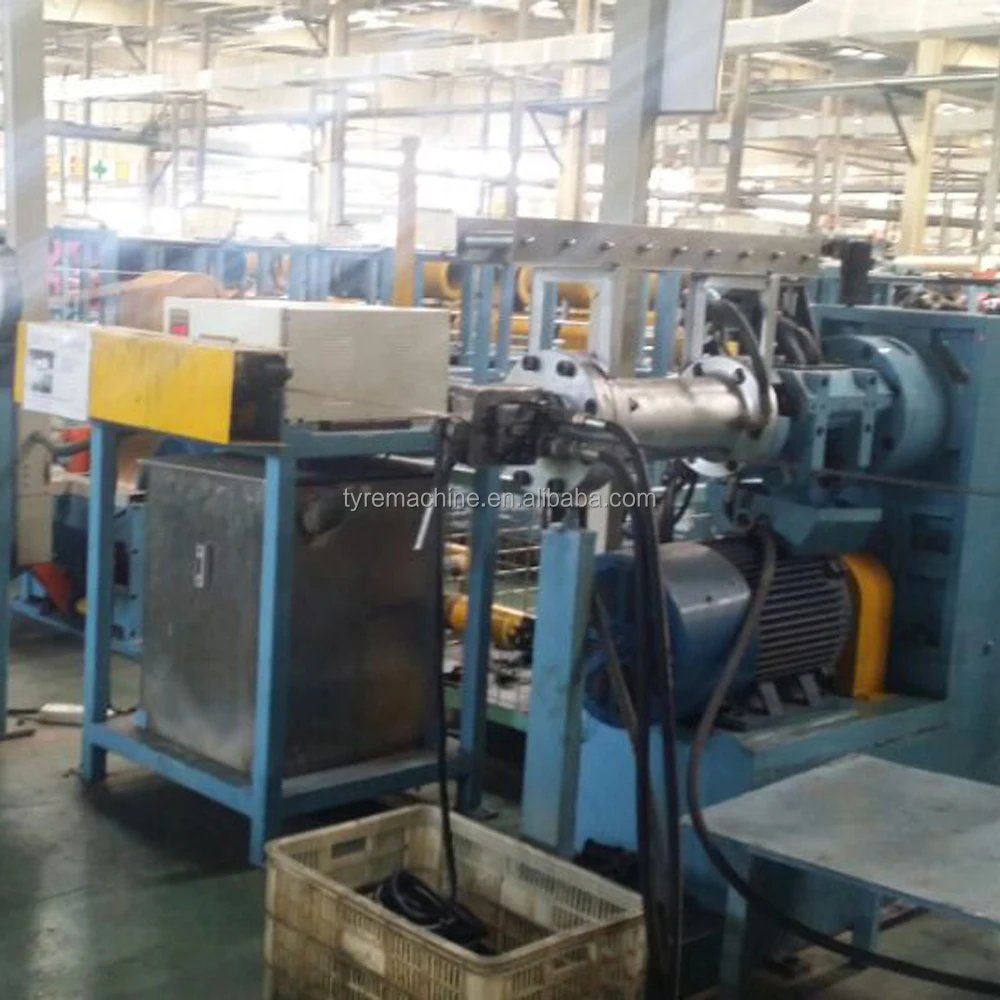

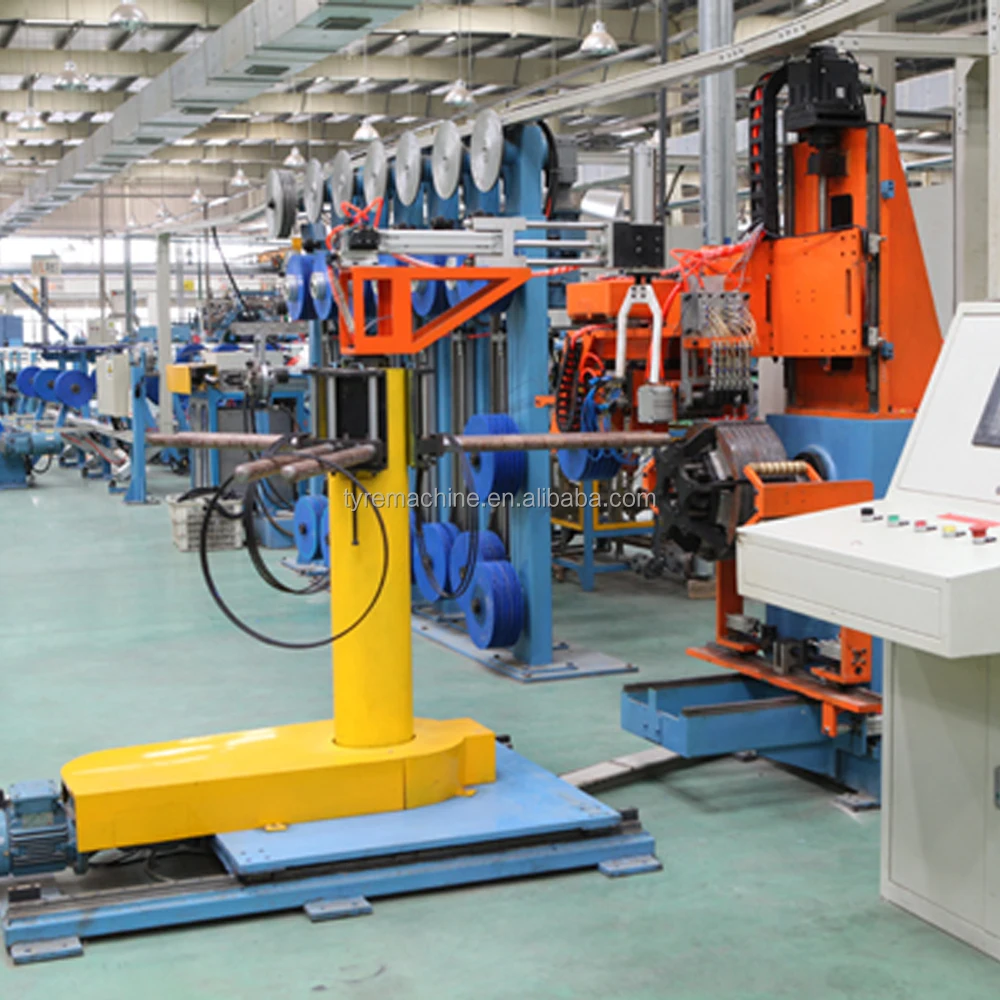

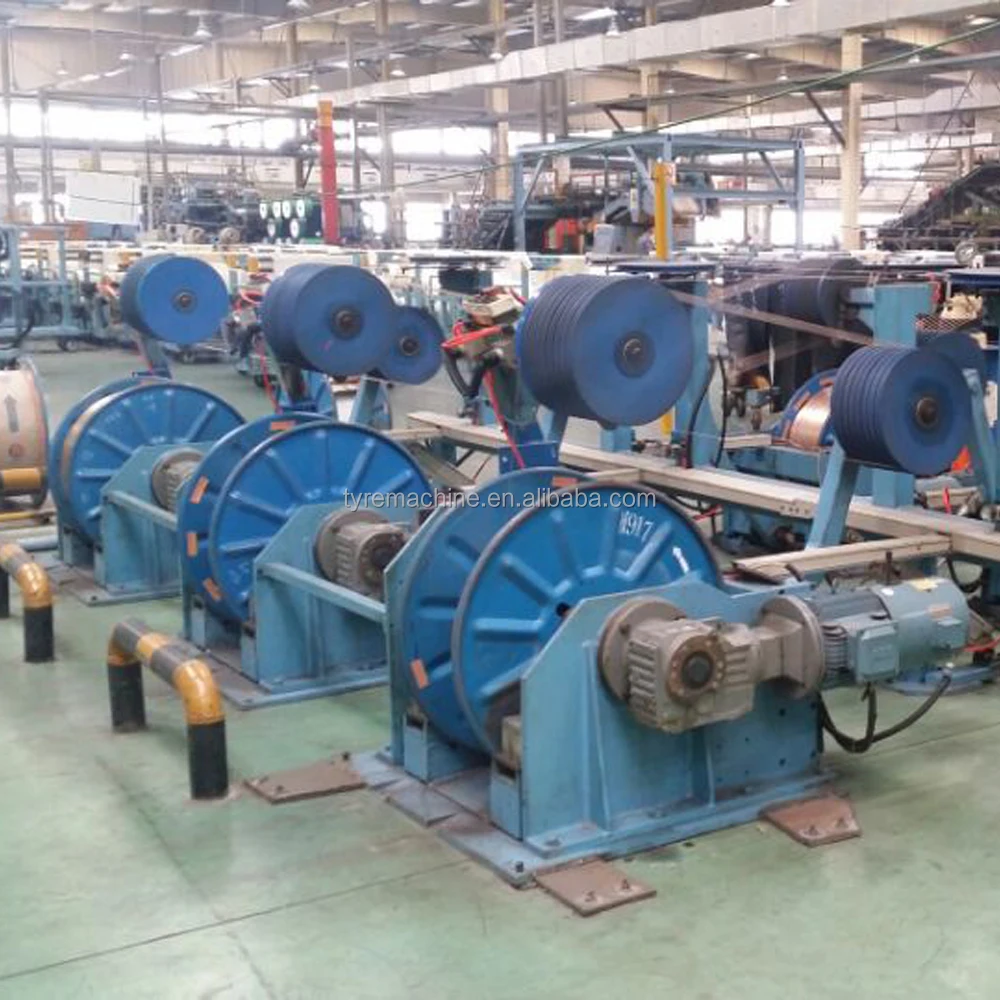

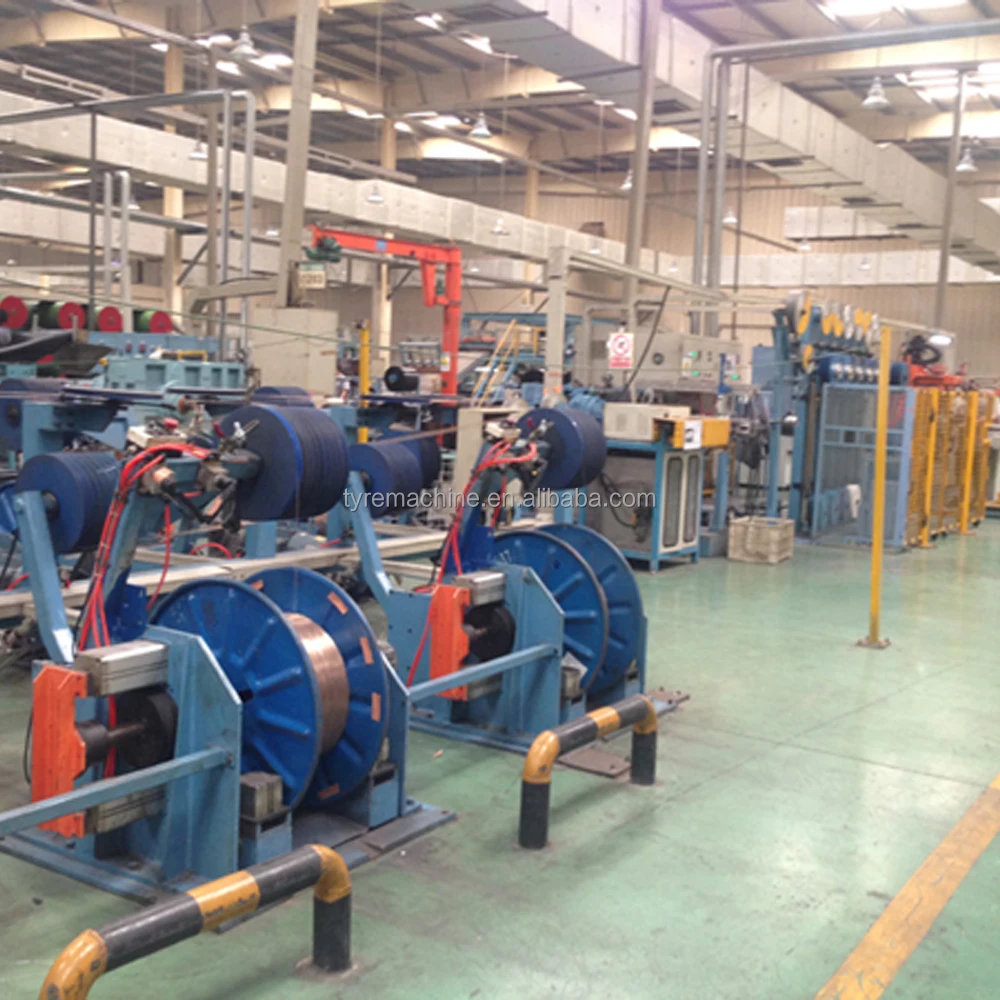

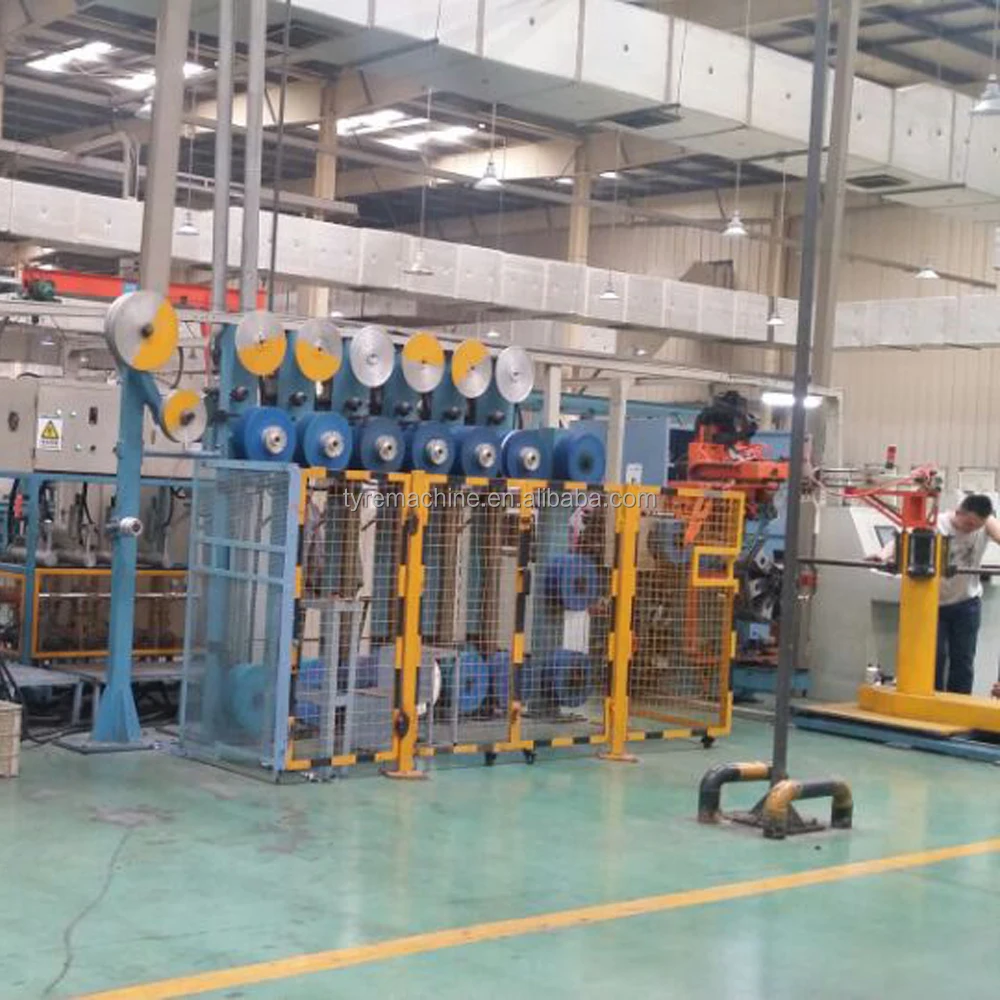

Hexagonal Bead Wire Grommet Machine

six beads for Radial (PCR/LTR) tire

It is suitable for extruding, insulating, multi-coil pay-on and winding for radial tire hexagonal bead.

Construction Features

For bead size of 12’’-28’’. It is an automatic winding line for six bead at one cycle , with characteristic of high automatization and high efficiency.

Main parameters
Bead diameter	12’’~28”
wire diameter	Max φ1.42mm
Max. rubberized wire diameter	Max φ1.72mm
Max. arrangement width /height	30mm/14mm
Max. linear speed of winding	300(for 20’’)m/min
Storage of wires	≤20m
Screw diameter	Φ65mm(cold feed)
L/D ratio	12:1
Power	84kw
