Cabin with Good Overview Windows |
|
All in One Control
|
Cabin with Beautiful Design, Wide Vision. Humanization of interior design can reduce operate r's tension and fatigue and improve the working efficiency.
|
|
Perfect man-machine engineering design, high control precision, more easy and convenient manipulation. |
|
|
|
Shock Absorbing Seat |
|
Multi-functional air-conditioning |
Configuration of suspension damping suspension system seat retainer operator body perfectly, maximum absorption of vibration of the equipment operation and reduce the labor intensity. Adjustable seat with comfortable, breathable feature, and provide the operator a safe and comfortable working environment, prevention of occupational diseases, protect the health of the operator. |
|
With anti-fog and defrosting and ventilation function, can be all-weather operations. Well adapted to harsh climate port, for the operator to provide comfortable working environment. |
|
|
|
Noise reduction |
|
|
Cabin is sealing good, at the same time, ues the high quality green noise insulation materials, healthy environmental protection, build a comfortable working environment. |
|
|
|
![For The Middle East Flexible Mobile Harbour Jib Portal Crane 45Ton]()
|
Santo Crane Care More for
Delicate Details
|
- Optimizated electrical room's decoration, and spacious access channel embodies the designer's pursuit of ergonomics. Engineers can simply conveniently maintenance for motor, reducer, cable drum facilities.
- Rotating disc with waterproof rope design, has a unique structure of the double disc waterproof rope mechanism, can effectively stop the rain into the machine room, avoid rust on inside the motor, electric cabinet, etc.
- Slewing mechanism running stable and reliable, with electric interlocking rotation anchor device between rotating parts and door frame. Mast anchor pins installed inside the cylinder of the door frame, anchor detection device can automatically detect berth.
- Two-wire centralized lubrication system, lubrication points with lubrication tee can be automatic refueling, or manually. At the time of reducing maintenance time, avoids the failure lubrication that failure of lubrication points led to a wide range of lubrication condition.
|
Parameters |
|

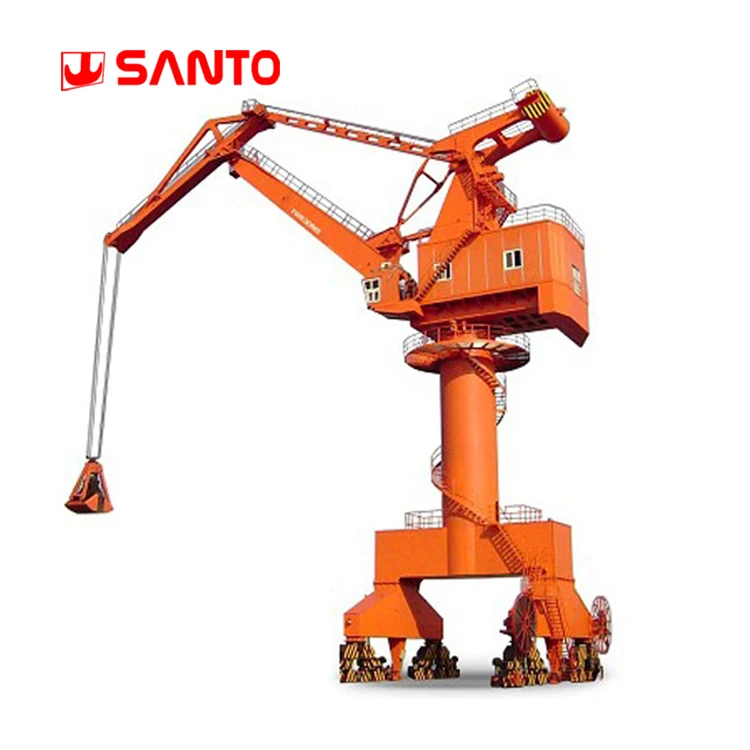

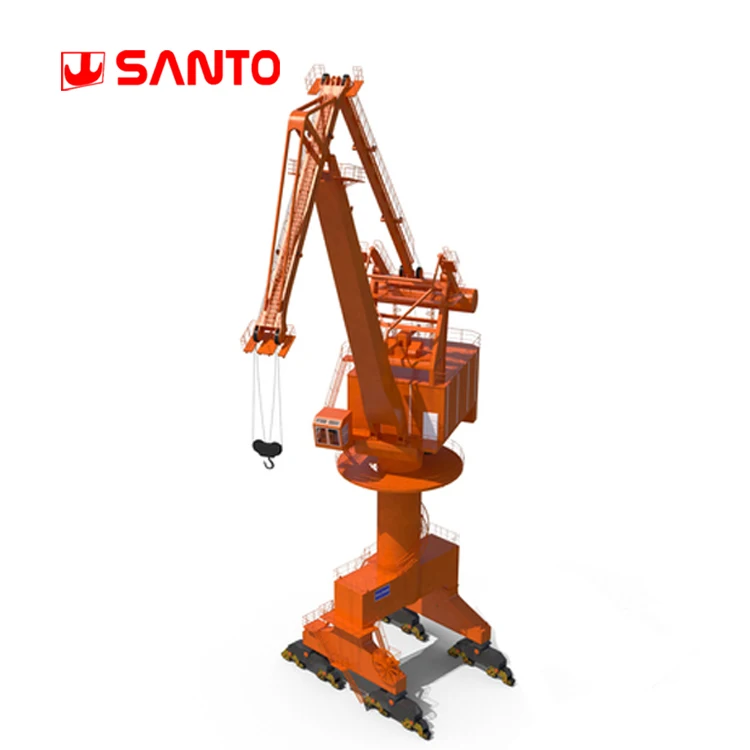

Four link type |
Load Capacity |
16t |
25t |
40t |
Working Range |
30m, 33m, 35m, 37m |
28m, 30m, 35m, 36m |
30m, 35m, 39m, 40m, 43m |
Wheel Dis. |
10.5m, 12m, 16m |
10.5m, 12m, 16m |
10.5m, 12m, 16m |
Lifting Speed |
60m/min |
55m/min |
50m/min |
Luffing speed |
50m/min |
50m/min |
45m/min |
Rotating Speed |
1.0~1.5r/min |
1.0~1.3r/min |
1.0~1.2r/min |
Traveling Speed |
26m/min |
26m/min |
26m/min |
|

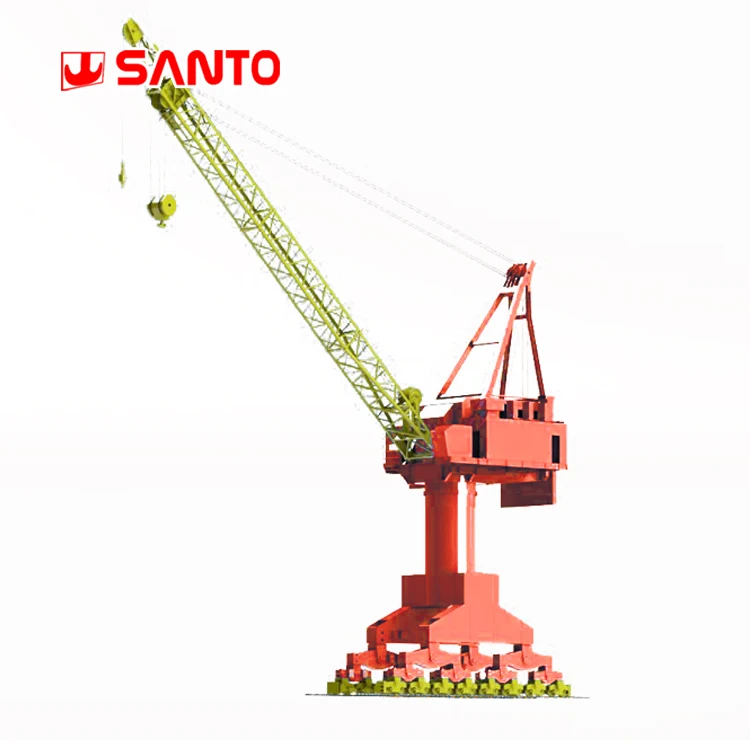

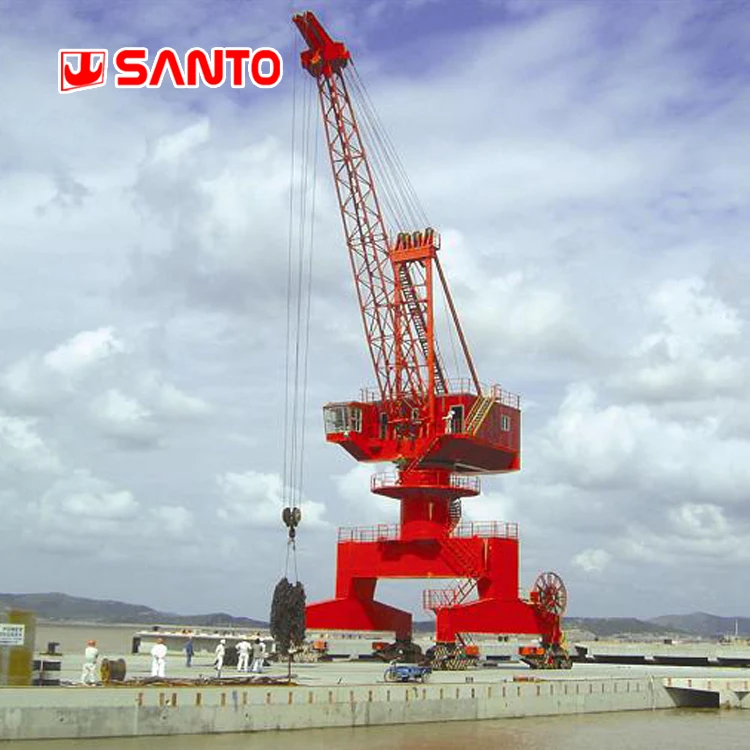

Single jib type |
Load Capacity |
40t |
45t |
Working Range |
11~30m, 12~35m |
12~35m, 13~28m |
Wheel Dis. |
10.5m, 16m |
10.5m, 16m |
Lifting Speed |
25m/min |
25m/min |
Luffing speed |
25m/min |
25m/min |
Rotating Speed |
0.8~1.0r/min |
0.8~1.0r/min |
Traveling Speed |
26m/min |
26m/min |

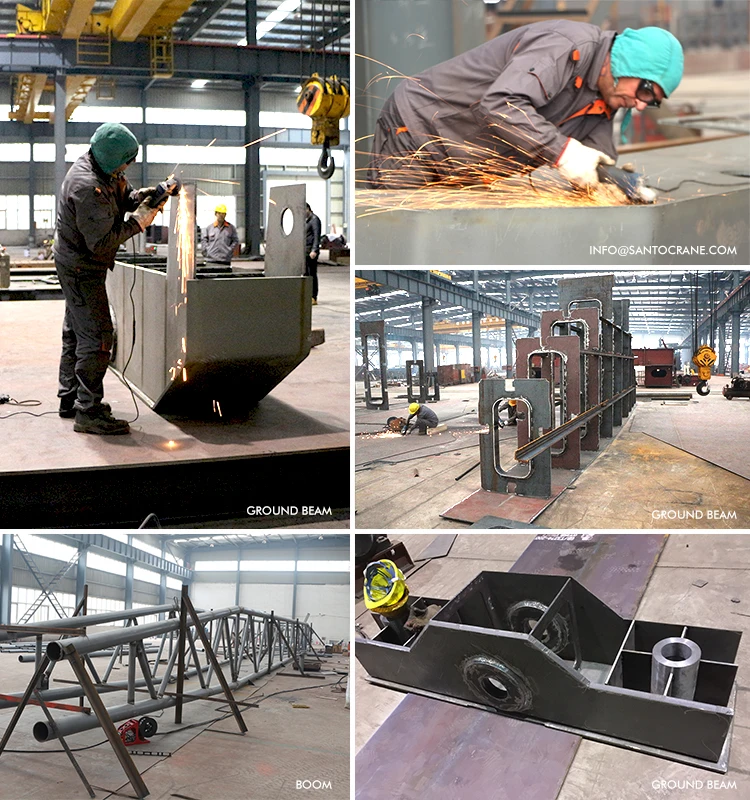

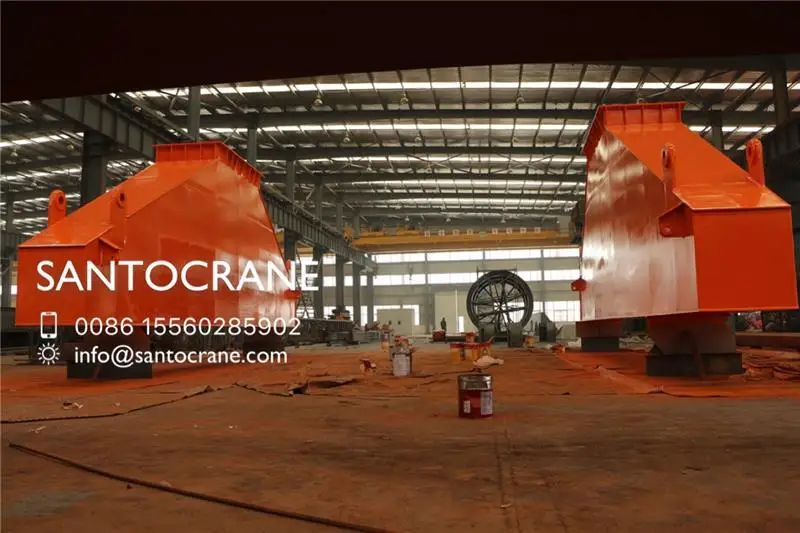

Production-We care more on details
|
|
