highway noise barrier wall soundproof screen fence









2. Popular Specifications:

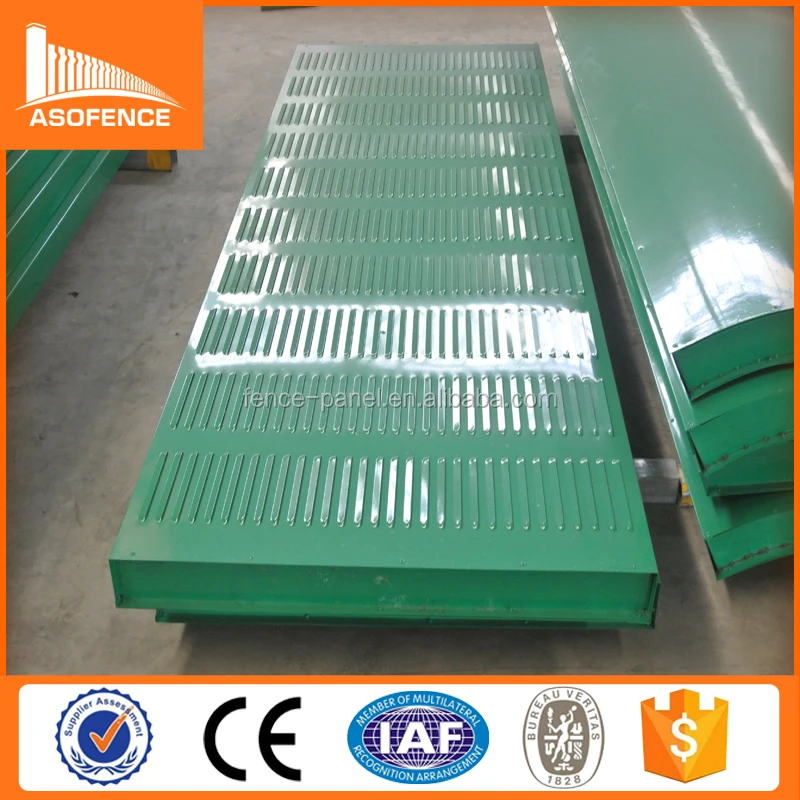

1> Specification of sound barrier plastic panel:



1.Material: PC Acrylic board,Plastic panle, steel sheet or aluminium sheet

2.Inner material: Glass wool

3.Sheets thickness: 0.8-1mm,but we can also design as our clients request.

4.Panel size: Width-500mm,Length2000mm is  standard size ,the panel can be longer ,but no

more than 4meters.







2> Specification sheet of Sound barrier:



Material	Width	Length	Thickness
Acrylic board :PE  PMMA resin Frame material : Aluminum Alloy	100mm-1500mm	2000-2500mm	8mm-10mm Frame: 70mm-100mm
Metal sheet :aluminiun steet or galvanized steel sheet Inner Material:Glass wool	500mm-1000mm	2000mm-4000mm	70mm-100mm













3> Sound barrier post bottom load design value:



Wind Pressure Value(KN/m2)	Height	Vertical Force N (KN)	Horizontal Force  Sva (KN)	Mbending Moment M (KN*m)
W.≤0.45	2.0	1.70	9.1	9.4
	2.5	2.64	11.4	14.7
	3.0	3.30	13.7	21.1
	3.5	4.28	16.0	28.6
	4.0	4.92	18.3	37.3
0.45<W.≤0.75	2.0	1.85	15.2	15.8
	2.5	2.90	19.0	24.5
	3.0	3.62	22.8	35.1
	3.5	4.32	26.7	47.7
	4.0	5.40	30.5	62.1









4> Infilling Materials:



Glass Cotton / Wool OR Foamed Aluminium









3. Product Characters:



Light pollution, anti-glare, anti-aging, impact resistance and freeze resistance, sound absorption

coefficient of stability, resistance to wet, easy to corrupt, easy to bend processing, easy to

transport, disassembling maintenance convenience, price reasonable, and can spray all sorts of

color.







4. Applications:

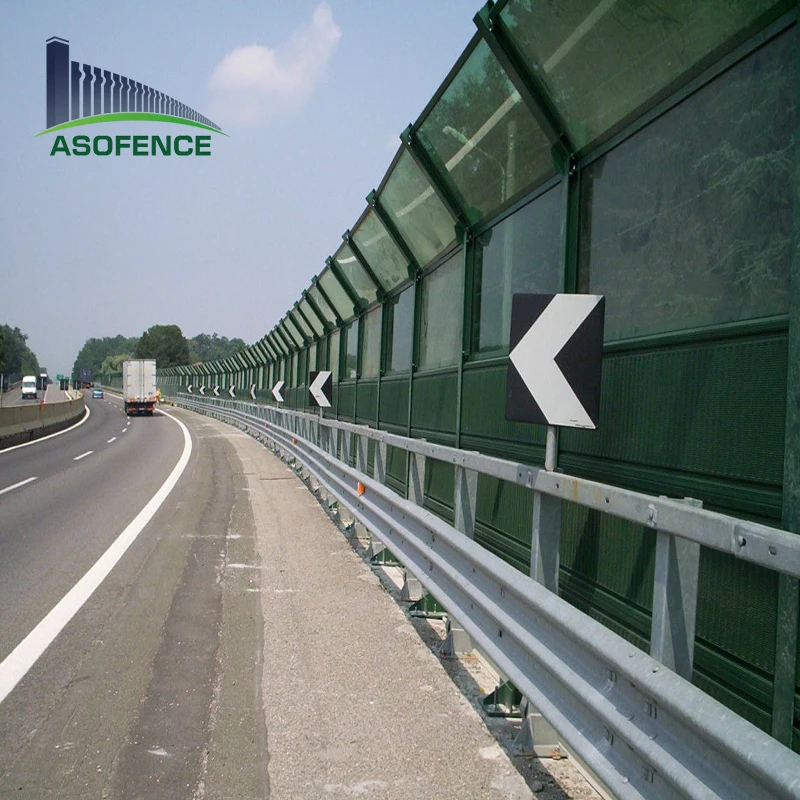

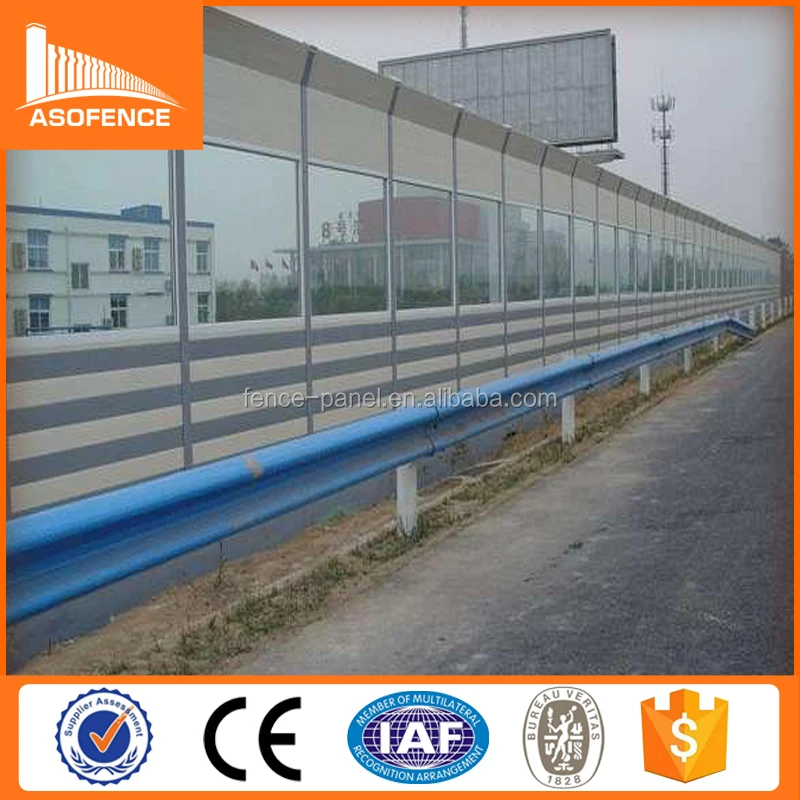

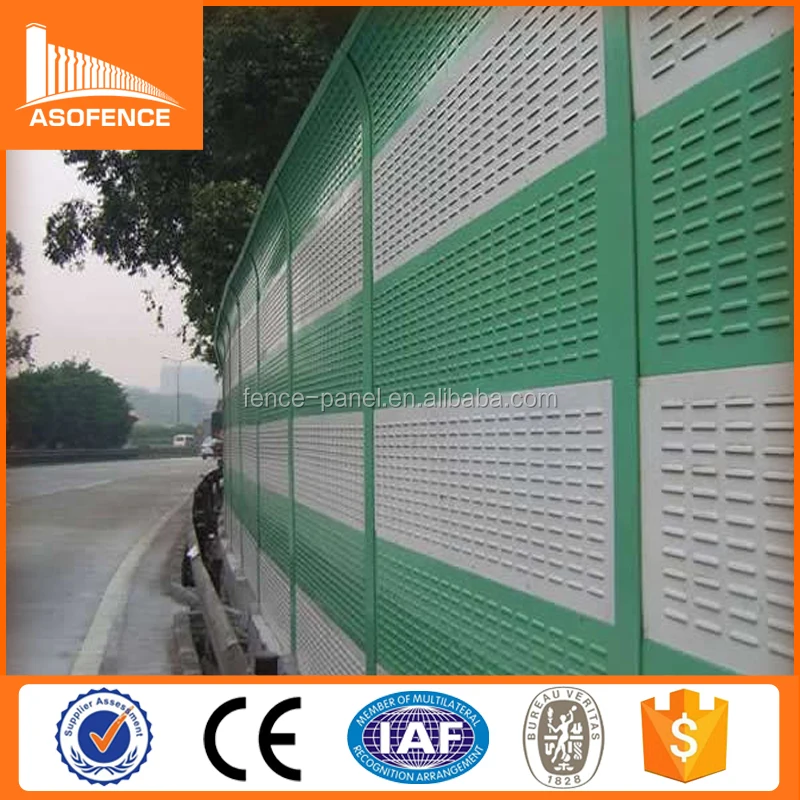

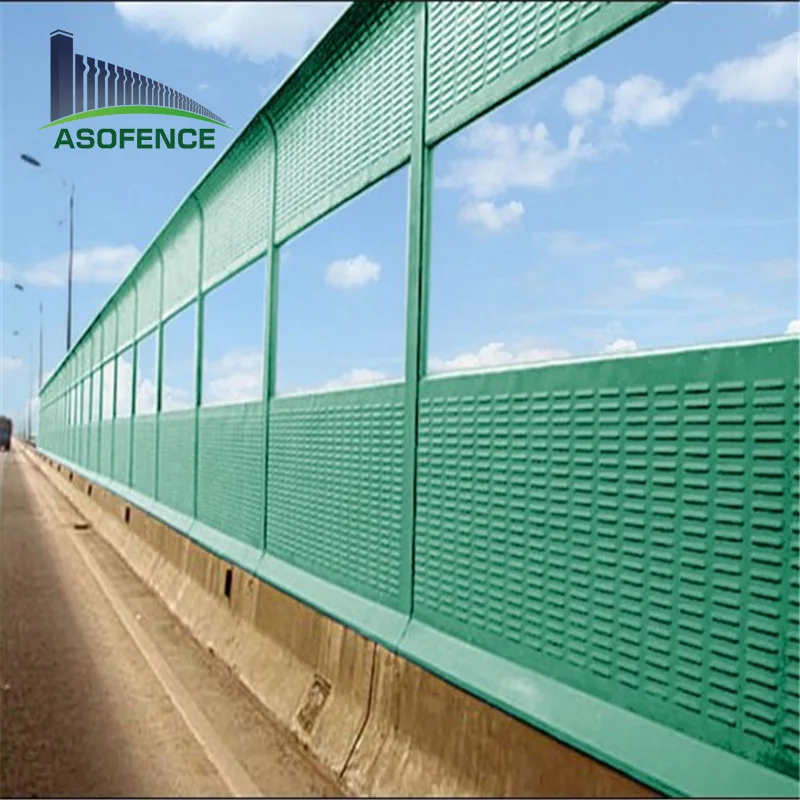

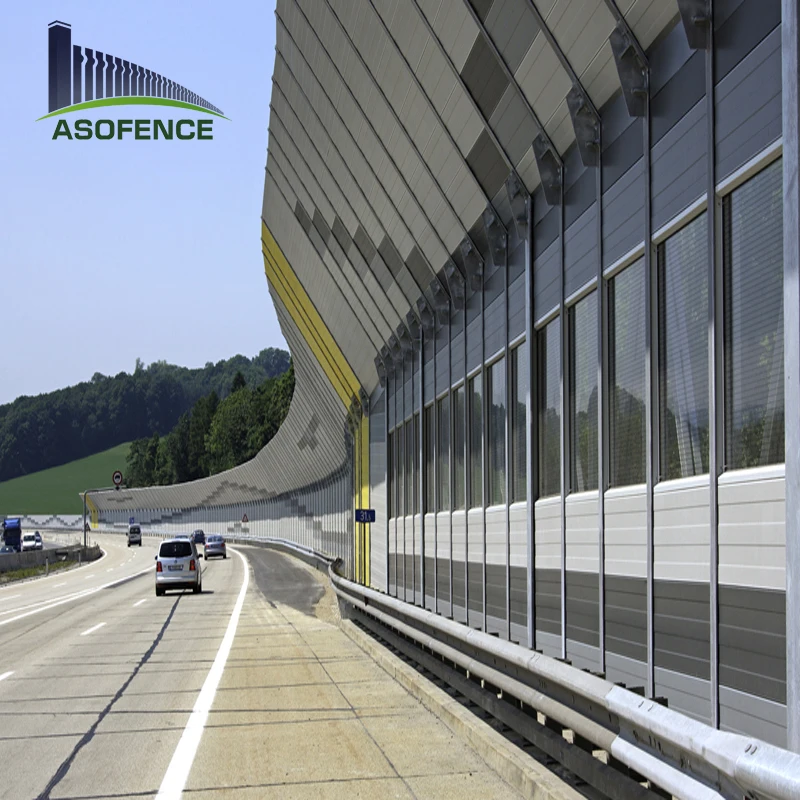

Sound barrier also named sound barrier wall or noise barrier wall,is widly used in Highways,High

speed railways,Subways' exit,Work places,bridges, Cooling tower sound barrier  etc.
