Характеристики

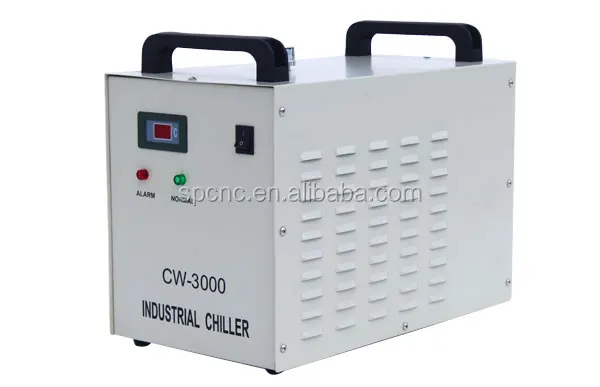

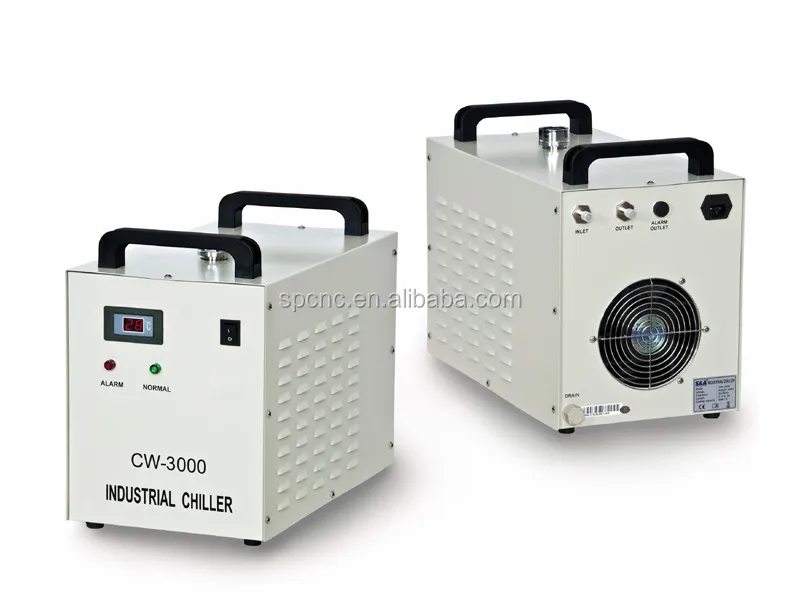

Industry laser Water Chiller CW-3000
Features:
cw-3000 is thermolysis type industrial water cooler. It’s mainly used on the equipment for heat exchange between the heat and the air environment. The water temperature of cw-3000 cooler is related to ambient temperature, so it's thermostat is not manually adjusted.
Specification
CW-3000AG: applied to cool a single 80W CO2 laser tube (emitting rate lower than 60%)
CW-3000AH: applied to cool dual 1.5 KW CNC spindles or welding equipment
| Model | CW-3000AG | CW-3000DG | CW-3000AF | CW-3000DF | CW-3000AK | CW-3000DK |
| Voltage | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V |
| Frequency | 50/60Hz | |||||
| Current | 0.45A | 0.9A | 0.45A | 0.9A | 0.5A | 1.0A |
| Radiating capacity | 50W/℃ | |||||
| Tank capacity | 9L | |||||
| Inlet and outlet | External Φ10mm brass connector | Φ8mm speedy connector | ||||
| Max. lift | 10M | 70M | ||||
| Max. flow | 10L/min | 2L/min | ||||
| Protection | Flow alarm | |||||
| N.W | 9.5Kgs | 12Kgs | ||||
| G.W | 12Kgs | 14.5Kgs | ||||
| Dimension | 49 X 27 X 38cm (L X W X H) | |||||
| Packing dimension | 59 X 39 X 48cm (L X W X H) | |||||
Advantage
• CW-3000 laser water chiller is suitable for small water cooling device;
• Provide stable working conditions for laser devices;
• Water can be used for a long time;
• High heat dissipating capacity and not easy to be blocked;
• Alarm output port can quickly protect sensitive components
Application:
It is designed for cooling the one CO2 glass laser tube under 80W of the laser engraving and cutting machine. (Its emitting rate is lower than 60%, you can choose CW5000 /SL-1 Water Chiller if you want the emitting rate higher than 60 %.)
