CE автоматические раздвижные ворота

Категория: Automatic Door Operators >>>
Поставщик: Bisen,Smart,Access,Co.,Ltd.,(Jiangxi)

Цена:140,00 $ - 180,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	167.43 $*	175.72 $*
Aug-17-2025	165.17 $*	173.31 $*
Jul-17-2025	139.98 $*	146.43 $*
Jun-17-2025	162.0 $*	170.17 $*
May-17-2025	141.19 $*	148.57 $*
Apr-17-2025	160.3 $*	168.98 $*
Mar-17-2025	158.51 $*	166.34 $*
Feb-17-2025	157.33 $*	165.22 $*
Jan-17-2025	155.37 $*	163.54 $*

Характеристики

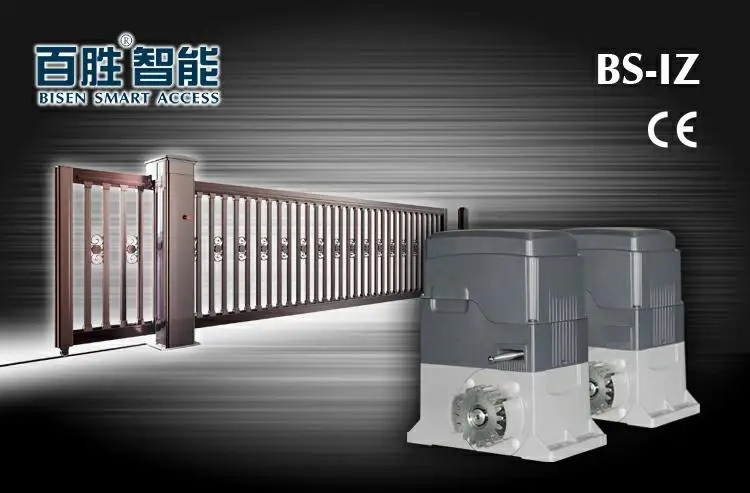

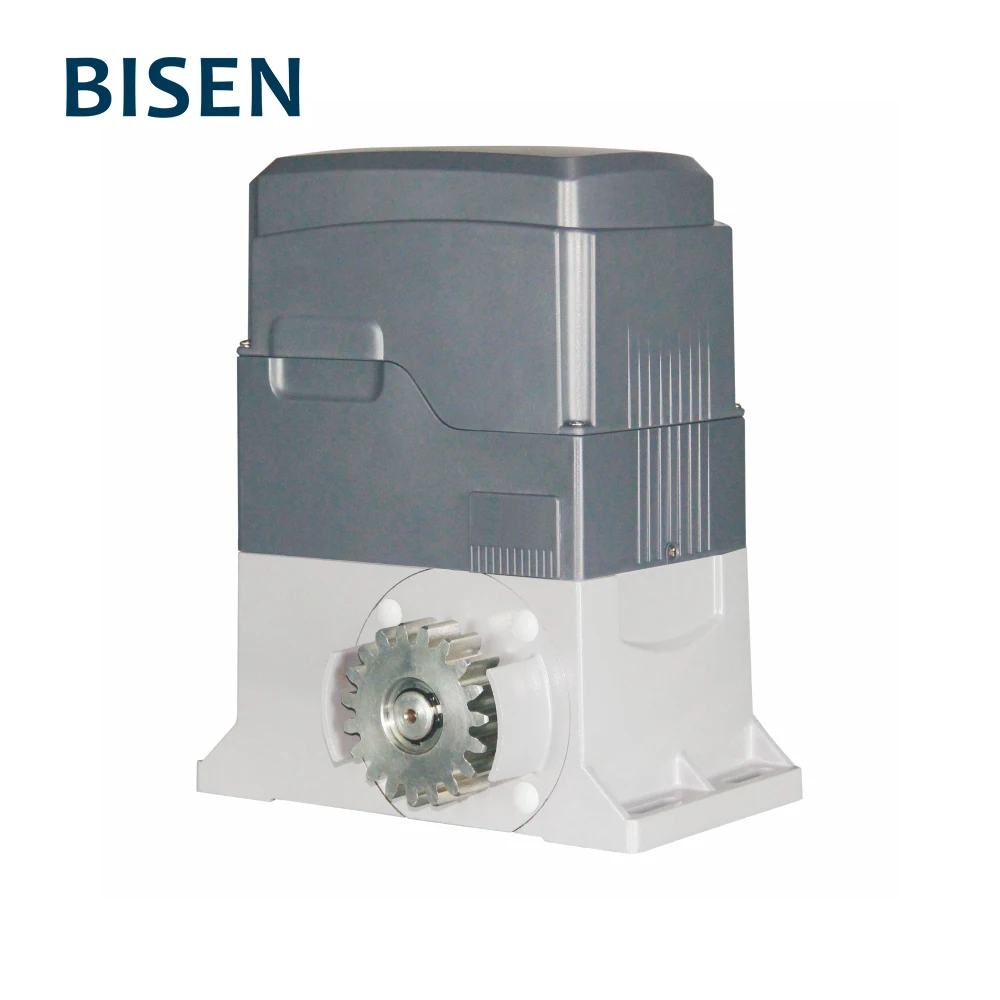

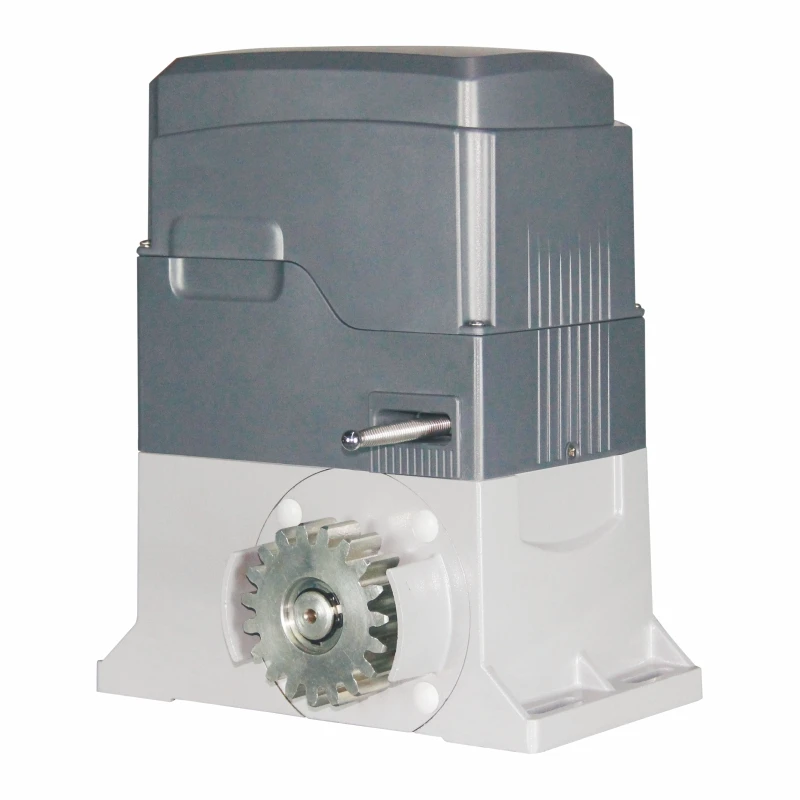

CE Marked Automatic Sliding Car Door Opener Remote, Gate Opener, Door Motor: BS-IZ

Technical Specifications

Features:

1) This is our newly designed sliding gate opener, the weight is 16kg.
And the integration of the mechanical and electrical components provides hassle free.installation and operation of a single unit, rather than multiple systems.
2) Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.
3) Release key for power failure.
4) Electronic soft-start, ensures the motor starts steadily and smoothly, easy to maintain and installation.
5) Intelligent terminals for alarm lamp, photocell, external receiver, etc.,
6) Optional line control or remote control.

Model: BS-IZ-II (370W)
Power supply: AC220V 370W

Motor rotational speed: 1400r/min
Output rotational speed: 46.7r/min
W. T: 16Kg
Capacitor: 22uF
Gate max weight: 1000Kg
Gear Box material: Aluminum
Thermal protection on motor winding: 120oC
Manual optional: Special release key for power failure

Model: BS-IZ-II (450W)

Power supply: AC220V 450W
Motor rotational speed: 1400r/min
Output rotational speed: 46.7r/min
W. T: 16Kg
Capacitor: 25uF
Gate max weight: 1500Kg
Gear Box material: Aluminum
Thermal protection on motor winding: 120oC
Manual optional: Special release key for power failure

Function Introduction

1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging.
2)One touch easy programing,The contronl system learns the open and closing limit automatically.
3)Electronic soft -start, ensures the motor stars steadily and smoothly.
4)Digital display makes Easy Programming.
5)Release key for power failure and looking the operator's cover.

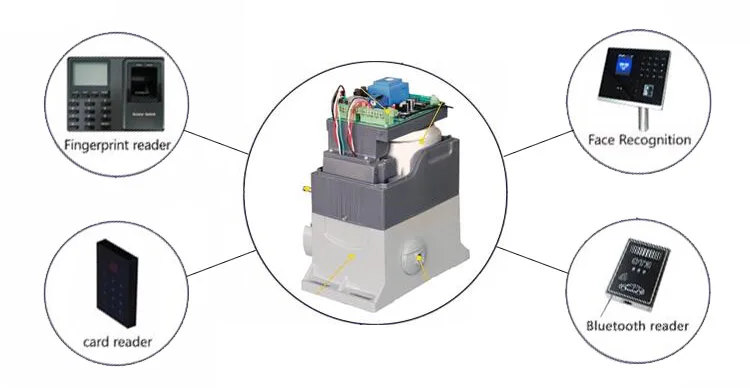

6)Intelligent terminals for photocell, alarm lamp,external receiver, etc.
7)asy to install and maintain,Optional wire control remote control.
8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.
9)Release key for power failure.
10)Optional line control or remote control.

Accessories

Trouble shooting

Trouble	Cause	Shooting
Motor can not work	1,No power supply 2,Break fuse 3,Surpass load	1,Check power supply 2,Change fuse 3,Check if any barrier on the track
Can open but can not close	1,Photocell is not connected properly 2,Photocell beam is block off 3,Photocell is broken	1,Connect the photocell 2,Clear out obstacle 3,Change a new device
Can open (close) but can not close (open)	1,Position of limit switch is not correct 2,Limit switch is damaged	1,Adjust position 2,Change limit switch
Can not locate accurately	1,Distance of limit switch is too large 2,Limit switch is wrong 3,Magnetic-stell’s position is wrong	1,Adjust position of limit switch 2,Change limit switch 3,Re-adjust the position
Release device is doesn’t work	1,Operating handle is broken 2,Worm gears are jammed	1,Change the handle 2,Rotate the pinion
Push the “OPEN” button but the gate close	Push the “OPEN” button but the gate close	Connect correctly according to wiring diagram
Motor can turn but can not work	1,Compression spring of clutch is dead 2,Gear box is released	1,Change the spring 2,Couple the worm gear

More……

Company Profile

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.

We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.

Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.

Exhibition

Certifications

Manufacturing Technique

Testing Equipment

Our Services

1.ODM,OEM Customised for special requirements.

2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training

FAQ

Q: Are you trading company or manufacturer ?
A: We are a manufacurer

Q: How long is your delivery time?
A: Depens upon the quantity.

Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shippment.

If you have another question, pls feel free to contact us as.
