Резиновый шланг для бетононасоса schwing/putzmeister/sany/cifa/zoomlion/sermac 3/4/5/6 дюйма износостойкий 5
- Категория: Rubber Hoses >>>
- Поставщик: Shandong,Shengbang,Concrete,Pump,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71.3 $* | 75.63 $* |
| Aug-16-2025 | 71.78 $* | 75.39 $* |
| Jul-16-2025 | 59.31 $* | 62.7 $* |
| Jun-16-2025 | 70.76 $* | 74.73 $* |
| May-16-2025 | 61.86 $* | 64.79 $* |
| Apr-16-2025 | 68.72 $* | 71.32 $* |
| Mar-16-2025 | 68.13 $* | 71.18 $* |
| Feb-16-2025 | 67.38 $* | 70.93 $* |
| Jan-16-2025 | 67.57 $* | 70.84 $* |
Характеристики

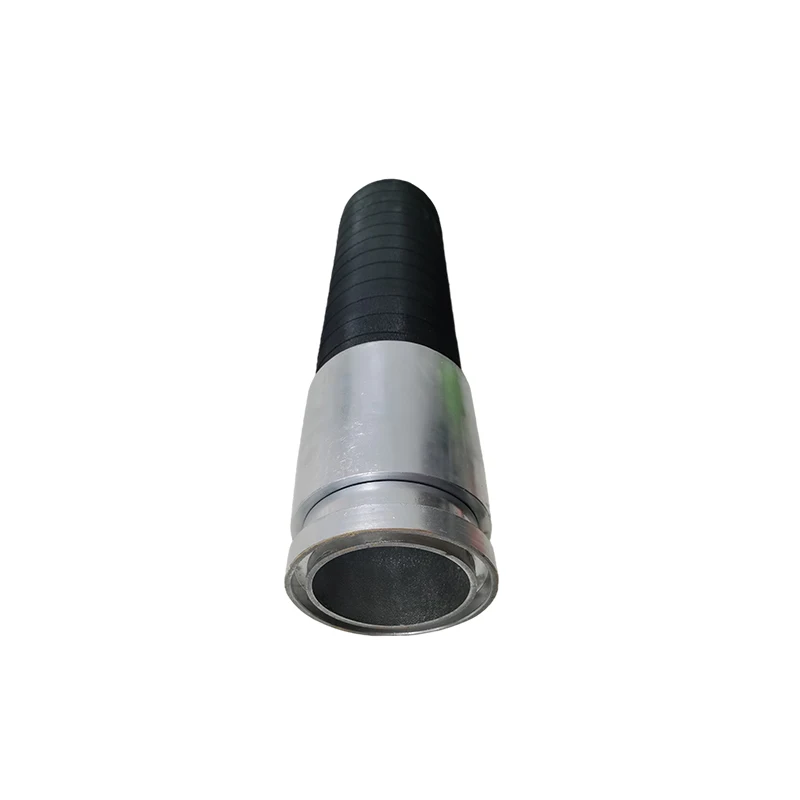

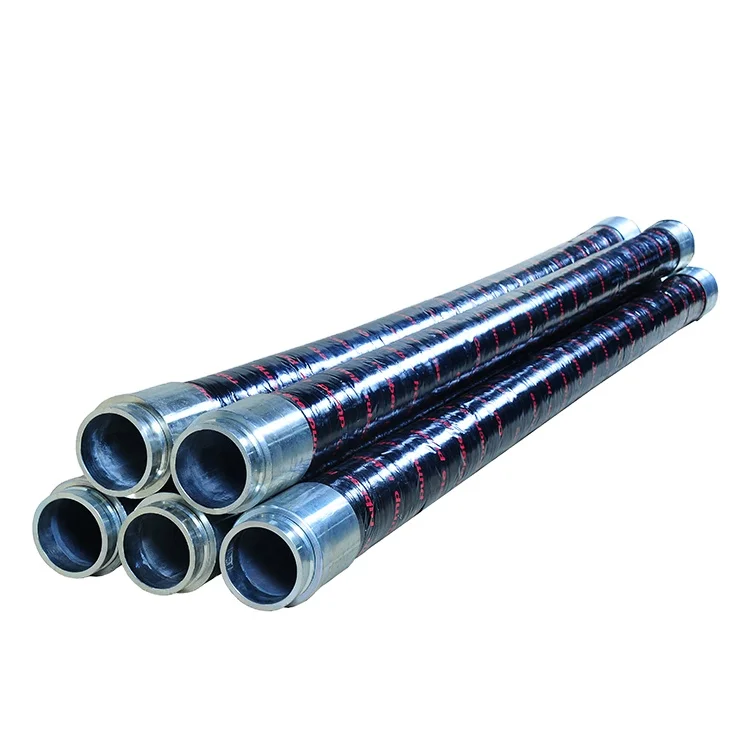

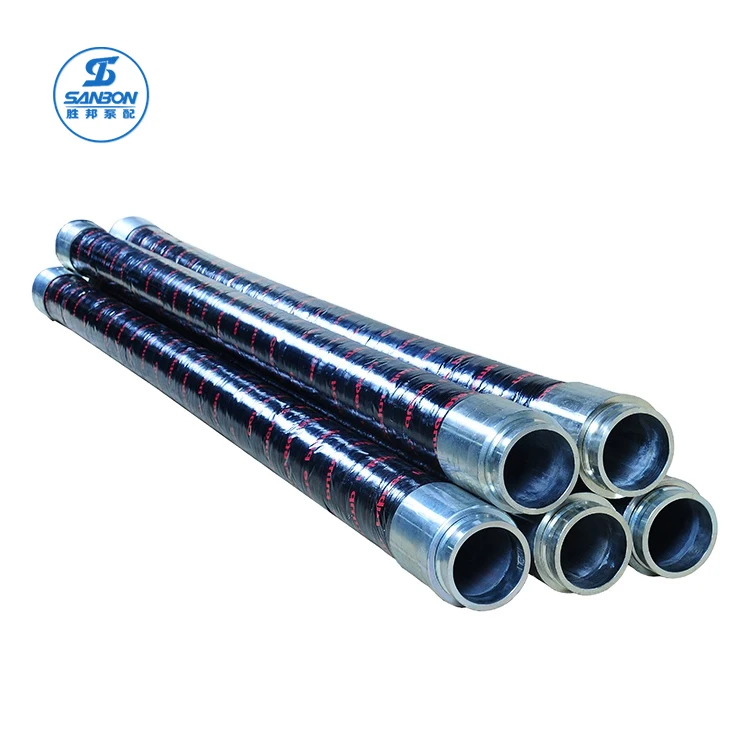

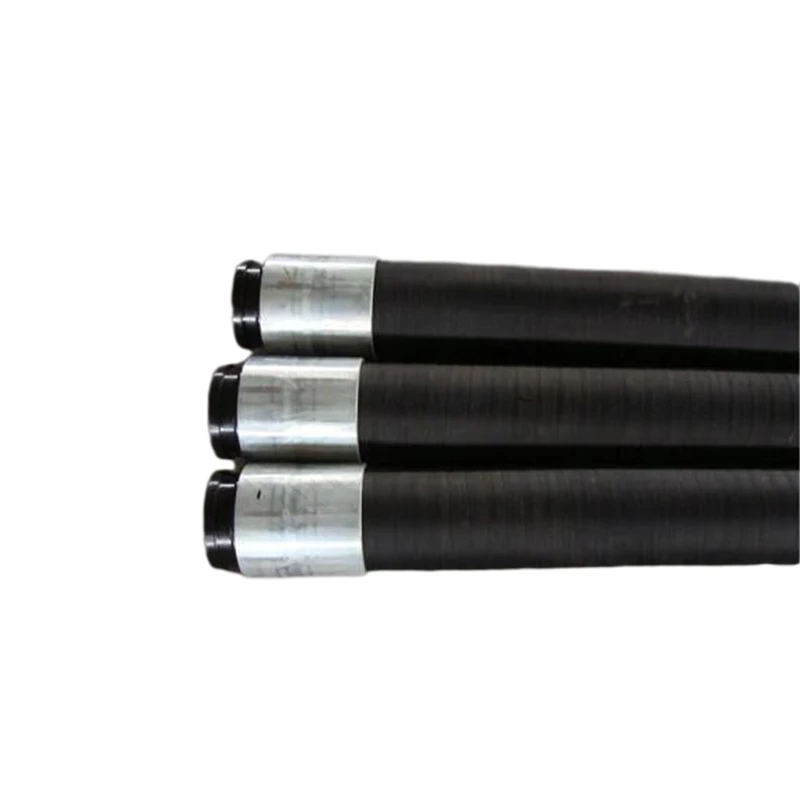

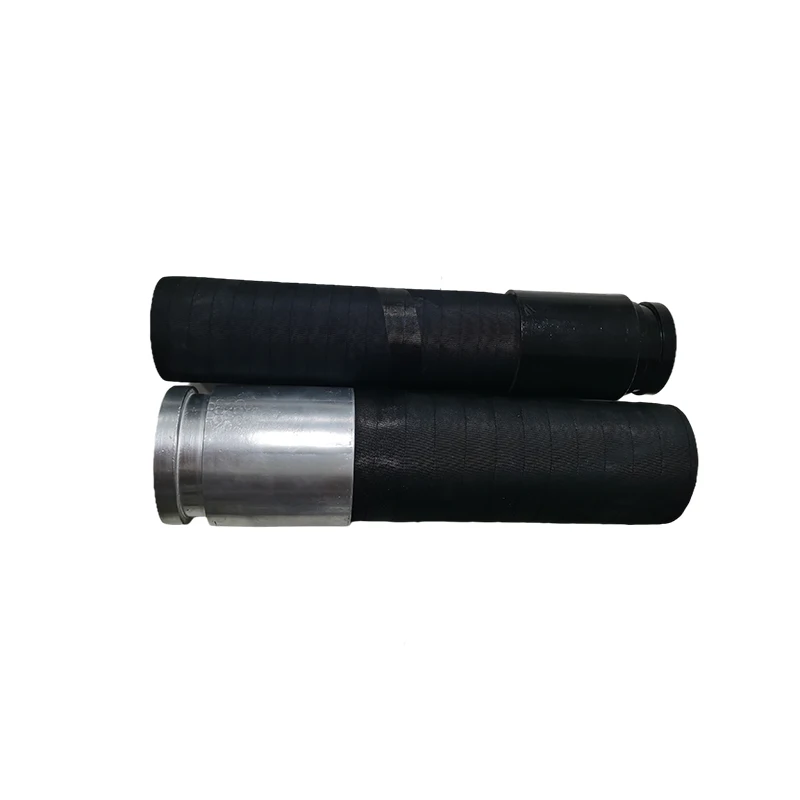

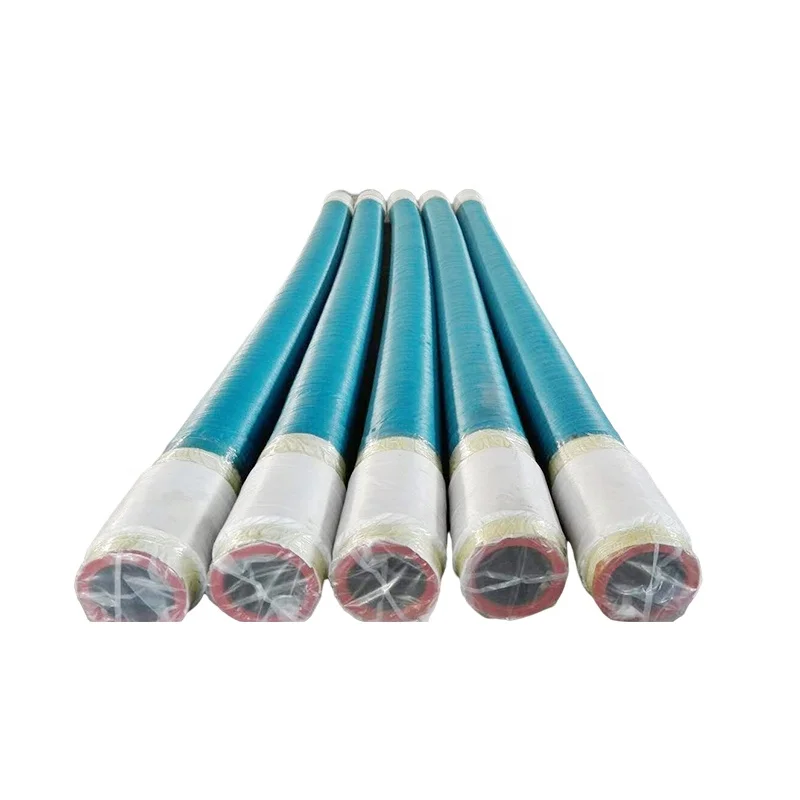

OEM SERVICE Putzmeister 5 inch concrete pump rubber hose
Product Description
1. Data of concrete rubber hose (Steel):
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 50 | 9±0.75 | 68±1.5 | 85 | 240 | 200 | 2.6 |
2.5" | 64 | 10±0.75 | 85±1.5 | 85 | 240 | 250 | 4.3 |
3" | 76.2 | 12.9±1 | 102±1.5 | 85 | 240 | 270 | 6.1 |
3.5" | 89 | 13.5±1 | 116±1.5 | 85 | 240 | 290 | 8 |
4" | 101.6 | 14.2±1 | 130±1.75 | 85 | 240 | 300 | 9 |
4.5" | 115 | 14±1 | 143±2 | 85 | 240 | 320 | 10.2 |
5" | 127 | 16±1 | 158±2 | 85 | 240 | 360 | 12.5 |
Heavy Duty Flexible Concrete Pump Rubber Hose Application: handles cement,
stone, sand and other abrasive materials in drilling, cementing service a wide range service in construction industry, mining and tunneling.
Characteristics: high tensile; wear, weather, ozone and aging resistance
Working pressure:85bar
Temperature range: -30− +80°C.
Safety factor: 1:3
Technical parameters:
Hose lining: NR, SBR, BR blend
Reinforcement layer: tire cord with helix wire
Cover rubber layer: SBR
Fabric hose
Spec. | Inner diameter (mm) | Wall thickness tolerance (mm) | Outer diameter (mm) | Working pressure (bar) | Bursting pressure(bar) | Bend radius (mm) | Weight(kg/m) |
2" | 51±0.7 | 11.5±0.7 | 74±1 | 55 | 220 | 200 | 2.8±0.2 |
2.5" | 63.5±0.8 | 12±0.7 | 88±1 | 55 | 220 | 250 | 3.7±0.3 |
3" | 76±1 | 14±1 | 104±1.2 | 55 | 220 | 270 | 4.9±0.4 |
3.5" | 89±1 | 15±1 | 119±1.2 | 55 | 220 | 290 | 5.8±0.4 |
4" | 102±1 | 16 | 135±1.2 | 55 | 220 | 300 | 7.4±0.4 |
4.5" | 114 | 16±1 | 148±1.5 | 55 | 220 | 320 | 8.5±0.5 |
5" | 127±1 | 16±1 | 159±1.5 | 55 | 220 | 360 | 9±0.5 |
![C3JPL8P7DQN4S{W%5Z}]9U](http://g02.s.alicdn.com/kf/HTB1mS1cKXXXXXbIXpXXq6xXFXXXJ/221875978/HTB1mS1cKXXXXXbIXpXXq6xXFXXXJ.jpg)
We manufacture both Steel wire reinforced rubber hose and fabric reinforced rubber hose
FAQ
Q1.How many layers steel wires of this hose and how many steel wire of each layer is composed of?
A.Using four layers steel wire winding technology, each layer is composed of 100 steel wires,
which structure can guarantee the maximum combination of steel and rubber.
Q2.How many cubic feet concrete can be casted by one hose?
A. Many factors affect the casting cubic feet, such as the different aggregate between different counties,
the different concrete pump and whether the hoses can be properly operating or not etc.
Gerenally speaking, under the normal condition of concrete pump, the delivery capacity is not less than
20 thousand cubic feet or even up to 25 thousand.
Q3. Why does the wires always come out of the hose end? How to avoid ?
A: It is very important to bond the steel wire and rubber well. The degumming is often arised if the
steel wire cannot bond closely with the rubber. In order to avoid this problem and lower the
degumming rate to a minimum we add a bonding layer above wear-resistant layer.
Q4. It's very dangerous when the hose head fall off, how to avoid this problem?
A: We make a 100% fall off inspection before the hoses leave the factory in order to make sure every hose
can reach the operational requirement
Q5. Could you supply free sample ?
Yes, free sample can be provided to make test . But please buy an air ticket for it.
Q6.Are you manufacturer ?
Yes, we are real manufacturer which is located in Liaocheng City ,Shandong Province with 10+2 years both domestic and foreign market experience .
