30HP 22kw 35cfm - 134cfm Low Noise Direct Driven VSD Rotary Screw Air

Description

Every model has a corresponding frequency conversion compressor, which controls the air delivery by changing the rotational speed of motor, making the air output and electricity consumption smoothly vary the air supply decreases and so does the electricity consumption for energy conservation. For capacity ranging from 2 to 60m3/min and discharge pressure from 0.5-1.3Mpa. There are corresponding models available to customers with different requirements.

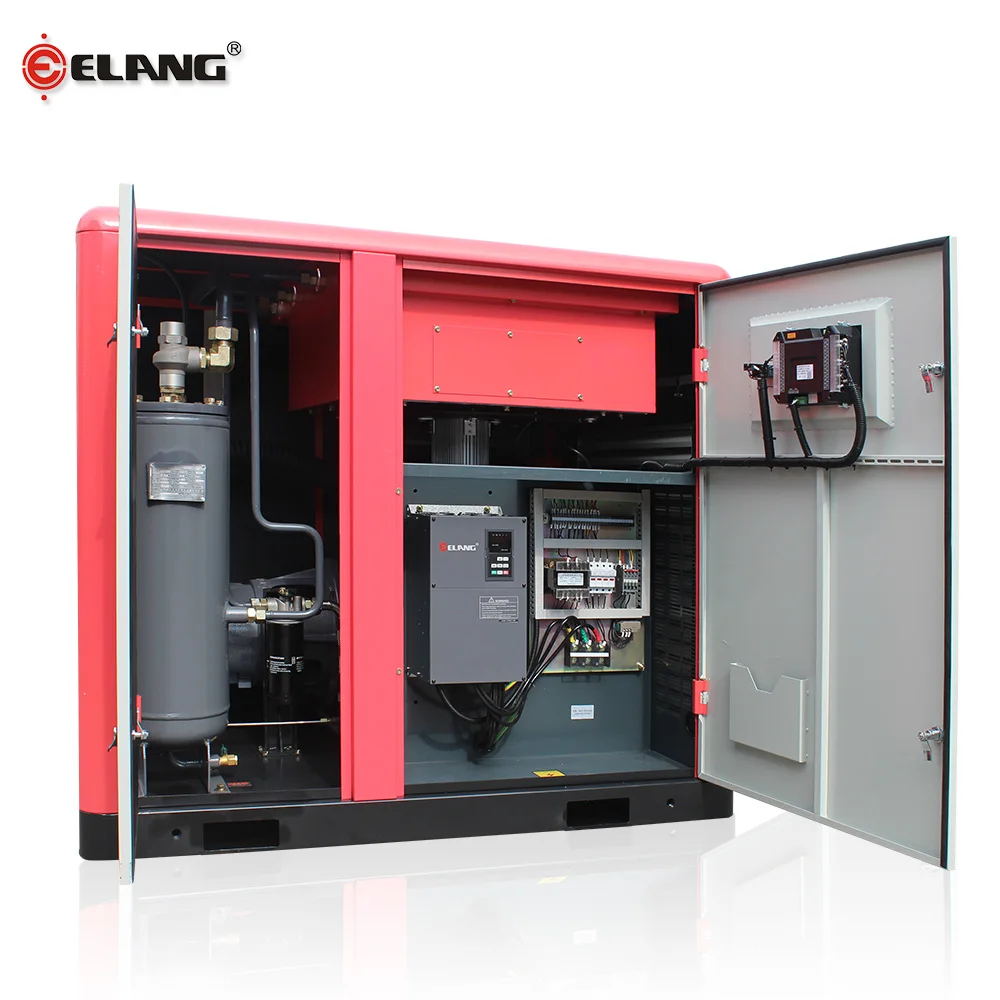

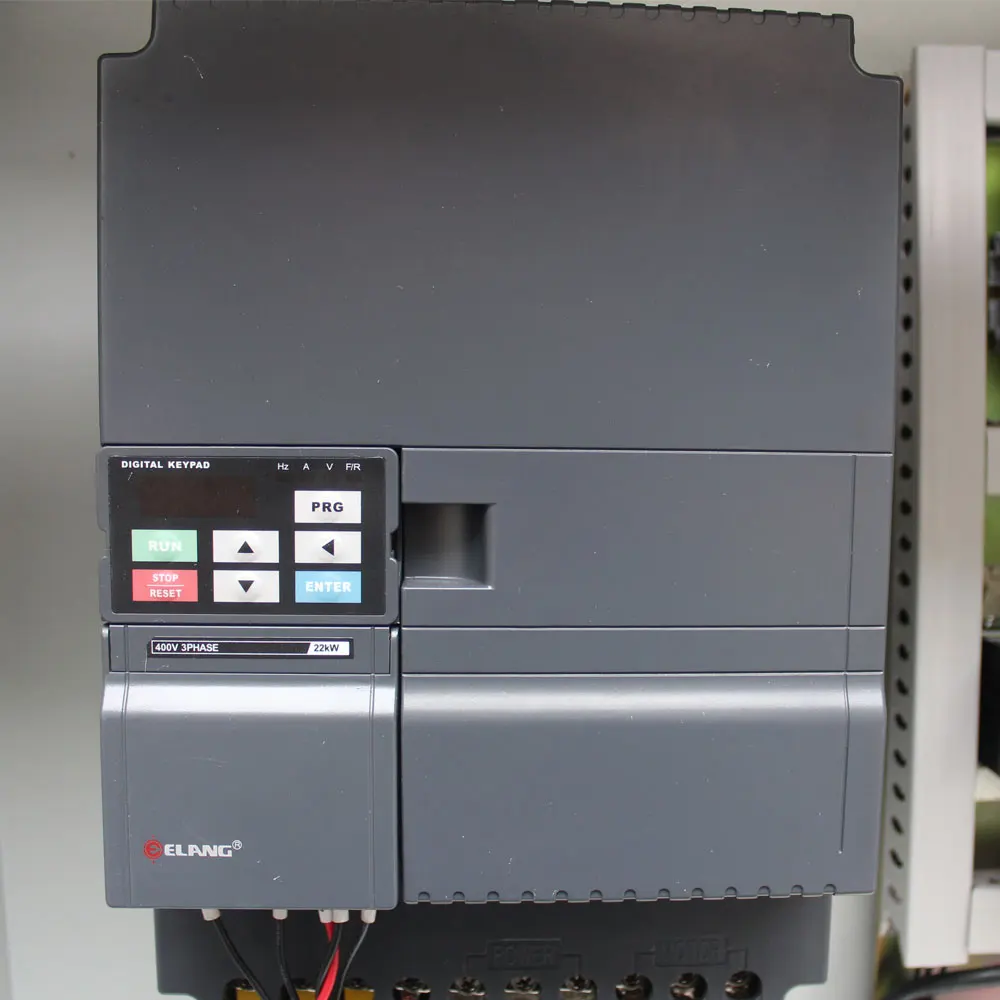

In addition to that frequency conversion air compressors have the same good quality as other ERC model, the quality frequency converter will further better the result of energy conservation. With the help of the PID regulator disposed in frequency converter, it can start up smoothly, causes little impact on the power grid and generates great low-frequency start moment of current vector control and small running current. When the air use decreases, the compressors enter the sleeping status, saving considerable energy. Moreover, digital to analog conversion is highly accurate and the integration design features few fault points.

Advantages

1. Life of bare compressor:

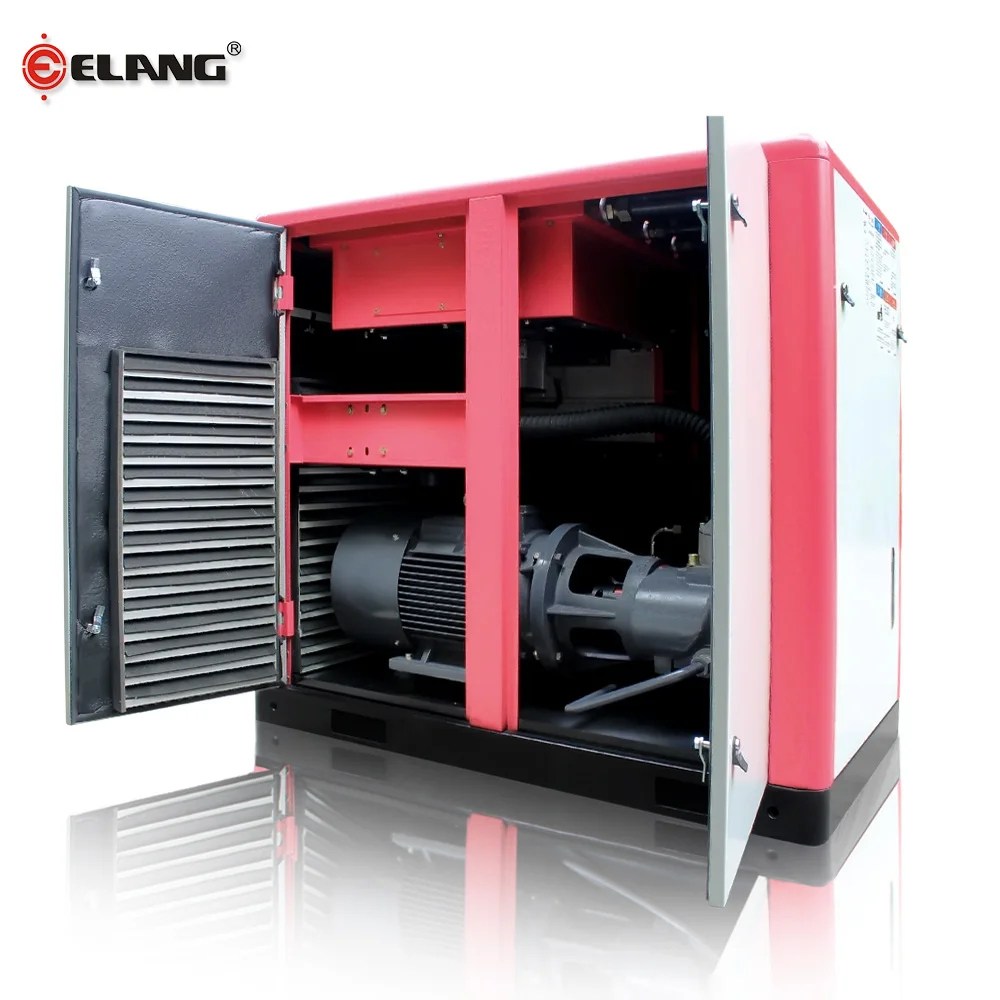

   Rotors are asymmetric in profile and backed up by ball bearings and roller bearings and operate at a low speed. Thereby low in abrasion and maintenance and repair expenses and the compressor air end being long in service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of bare compressor.

2. More reliable operation:

   With frequency conversion soft start reduce in-rush starting current, reduce wear on electrical switch gears and motor windings. Also maintain less power during starting and stopping of motors and increase protection to motors. Also reduce peak demand and improve power factor.

3. In the case of rated power license setting desired pressure at discretion, and maintaining constant pressure at discretion, and maintaining constant pressure:

   User to choose any delivery pressure between 4-13bar without any gears or belt change. When the use of air increases the unit increases air output through automatic acceleration of rotational speed to avoid a falling pressure and ensure volume at constant pressure. When the use of air decreases, the unit reduces air output by automatically lowering the rotational speed to avoid pressure increase and ensure continued air supply constant pressure.

4. Efficiency and energy conservation:

   Thanks to the variable-speed control technology, the capacity of compressors can be perfectly combined with the air use of users, which downright avoid the unloading power loss. In intermittent air use, the minimized load of soft start eliminates the starting frequency of the peak current and further smooth start can reduce the power supply, equipment costs as well as the impact on the network power.

Model	Working Pressure		Air Delivery		Motor Power	Type of Cooling	Dimension(mm)			Weight (kg)	Output pipe Diameter
	psig	bar	cfm	m3/min	kw/hp		L	W	H

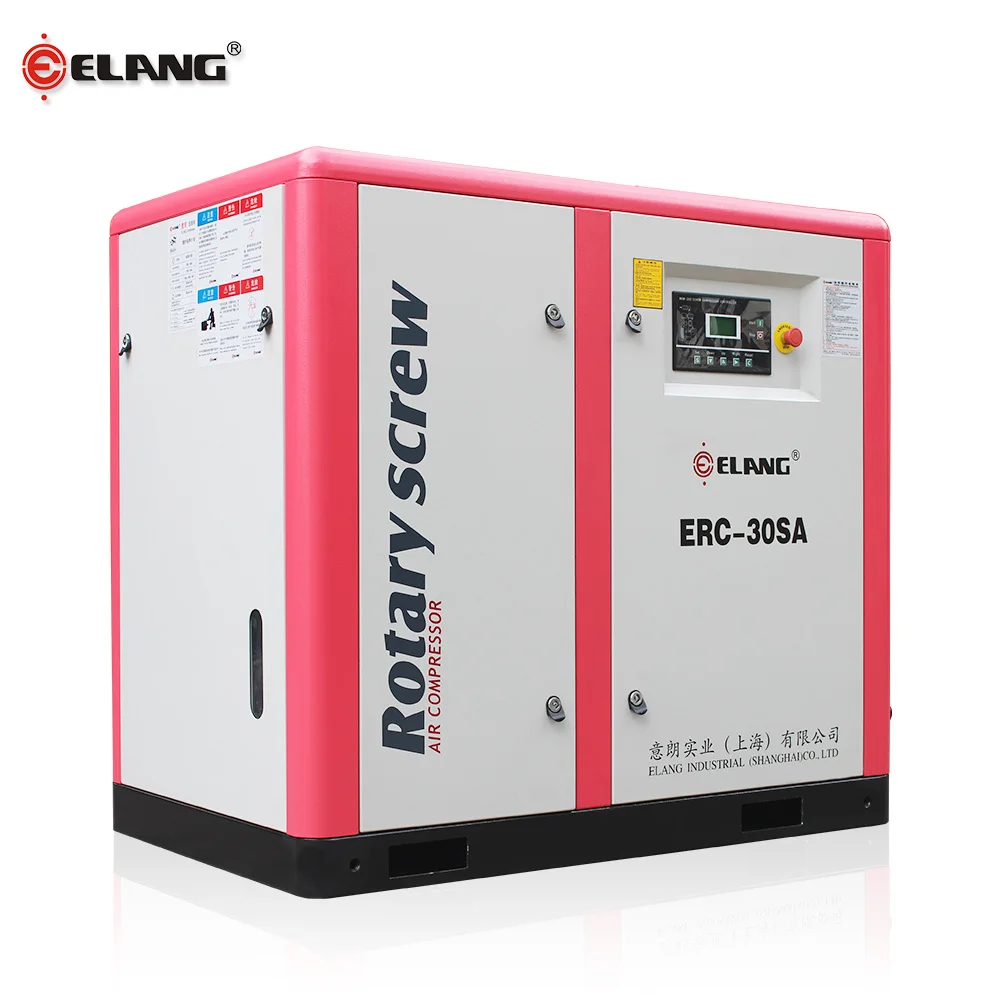

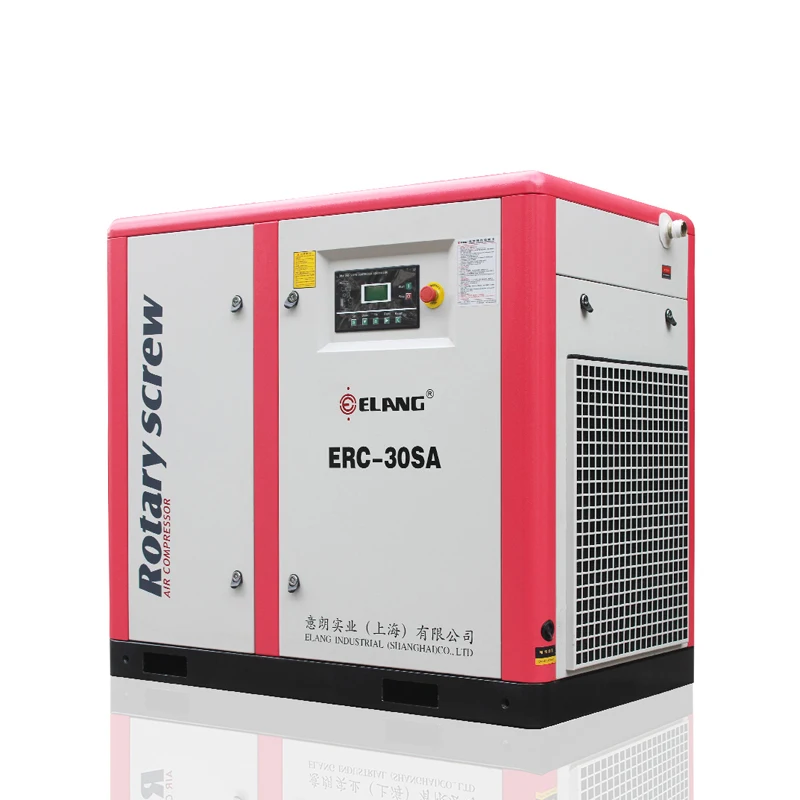

ERC-30SA/SW	100	7	53.7-134.2	1.5-3.8	22/30	Air Cooling / Water Cooling	1380	850	1150	640	11/4"
	116	8	50.8-127.1	1.4-3.6
	145	10	45.2-113.0	1.3-3.2
	181	13	35.3-88.3	1.0-2.5
ERC-40SA/SW	100	7	74.8-187.1	2.1-5.3	30/40		1450	900	1220	900	11/4"
	116	8	70.6-176.6	2.0-5.0
	145	10	60.7-151.8	1.7-4.3
	181	13	50.8-127.1	1.4-3.6
ERC-50SA/SW	100	7	93.2-233.0	2.6-6.6	37/50		1595	1000	1365	1060	11/2"
	116	8	87.6-218.9	2.5-6.2
	145	10	80.5-201.3	2.3-5.7
	181	13	65.0-162.4	1.8-4.6
ERC-60SA/SW	100	7	113.0-282.5	3.2-8	45/60		1595	1000	1450	1150	11/2"
	116	8	108.8-271.9	3.1-7.7
	145	10	97.4-243.6	2.8-6.9
	181	13	84.8-211.9	2.4-6
ERC-75SA/SW	100	7	148.3-370.8	4.2-10.5	55/75		2100	1250	1700	1750	2"
	116	8	138.4-346.0	3.9-9.8
	145	10	122.9-307.2	3.5-8.7
	181	13	103.1-257.8	2.9-7.3
ERC-100SA/SW	100	7	192.1-480.2	5.4-13.6	75/100		2100	1250	1700	1840	2"
	116	8	183.6-459.0	5.2-13
	145	10	159.6-399.0	4.52-11.3
	181	13	142.6-356.6	4.0-10.1
ERC-120SA/SW	100	7	228.8-572.0	6.5-16.2	90/120		2100	1250	1700	2030	2"
	116	8	217.5-543.8	6.2-15.4
	145	10	186.4-466.1	5.3-13.2
	181	13	158.2-395.5	4.5-11.2
ERC-150SA/SW	100	7	293.8-734.4	8.3-20.8	110/150		2545	1450	1900	2920	DN65
	116	8	275.4-688.5	7.8-19.5
	145	10	233.0-582.6	6.6-16.5
	181	13	193.5-483.7	5.5-13.7
ERC-175SA/SW	100	7	339.0-847.4	9.6-24.0	132/175		2545	1450	1900	3200	DN65
	116	8	324.8-812.1	9.2-23.0
	145	10	282.5-706.2	8.0-20.0
	181	13	218.9-547.3	6.2-15.5
ERC-200SA/SW	100	7	392.6-981.6	11.1-27.8	160/200		2790	1550	2000	3600	DN65
	116	8	367.2-918.1	10.4-26.0
	145	10	331.9-829.8	9.4-23.5
	181	13	275.4-688.5	7.8-19.5
Motor Efficiency Class:   Ultraefficient/IE3/IE2 as per your required Motor Protection Class:   IP23/IP54/IP55 or as per your required Certification:  CE/ISO9001/TUV/UL/SGS/ASME Voltage:  380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok

Model	Working Pressure		Air Delivery		Motor Power	Type of Cooling	Dimension(mm)			Weight (kg)	Output pipe Diameter
	psig	bar	cfm	m3/min	kw/hp		L	W	H
ERC-250SA	100	7	459.0-1147.6	13.0-32.5	185/250	Air Cooling / Water Cooling	2790	1550	2000	3780	DN65
	116	8	437.8-1094.6	12.4-31.0
	145	10	367.2-918.1	10.4-26.0
	181	13	305.1-762.7	8.6-21.6
ERC-270SA	100	7	487.3-1218.2	13.8-34.5	200/270		2850	1700	2000	4400	DN80
	116	8	1165.2	13.2-33.0
	145	10	395.5-988.7	11.2-28.0
	181	13	331.9-829.8	9.4-23.5
ERC-300SA	100	7	536.7-1341.8	15.2-38.0	220/300		3150	2000	2120	4930	DN100
	116	8	515.5-1288.8	14.6-36.5
	145	10	452.0-1129.9	12.8-32.0
	181	13	381.4-953.4	10.8-27.0
ERC-330SA	100	7	607.3-1518.3	17.2-43.0	250/330		3150	2000	2120	5450	DN100
	116	8	572.0-1430.1	16.2-40.5
	145	10	5155.5-1288.8	14.6-36.5
	181	13	452.0-1129.9	12.8-32.0
ERC-375SA	100	7	727.4-1818.5	20.6-51.5	280/375		4000	2000	2100	6150	DN125
	116	8	706.2-1765.5	20.0-50.0
	145	10	635.6-1589.0	18.0-45.0
	181	13	522.6-1306.5	14.8-37.0
ERC-420SA	100	7	791.0-1977.4	22.4-56	315/420		4600	2300	2400	7500	DN125
	116	8	776.8-1942.1	22.0-55.0
	145	10	692.1-1730.2	19.6-49
	181	13	579.1-1447.7	16.4-41.0
ERC-470SA	100	7	904.0-2259.8	25.6-64.0	355/470		4600	2300	2400	8100	DN150
	116	8	875.7-2189.2	24.8-62.0
	145	10	762.7-1906.7	21.6-54.0
	181	13	649.7-1624.3	18.4-46.0
ERC-550SA	100	7	1031.0-2577.6	51.1-73.0	400/550		5000	2350	2400	8400	DN150
	116	8	988.7-2471.7	28.0-70.0
	145	10	861.6-2153.9	24.4-61.0
	181	13	734.4-1836.1	20.8-52
ERC-600SA	100	7	1144.0-2860.1	32.4-81	450/600		5500	2590	2800	9000	DN150
	116	8	1115.8-2789.5	31.6-79
	145	10	988.7-2471.7	28.0-70.0
	181	13	833.3-2083.3	23.6-59.0
ERC-670SA	100	7	1257.0-3142.6	35.6-89.0	500/670		5500	2590	2800	9500	DN200
	116	8	1228.8-3072.0	34.8-87
	145	10	1087.6-2718.9	30.8-77
	181	13	946.3-2365.8	26.8-67.0
ERC-750SA	100	7	1440.6-3601.6	40.8-102.0	560/750		6500	2700	3000	10000	DN200
	116	8	1384.2-3460.4	39.2-98.0
	145	10	1228.8-3072.0	34.8-87.0
	181	13	1087.6-2718.9	30.8-77.0
Motor Efficiency Class:   Ultraefficient/IE3/IE2 as per your required Motor Protection Class:   IP23/IP54/IP55 or as per your required Certification:  CE/ISO9001/TUV/UL/SGS/ASME Voltage:  380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok

Q1:  Are you a manufacturer or trading company?

A:  We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.

Q2:  What's your delivery time?

A:  Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q3:  How long is your air compressor warranty?

A:  One year for the whole machine and two years for screw air end, except consumble spare parts.

Q4:  How long could your air compressor be used?

A:  Generally, more than 10 years.

Q5:  What's payment term?

A:  T/T, L/C,  D/P,  Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.

Q6:  How about your customer service?

A:  24 hours on-line service available. 48hours problem sovled promise.

Q7:  How about your after-sales service?

A:  1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
