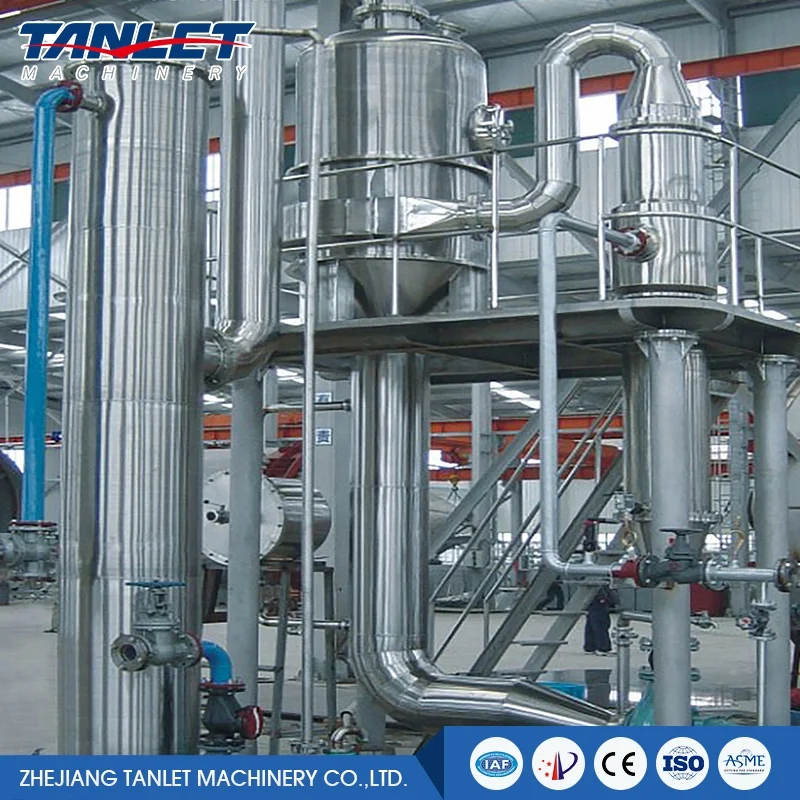

syrup juice milk heat sensitive produt cocentration processing single effect falling film evaporator



1.Brief

Forced circulating single effect, double effect, triple effect and multi-effect evaporators are applicable for low temperature concentration of high concentration and high viscosity materials containing indissoluble solid things in food, medicine, chemical industry, biological project, environment protection project and waste liquid recovery etc, industries.





2.Advantages

1. The whole set system has reasonable and beautiful design, stable operation, high efficiency, energy saving and low steam consumption.

2. Large concentration ratio, forced circulating type, which can make the materials of larger viscosity easily flow and evaporate and shortens the concentrating time.

3. The special design can make modifications of effects easily to realize production of various products.

4. Low evaporation temperature. The heat quantity can be fully used. The heating of materials is warm, so it is applicable for concentration of heat sensitive materials.

5. After forced circulating, the  evaporator is heated evenly in the pipe with high heat transfer coefficient, in order to prevent the occurrence of "dry walls".

6. The materials and liquids are separated after coming into the separator. The effect of separating is greatly improved, and it is flexible to operate.

7. The whole set equipment is quite compact, and occupies little area, and the layout is simple and fluent, all of which are the developing tendency of large whole set evaporating equipment.



Single Effect Falling Film Evaporator

Parameters	TLDJ-500	TLDJ-1000	TLDJ-1500	TLDJ-2000	TLDJ-2500
Evaporation Capacity (kg/h)	500	1000	1500	2000	2500
Steam Press (Mpa)	<0.25
Vacuum Degree (Mpa)	0.08
Concentration Ratio	1.2~1.3
Dimensions (mm)	2000*1000*3000	2200*1200*3300	2500*1300*3500	4600*2350*50000	5500*2800*5000
