Высокоскоростная USB-камера ELP 2MP OV4689 260FPS 640*480 120FPS 1280*720 60FPS с объективом ручным зумом 2 8-12 мм CMOS USB
- Категория: >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 98.89 $* | 100.39 $* |
| Jul-16-2025 | 79.74 $* | 81.24 $* |
| Jun-16-2025 | 96.44 $* | 98.38 $* |
| May-16-2025 | 95.85 $* | 97.25 $* |
| Apr-16-2025 | 76.5 $* | 78.72 $* |
| Mar-16-2025 | 94.24 $* | 96.78 $* |
| Feb-16-2025 | 93.79 $* | 95.51 $* |
| Jan-16-2025 | 92.1 $* | 94.91 $* |
Характеристики

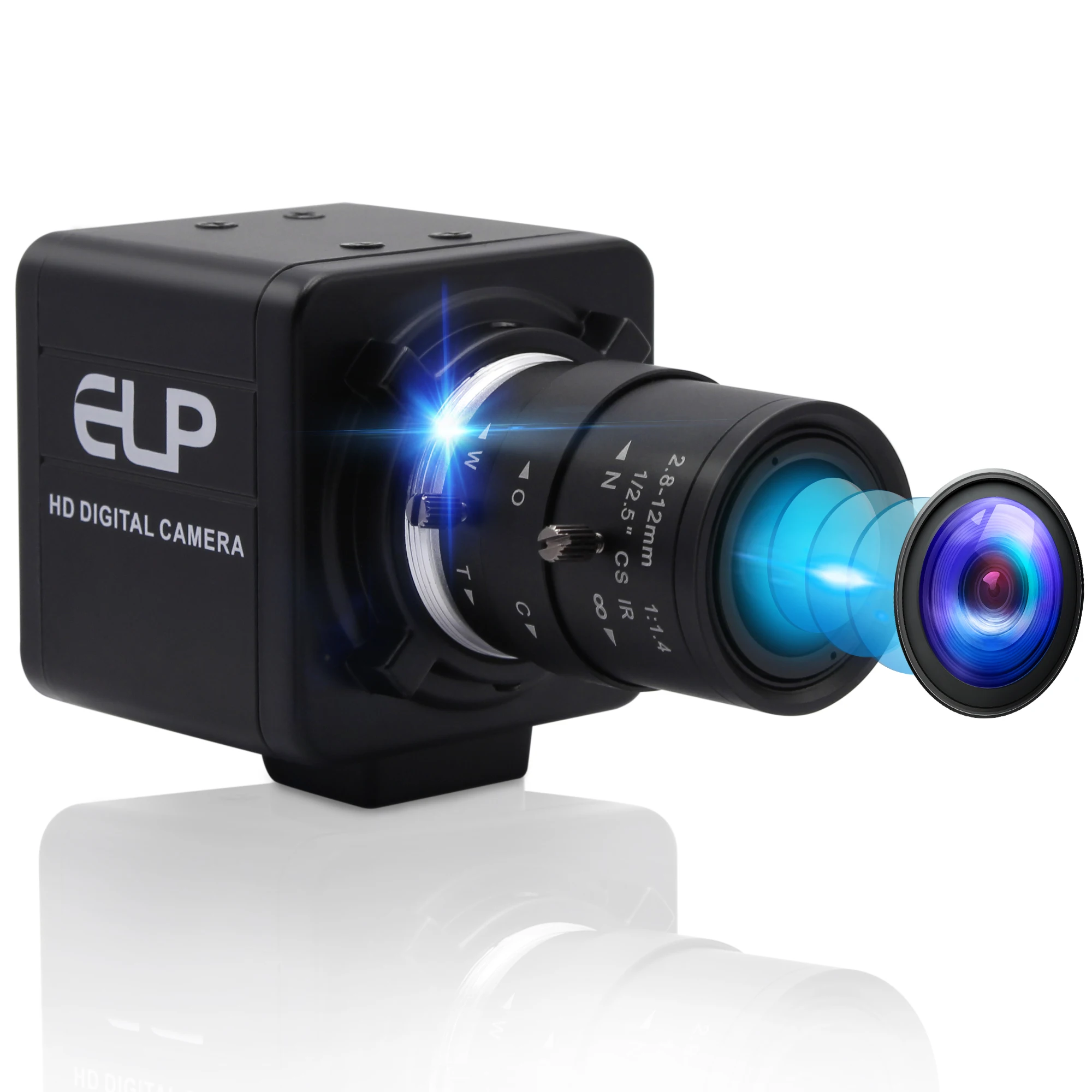

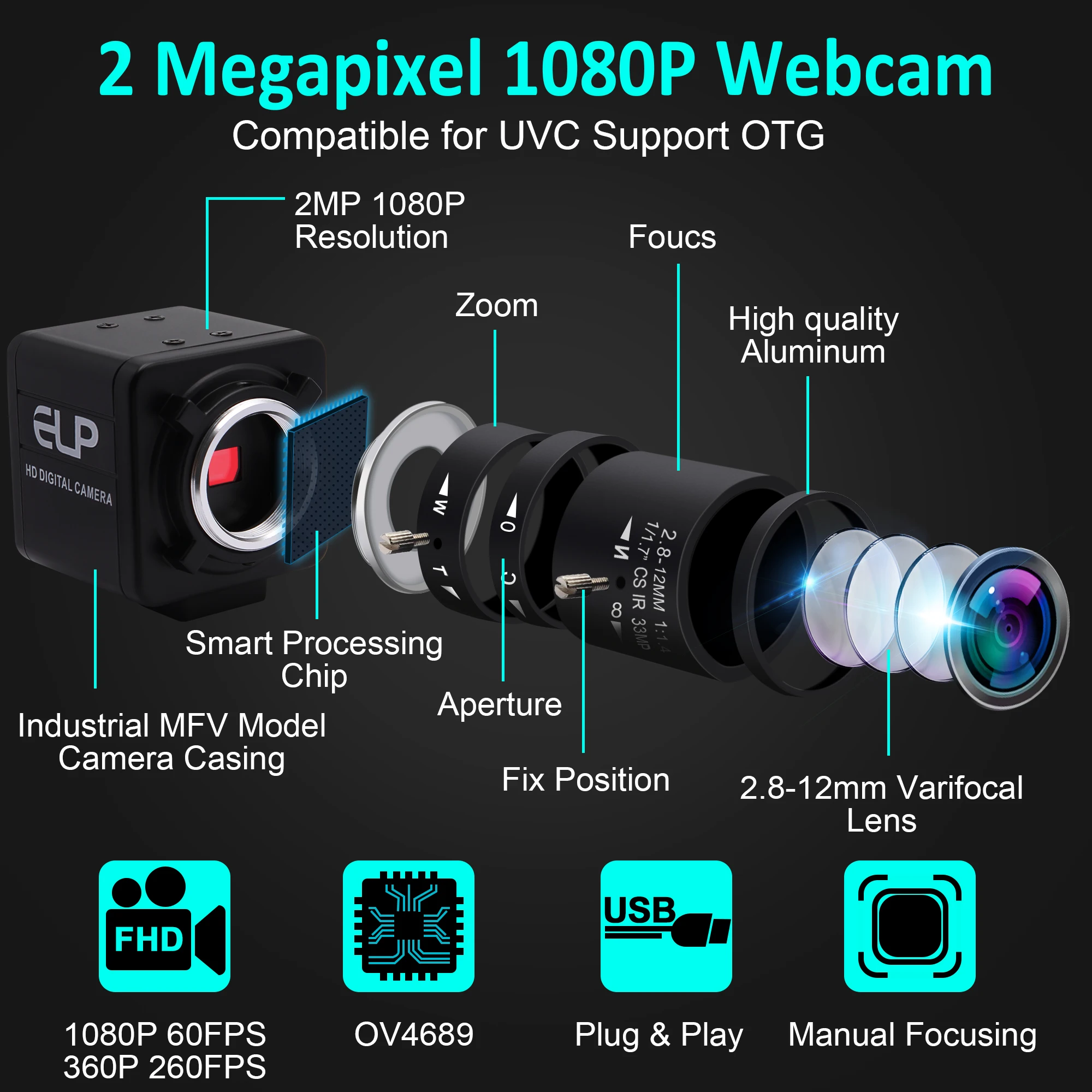

ELP High Speed USB Camera 2MP OV4689 260FPS 640*480 120FPS 1280*720 60FPS with 2.8-12mm Manual Zoom Lens CMOS USB Web camera
Features
* 2MP 1080P high speed usb camera module
* 1/3” omnivison OV4689 sensor for high quality image
* High frame rate- 1080P 60fps, 720p 120fps, 640*360 260fps
* With CS manual focus 2.8-12mm lens (5-50mm lens optional)
* MJPEG/YUY2 dual video format optional

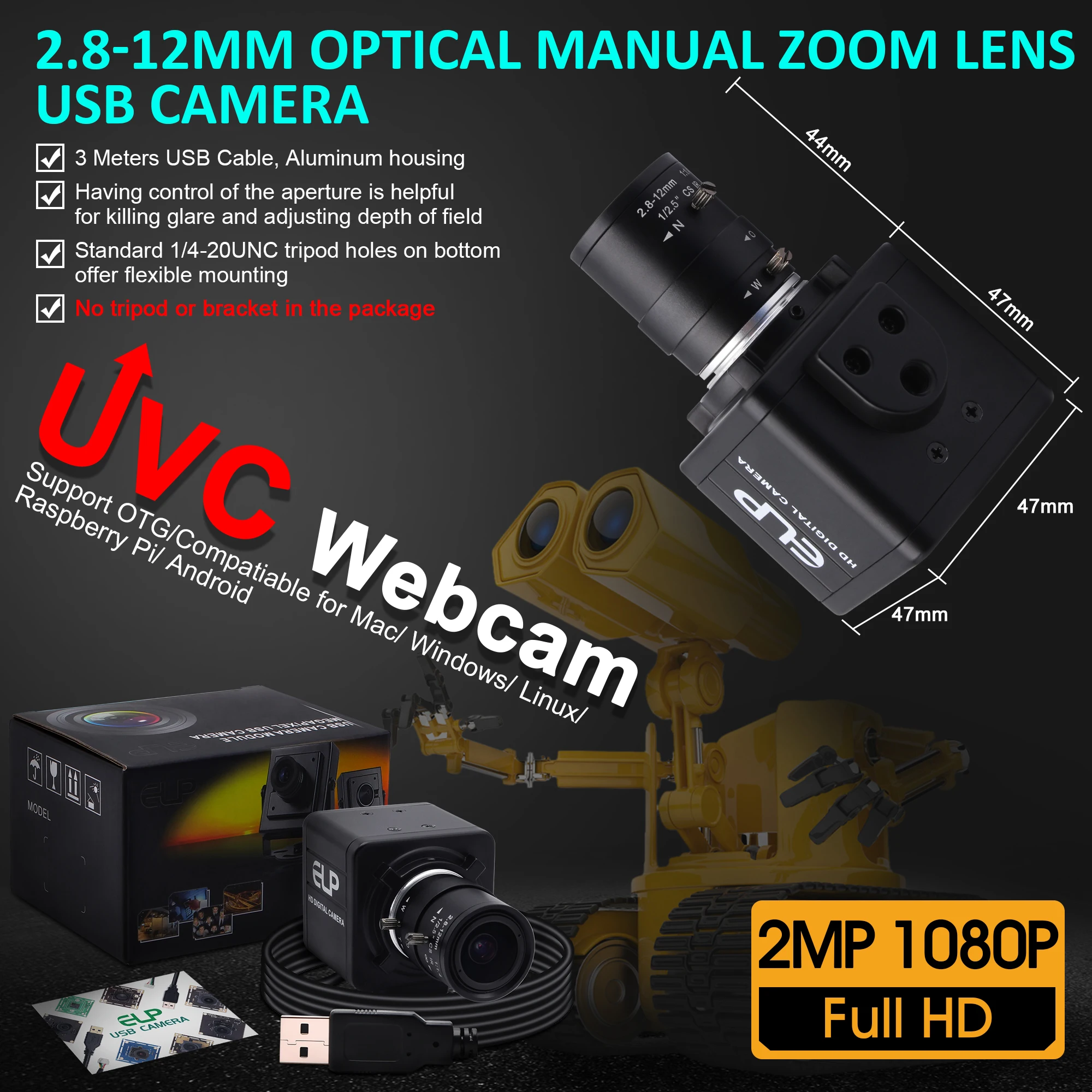

* Mini size 38*38MM camera module embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specifications
Model | ELP-USBFHD08S-MFV(2.8-12mm) |
Sensor | OV4689 |
Lens Size | 1/3 inch |
Pixel Size | 2.0µm X 2.0µm |
image area | 5440 µm x 3072 µm |
Max. Resolution | 1280(H)X720(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps |
S/N Ratio | 38.3dB |
Dynamic Range | 64.6dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | CS 2.8-12mm manual focus lens(5-50mm optional) |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 150mA~185mA |
Working temperature | 0~70℃ |
Board size /Weight | 38*38mm |
Cable | Standard 3M (1/2/5m optional) |
Operating system request | Win XP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Company Information
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
