5 в 1 а Портативный USB адаптер питания зарядное устройство для смартфонов часов электрического дверного
- Категория: Адаптеры для мобильных телефонов >>>
- Поставщик: Y&L,Electronics,(Shenzhen),Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.14 $* | 0.96 $* |
| Aug-16-2025 | 0.95 $* | 0.31 $* |
| Jul-16-2025 | 0.1 $* | 0.52 $* |
| Jun-16-2025 | 0.63 $* | 0.53 $* |
| May-16-2025 | 0.47 $* | 0.30 $* |
| Apr-16-2025 | 0.27 $* | 0.15 $* |
| Mar-16-2025 | 0.84 $* | 0.73 $* |
| Feb-16-2025 | 0.66 $* | 0.13 $* |
| Jan-16-2025 | 0.39 $* | 0.41 $* |
Характеристики

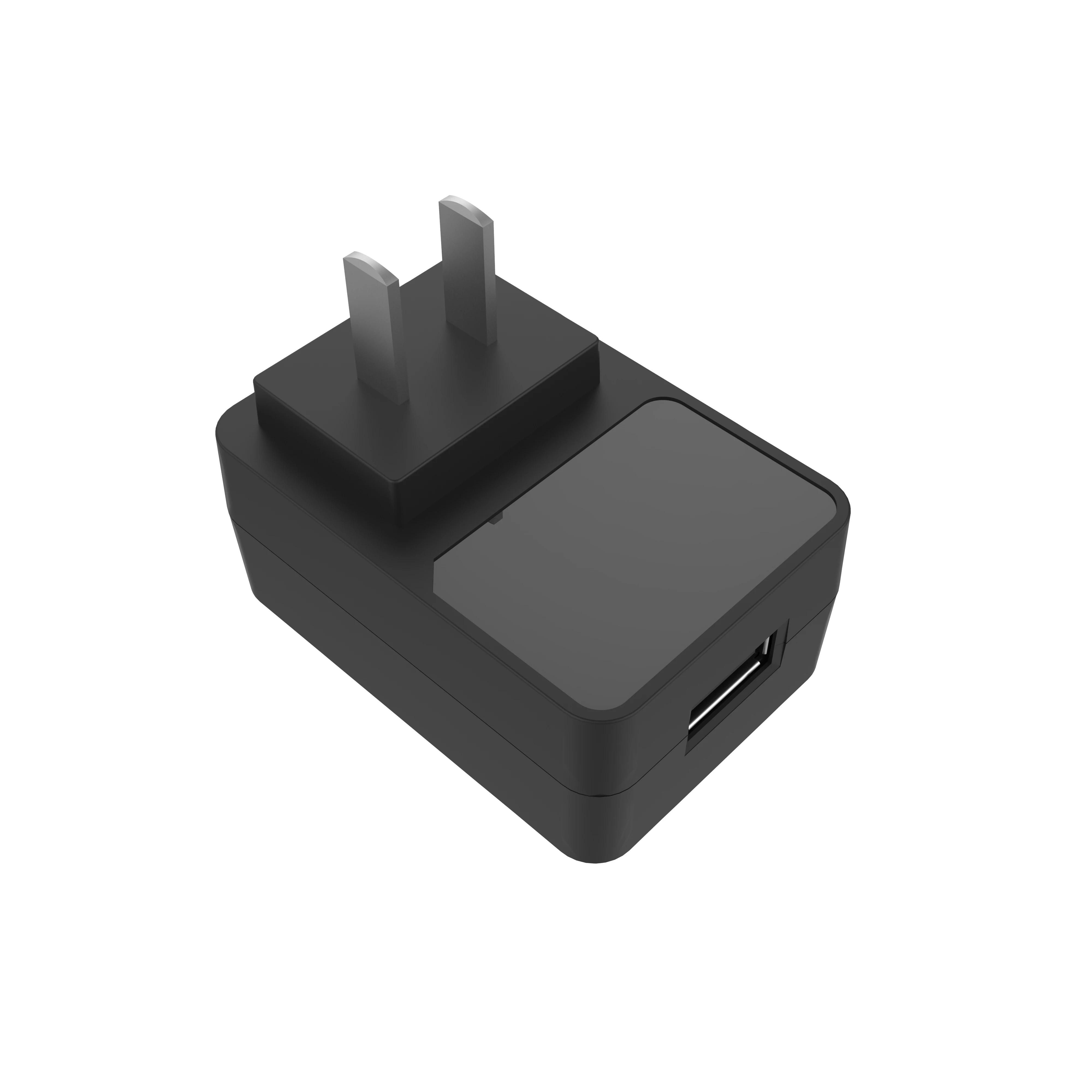

5v1a portable USB power adapter charger for smart phones, watch, electric door ring
Product Description
| Power supply model number | 5W | |
| Output | DC voltage | 5V |
| Rated Current | MAX 1A | |
| Current Range | 0-1A | |
| Rated Power | 5W | |
| Ripple & Noise | 120Vp-p Max | |
| Voltage Tolerence | +/- 5% | |
| Input | Voltage Range | 100-240V AC 50/60Hz |
| Safety Standard | IEC 62368-1B / IEC 61558-2-16E / ETL 1310 | |
| Safety Certification | EN62368:UL/CB/CE/GS/EMC/LVD/SAA/KC/FCC/PSE/CCC | |
| EN61558:CE/GS/CB/FCC/LVD/SAA ETL 1310 | ||
| Operating temperature | 0-40 C° | |
| Storage temperature | -20-60 C° | |
| Hi-pot test | Primary To Secondary: 3000VAC 10mA 1 minute or 4242VDC 10mA 3 Sec | |
| Burn-in test | 80% to 100% load, 40 C°± 5℃ for 4 hours | |
| Length of DC cord | Optional | |
| DC plug | Optional | |
| RoHS/Reach | Yes | |
| Package | White box or plastic bag with outer carton | |

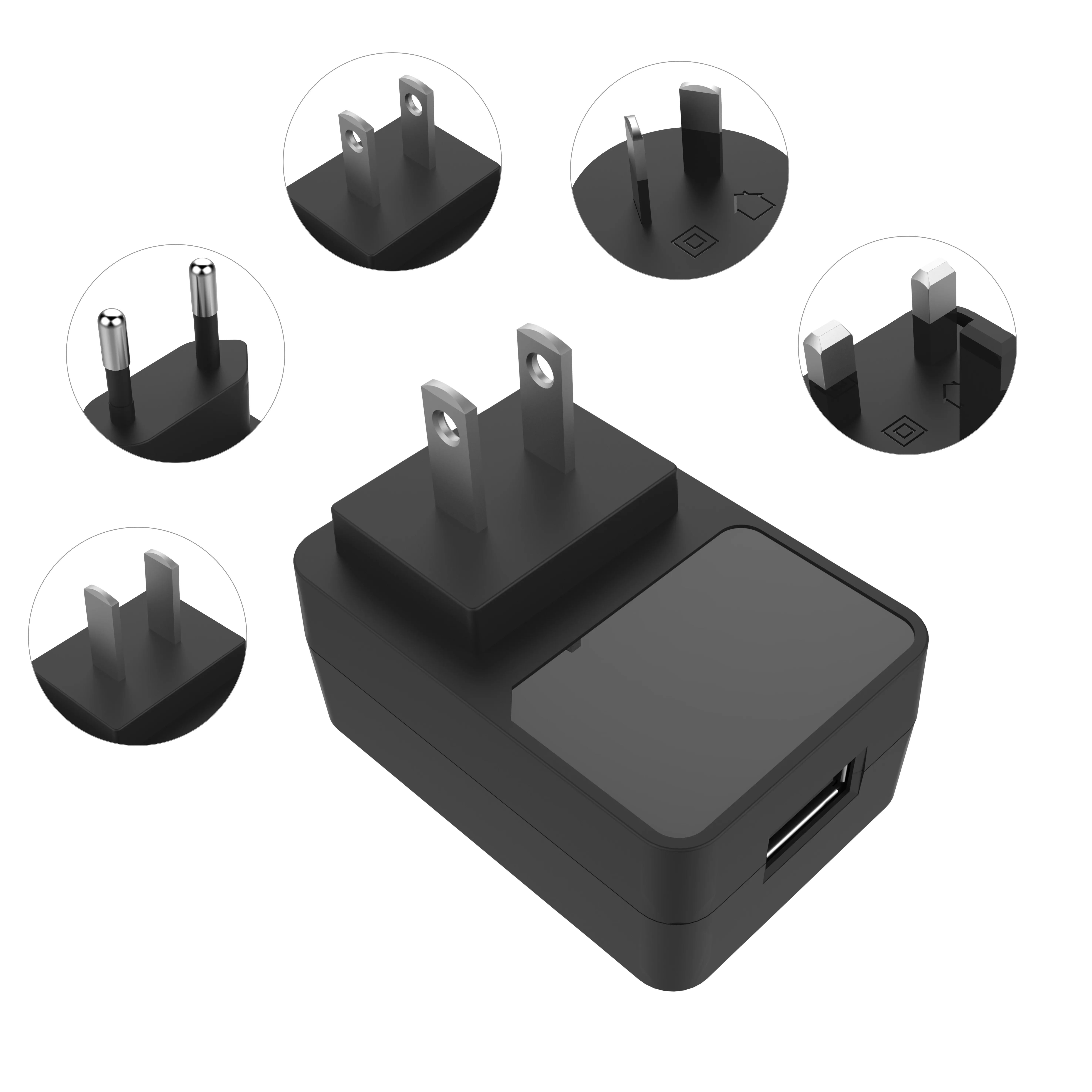

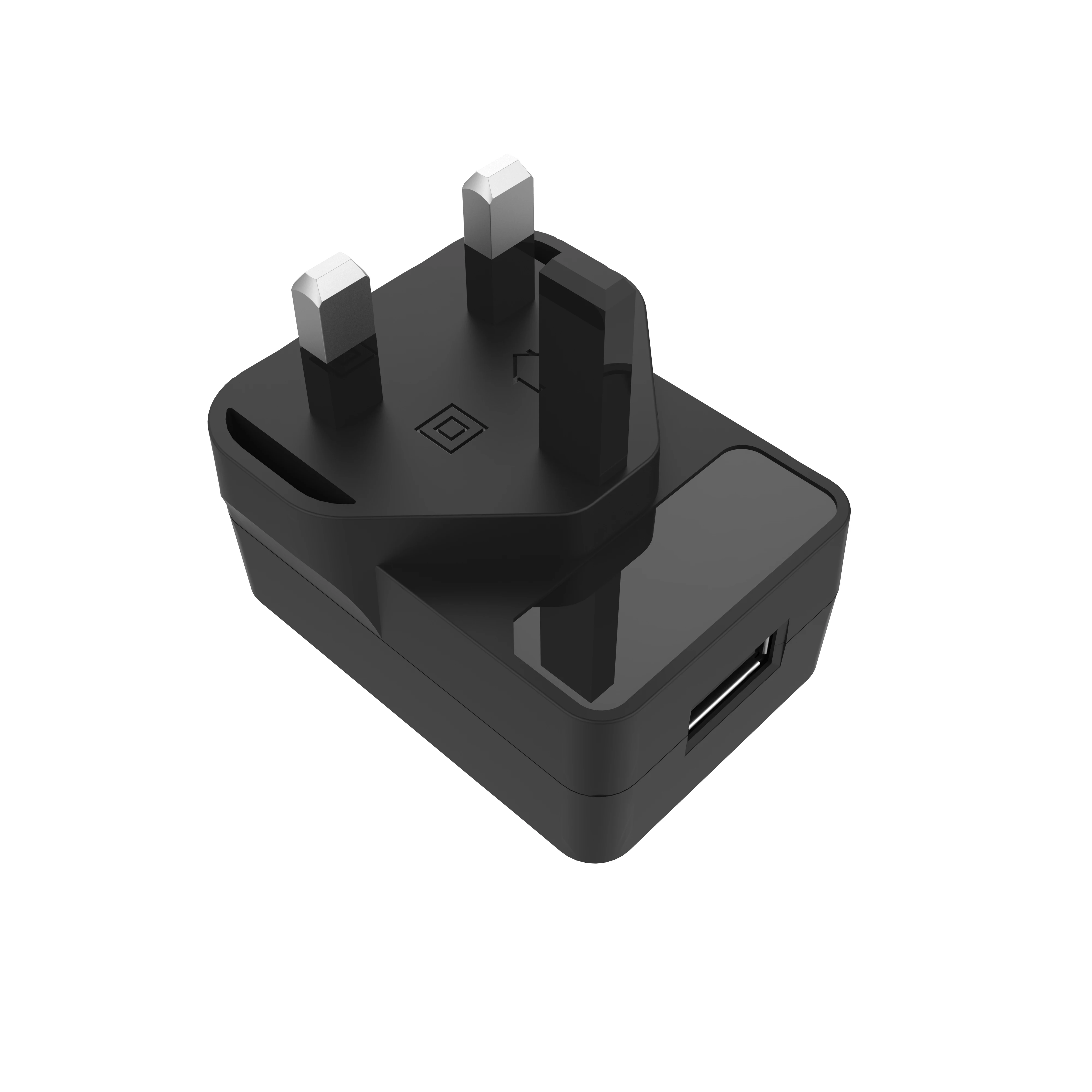

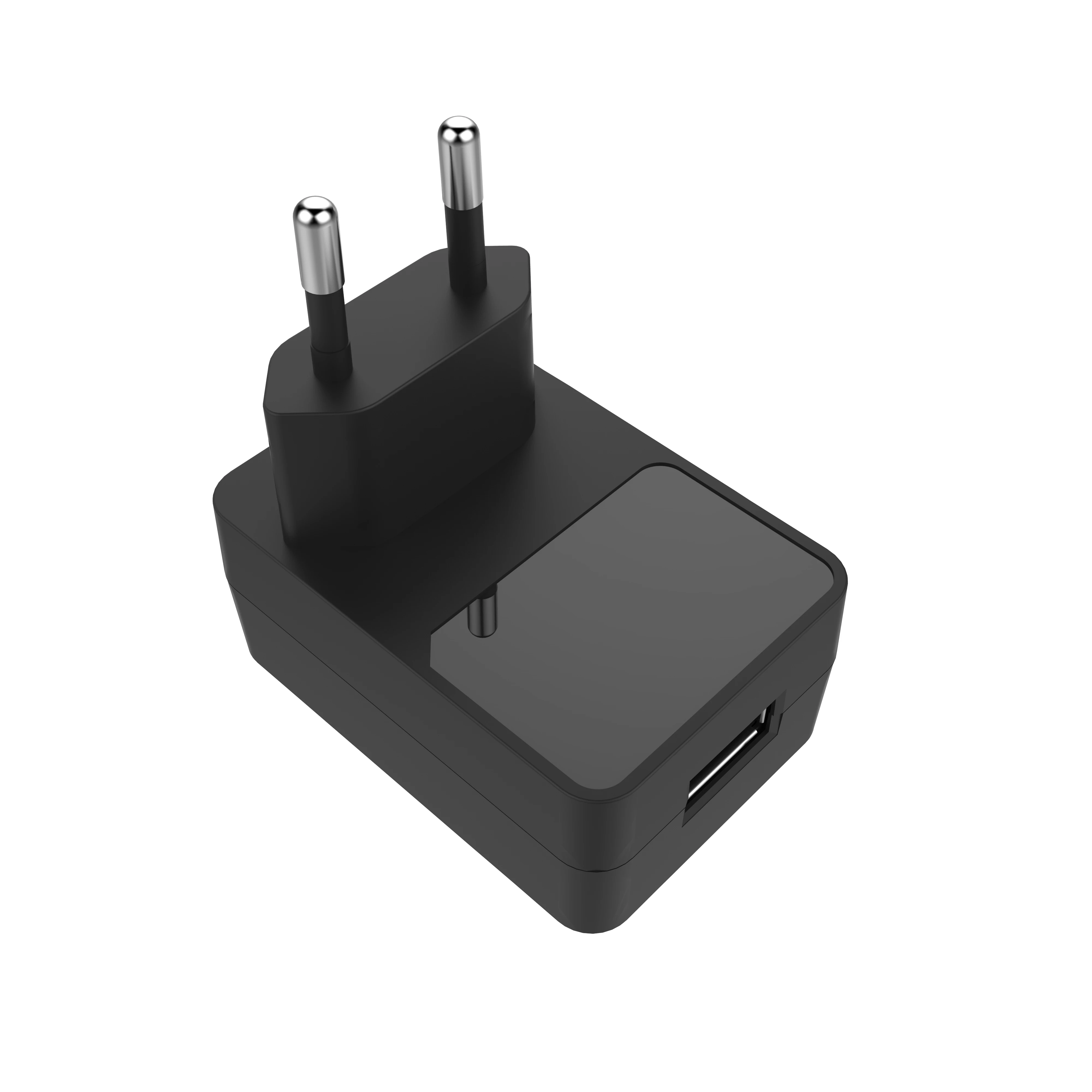

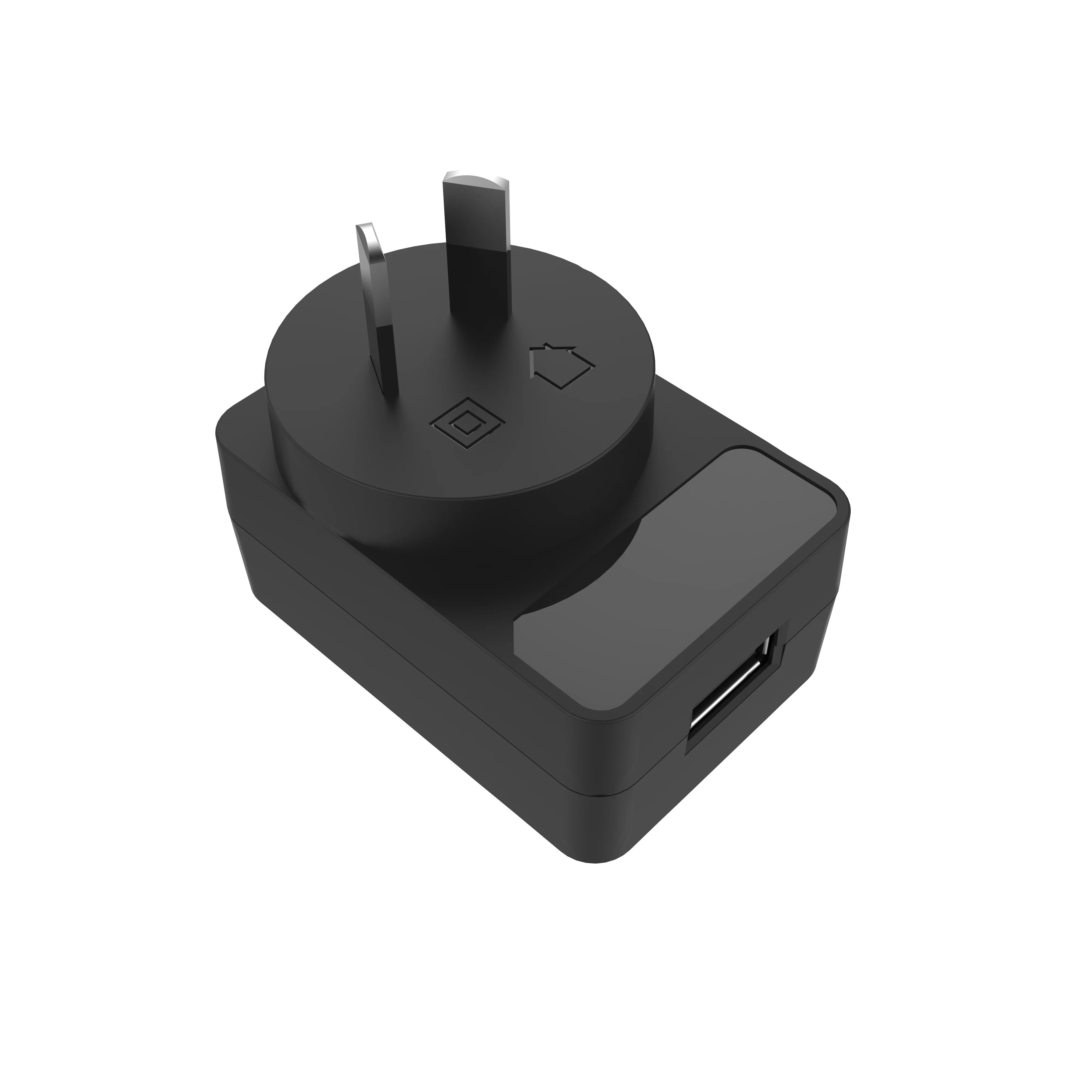

| AC Fix PLUG (Interchangeable Plug) | UL/CE/UK/PSE/KC/SAA/CCC or More | |
| Desktop Type | Avalible | |
| Efficiency Level | VI | |
| load Regulation | +/-5% | |
| Surge | Over 1 KV | |
| No Load power consumption | < 0.1w | |
| Protections | Short-circuit/OCP/OVP | |
| Warranty | 2 Years | |
Company Information
Y&L Electronics (Dongguan) Co., Ltd. Our factories were founded in 1989, currently with 1000 workers. Our products focus on ac/dc linear adapters, switching adapters, power supplies etc. We have solid experience to offer good quality products to customers. Research & Development Our product includes AC/DC adapters, AC/DC linear and switching power suppliers, chargers and earphones etc. Our products range from 0-90W series of plug in type and table type.
We design and develop various power supplies. Our specialist team with years of experience ensures that you can get the best solution for your business needs. They will meet you to discuss your requirements in details, before recommending a solution based on our wide range of internationally approved products. Initial samples are usually available within one week.
Classic Production and Process Control Our production factory is ISO9001:14001 certified, and each of our products is 100% tested by following electrical, hi-pot, vibration, EMI, salt-spray, bending, plug-in and unplug, high and low temperature, on/off, surge, and combustion and drop tests. Average outgoing quality status is around 300PPM. Mass production's lead time is 4-5 weeks. Green Global Energy Solution Provider All of our products comply with energy star requests of related countries, such as CEC level VI, MEPS, ERP, NRCAN etc. and RoHS and REACH compliant. We have abundant experience in ODM and OEM operation. We will have your own design become true. Our mission is always to give excellent services to put our customers first, and do right things while do things right.
Y&L has a set of intact quality management systems. In order to strengthen management further, improve the craft, and guarantee product quality, we constantly introduce the most advanced electron programs-controlled check-up platforms, high-accuracy production and strict quality system. Frontpower Electronics has been working well for the past years. In the future, we will keep focusing on the research and quality to appreciate support from customers.
Our Services
We have a strong customer service Team, We offer OEM/ODM Product service, customer logo is available.
Sample lead time: 7-10 days, mass production lead time: 3-5 wks
Warranty time: 2 years
Payment term : T/T or L/C.
Packaging & Shipping
Packaging: PE Bag White Box
Shipping: FOB Shenzhen/ Hongkong
FAQ
Q1. How to get your samples?
- Our samples less 5pcs will be free of charge, we will offer 3-5pcs in usual. Customer need offer us express account and address to send samples, samples lead time 7-10 days.The normal express account should be Fedex, TNT, UPS, DHL or EMS.
Q2. What is your terms and payment terms?
- T/T, L/C or negotiable with sales representative.
Q3. Do you inspect the finished products?
- Yes. Each product is 200% tested and inspected before package, then we have OQC to make sampling inspecttion to ensure good quality products. Our current quality level for linear adapters is below 100PPM.
Q4. How do you ship the finished products?
- By sea &Air
