Команда международных продаж электрического символ автомат защити цепи с приемлемую цену а
- Категория: Low Voltage Products >>>
- Поставщик: Foshan,Guangzhu,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.68 $* | 0.73 $* |
| Aug-19-2025 | 0.20 $* | 0.1 $* |
| Jul-19-2025 | 0.28 $* | 0.69 $* |
| Jun-19-2025 | 0.74 $* | 0.73 $* |
| May-19-2025 | 0.98 $* | 0.91 $* |
| Apr-19-2025 | 0.11 $* | 0.19 $* |
| Mar-19-2025 | 0.89 $* | 0.32 $* |
| Feb-19-2025 | 0.18 $* | 0.23 $* |
| Jan-19-2025 | 0.25 $* | 0.89 $* |
Характеристики
International sales electrical symbol circuit breaker with Preferential price
Main Specifications:
1. New design C63 circuit breaker
2. High breaking capacity: 6kA/10kA
3. Rated voltage:220V/400V
4. CE CB ISO9001
5. OEM,ODM service
6. Accept small order
International sales electrical symbol circuit breaker with Preferential price
Product Description
1).Rated current: 3,6,10,16,20,25,32,40,50,63A;
2).Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;

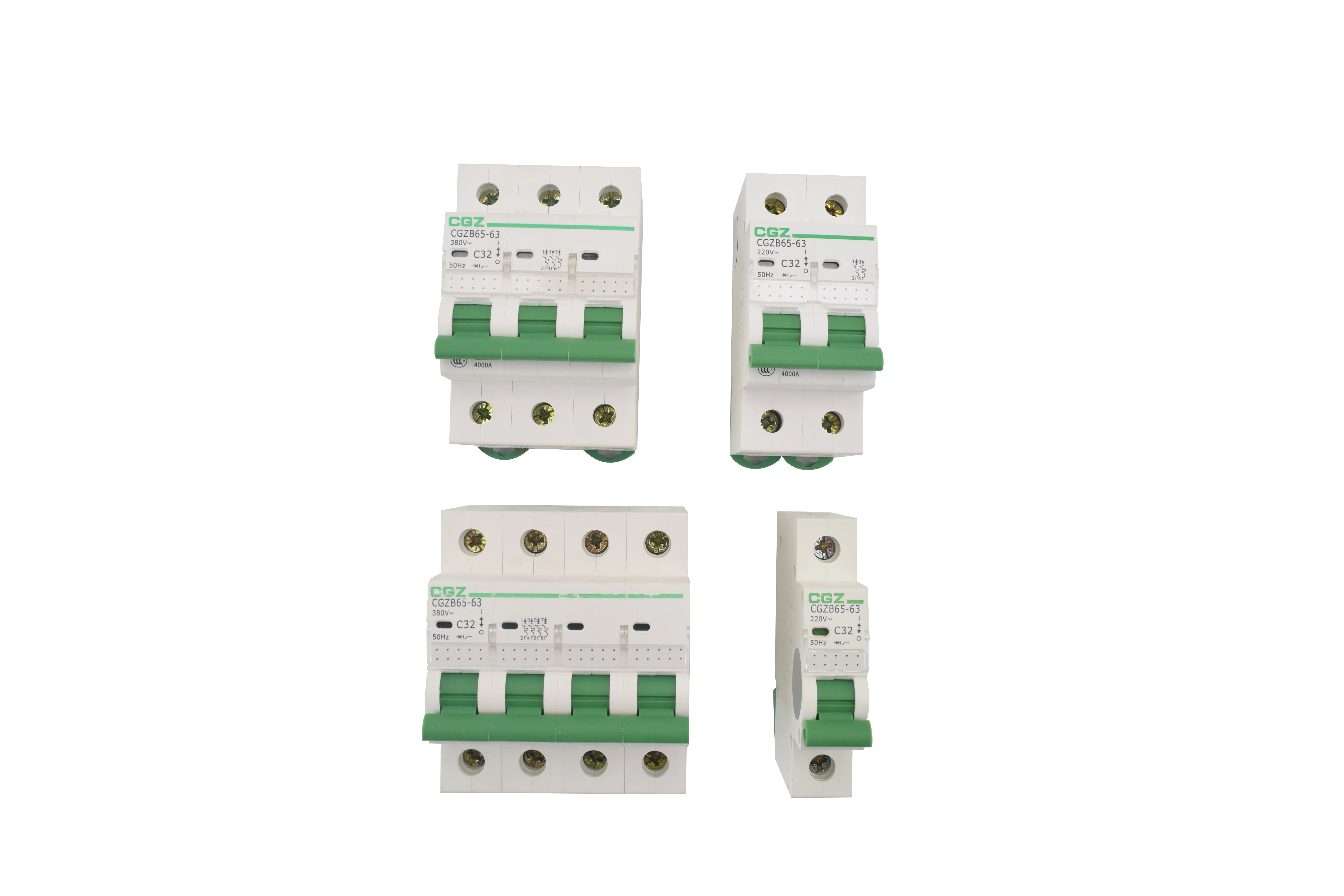

3).No. of pole:1P,2P,3P,4P
4).Breaking capacity: 6KA/10kA;
Standard | IEC60898,EN898 | |
Number of poles | 1P,2P,3P,4P | |
Rated current(In) | 3,6,10,16,20,25,32,40,50,63 | |
Rated voltage(Un) | AC 220/400V | |
Rated frequency | 50Hz/60Hz | |
Tripping curve | B,C,D | |
Release action characteristics | Time delay | 1.13In>1h Non-trip |
1.45In<1h trip | ||
2.55In 1s~60S trip | ||
Instantaneous(Curve C) | 5In >0.1s Non-trip | |
10In<0.1s trip | ||
Magnetic releases operate | B curve:between 3 and 5In | |
C curve :between 5 and 10In | ||
D curve: between 10 and 15In | ||
Ratedbreaking capacit(Lcn) | 6000A | |
Endurance | >2500 | |
Circumstance temperature | -5~+40 | |
Electrical life | >6000times | |
Mechanical life | 20000 times | |
Tropical ration | Treatmen 2(RH95%,at 55°C) | |
Protection degree | IP20 |
Application:
This C63 circuit breaker is mainly used in AC50/60Hz single pole220V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal condition.
This C63 circuit breaker is suitable for industry, business, building, ressidence, etc.
This C63 circuit breaker is conformity with GB10963,IEC60898 standards.
Packaging & Shipping
Packing details:
A. Product Net weight: 128g/pole
B. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton
C. N.W: 25KG/carton
D. G.W: 26KG/carton
E. Packing Measurement: inner box 22.5×9×8 cm, Carton 46×24×34cm (ie 0.038 cbm)
>
Company Information
production capacity
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
We have won the title of Chinese Well-Known and Quality Products and the national Demonstrating Unit Of AAA-Class Quality, Service and Credit;become one of the 1st lot of National Compulsory CCC Certification;and attained the spot-check qualification certification issued by Foshan Quality Technology Supervisipn Bureau.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
FAQ
FAQ:
Q 1. what's the delivery time?
A. usually it will take about 15 days for production.
Q 2. tell me the standard of package?
A. Standard export carton packing with good quality carton box.
Q 3. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q 4.Can you accept to use our logo?
A.If you have good quantity,it absolute no problem to do OEM or ODM.
Q 5.We want to know monthly capacity.
A. 100000pcs/month
Q 6. what kind of certificate do you have?
A. Our company already achieve ISO, and for products, we have CE & CB certificates.
Our Services
Our Services:
1. OEM Experiences above 12 Years in this field.
2. Reply your enquiry in 24 working hours.
3. Experienced staffs answer all your questions in professional and fluent English.
4. Customized design is available. OEM & ODM are welcome.
5. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
6. Special discount and protection of sales area provided to your distributor.
