Пресс-форм и водостойкий гипсокартон экструдированный пенополистирол база xps плитка подкладной
- Категория: XPS Boards >>>
- Поставщик: Hangzhou,Tyco,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.46 $* | 0.67 $* |
| Aug-16-2025 | 0.32 $* | 0.98 $* |
| Jul-16-2025 | 0.57 $* | 0.70 $* |
| Jun-16-2025 | 0.21 $* | 0.21 $* |
| May-16-2025 | 0.70 $* | 0.21 $* |
| Apr-16-2025 | 0.33 $* | 0.7 $* |
| Mar-16-2025 | 0.67 $* | 0.39 $* |
| Feb-16-2025 | 0.98 $* | 0.69 $* |
| Jan-16-2025 | 0.1 $* | 0.28 $* |
Характеристики
Who We Are
Products Description

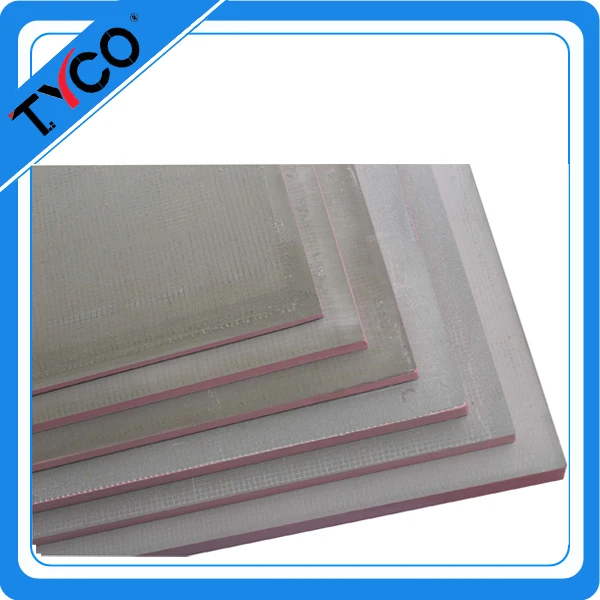

TYCO backer board is made of XPS foam board(CFC&HCFC free, blue closed cell core) in core and coated with fiberglass mesh and polymer cement mortar on both sides. It makes the backer board ideal base for setting tiles using the thin bed process. The XPS foam board in core is 100% waterproof and offers expectional resistance to water vapor. As proof, these panels meet the stringent standards of ASTM/ANSI testing for waterproofing and are suitable as part of a waterproof installation when seams and fastener heads are properly treated.
*Thermally insulating
* Waterproof and dimensionally stable
* Low weight, one board(1200x600x10mm) is around 1.8KG
* Waterproof and dimensionally stable
* Low weight, one board(1200x600x10mm) is around 1.8KG
* Easy to be tiled
* Easy to cut(by knife or Saw)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC&HCFC)
* Excellent for wet rooms
* Excellent sound insulation(12mm board, 20 db)
* Environment friendly(free of CFC&HCFC)
Technical Data
TYCO board 100% fresh raw material vs cheap recycled material
TYCO board material is approved by REACH, free of HBCD, HCFC, CFC, board quality meet EN13164.
Density | EN 1602 | 33kg/m3 |
Thermal conductivity, 90 days, 10°C | EN12939:2000 | 0.032W/(m*K) |
Compressive strength | EN826 | >300Kpa |
Tensile strength | EN 1607 | >300Kpa |
Water absorption | EN 12087 | 0.80% |
Dimensional stability | EN 1604 | 0.90% |
CIT Value | EN45545-2:2013+A:2015 | 0.07 |
Fire resistant | EN 13501-1:2018 | E |
Sound Insulation (20mm thickness) | ISO140-3:1995+A1:2004 | 21db |
Sizes & Packing
European hot selling sizes
Item No. | Thickness | Width | Length |
UTB12006 | 6mm | 600mm | 1200/1250mm |
UTB12010 | 10mm | ||
UTB12012 | 12mm | ||
UTB24410 | 10mm | 600mm | 2440/2500mm |
UTB24412 | 12mm | ||
UTB24420 | 20mm | ||
UTB24430 | 30mm | ||
UTB24450 | 50mm |
Please feel free to contact us for any size or shape you need.
OEM & ODM is available!
Northern American hot selling sizes
Item No. | Width*Length*Thickness |
CB53-12.7 | 3'x5'x1/2" (914*1524*12.7mm) |
CB83-12.7 | 3'x8'x1/2" (914*2440*12.7mm) |
CB84-25 | 4'x8'x1" (1220*2440*25mm) |
CB83-50 | 3'x8x2" (914*2440*50mm) |
CB84-50 | 4'x8'x2" (1220*2440*50mm) |
Packing: by carton or by pallet directly
Application & Installation
Certifications
Related Products
FAQ
Q1. How can I get a FOB quotation?
Please send me inquiry to notice me what size (length*width*thickness) and quantity you need.
Q2. If I need a deliver service, what can I do?
Pls let me know Q1 and below:
1.Nearest seaport which you can pick pallet.
Detail address and zip-code.
Q3. How can I get a sample?
We can offer A4 size sample freely, but customer need pay deliver cost.
We can receive sample deliver cost by Paypal.
If you need sample pls contact to us.
Q4. How I can contact you if no reply on Alibaba?
Because of time difference around world, sometime we may can't reply immediately.
You can contact Whatsapp +86 18868804103 for help
Or send email directly to daisy@hztyco.com
Thanks
More questions, pls contact us for help.
