DFG Прямая продажа латунь/SS/ПВХ встроенный акриловый механический 5GPM расходомер воды цилиндрический

DFG Прямая продажа латунь/SS/ПВХ встроенный акриловый механический 5GPM расходомер воды цилиндрический

Категория: Flow Meters >>>
Поставщик: Hangzhou,Darhor,Technology,Co.,Limited

Цена:7,80 $ - 12,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	9.18 $*	9.64 $*
Jul-16-2025	7.60 $*	7.37 $*
Jun-16-2025	9.60 $*	9.83 $*
May-16-2025	9.38 $*	9.75 $*
Apr-16-2025	7.11 $*	7.6 $*
Mar-16-2025	9.82 $*	9.49 $*
Feb-16-2025	8.6 $*	8.62 $*
Jan-16-2025	8.2 $*	8.14 $*

Характеристики

DFA panel mount flow meter

98.8% Response Rate

DH45 inline flow meter

99.8% Response Rate

DFG-6T mini flow meter

98.8% Response Rate

Product Description

Product Application

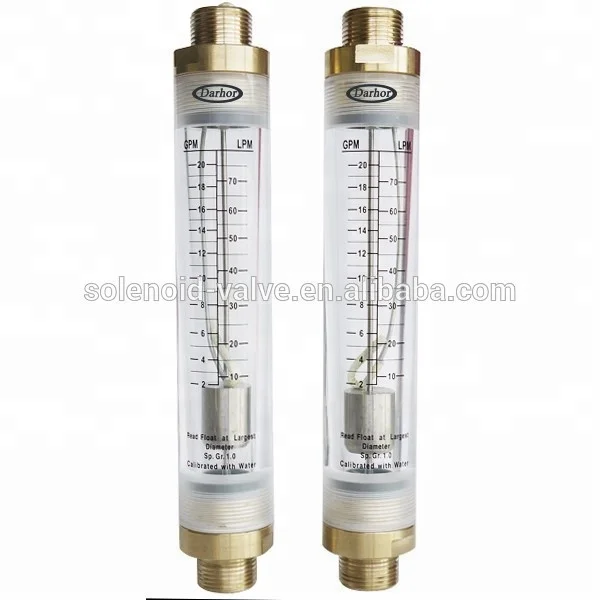

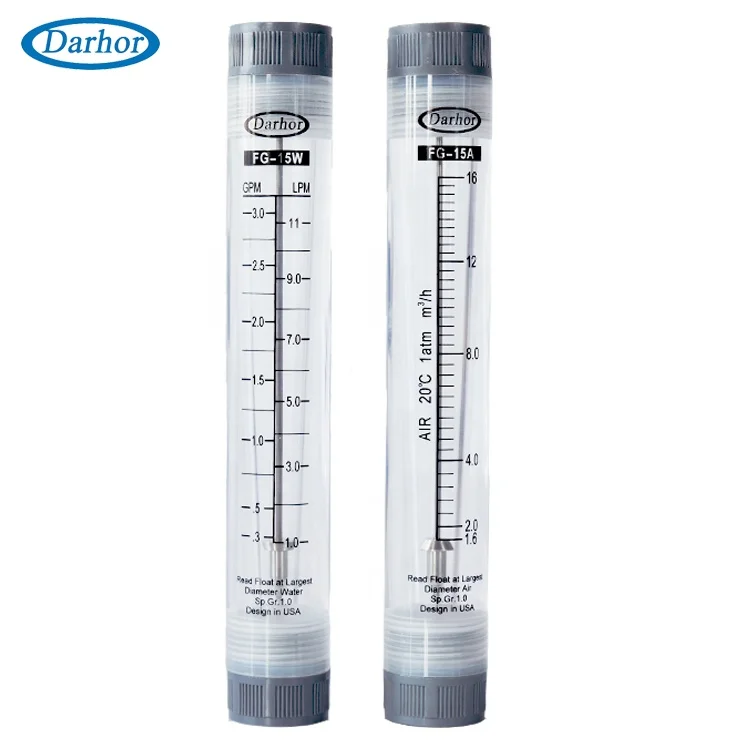

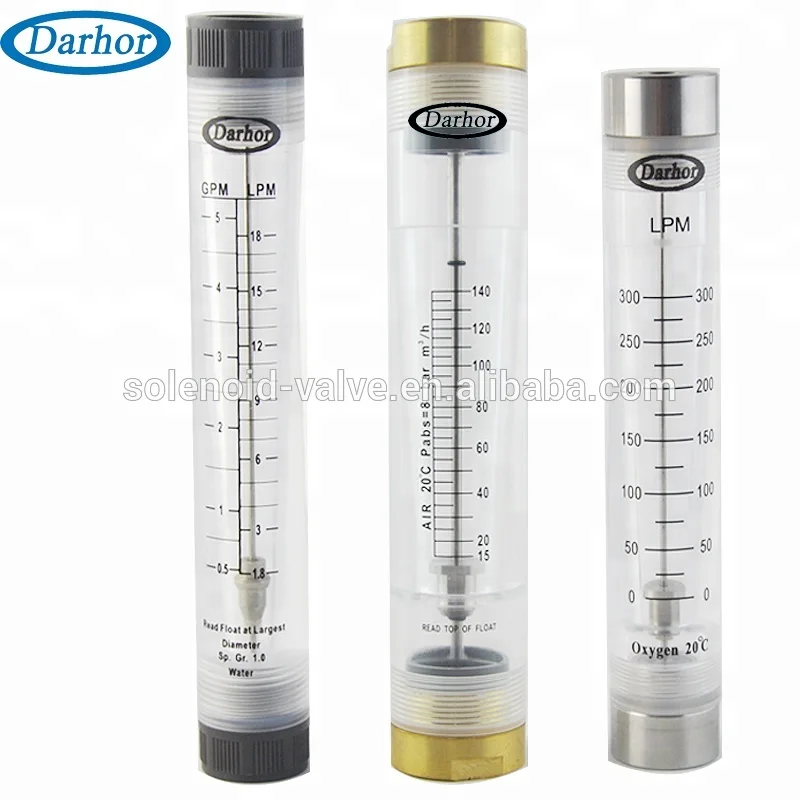

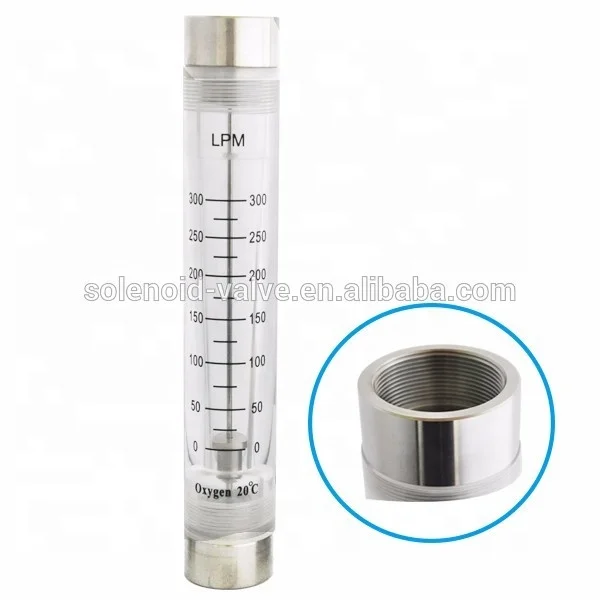

DFG is a real value in general purpose rotameters. DFG in-line flow meter also named crylic tube rotameter ,acrylic tube flowmeter. SS or ABS or PVC or PP or Brass Connection.

Main Features

1.Tough machined acrylic meter body, highly polished to a clear finish.

2.Direct reading permanent scale.

2.White back reflector for easy reading.

4.316 stainless steel rod guided floats.

5.Acceptable in direct sunlight applications.

DFG Circular tube type flowmeter

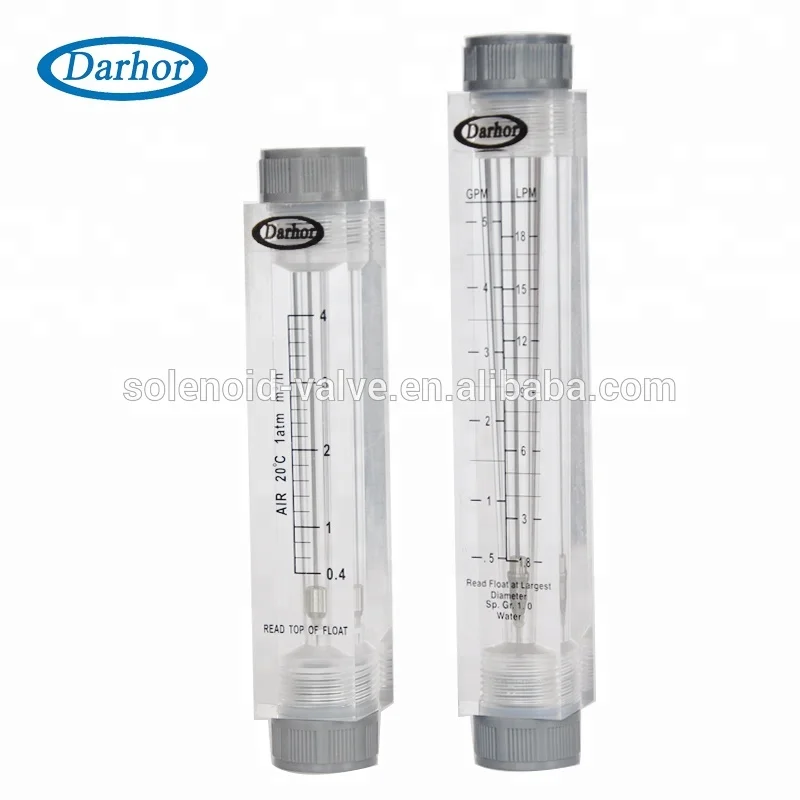

DFG-F Quadrate tube type flowmeter

Model	Size(mm)
Model		A	B	C
DFG-10	187	130	22
DFG-15D	180	150	32
DFG-15	210	180	32
DFG-20	278	236	45
DFG-25	265	235	51
DFG-40	306	235	51
DFG-50 Male	380	270	75
DFG-50 Female	340	270	75
DFG-75F	392	298	100×100

Adaptor	Float	O-rinig
√1.PVC	√1.SS	√1.Silicon rubber
2.PP	2.Agate ball	2.Fluorine rubber
3.ABS	3.PTFE	3.Butyl
4.Brass
5.Brass chromeplate
6.SS

Detailed Images

Spare Parts

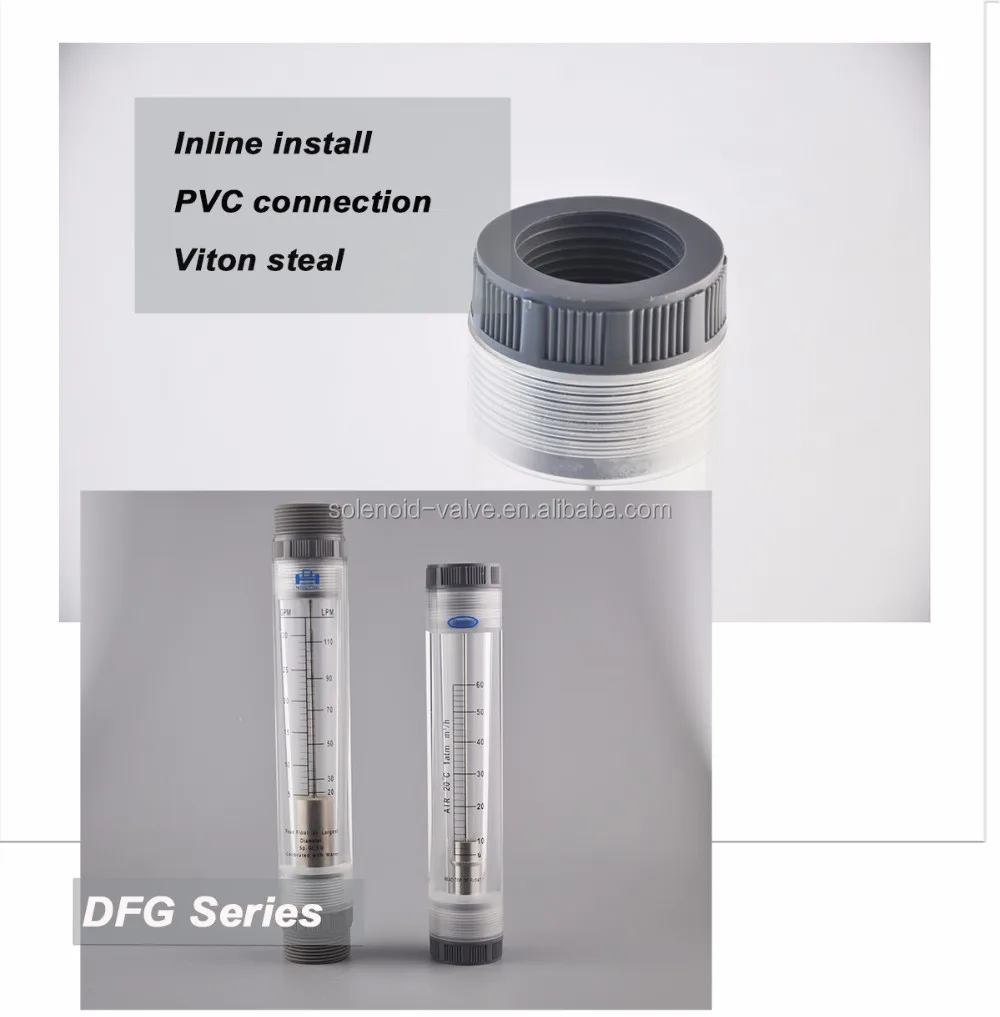

Adapters : PVC

O-ring seals: Viton

Guide rod and float : 316 stainless steel rod guided floats.

Alarm switch

Upper limited switch and down limited switch
Alarm switch is installed on the slide guide rail, select the desired location .When magnetic float reach or exceed the switch position, namely the signal Internal contacts open or closed at this time.
