QLC800 усовершенствованный Электролизер для водородных элементов PEM

QLC800 усовершенствованный Электролизер для водородных элементов PEM

Категория: Energy & Mineral Equipment >>>
Поставщик: Shandong,Saikesaisi,Hydrogen,Energy,Co.,Ltd.Shandong,Ltd.

Цена:108 833,47-136 041,84 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	138218.92 $*	140982.0 $*
Jul-15-2025	112098.86 $*	114340.71 $*
Jun-15-2025	136041.88 $*	138762.7 $*
May-15-2025	134953.61 $*	137652.54 $*
Apr-15-2025	107745.45 $*	109900.77 $*
Mar-15-2025	132776.86 $*	135432.42 $*
Feb-15-2025	131688.37 $*	134322.46 $*
Jan-15-2025	130600.43 $*	133212.78 $*

Характеристики

Hydrogen and Oxygen Electrolyzer of water

-PEM Electrolyzer cell

Product Introduction

QLC electrolyzer cell is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology. The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.

Working Principle of QLC800 electrolyzer cell

Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2 O), and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.

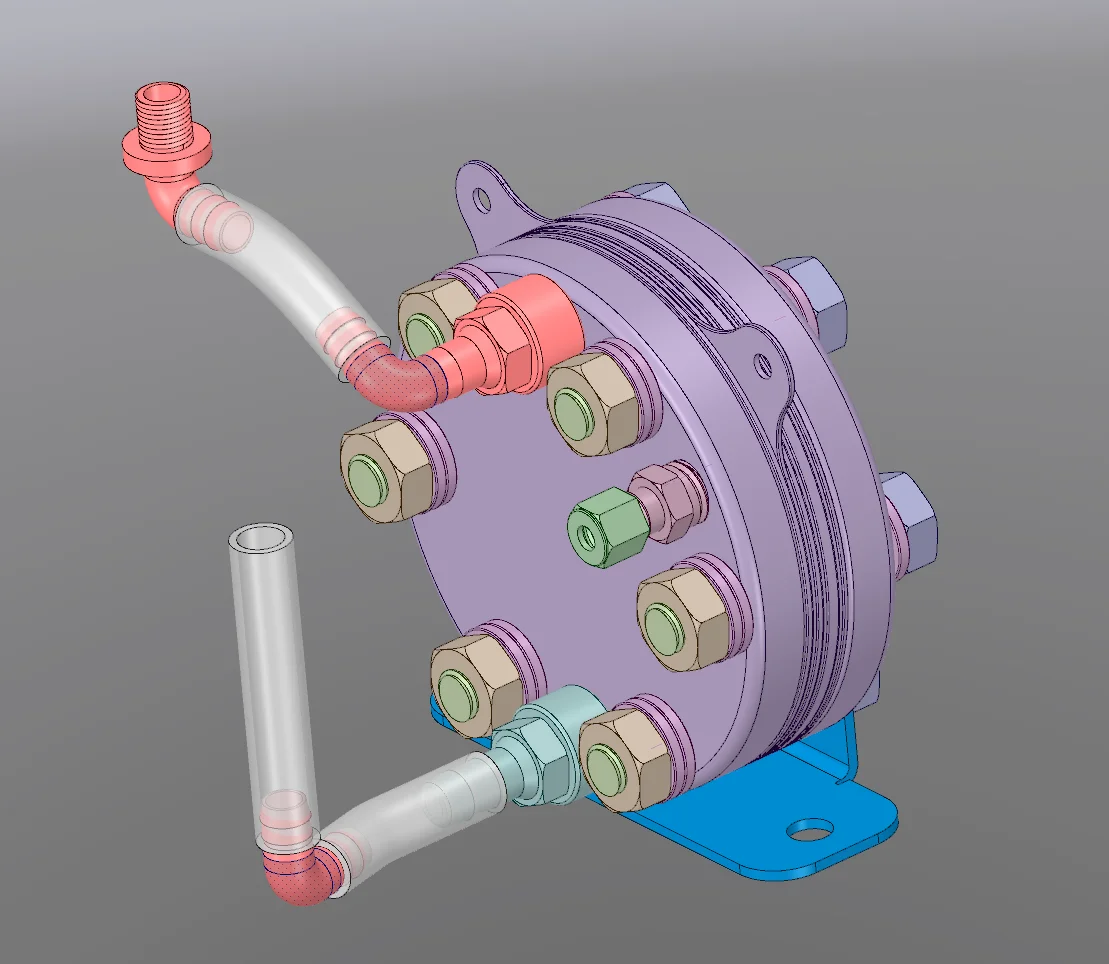

Shape Structure

1.Negative electrode

2. Oxygen and water outlet

3. Positive Electrode

4.H2 outlet

5.Fix Bracket

6.Water Inlet

Working Parameters of QLC800 electrolyzer cell

model Parameter	QLC-800
voltage(DC)	6V (metered from electrode)
current(DC)	38A
Max H2 production	800ml/min
Max O2 production	400ml/min

Notice

1, Electrolytic water must be deionized or secondary distilled water, water does not meet the standards will cause irreparable damage to the electrolytic tank.

2, Connect the electrode line must be right.

3, The electrolytic cell can not be drained for a long time. If the electrolytic cell is removed, a small amount of deionized water or secondary distilled water should be injected into it.

Welcome to visit our factory! We could supply customized product according to different technical demand.
